2015 MAZDA MODEL 6 ECO mode

Black plate (116,1)
NOTElThe theft deterrent system can also be
armed by activating the auto relock
function with all the doors, the trunk lid
and the hood closed.
Refer to Transmitter on page 3-4.
lThe system will disarm if one of the
following operations takes place within 20
seconds after pressing the lock button:
lUnlocking a door.lAny door or the trunk lid is opened.lThe hood is opened.lThe ignition is switched on.l(With the advanced keyless function)
Press the electric trunk lid opener while
the key is being carried.
To rearm the system, do the arming
procedure again.
lWhen the doors are locked by pressing the
lock button on the transmitter or using the
auxiliary key while the theft-deterrent
system is armed, the hazard warning lights
will flash once to indicate that the system is
armed.
qTo Turn Off an Armed System
An armed system can be turned off using
any one of the following methods:
lUnlock the driver's door with the
auxiliary key.í
lPress the unlock button on the
transmitter.
lSwitch the ignition ON.l(With the advanced keyless function)
Press a request switch on the doors.
The hazard warning lights will flash
twice.NOTE
When the doors are unlocked by pressing the
unlock button on the transmitter or using the
auxiliary key
íwhile the theft-deterrent system
is turned off, the hazard warning lights will
flash twice to indicate that the system is turned
off.
qTo Stop the Alarm
A triggered alarm can be turned off using
any one of the following methods:
lUnlock the driver's door with the
auxiliary key.í
lPress the unlock button on the
transmitter.
lThe engine is started with the push
button start.
l(With the advanced keyless function)lPress a request switch on the doors.lPress the electric trunk lid opener
while the key is being carried.
The hazard warning lights will flash
twice.
qTheft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove compartment.
Mazda recommends that you affix it to the
lower rear corner of a front door window.
3-44
Before Driving
íSome models.
Security System
Mazda6_8DQ8-EA-13L_Edition3 Page116
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (135,1)
qSpeedometer
The speedometer indicates the speed of
the vehicle.
qOdometer, Trip Meter and Trip
Meter Selector
The display mode can be changed
between trip meter A and trip meter B by
pressing the selector while one of them is
displayed. The selected mode will be
displayed.
Type A
Press the selector Press the selector Trip meter A
Odometer
Trip meter B
Odometer
Type B
Press the selector Press the selector Trip meter A
Odometer
Trip meter B
Odometer
NOTE
When the ignition is switched to ACC or OFF,
the odometer or trip meters cannot be
displayed, however, pressing the selector can
inadvertently switch the trip meters or reset
them during an approximate ten-minute period
in the following cases:
lAfter the ignition is switched to OFF from
ON.
lAfter the driver's door is opened.
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
When Driving
Instrument Cluster and Display
4-11
Mazda6_8DQ8-EA-13L_Edition3 Page135
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (136,1)
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to“0.0”by holding
the selector depressed for 1 second or
more. Use this meter to measure trip
distances and to compute fuel
consumption.
NOTE
lOnly the trip meters record tenths of
kilometers (miles).
lThe trip record will be erased when:lThe power supply is interrupted (blown
fuse or the battery is disconnected).
lThe vehicle is driven over 9999.9 km
(mile).
qTachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).
Red zone Striped zone
CAUTION
Do not run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine
damage.
NOTE
When the tachometer needle enters the
STRIPED ZONE, this indicates to the driver
that the gears should be shifted before entering
the RED ZONE.
4-12
When Driving
Instrument Cluster and Display
Mazda6_8DQ8-EA-13L_Edition3 Page136
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (142,1)
Method for turning the system off
The maintenance monitor can be turned
off even after it has been turned on. If you
want to turn it off, the remaining distance
and time calculation to the next
maintenance period is stopped, and a
message does not display to indicate an
approaching maintenance period.
1. Press the up
or downpart of the
INFO switch and select Settings, and
then press the INFO button.
2. Press the up
or downpart of the
INFO switch and select Maintenance,
and then press the INFO button.
3. Press the up
or downpart of the
INFO switch to select the item you
want to turn off from the following,
and then press the INFO button.
lScheduledlTire RotationlTire Pressure
4. Select OFF and press the INFO button.
qTrip Computer and INFO Switch
The following information can be selected
by pressing the up
or downpart of
the INFO switch with the ignition
switched ON.
lApproximate distance you can travel
on the available fuel
lAverage fuel economylCurrent fuel economylAverage vehicle speedli-ELOOP display (Type A instrument
cluster)í
lLane departure warning system
(LDWS) display (Type A instrument
cluster)
í
lMazda Radar Cruise Control (MRCC)
display (Type A instrument cluster)í
lSettings (Type A instrument cluster)lWarning (Type A instrument cluster)
If you have any problems with your trip
computer, consult an Authorized Mazda
Dealer.
Distance-to-empty mode
This mode displays the approximate
distance you can travel on the remaining
fuel based on the fuel economy.
4-18
When Driving
íSome models.
Instrument Cluster and Display
Mazda6_8DQ8-EA-13L_Edition3 Page142
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (143,1)
The distance-to-empty will be calculated
and displayed every second.
Type A
Type B
NOTElEven though the distance-to-empty display
may indicate a sufficient amount of
remaining driving distance before refueling
is required, refuel as soon as possible if the
fuel level is very low or the low fuel
warning light illuminates.
lThe display will not change unless you add
more than approximately 10 L (2.6 US gal,
2.2 Imp gal) of fuel.
lThe distance-to-empty is the approximate
remaining distance the vehicle can be
driven until all the graduation marks in the
fuel gauge indicating the remaining fuel
supply disappear.
Average fuel economy mode
This mode displays the average fuel
economy by calculating the total fuel
consumption and the total traveled
distance since purchasing the vehicle, re-
connecting the battery after disconnection,
or resetting the data. The average fuel
economy is calculated and displayed
every minute.
Type A
Type B
To clear the data being displayed, press
the INFO button for more than 1.5
seconds.
After pressing the INFO button, - - - L/
100 km (- - - mpg) will be displayed for
about 1 minute before the fuel economy is
recalculated and displayed.
Current fuel economy mode
This mode displays the current fuel
economy by calculating the amount of
fuel consumption and the distance
traveled.
When Driving
Instrument Cluster and Display
4-19
Mazda6_8DQ8-EA-13L_Edition3 Page143
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (144,1)

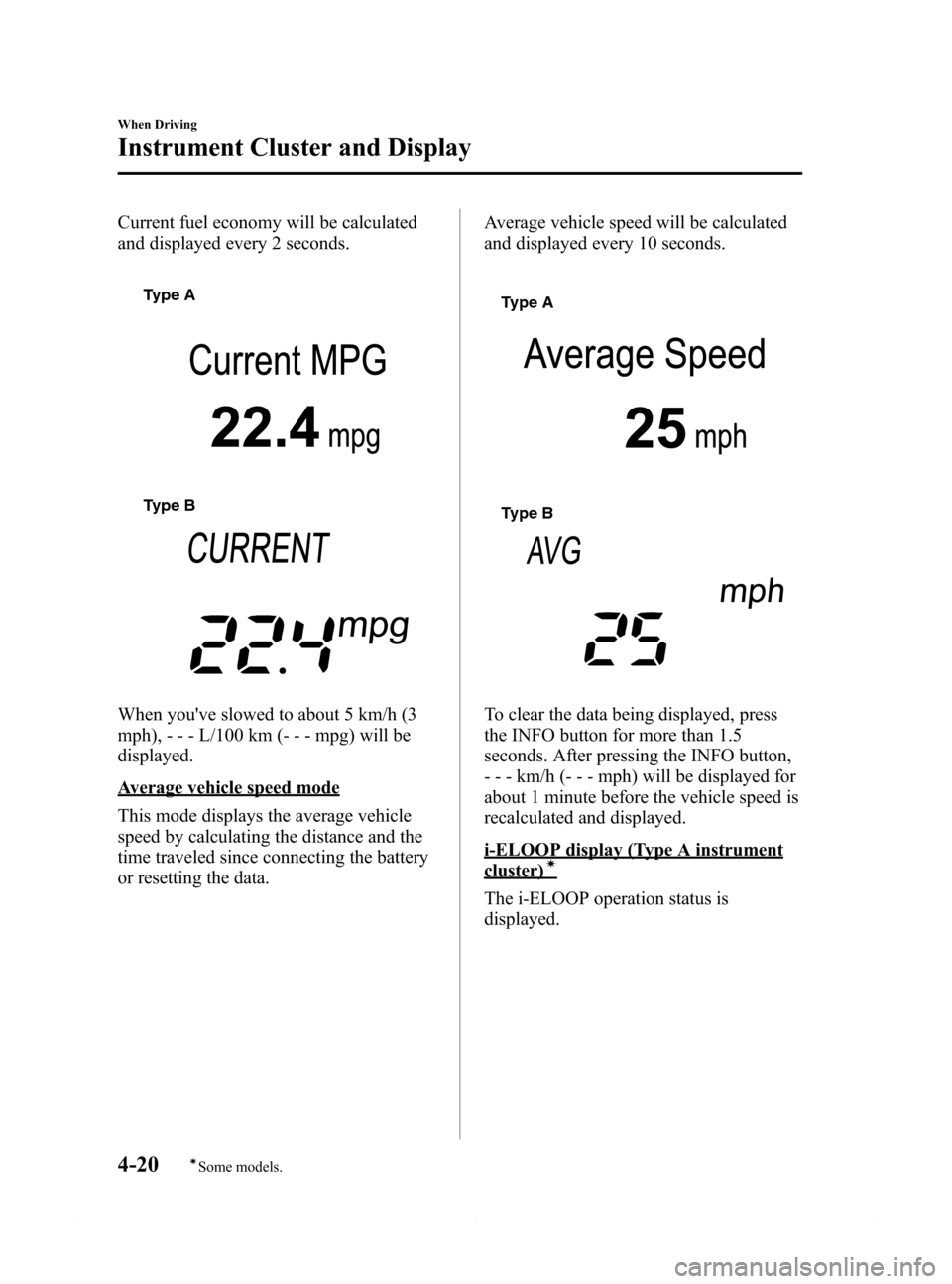

Current fuel economy will be calculated
and displayed every 2 seconds.
Type A
Type B
When you've slowed to about 5 km/h (3
mph), - - - L/100 km (- - - mpg) will be
displayed.
Average vehicle speed mode
This mode displays the average vehicle
speed by calculating the distance and the
time traveled since connecting the battery
or resetting the data.Average vehicle speed will be calculated
and displayed every 10 seconds.
Type A
Type B
To clear the data being displayed, press
the INFO button for more than 1.5
seconds. After pressing the INFO button,
- - - km/h (- - - mph) will be displayed for
about 1 minute before the vehicle speed is
recalculated and displayed.
i-ELOOP display (Type A instrument
cluster)í
The i-ELOOP operation status is
displayed.
4-20
When Driving
íSome models.
Instrument Cluster and Display
Mazda6_8DQ8-EA-13L_Edition3 Page144
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (158,1)
CAUTION
ØIf any of the following cases
occurs, the system may have a
malfunction. Have the vehicle
inspected at an Authorized Mazda
Dealer.
ØThe light flashes while the
vehicle is being driven.
ØThe light does not illuminate
when the ignition is switched
ON.
ØAlways use tires for all wheels that
are of the specified size, and the
same manufacture, brand, and
tread pattern. In addition, do not
use tires with significantly
different wear patterns on the
same vehicle. If such improper
tires are used, the LDWS may not
operate normally.
ØWhen an emergency spare tire is
used, the system may not operate
normally.
LDWS indicator light (Green)
When illuminated
lThe LDWS indicator light illuminates
from the standby condition when the
following conditions are met.
lThe vehicle speed is 65 km/h (40
mph) or faster.
lWhite (yellow) lines are detected.lThe indicator light turns off when the
LDWS switch is pressed.
When flashing
The indicator flashes when the system
determines that the vehicle may be
deviating from its lane.
qAutomatic Transaxle Warning
Indication/Warning Lightí
Type B
This warning light stays on for a few
seconds when the ignition is switched
ON.
Type A/Type B
The light/indication illuminates when the
transaxle has a problem.
CAUTION
If the automatic transaxle warning
light/warning indication illuminates,
the transaxle has an electrical
problem. Continuing to drive your
Mazda in this condition could cause
damage to your transaxle. Consult
an Authorized Mazda Dealer as soon
as possible.
qPower Steering Malfunction
Indication/Indicator Light
Type B
This indicator light illuminates when the
ignition is switched ON, and turns off
when the engine is started.
4-34
When Driving
íSome models.
Instrument Cluster and Display
Mazda6_8DQ8-EA-13L_Edition3 Page158
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (159,1)
Type A/Type B
The power steering malfunction indicator
light/warning indication illuminates if
there is a malfunction with the power
steering while the engine is running.
If the indicator light/warning indication
illuminates, park the vehicle in a safe
place immediately and stop the engine.
If the indicator light/warning indication
does not turn off even if the engine is
restarted afterwards, consult an
Authorized Mazda Dealer.
NOTE
lIf the indicator light/warning indication
illuminates, the power steering will not
operate normally. If this happens, the
steering wheel can still be operated,
however, the operation may feel heavy
compared to normal, and the steering
wheel could vibrate when turning.
lRepeatedly jerking the steering wheel left
and right while the vehicle is stopped or
moving extremely slowly will cause the
power steering system to go into protective
mode which will make the steering feel
heavy, but this does not indicate a problem.
If this occurs, park the vehicle safely and
wait several minutes for the system to
return to normal.
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is working properly, the warning
light illuminates when the ignition is
switched ON or after the engine is
cranked. The warning light turns off after
a specified period of time.
A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition is
switched ON. If any of these occur,
consult an Authorized Mazda Dealer as
soon as possible. The system may not
operate in an accident.
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
When Driving
Instrument Cluster and Display
4-35
Mazda6_8DQ8-EA-13L_Edition3 Page159
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L
