2015 MAZDA MODEL 5 engine

Black plate (355,1)
ØUse only soft (demineralized)
water in the coolant mixture.
Water that contains minerals will
cut down on the coolant's
effectiveness.
Ø Do not add only water. Always
add a proper coolant mixture.
Ø The engine has aluminum parts
and must be protected by an
ethylene-glycol-based coolant to
prevent corrosion and freezing.
Ø DO NOT USE coolants Containing
Alcohol, methanol, Borate or
Silicate.
These coolants could damage the
cooling system.
Ø DO NOT MIX alcohol or methanol
with the coolant. This could
damage the cooling system.
Ø Do not use a solution that
contains more than 60%
antifreeze.
This would reduce effectiveness.
Ø If the “FL22 ”mark is shown on or
near the cooling system cap, use of
FL-22 is recommended when
replacing engine coolant. Using
engine coolant other than FL-22
may cause serious damage to the
engine and cooling system.If the coolant reservoir is empty or new
coolant is required frequently, consult an
Authorized Mazda Dealer.
Maintenance and Care
Owner Maintenance
8-23
Mazda5_8DW3-EA-14H_Edition3 Page355
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (356,1)
Brake/Clutch Fluid
qInspecting Brake/Clutch Fluid Level
WARNING
If the brake/clutch fluid level is low,
have the brakes inspected:A low brake/clutch fluid level is
dangerous.
A low level could indicate brake
lining wear or a brake system leak
which could cause the brakes to fail
and lead to an accident.
The brakes and clutch draw fluid from the
same reservoir.
Inspect the fluid level in the reservoir
regularly. It should be kept between the
MAX and MIN lines.
The level normally drops with
accumulated distance, a condition
associated with wear of brake and clutch
linings. If it is excessively low, have the
brake/clutch system inspected by an
Authorized Mazda Dealer.
Power Steering Fluid
q Inspecting Power Steering Fluid
Level
CAUTION
To avoid damage to the power
steering pump, do not operate the
vehicle for long periods when the
power steering fluid level is low.
Inspect the fluid level in the reservoir at
each engine oil change with the engine off
and cold.
The level must be kept between MIN and
MAX.
Visually examine the lines and hoses for
leaks and damage.
If the fluid decreases significantly or the
fluid level is around MIN or lower than
MIN, consult an Authorized Mazda
Dealer to have the vehicle inspected.
8-24
Maintenance and Care
Owner Maintenance
Mazda5_8DW3-EA-14H_Edition3 Page356
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (357,1)
Automatic Transaxle Fluid
(ATF)
í
qInspecting Automatic Transaxle
Fluid Level
The automatic transaxle fluid level should
be inspected regularly. Measure it as
described below.
CAUTION
Always check the automatic
transaxle fluid level according to the
following procedure. If the procedure
is not done correctly, the automatic
transaxle fluid level cannot be
measured accurately which could
lead to automatic transaxle damage.
1. Park on a level surface and set the parking brake firmly.
2. Make sure there is no ATF leakage from the ATF hose or the housing.
3. Shift the shift lever to the park position (P), start the engine and warm it up.
CAUTION
Do not shift the shift lever while the
engine is warming up. If the ATF level
is extremely low, the automatic
transaxle could be damaged.
4. While the engine is still idling, pull out the dipstick and wipe it clean, and then
reinsert it.
5. Check the ATF level. If the ATF level does not reach 5 mm (0.2 in) from the
end of the dipstick, consult an
Authorized Mazda Dealer to have the
vehicle inspected.
CAUTION
If there is no ATF adhering to the
dipstick even after the engine has
been warmed up, do not drive the
vehicle. Otherwise, the automatic
transaxle could be damaged.
6. With the brake pedal depressed, shift the shift lever from the park position
(P) to drive position (D) at intervals of
several seconds, and then shift to the
park position (P) again.
7. Drive 5 km (4 mile) or more in a city.
8. Park on a level surface, shift the shift lever to the park position (P) and set
the parking brake firmly.
9. While the engine is still idling, pull out the dipstick and wipe it clean, and then
reinsert it.
10. Check the ATF level. The proper fluid level indicated on the dipstick should
be as follows.
Full
OK
Low
Maintenance and Care
Owner Maintenance
8-25íSome models.
Mazda5_8DW3-EA-14H_Edition3 Page357
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (358,1)
CAUTION
ØUse the cold scale only as a
reference.
Ø If outside temperature is lower
than about 20 °C (70 °F), start the
engine and inspect the fluid level
after the engine reaches operating
temperature.
Ø If the vehicle has been driven for
an extended period at high speeds
or in city traffic in hot weather,
inspect the level only after
stopping the engine and allowing
the fluid to cool for 30 minutes.
If the ATF level does not reach the
appropriate level, consult an Authorized
Mazda Dealer to have the vehicle
inspected.
NOTE
Inspect the fluid on both sides of the dipstick in
a well lit area for an accurate reading.
Washer Fluid
q Inspecting Washer Fluid Level
WARNING
Use only windshield washer fluid or
plain water in the reservoir:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the
windshield, affect your visibility, and
could result in an accident.
Using Washer Fluid Without Anti-freeze
Protection in Cold Weather: Operating your vehicle in
temperatures below 4 degrees C (40
degrees F) using washer fluid without
anti-freeze protection is dangerous
as it could cause impaired windshield
vision and result in an accident. In
cold weather, always use washer
fluid with anti-freeze protection.
NOTE
State or local regulations may restrict the use
of volatile organic compounds (VOCs), which
are commonly used as anti-freeze agents in
washer fluid. A washer fluid with limited VOC
content should be used only if it provides
adequate freeze resistance for all regions and
climates in which the vehicle will be operated.
8-26
Maintenance and Care
Owner Maintenance
Mazda5_8DW3-EA-14H_Edition3 Page358
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (359,1)
Inspect fluid level in the washer fluid
reservoir; add fluid if necessary.
To inspect the washer fluid level in the
front reservoir, pull off the cap. Then,
holding your thumb over the hole in the
center of the cap, lift it straight up. The
fluid level can be seen from the fluid
column in the pipe. Add fluid if necessary.
Use plain water if washer fluid is
unavailable. But use only washer fluid in
cold weather to prevent it from freezing.
NOTE
Front and rear washer fluid is supplied from
the same reservoir.
Body Lubrication
All moving points of the body, such as
door and hood hinges and locks, should
be lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.
Make sure the hood's secondary latch
keeps the hood from opening when the
primary latch is released.
Maintenance and Care
Owner Maintenance
8-27
Mazda5_8DW3-EA-14H_Edition3 Page359
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (383,1)
3. Locate the position of the suspectedfuse by using the chart inside the fuse
block cover.
4. Pull the fuse straight out with the fuse puller provided on the inside of the
engine compartment fuse block cover.
5. Inspect the fuse and replace it if it'sblown.
Normal Blown
6. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
7. Reinstall the cover and make sure that it is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Make sure the ignition is switched off,and other switches are off.
2. Remove the fuse block cover.
Fuse block
Maintenance and Care
Owner Maintenance
8-51
Mazda5_8DW3-EA-14H_Edition3 Page383
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (385,1)

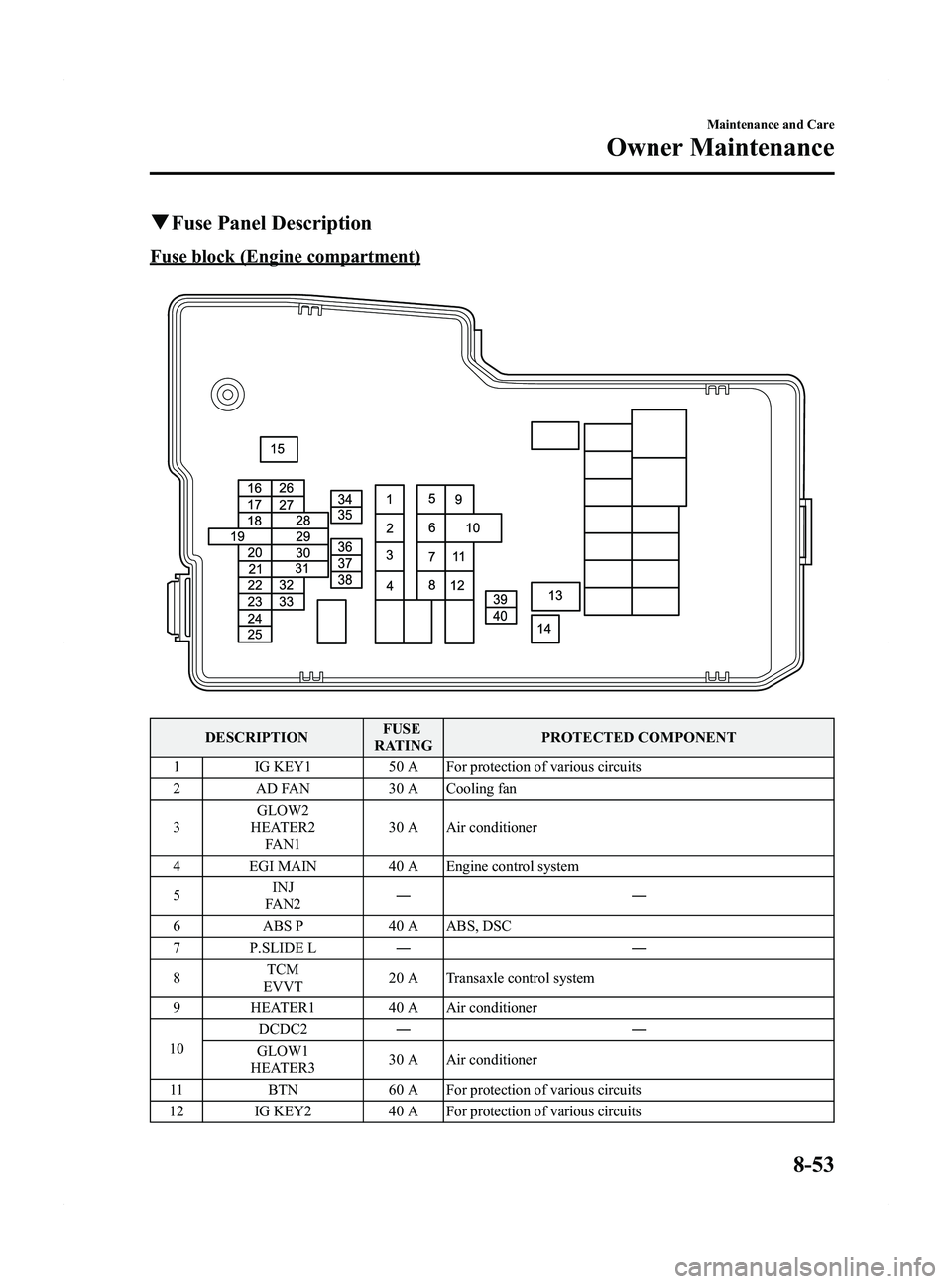

qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 IG KEY1 50 A For protection of various circuits
2 AD FAN 30 A Cooling fan
3 GLOW2
HEATER2 FAN1 30 A Air conditioner
4 EGI MAIN 40 A Engine control system
5 INJ
FAN2 ――
6 ABS P 40 A ABS, DSC
7 P.SLIDE L ――
8 TCM
EVVT 20 A Transaxle control system
9 HEATER1 40 A Air conditioner
10 DCDC2
――
GLOW1
HEATER3 30 A Air conditioner
11 BTN 60 A For protection of various circuits
12 IG KEY2 40 A For protection of various circuits
Maintenance and Care
Owner Maintenance
8-53
Mazda5_8DW3-EA-14H_Edition3 Page385
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H

Black plate (386,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
13 FAN1 30 A Cooling fan
AT PUMP ――
14 P.SLIDE R ――
15 EHPAS 80 A Power assist steering
16 FOG 15 A Fog lights
í
17 D.LOCK 20 A Power door lock
18 P.WIND 20 A Power window
19 AT PUMP
――
TCM ――
20 HEAD HI 20 A Headlight high beam
21
10 A Engine control system
22 STOP 10 A Brake lights
23 F.WARMER
FUEL PUMP 20 A Fuel system
24 HAZARD 10 A Hazard warning flasher, Turn signal lights
25 ROOM 15 A Overhead lights
26 TAIL
ENG FAN 15 A Taillights, Parking lights, License plate lights
27 A/C MAG 10 A Air conditioner
28 ABS V
20 A ABS, Dynamic stability control system
HORN ――
29 SUN ROOF 20 A Moonroof
í
AUDIO1
――
30 H/CLEAN
――
DCDC3 ――
31 HORN 15 A Horn
ABS V ――
32 TAIL ――
33 ILLUMI 7.5 A Instrument panel illumination
34 ENG INJ 25 A Engine control system
35 ENG BAR 15 A Engine control system
36 ―― ―
37 M.DEF 7.5 A Mirror defogger
38 DEFOG 25 A Rear window defogger
39 HEAD LO L 15 A Headlight low beam (LH)
40 HEAD LO R 15 A Headlight low beam (RH)
8-54
Maintenance and Care
íSome models.
Owner Maintenance
Mazda5_8DW3-EA-14H_Edition3 Page386
Thursday, December 18 2014 9:28 AM
Form No.8DW3-EA-14H
