31-8. Safety information
Correct driving posture ............. 130
SRS airbags ..................................... 132
Front passenger occupant
classification sy stem .................. 145
Child restraint systems ............... 150
Installing child re straints ............. 154
2-1. Driving procedures
Driving the vehicle ........................ 166
Power (ignition) switch ................ 177
EV drive mode ............................... 183
Hybrid transmission ..................... 186
Turn signal lever ............................ 193
Parking brake ................................. 195
Horn.................................................... 196
2-2. Instrument cluster
Gauges and meters ..................... 197
Indicators and warning
lights................................................. 201
Multi-information display.......... 206
Head-up display ............................ 212
2-3. Operating the lights and
windshield wipers
Headlight switch ............................. 217
Fog light switch .............................. 221
Windshield wipers and
washer............................................ 223 Rear window wiper and
washer ........................................... 229
Headlight cleaner switch ........... 231
2-4. Using other driving systems
Cruise control ............................... 232
Dynamic radar cruise
control............................................ 236
Intuitive parking assist ................ 248
Rear view monitor system
(rear view mirror-attached
type) ............................................... 258
Rear view monitor system
(vehicles with the Lexus
Display Audio system) ............ 266
Driving assist systems................... 271
Hill-start assist control ............... 276
Pre-Collision System.................. 278
BSM (Blind Spot Monitor) ....... 286
2-5. Driving information
Utility vehicle pre cautions ........ 292
Cargo and luggage ..................... 296
Vehicle load limits ......................... 301
Winter driving tips ....................... 302
Trailer towing (AWD models
with towing package) ............. 306
Trailer towing
(without towing package)...... 323
Dinghy towing ............................... 3242
When driving

1341-8. Safety information
SRS airbag system components
Knee airbags
Front passenger airbag
Curtain shield airbags
Front side airbags
Front passenger occupant
classification system
(ECU and sensors)
“AIR BAG ON” and “AIR BAG
OFF” indicator lights
Rear side airbags
SRS warning light
Driver airbag Curtain shield and rear side
airbag sensors
Driver's seat belt buckle
switch
Driver's seat position sensor
Airbag sensor assembly
Front airbag sensors
Front passenger’s seat belt
buckle switch
Door sensors
Seat belt pretensioners and
force limiters

1461-8. Safety information
Condition and operation in the front passenger occupant classification system
■ Adult *1
■ Child *3
or child restraint system *4Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “A I R B A G
ON”
SRS warning light Off
Front passenger’s seat belt reminder light
Flashing *2
Devices Front passenger airbag
ActivatedSide airbag on the front
passenger seats
Curtain shield airbag in the front passenger
side
Front passenger knee airbag
Front passenger’s seat belt pretensioner
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “A I R B A G
OFF” *5
SRS warning light Off
Front passenger’s seat belt reminder light
Flashing *2
Devices Front passenger airbag Deactivated
Side airbag on the front
passenger seats
Activated
Curtain shield airbag in the front passenger
side
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Activated

1471-8. Safety information
1
Before driving ■ Unoccupied
■ There is a malfunction in the system
* 1
: The system judges a person of adul t size as an adult. When a smaller
adult sits in the front passenger se at, the system may recognize him/
her as a child depending on his/her physique and posture.
* 2
: In the event the front passenger does not wear a seat belt. Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights Not illuminated
SRS warning light
Off
Front passenger’s seat belt reminder light
Devices Front passenger airbag Deactivated
Side airbag on the front
passenger seats
Activated
Curtain shield airbag in the front passenger
side
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Deactivated or
activated* 6
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “A I R B A G
OFF”
SRS warning light On
Front passenger’s seat belt reminder light Flashing
Devices Front passenger airbag Deactivated
Side airbag on the front
passenger seats
Activated
Curtain shield airbag in the front passenger
side
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Activated

When driving
2
1652-1. Driving procedures
Driving the vehicle.................. 166
Power (ignition) switch .......... 177
EV drive mode.......................... 183
Hybrid transmission ............... 186
Turn signal lever ....................... 193
Parking brake ........................... 195
Horn ............................................ 196
2-2. Instrument cluster
Gauges and meters ................ 197
Indicators and warning
lights ......................................... 201
Multi-information display .... 206
Head-up display ...................... 212
2-3. Operating the lights and
windshield wipers
Headlight switch...................... 217
Fog light switch ........................ 221
Windshield wipers and
washer ................................... 223
Rear window wiper and
washer .................................... 229
Headlight cleaner switch...... 231 2-4. Using other driving
systems
Cruise control......................... 232
Dynamic radar cruise
control .................................... 236
Intuitive parking assist .......... 248
Rear view monitor system
(rear view mirror-attached
type) ........................................ 258
Rear view monitor system
(vehicles with the Lexus
Display Audio system) ....... 266
Driving assist systems ............. 271
Hill-start assist control .......... 276
Pre-Collision System ............ 278
BSM
(Blind Spot Monitor) .......... 286
2-5. Driving information
Utility vehicle
precautions ........................... 292
Cargo and luggage ............... 296
Vehicle load limits ................... 301
Winter driving tips ................. 302
Tr a i l e r t o w i n g ( AW D m o d e l s
with towing package)......... 306
Trailer towing (without
towing package).................. 323
Dinghy towing ......................... 324

2012-2. Instrument cluster
2
When driving Indicators and warning lights The indicator and warning lights on th e instrument cluster, center panel
and outside rear view mirrors inform the driver of the status of the vehicle’s
various systems.
For the purpose of explanation, the following illustration displays all indica-
tors and warning lights illuminated.
■ Instrument cluster
■ Center panel
With a navigation system

2052-2. Instrument cluster
2
When driving
CAUTION■
If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on
when you start the hybrid system, this could mean that these systems are not avail-
able to help protect you in an accident, wh ich could result in death or serious injury.
Have the vehicle inspected by your Lexus dealer immediately if this occurs.■ Warning lights

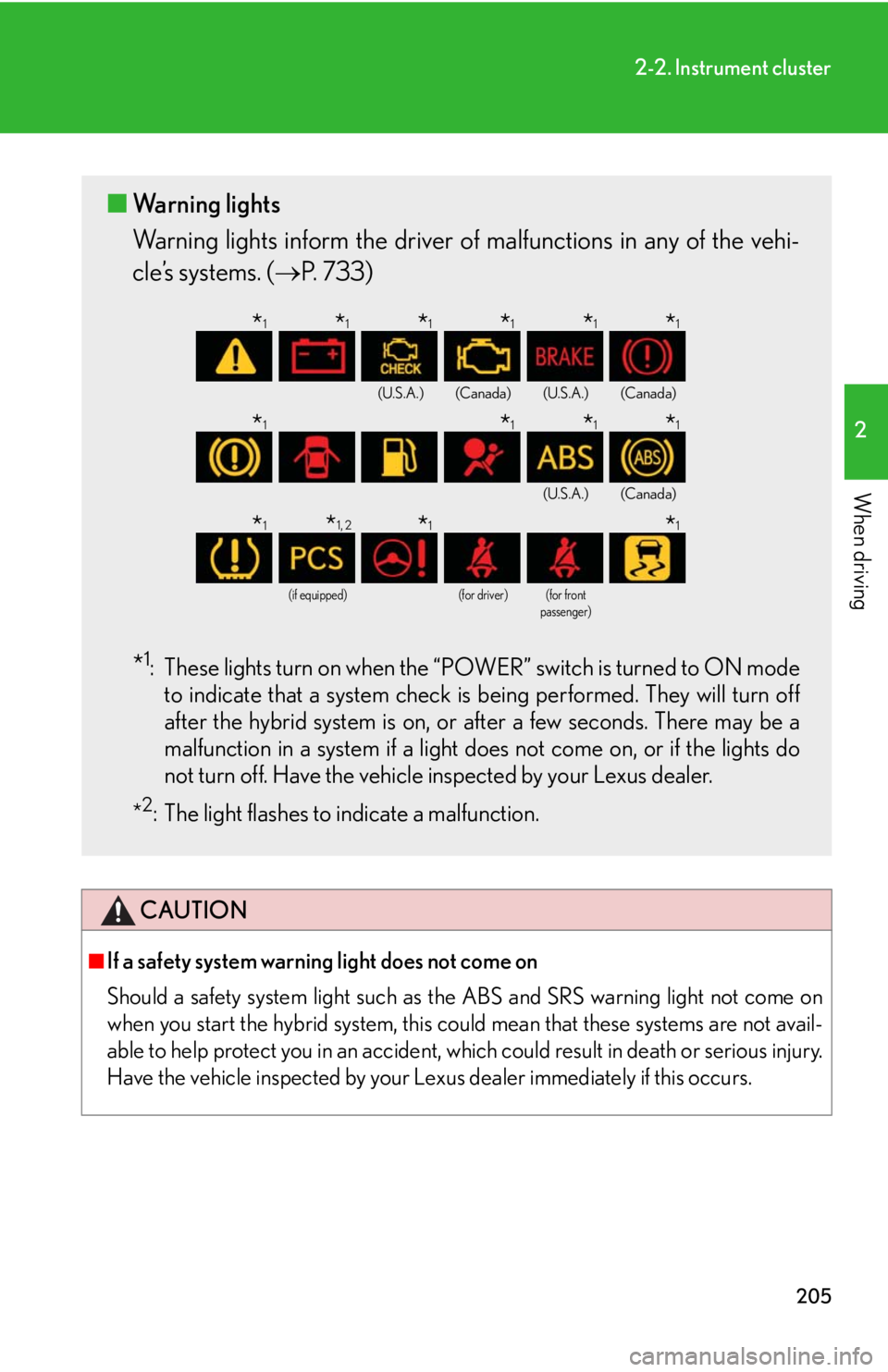

Warning lights inform the driver of malfunctions in any of the vehi-
cle’s systems. (  P. 733)
* 1
: These lights turn on when the “POWER” switch is turned to ON mode
to indicate that a system check is being performed. They will turn off
after the hybrid system is on, or after a few seconds. There may be a
malfunction in a system if a light do es not come on, or if the lights do
not turn off. Have the vehicle inspected by your Lexus dealer.
* 2
: The light flashes to indicate a malfunction. (U.S.A.) (Canada) (U.S.A.) (Canada)
(U.S.A.) (Canada)
(if equipped) (for driver) (for front
passenger)
* 1
* 1
* 1
* 1
* 1
* 1
* 1
* 1
* 1
* 1
* 1
* 1, 2
* 1
* 1

2442-4. Using other driving systems
■
Radar sensor and grille cover
Always keep the sensor and grille cover clean to ensure that the vehicle-to-vehicle
distance control operates properly. (Some obstructions, such as snow, ice and plas-
tic objects, cannot be detected by the obstruction sensor.)
Dynamic radar cruise control is canc eled if an obstruction is detected.
■
Warning lights, messages and buzzer s for dynamic radar cruise control
Warning lights, messages and buzzers are us ed to indicate a system malfunction or
to inform the driver of the need for caution while driving. (  P. 74 8 )■
Certification
For vehicles sold in the U.S.A.
FCC ID: HYQDNMWR004
This device complies with part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC WARNING
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Radiofrequency radiation exposure Information:
This equipment complies with FCC radiatio n exposure limits set forth for an uncon-
trolled environment.
This equipment should be installed and op erated with minimum distance of 20 cm
between the radiator (a ntenna) and your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter. Grille cover
Radar sensor
