6504-3. Do-it-yourself maintenance
CAUTIONThe engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious injury,
observe the following precautions: ■
When working on the engine compartment ●
Make sure that the indicator on the “POWER” switch and the “READY” indicator
are both off.●
Keep hands, clothing and tools away from the moving fans and engine drive belt.●
Be careful not to touch the engine, power control unit, radiator, exhaust manifold,
etc. right after driving as they may be hot. Oil and other fluids may also be hot.●
Do not leave anything that may burn easi ly, such as paper and rags, in the engine
compartment.●
Do not smoke, cause sparks or expose an open flame to fuel. Fuel fumes are flam-
mable■
When working near the electric cooling fans or radiator grille
Be sure the “POWER” switch is off.
With the “POWER” switch in ON mode, the electric cooling fans may automati-
cally start to run if the air conditioning is on and/or the coolant temperature is high.
(  P. 6 6 1 )■
Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting
in your eyes.
NOTICE■
If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to
dirt in the air.

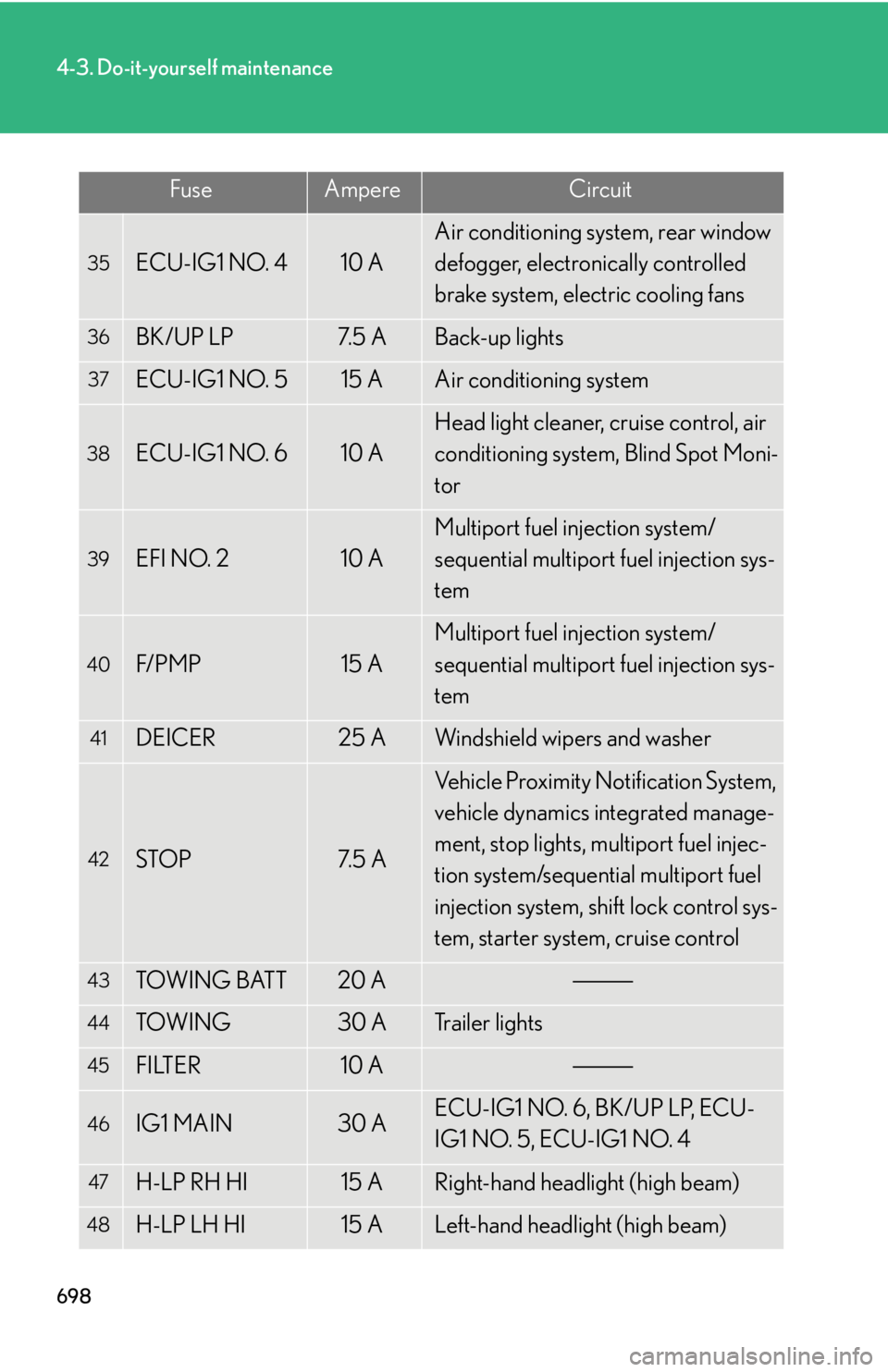

6984-3. Do-it-yourself maintenance
35
ECU-IG1 NO. 4 10 A Air conditioning system, rear window
defogger, electronically controlled
brake system, electric cooling fans36
BK/UP LP 7. 5 A Back-up lights37
ECU-IG1 NO. 5 15 A Air conditioning system38
ECU-IG1 NO. 6 10 A Head light cleaner, cruise control, air
conditioning system, Blind Spot Moni-
tor39
EFI NO. 2 10 A Multiport fuel injection system/
sequential multiport fuel injection sys-
tem40
F/ P M P 15 A Multiport fuel injection system/
sequential multiport fuel injection sys-
tem41
DEICER 25 A Windshield wipers and washer
42
STOP 7. 5 A Vehicle Proximity Notification System,
vehicle dynamics integrated manage-
ment, stop lights, multiport fuel injec-
tion system/sequential multiport fuel
injection system, shift lock control sys-
tem, starter system, cruise control43
TOW I N G BAT T 20 A44
TOW I N G 30 A Trailer lights45
FILTER 10 A
46
IG1 MAIN 30 A ECU-IG1 NO. 6, BK/UP LP, ECU-
IG1 NO. 5, ECU-IG1 NO. 4
47
H-LP RH HI 15 A Right-hand headlight (high beam)
48
H-LP LH HI 15 A Left-hand headlight (high beam)Fuse Ampere Circuit

876 GAS STATION INFORMATIONAuxiliary catch lever
P. 6 5 1 Back door opener
P. 7 5Fuel filler door
P. 119
Hood lock release lever
P. 6 5 1 Fuel filler door opener
P. 1 1 9 Tire inflation pressure
P. 8 0 7
Fuel tank capacity
(Reference) 17.1 gal. (65 L, 14.2 Imp. gal.)
Fuel type Unleaded gasoline only P. 800
Cold tire inflation
pressure P. 8 0 7
Engine oil capacity
(Drain and refill
 reference) qt. (L, Imp. qt.)
With filter 6.4 (6,1, 5,4)
Without filter 6.0 (5,7 ,
5.0 )
Engine oil type
“Toyota Genuine Motor Oil” or equivalent P. 802
