2015 LEXUS LX570 reset

4303-1. Using the touch screen
LX570_OM_OM60L96U_(U) Fuel consumption
Resetting the past record data
Best recorded fuel economy
Current fuel economy
Previous fuel economy record The image is an example only, and
may vary slightly from actual condi-
tions.■
Resetting the data
The data can be deleted by touching “Clear”. ■
Updating the past record data
When the average fuel consumption is being displayed on the multi-information
display, update the average fuel consum ption by pressing and hold the “DISP”
switch on the steering wheel to measure the current fuel consumption again.

4873-3. Using the audio system
3
Interior features

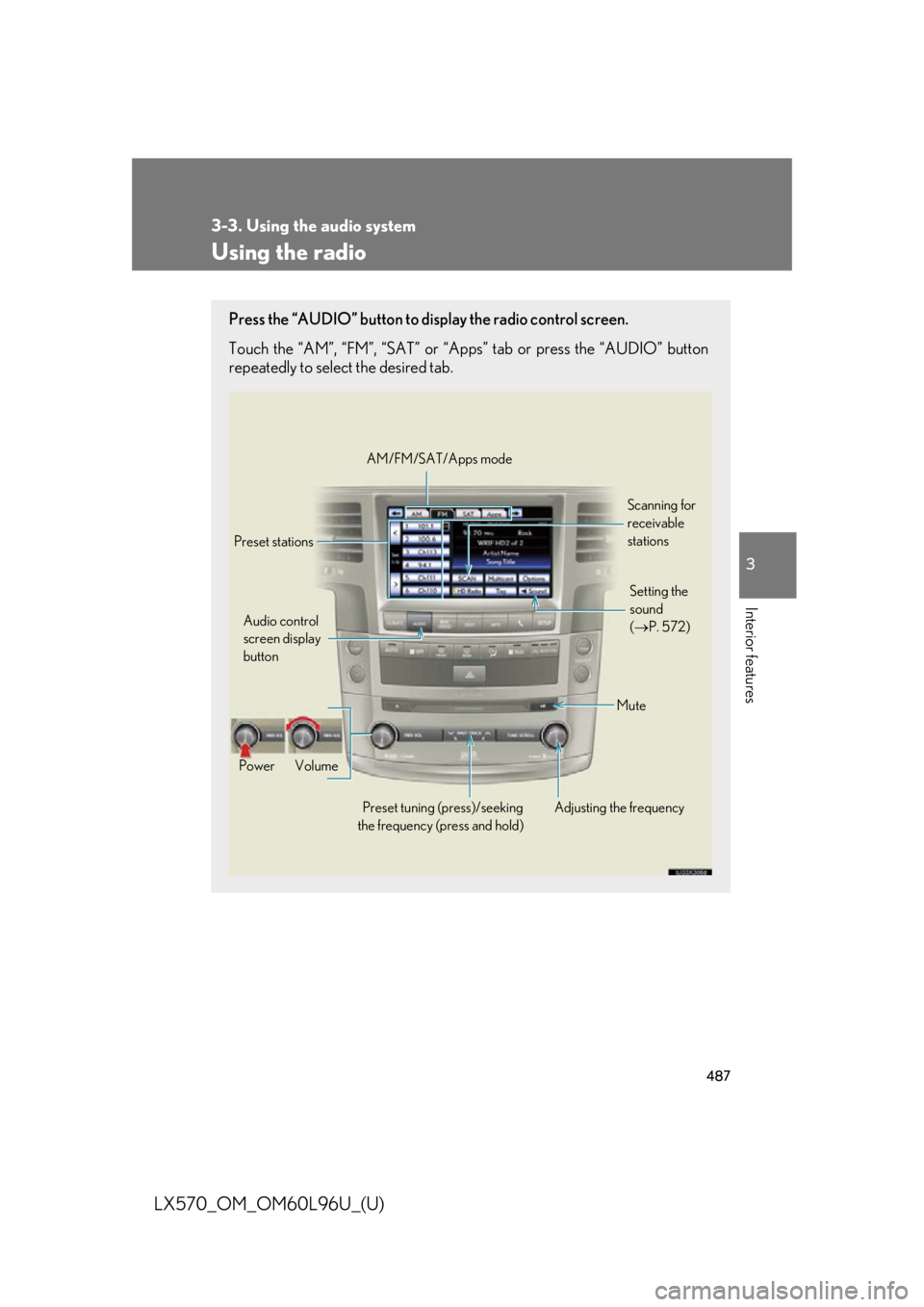

LX570_OM_OM60L96U_(U) Using the radio Press the “AUDIO” button to disp lay the radio control screen.
Touch the “AM”, “FM”, “SAT” or “Apps” tab or press the “AUDIO” button
repeatedly to select the desired tab.
Audio control
screen display
button
Power Volume
Preset tuning (press)/seeking
the frequency (press and hold) Adjusting the frequency AM/FM/SAT/Apps mode
Preset stations Scanning for
receivable
stations
Mute Setting the
sound
(  P. 572)

4883-3. Using the audio system
LX570_OM_OM60L96U_(U) Selecting a station (excluding XM ®
Satellite Radio)
■ Seek tuning
Press and hold “  ” or “  ” on the “PRST•TRACK” button.
■ Manual tuning
Turn the “TUNE•SCROLL” knob.
■ Preset stations
Touch the desired preset stations (1 - 6). Change the page by using “<” or “>” on the screen.
Press “  ” or “  ” on the “PRST•TRACK” button.
Setting station presets (excluding XM ®
Satellite Radio)
Search for desired stations.
Touch one of the left side screen
buttons (1-6) and hold it until a
beep is heard. There are 6 sets of
6 presets. There is a total of 36
presets.STEP 1
STEP 2

4973-3. Using the audio system
3
Interior features
LX570_OM_OM60L96U_(U) Experience Cause Action
Audio mute delay
when selecting an
HD2/HD3 multicast
channel preset. The digital multicast
content is not available
until HD Radio™
broadcast can be
decoded and make the
audio available. This
takes up to 7 seconds. This is normal behavior,
wait for the audio to
become available.
Text information does
not match the present
song audio. Data service issue at
the radio broadcaster. Broadcaster should be
notified. Complete the
form: www.ibiquity.com/
automotive/
report_radio_station_
experiences.
No text information
shown for the present
selected frequency. Data service issue by
the radio broadcaster. Broadcaster should be
notified. Complete the
form: www.ibiquity.com/
automotive/
report_radio_station_
experiences.

4983-3. Using the audio system
LX570_OM_OM60L96U_(U) XM ®
Satellite Radio
■ Receiving XM ®
Satellite Radio
Press the “AUDIO” button.
Touch the “SAT” tab or press the
“AUDIO” button repeatedly until
the “SAT” tab is selected to choose
a satellite broadcast channel.
Turn the “TUNE•SCROLL” knob to select the next or previous
channel. Turning the knob quickly allows rapid scrolling through the channel list.
■ Presetting XM ®
Satellite Radio channels
Select the desired channel.
Touch one of the left side screen
buttons (1-6) and hold it until a
beep is heard. To change the preset channel to a
different one, follow the same pro-
cedure.STEP 1
STEP 2STEP 2
STEP 3
STEP 1
STEP 2STEP 2

5013-3. Using the audio system
3
Interior features
LX570_OM_OM60L96U_(U) Silencing the sound
Press .
Press the button again to turn the system back on. ■
If you touch
The display returns to the previous screen. ■
When the battery is disconnected
All preset stations are erased. ■
Reception sensitivity ●
Cargo loaded on the roof luggage ca rrier, especially metal objects, may
adversely affect the reception of XM ®
Satellite Radio.●
Maintaining perfect radio reception at all times is difficult due to the continually
changing position of the antenna, differ ences in signal stre ngth and surrounding
objects, such as trains, transmitters, etc. ●
The radio antenna is mounted inside the rear quarter window. To maintain clear
radio reception, do not attach metallic window tinting or other metallic objects
to the antenna wire mounted inside the rear quarter window.

5133-3. Using the audio system
3
Interior features
LX570_OM_OM60L96U_(U) Random playback
Audio CD
Touch “RAND” on the screen. “RAND” appears on the screen.
To cancel, touch “RAND” again.
MP3/WMA disc
■ Playing files from a particular folder in random order
Each time “RAND” is touched, the mode changes as follows:
random (1 folder random)  folder random (1 disc random)  off
■ Playing all the files on a disc in random order
Touch “RAND” repeatedly until “F LD.RAND” appears on the screen.To cancel, touch “RAND” again.
When a file is skipped or the system is inoperative, touch “RAND” to reset.

5773-3. Using the audio system
3
Interior features
LX570_OM_OM60L96U_(U) Turning on the power
Press the “MODE” switch when the audio system is turned off.
Changing the audio source
Press the “MODE” switch to select an audio mode.
Each press changes the mode sequenti ally if the desired mode is ready to
use.
Adjusting the volume
Press the “+” switch to increase the volume and the “-” sw itch to decrease
the volume.
Silencing a sound or pause the current operation
Press and hold the “MODE” switch. To cancel, press and hold
the “MODE” switch again.
Selecting the preset station/channel (radio)
Press the “MODE” switch to select the radio mode.
Press the “  ” or “  ” switch to select.
Seeking a radio station/channel
Press the “MODE” switch to select the radio mode.
Press and hold the “  ” or “  ” switch until you hear a beep.To cancel, press either switch. STEP 1
STEP 2
STEP 1
STEP 2
