GS450h_OM_OM30F70U_(U)
6-3. Do-it-yourself maintenance

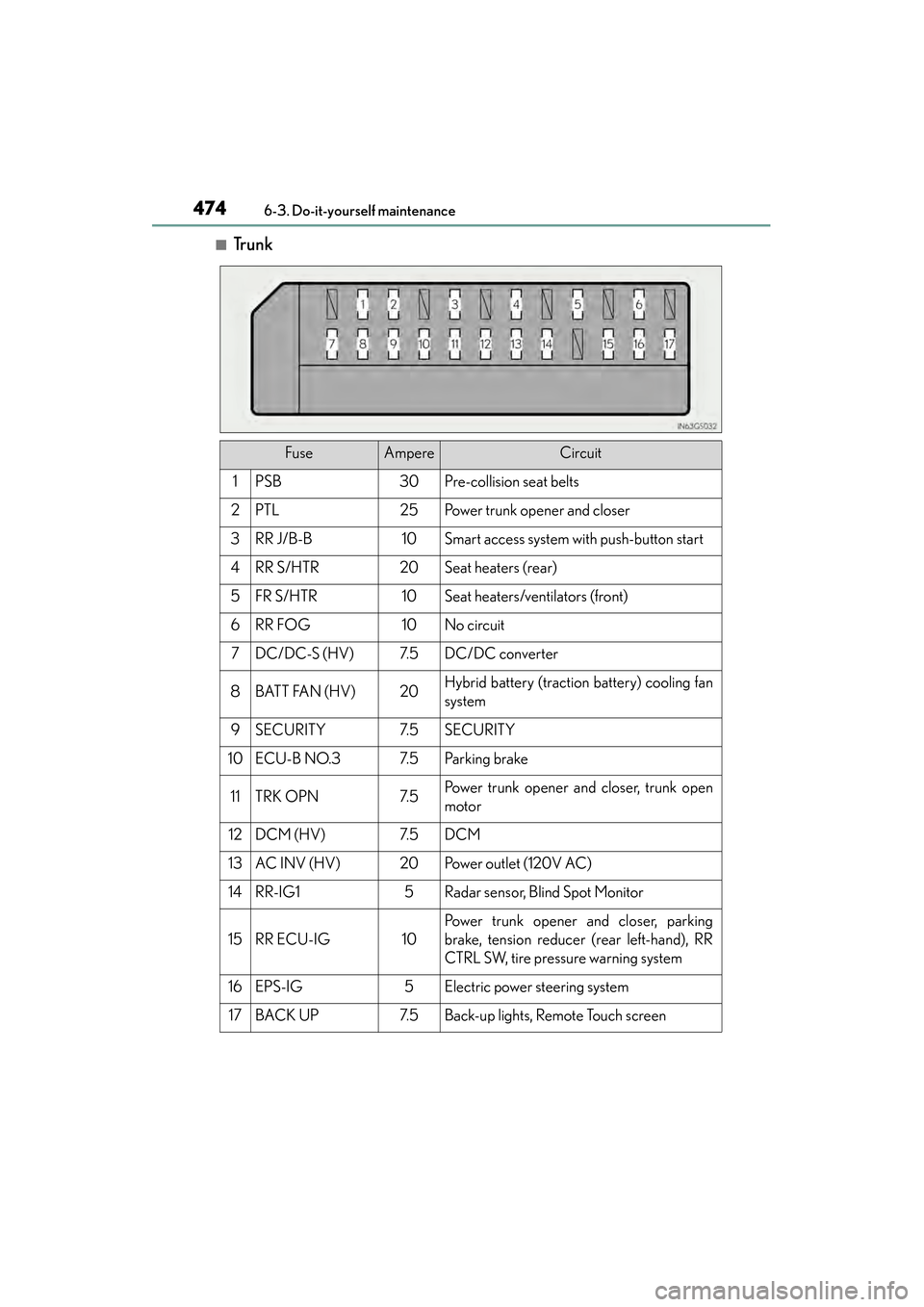

■Tr u n k
FuseAmpereCircuit
1PSB30Pre-collision seat belts
2PTL25Power trunk opener and closer
3RR J/B-B10Smart access system with push-button start
4RR S/HTR20Seat heaters (rear)
5FR S/HTR10Seat heaters/ventilators (front)
6RR FOG10No circuit
7DC/DC-S (HV)7. 5DC/DC converter
8BATT FAN (HV)20Hybrid battery (traction battery) cooling fan
system
9SECURITY7. 5SECURITY
10ECU-B NO.37. 5Pa r k i n g b r a ke
11TRK OPN7. 5Power trunk opener and closer, trunk open
motor
12DCM (HV)7. 5DCM
13AC INV (HV)20Po w e r o u t l e t ( 1 2 0 V AC )
14RR-IG15Radar sensor, Blind Spot Monitor
15RR ECU-IG10
Power trunk opener and closer, parking
brake, tension reducer (rear left-hand), RR
CTRL SW, tire pressure warning system
16EPS-IG5Electric power steering system
17BACK UP7. 5Back-up lights, Remote Touch screen
GS450h_OM_OM30F70U_(U).book Page 474 Monday, January 19, 2015 9:34 AM

5087-2. Steps to take in an emergency
GS450h_OM_OM30F70U_(U)
■SRS warning light
This warning light system monitors the airbag sensor assembly, front impact sensors,
side impact sensors (front door), side impact sensors (front), side impact sensors
(rear), driver’s seat position sensor, driver’s seat belt buckle switch, front passenger
occupant classification system, “AIR BAG ON” indicator light, “AIR BAG OFF” indi-
cator light, front passenger’s seat belt buckle switch, seat belt pretensioner assem-
blies, airbags, interconnecting wiring and power sources. (→P. 4 0 )
■Front passenger detection sensor, seat belt reminder and warning buzzer
If luggage is placed on the front passenger seat, the front passenger detection sen-
sor may cause the warning light to flash and the warning buzzer to sound even if a
passenger is not sitting in the seat.
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving trips.
If the light does not go off even after several trips, contact your Lexus dealer as soon
as possible.
■Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and the warn-
ing buzzer may sound.
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pushing the tire
pressure warning reset switch will not turn off the tire pressure warning light.
GS450h_OM_OM30F70U_(U).book Page 508 Monday, January 19, 2015 9:34 AM

5157-2. Steps to take in an emergency
GS450h_OM_OM30F70U_(U)
7
When trouble arises
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failure to investigate the cause of the following warnings may
lead to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Lexus dealer.
Have the vehicle inspected immediately.
Warning messageDetails
Indicates a malfunction in the pre-collision system
Indicates a malfunction in the intuitive parking assist All assist-sensors flash.
Indicates a malfunction in the dynamic radar cruise
control system (if equipped) or the cruise control sys-
temPress the “ON/OFF” button once to deactivate the
system, and then press the button again to reacti-
vate the system.
(Flashes)
(If equipped)
(If equipped)
GS450h_OM_OM30F70U_(U).book Page 515 Monday, January 19, 2015 9:34 AM

5257-2. Steps to take in an emergency
GS450h_OM_OM30F70U_(U)
7
When trouble arises
Warning messageDetailsCorrection procedure
Indicates that engine oil
level is lowCheck the level of engine
oil, and add if necessary.
Indicates that intuitive
parking assist sensor is
dirty or covered with ice
Clean the sensor.
Indicates that the radar
sensor is dirty or covered
with ice
Clean the sensor.
Indicates that the radar
cruise control system is
unable to judge vehicle-
to-vehicle distance
•Turn off the snowmode.
• If the windshield wip- ers are on, turn them
off or set them to a
mode other than
AUTO or high speed
wiper operation.
(If equipped)
(If equipped)
(If equipped)
GS450h_OM_OM30F70U_(U).book Page 525 Monday, January 19, 2015 9:34 AM

5267-2. Steps to take in an emergency
GS450h_OM_OM30F70U_(U)
Indicates that your vehi-
cle is nearing the vehicle
ahead (in vehicle-to-vehi-
cle distance mode)At the same time,
will appear on
the head-up display
(the image flashes).
Slow the vehicle by
applying the brakes.
Indicates that there is a
high possibility of a frontal
collision, or that the pre-
collision braking function
is operating At the same time,
will appear
on the head-up dis-
play.
Slow the vehicle by
applying the brakes.
Indicates that the LKA
(Lane-Keeping Assist) is
suspended
•The camera sensor temperature is higher
than the operation tem-
perature range.
•The power steering system operation is
restricted.
Restart the LKA after
driving for a while.
Warning messageDetailsCorrection procedure
(If equipped)
(Flashes
rapidly)
(If equipped)
(If equipped)
GS450h_OM_OM30F70U_(U).book Page 526 Monday, January 19, 2015 9:34 AM

5277-2. Steps to take in an emergency
GS450h_OM_OM30F70U_(U)
7
When trouble arises
Alerts the driver that the
vehicle is out of the lanes
(while the LKA [Lane-
Keeping Assist] system is
operating)The warning buzzer
sounds continuously.
The lane markings and/
or the steering wheel
marking flash.
At the same time,
will appear
on the head-up dis-
play (part of the image
flashes).
Check around the vehi-
cle and back to inside of
the lane markings.
Indicates that the LKA
(Lane-Keeping Assist)
system detects no-
handed driving (while the
lane keeping assist func-
tion is operating) The warning buzzer
sounds twice.
Grip the steering wheel
firmly.
Indicates that the Blind
Spot Monitor sensors or
the surrounding area on
the bumper is dirty or
covered with ice
Clean the sensor and its
surrounding area on the
bumper.
Indicates that the hybrid
system has overheatedThis message may be
displayed when driving
under severe operating
conditions. (For exam-
ple, when driving up a
long steep hill.)
Stop and check.
(→ P. 566)
Warning messageDetailsCorrection procedure
(If equipped)
(If equipped)
(If equipped)
GS450h_OM_OM30F70U_(U).book Page 527 Monday, January 19, 2015 9:34 AM

5327-2. Steps to take in an emergency
GS450h_OM_OM30F70U_(U)
*: Refer to the separate “Scheduled Maintenance” or “Owner’s Manual Supple-ment” for the maintenance interval applicable to your vehicle.
Warning messageDetailsCorrection procedure
Indicates that the tire
position information can-
not be recognized
Drive for a short while
and check if the display
updates. If the radio wave condi-
tions improve, the dis-
play may return to
normal. If the tire pres-
sure is still not dis-
played after driving for
several minutes, stop
the vehicle in a safe
place, turn the power
switch off then on
again, and start driving.
If the tire pressure is still
not displayed even
after repeating this sev-
eral times, have the
vehicle inspected at
your Lexus dealer.
Indicates that the pre-col-
lision system is not cur-
rently functional because
the grille cover or the
sensor is dirtyThis message also
appears when the pre-
collision system is not
functional due to over-
heating.
• Check the grille coverand the sensor and
clean them if they are
dirty.
• In case of overheating, the system will become
functional once the sys-
tem cools down.
(If equipped)
(Flashes)
(If equipped)
GS450h_OM_OM30F70U_(U).book Page 532 Monday, January 19, 2015 9:34 AM

604
GS450h_OM_OM30F70U_(U)
8-2. Customization
Tu r n s i g n a l
lever
(→ P. 209)
The number of times
the turn signal lights
flash automatically
when the turn signal
lever is moved to the
first position during a
lane change
(After flashing the turn
signal lights when turn-
ing left or right while
this function is off and
the turn signal lever is
moved to the first posi-
tion in direction of the
flashing light, the turn
signal lights can be
selected to be flashing
or off.)
3
5
——O
7
Off
(the turn signal lights keep
flashing if the turn signal
lever is moved
to the first posi- tion in direc-
tion of flashing light)
Off
(the turn signal
lights will be off if the turn sig- nal lever is
moved to the
first position in direction of
flashing light)
Automatic
light control
system
( → P. 2 1 7 )
Light sensor sensitivityStandard-2 to 2O—O
Time elapsed before
the headlights auto-
matically turn off30
seconds
Off
O—O
60
seconds
90
seconds
Welcome light illumi-
nation controlOnOff——O
Lights
( → P. 2 1 7 )Daytime running
lights
*2OnOffO—O
ItemFunctionDefault
settingCustomized setting123
