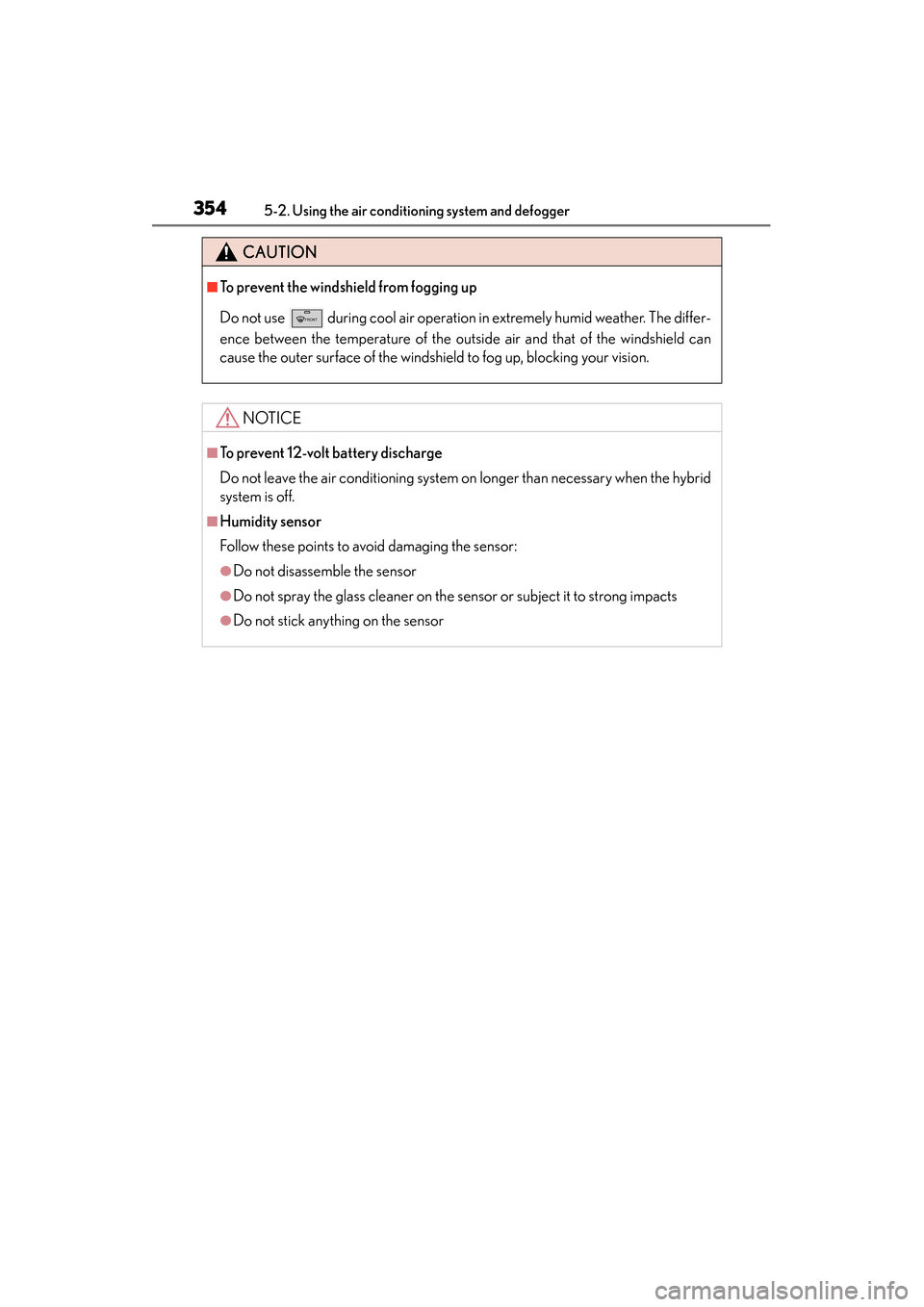

2015 Lexus GS450h sensor

354
GS450h_OM_OM30F70U_(U)
5-2. Using the air conditioning system and defogger
CAUTION
■To prevent the windshield from fogging up
Do not use
during cool air operation in extremely humid weather. The differ-
ence between the temperature of the outside air and that of the windshield can
cause the outer surface of the windshield to fog up, blocking your vision.
NOTICE
■To prevent 12-volt battery discharge
Do not leave the air conditioning system on longer than necessary when the hybrid
system is off.
■Humidity sensor
Follow these points to avoid damaging the sensor:
●Do not disassemble the sensor
●Do not spray the glass cleaner on the sensor or subject it to strong impacts
●Do not stick anything on the sensor
GS450h_OM_OM30F70U_(U).book Page 354 Monday, January 19, 2015 9:34 AM

410
GS450h_OM_OM30F70U_(U)
6-1. Maintenance and care
CAUTION
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may cause
the electrical components etc. to catch fire.
■When cleaning the windshield
●When the upper part of the windshield where the raindrop sensor is located is
touched by hand
●When a wet rag or similar is held close to the raindrop sensor
●If something bumps against the windshield
●If you directly touch the raindrop sensor body or if something bumps into the
raindrop sensor
■Precautions regarding the exhaust pipes
Exhaust gases cause the exhaust pipes to become quite hot.
When washing the vehicle, be careful not to touch the pipes until they have cooled
sufficiently, as touching hot exhaust pipes can cause burns.
■Precaution regarding the rear bumper with Blind Spot Monitor (if equipped)
If the paint of the rear bumper is chipped or scratched, the system may malfunc-
tion. If this occurs, consult your Lexus dealer.
Turn off AUTO mode of the wiper to prevent
the wiper from operating. ( →P. 223)
If AUTO mode is selected, the wipers may
operate unexpectedly in the following situa-
tions, and may result in hands being caught
or other serious injuries and cause damage
to the wiper blades.
GS450h_OM_OM30F70U_(U).book Page 410 Monday, January 19, 2015 9:34 AM

414
GS450h_OM_OM30F70U_(U)
6-1. Maintenance and care
NOTICE
■Cleaning detergents
●Do not use the following types of detergent, as they may discolor the vehicle inte-
rior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline, alkalineor acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alcohol
●Do not use polish wax or polish cleaner. The instrument panel’s or other interior
part’s painted surface may be damaged.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces:
●Remove any dust or dirt from leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended periods of time. Park
the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or containing wax on the upholstery, as
they may stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes into
contact with electrical components such as the audio system above or under the
floor of the vehicle. Water may also cause the body to rust.
■When cleaning the inside of the windshield (vehicles with LKA [Lane-Keeping
Assist])
Be careful not to touch the camera sensor ( →P. 2 7 0 ) .
If the camera is accidentally scratched or hit, LKA may not operate properly or
may cause a malfunction.
■Cleaning the inside of the rear window
●Do not use glass cleaner to clean the rear window, as this may cause damage to
the rear window defogger heater wires or antenna. Use a cloth dampened with
lukewarm water to gently wipe the window clean. Wipe the window in strokes
running parallel to the heater wires or antenna.
●Be careful not to scratch or damage the heater wires or antenna.
GS450h_OM_OM30F70U_(U).book Page 414 Monday, January 19, 2015 9:34 AM

466
GS450h_OM_OM30F70U_(U)
6-3. Do-it-yourself maintenance
■Engine compartment
Fuse layout and amperage ratings
FuseAmpereCircuit
1IGN10Starting system
2INJ10Multiport fuel injection system/sequential
multiport fuel injection system
3EFI NO.210Air intake system, exhaust system
4IG2 MAIN20IGN, GAUGE, INJ, AIR BAG, IG2 NO.1,
LH-IG2
5EFI MAIN25Multiport fuel injection system/sequential
multiport fuel injection system, EFI NO.2
6A/F15Air flow sensor
7EDU20Multiport fuel injection system/sequential
multiport fuel injection system
8F/ P M P25Multiport fuel injection system/sequential
multiport fuel injection system
9H-LP RH-LO20Right-hand headlight (low beam)*
10H-LP LH-LO20Left-hand headlight (low beam)*
GS450h_OM_OM30F70U_(U).book Page 466 Monday, January 19, 2015 9:34 AM

GS450h_OM_OM30F70U_(U)
4676-3. Do-it-yourself maintenance
6
Maintenance and care
11ABS MAIN 210Brake system
12ABS MAIN 110Brake system
13IGCT NO.130IGCT NO.2, IGCT NO.3, IGCT NO.4,
IGCT NO.5
14ECU-B7. 5VGRS, smart access system with push-but-
ton start
15INV W/P10Hybrid system
16ETCS10Multiport fuel injection system/sequential
multiport fuel injection system
17EPS-B10Electric power steering system
18D/C CUT30DOME, MPX-B
19HORN10Horn
20ODS5Occupant classification system
21TV7. 5Remote Touch screen
22P/ I - B N O. 280IG2 MAIN, EFI MAIN, EDU, F/PMP, A/F
23ABS NO.230Motor relay
24P/ I - B N O.150H-LP HI RH, H-LP HI LH, DRL
25H-LP LO30H-LP LO RH, H-LP LO LH
26LH J/B-B40Left-hand junction block
27RH J/B-B40Right-hand junction block
28VGRS40VGRS
29OIL PMP60Oil pump
30IGCT NO.57. 5Power management system, shift position
sensor
31WIP-S7. 5Windshield wipers, driver support system
32WA S H - S5Windshield washer, driver support system
33COMB SW5Windshield wipers
FuseAmpereCircuit
GS450h_OM_OM30F70U_(U).book Page 467 Monday, January 19, 2015 9:34 AM

468
GS450h_OM_OM30F70U_(U)
6-3. Do-it-yourself maintenance
34DOME7. 5
Personal lights, ornament lights, trunk light,
footwell lights, door courtesy lights, vanity
lights, rear door inside handle illuminations,
power trunk opener and closer
35MPX-B10
Body ECU, smart access system with push-
button start, electric tilt and telescopic steer-
ing column, power seats, head-up display,
front door ECU, gauges and meters, steer-
ing sensor, yaw rate and G sensor, overhead
module, RR CTRL SW, power trunk opener
and closer, clock, CAN gateway ECU
36IGCT NO.410Power control unit
37IGCT NO.37. 5Hybrid battery (traction battery), DC/DC
converter
38IGCT NO.25Hybrid system
39IG2 NO.15DCM, CAN gateway ECU
40GAUGE5Gauges and meters
41DC/DC150RH-J/B DC/DC, P/I DC/DC,
LH-J/B DC/DC, LUG-J/B DC/DC
42P/ I D C / D C100RR S/SHADE, DEFOG, FOG, TAIL,
PA N E L
43RH J/B DC/DC80Right-hand junction block
44LH J/B DC/DC50Left-hand junction block
45H-LP CLN30No circuit
46FA N N O. 240Electric cooling fans
47LUG J/B DC/DC80Luggage compartment junction block
48FA N N O.180Electric cooling fans
49PTC NO.150PTC heater
50PTC NO.250PTC heater
51HTR50Air conditioning system
FuseAmpereCircuit
GS450h_OM_OM30F70U_(U).book Page 468 Monday, January 19, 2015 9:34 AM

470
GS450h_OM_OM30F70U_(U)
6-3. Do-it-yourself maintenance
■Driver’s side instrument panel
FuseAmpereCircuit
1STOP7. 5Stop lights, high mounted stoplight
2P/ W- B5Power window master switch
3P/ S E AT 1 F/ L30Po w e r s e a t s
4D/L NO.125Po w e r d o o r l o c k s y s t e m
5NV-IR10Lexus night view
6FL S/HTR10Seat heaters/ventilators
7WIPER30Windshield wipers
8WIPER-IG5Windshield wipers
9LH-IG10
Seat belts, body ECU, AFS, overhead mod-
ule, raindrop sensor, inside rear view mirror,
lane camera sensor (LKA), head-up display,
shift lock system, intuitive parking assist, front
left-hand door ECU, driver monitor system,
Remote Touch screen, electric tilt and tele-
scopic steering column, power seats, moon
roof, windshield wiper de-icer, intuitive park-
ing assist switch, PTC heater, Blind Spot
Monitor buzzer
10LH ECU-IG10
VDIM, brake system, D-SW MODULE
(Blind Spot Monitor, heated steering wheel),
driver support system, AFS, electric cooling
fans, EPB, air conditioning system, steering
sensor
GS450h_OM_OM30F70U_(U).book Page 470 Monday, January 19, 2015 9:34 AM

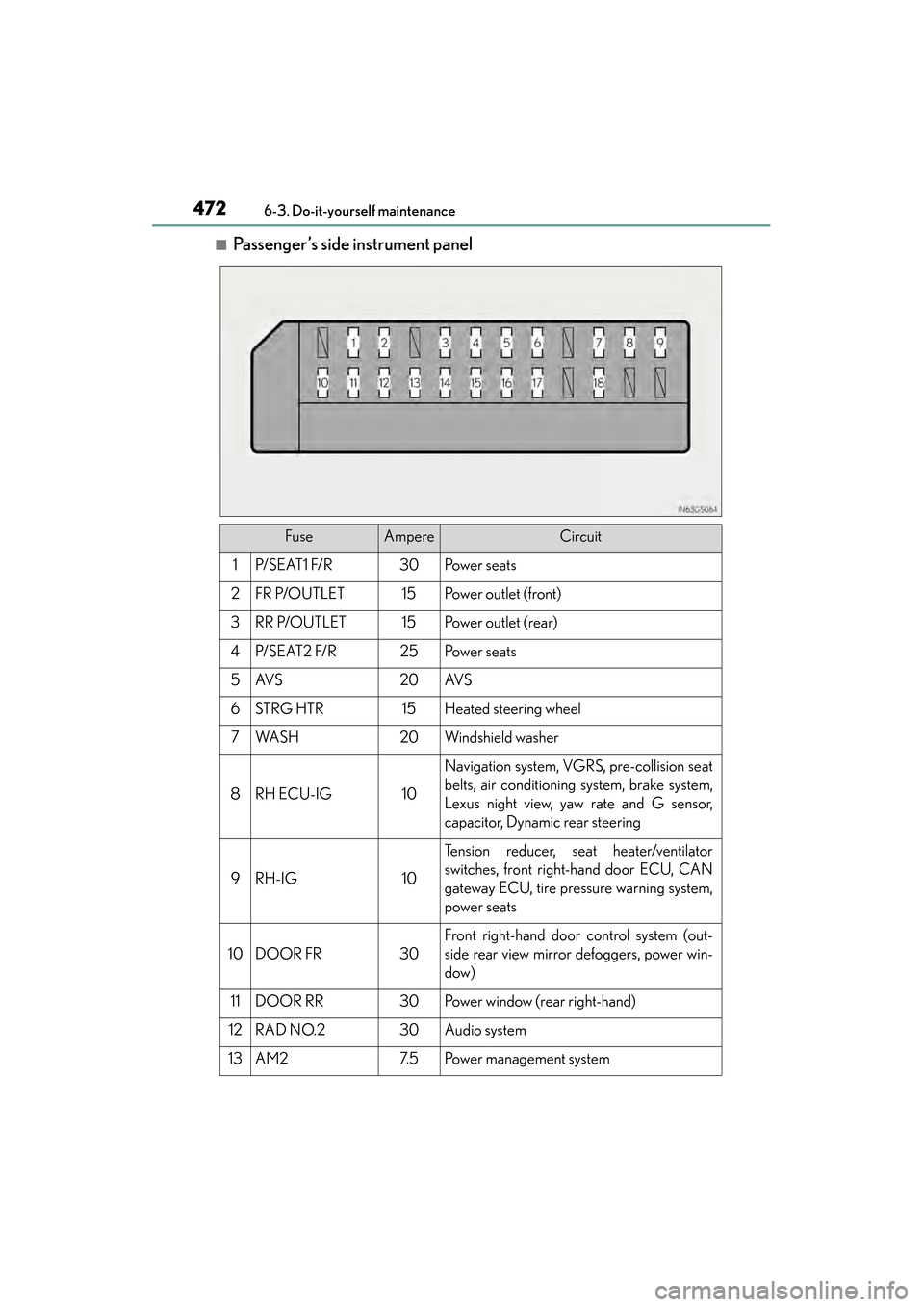

472
GS450h_OM_OM30F70U_(U)
6-3. Do-it-yourself maintenance
■Passenger’s side instrument panel
FuseAmpereCircuit
1P/ S E AT 1 F/ R30Po w e r s e a t s
2FR P/OUTLET15Po w e r o u t l e t ( f r o n t )
3RR P/OUTLET15Po w e r o u t l e t ( r e a r )
4P/ S E AT 2 F/ R25Po w e r s e a t s
5AV S20AV S
6STRG HTR15Heated steering wheel
7WA S H20Windshield washer
8RH ECU-IG10
Navigation system, VGRS, pre-collision seat
belts, air conditioning system, brake system,
Lexus night view, yaw rate and G sensor,
capacitor, Dynamic rear steering
9RH-IG10
Tension reducer, seat heater/ventilator
switches, front right-hand door ECU, CAN
gateway ECU, tire pressure warning system,
power seats
10DOOR FR30
Front right-hand door control system (out-
side rear view mirror defoggers, power win-
dow)
11DOOR RR30Power window (rear right-hand)
12RAD NO.230Audio system
13AM27. 5Po w e r m a n a g e m e n t s y s t e m
GS450h_OM_OM30F70U_(U).book Page 472 Monday, January 19, 2015 9:34 AM
