2015 Lexus GS450h tow

370
GS450h_OM_OM30F70U_(U)
5-4. Using the storage features
■Front
To open, press down and release
the cup holder lid.
■Rear
To open, pull down the armrest
and press in and release the rear
cup holder on the armrest.
■Removing the separate tray (front cup holder)
■When stowing the cup holders (rear cup holder)
Stow the cup holder with the armrest down. The cup holder cannot be stowed if the
armrest is not down.
Cup holders
The cup holder insert may be removed for
cleaning.
GS450h_OM_OM30F70U_(U).book Page 370 Monday, January 19, 2015 9:34 AM

GS450h_OM_OM30F70U_(U)
3715-4. Using the storage features
5
Interior features
CAUTION
■Items unsuitable for the cup holders
Do not place anything other than cups or beverage cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or sudden
braking, causing injury. If possible, cover hot drinks to prevent burns.
NOTICE
■To prevent damage to the rear cup holder
Stow the cup holder before stowing the armrest.
GS450h_OM_OM30F70U_(U).book Page 371 Monday, January 19, 2015 9:34 AM

374
GS450h_OM_OM30F70U_(U)
5-4. Using the storage features
Pull the strap upwards to lift up the
luggage mat.Loosen the belt
Tighten the belt
Luggage mat
Warning reflector storage belt
1
2
CAUTION
■When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their stowed positions.
NOTICE
■Luggage hook weight capacity
Do not hang any object heavier than 11 lb. (5 kg) on the luggage hook.
GS450h_OM_OM30F70U_(U).book Page 374 Monday, January 19, 2015 9:34 AM

392
GS450h_OM_OM30F70U_(U)
5-5. Other interior features
Utility hook∗
To use the utility hook, push it on.∗
: If equipped
CAUTION
■When not in use
Keep the utility hook stowed.
Injuries may result in the event of an accident or sudden braking.
NOTICE
■Utility hook weight capacity
Do not hang any object heavier than 4.4 lb. (2 kg) on the utility hook.
The utility hook may get damaged or the object hooked on the utility hook may fall
down while driving.
GS450h_OM_OM30F70U_(U).book Page 392 Monday, January 19, 2015 9:34 AM

404
GS450h_OM_OM30F70U_(U)
5-5. Other interior features
■Stolen Vehicle Location
If your vehicle is stolen, Safety Connect can work with local authorities
to assist them in locating and recovering the vehicle. After filing a police
report, call the Safety Connect response center at 1-800-25-LEXUS
(1-800-255-3987) and follow the prompts for Safety Connect to ini-
tiate this service.
In addition to assisting law enforcement with recovery of a stolen vehi-
cle, Safety-Connect-equipped vehicle location data may, under certain
circumstances, be shared with third parties to locate your vehicle. Fur-
ther information is available at Lexus.com.
■Emergency Assistance Button (“SOS”)
In the event of an emergency on the road, push the “SOS” button to
reach the Safety Connect response center. The answering agent will
determine your vehicle’s location, assess the emergency, and dispatch
the necessary assistance required.
If you accidentally press the “SOS” button, tell the response-center agent that
you are not experiencing an emergency.
■Enhanced Roadside Assistance
Enhanced Roadside Assistance adds GPS data to the already included
warranty-based Lexus roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect
response-center agent, who can help with a wide range of needs, such
as: towing, flat tire, fuel delivery, etc. For a description of the Roadside
Assistance services and their limitations, please see the Safety Connect
Terms and Conditions, which are available at Lexus.com.
GS450h_OM_OM30F70U_(U).book Page 404 Monday, January 19, 2015 9:34 AM

423
GS450h_OM_OM30F70U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the correct
procedure as given in these sections.
ItemsPa r t s a n d t o o l s
12-volt battery condition ( →P. 4 3 9 )
•Grease
• Conventional wrench
(for terminal clamp bolts)
Brake fluid level ( →P. 4 3 7 )
•FMVSS No.116 DOT 3 or SAE J1703
brake fluid
• Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine/power control unit
coolant level ( →P. 434)
•“To y o t a Super Long Life Coolant” or
a similar high quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite and non-borate coolant with
long-life hybrid organic acid technol-
ogy
For the U.S.A.:
“Toyota Super Long Life Coolant” is
pre-mixed with 50% coolant and
50% deionized water.
For Canada:
“Toyota Super Long Life Coolant” is
pre-mixed with 55% coolant and
45% deionized water.
• Funnel (used only for adding coolant)
Engine oil level (→ P. 4 3 1 )
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
GS450h_OM_OM30F70U_(U).book Page 423 Monday, January 19, 2015 9:34 AM

GS450h_OM_OM30F70U_(U)
4496-3. Do-it-yourself maintenance
6
Maintenance and care

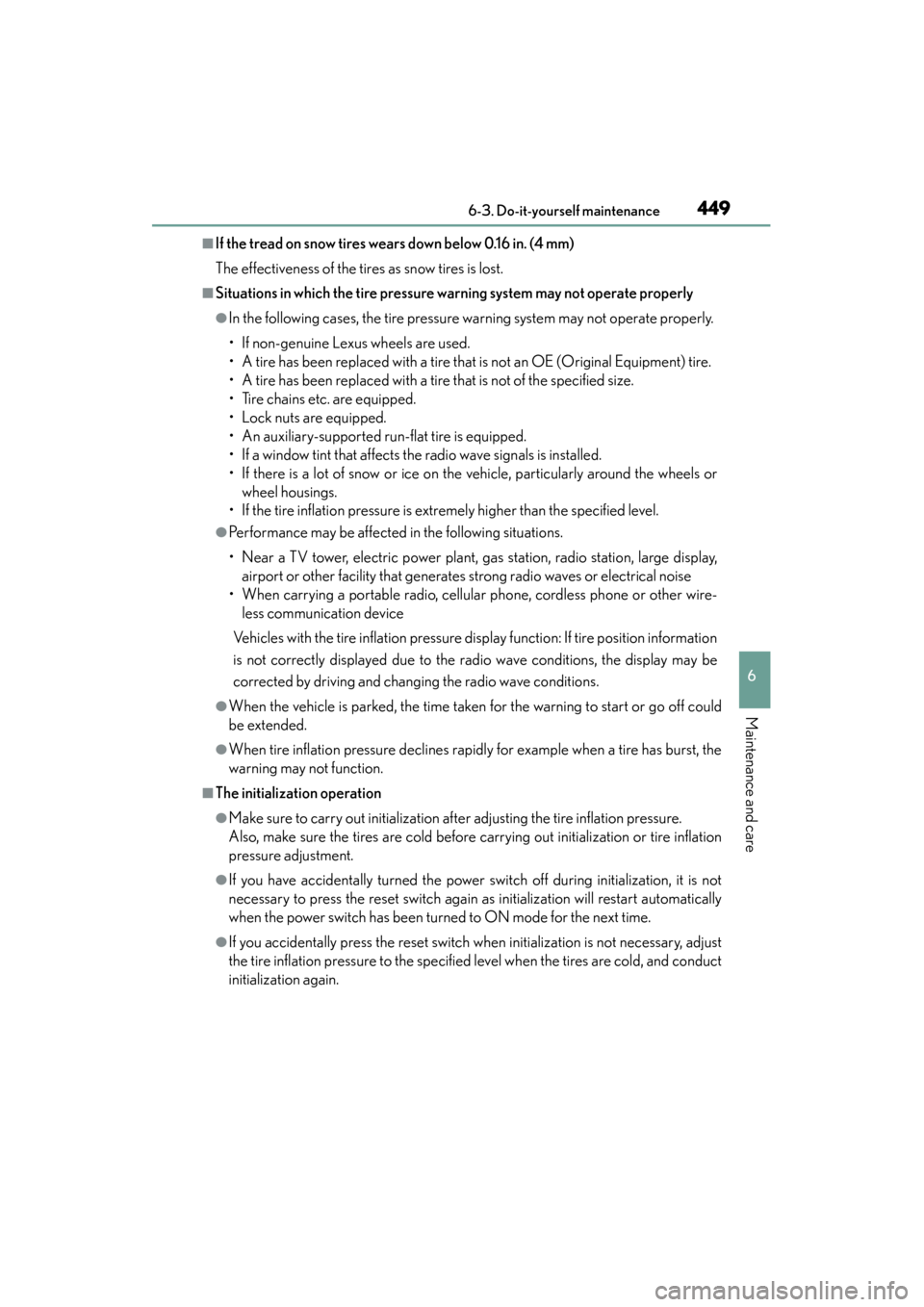

■If the tread on snow tires wears down below 0.16 in. (4 mm)
The effectiveness of the tires as snow tires is lost.
■Situations in which the tire pressure warning system may not operate properly
●In the following cases, the tire pressure warning system may not operate properly.
• If non-genuine Lexus wheels are used.
• A tire has been replaced with a tire that is not an OE (Original Equipment) tire.
• A tire has been replaced with a tire that is not of the specified size.
• Tire chains etc. are equipped.
• Lock nuts are equipped.
• An auxiliary-supported run-flat tire is equipped.
• If a window tint that affects the radio wave signals is installed.
• If there is a lot of snow or ice on the vehicle, particularly around the wheels or wheel housings.
• If the tire inflation pressure is extremely higher than the specified level.
●Performance may be affected in the following situations.
• Near a TV tower, electric power plant, gas station, radio station, large display, airport or other facility that generates strong radio waves or electrical noise
• When carrying a portable radio, cellular phone, cordless phone or other wire- less communication device
Vehicles with the tire inflation pressure display function: If tire position information
is not correctly displayed due to the radio wave conditions, the display may be
corrected by driving and changing the radio wave conditions.
●When the vehicle is parked, the time taken for the warning to start or go off could
be extended.
●When tire inflation pressure declines rapidly for example when a tire has burst, the
warning may not function.
■The initialization operation
●Make sure to carry out initialization after adjusting the tire inflation pressure.
Also, make sure the tires are cold before carrying out initialization or tire inflation
pressure adjustment.
●If you have accidentally turned the power switch off during initialization, it is not
necessary to press the reset switch again as initialization will restart automatically
when the power switch has been turned to ON mode for the next time.
●If you accidentally press the reset switch when initialization is not necessary, adjust
the tire inflation pressure to the specified level when the tires are cold, and conduct
initialization again.
GS450h_OM_OM30F70U_(U).book Page 449 Monday, January 19, 2015 9:34 AM

493
GS450h_OM_OM30F70U_(U)
7When trouble arises
7-1. Essential information Emergency flashers................... 494
If your vehicle has to be stopped in an emergency ....495 7-2. Steps to take in an emergency
If your vehicle needs to be towed ................................ 496
If you think something is wrong ................502
If a warning light turns on or a warning buzzer sounds .....503
If a warning message is displayed ................................. 513
If you have a flat tire.................... 541
If the hybrid system will not start................................ 554
If the shift lever cannot be shifted from P ..................... 556
If the parking brake cannot be released ................................ 557
If the electronic key does not operate properly ..................... 559
If the 12-volt battery is discharged ............................. 562
If your vehicle overheats ......... 566
If the vehicle becomes stuck ...............................................571
GS450h_OM_OM30F70U_(U).book Page 493 Monday, January 19, 2015 9:34 AM
