2. Instrument cluster
■System check display
After turning the power switch to ON mode, “SYSTEM CHECK” is displayed while
system operation is checked.
■Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
●When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
■Setting display automatic cancelation
In the following situations, setting display in which the settings can be changed
through the “DISP” button will automatically be turned off.
●When a warning message appears while the setting display is displayed
●When the vehicle begins to move while the setting display is displayed
■Tire inflation pressure (if equipped)
●It may take a few minutes to display the tire inflation pressure after the power switch
is turned to ON mode. It may also take a few minutes to display the tire inflation
pressure after inflation pressure has been adjusted.
●“---” may be displayed if the tire information cannot be determined due to unfavor-
able radio wave conditions.
●Tire inflation pressure changes with temperature. The displayed values may also be
different from the values measured using a tire pressure gauge.
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is character-
istic of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
Setting of available languages can be changed. (Customizable features: →P. 599)
GS450h_OM_OM30F70U_(U).book Page 102 Monday, January 19, 2015 9:34 AM
600
GS450h_OM_OM30F70U_(U)
8-2. Customization
Some function settings are changed simultaneously with other functions
being customized. Contact your Lexus dealer for further details.
Settings that can be changed using the Remote Touch
Settings that can be changed using the “DISP” button
Settings that can be changed by your Lexus dealer
Definition of symbols: O = Available, — = Not available

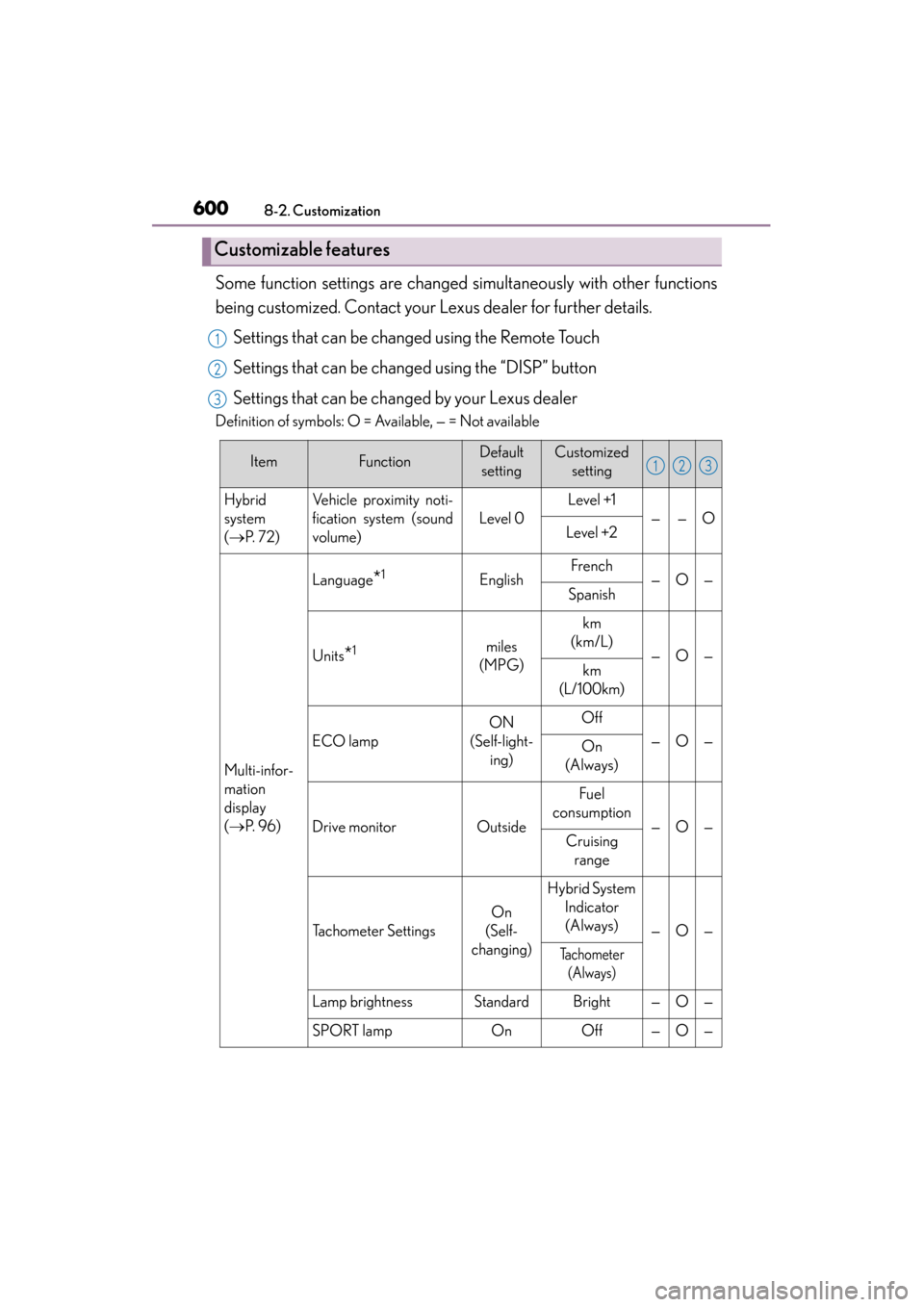

Customizable features
1
2
3
ItemFunctionDefaultsettingCustomized setting
Hybrid
system
(→ P. 7 2 )Vehicle proximity noti-
fication system (sound
volume)
Level 0
Level +1
——OLevel +2
Multi-infor-
mation
display
(→ P. 9 6 )
Language*1EnglishFrench—O—Spanish
Units*1miles
(MPG)
km
(km/L)
—O—km
(L/100km)
ECO lamp
ON
(Self-light- ing)Off
—O—On
(Always)
Drive monitorOutside
Fuel
consumption
—O—Cruising range
Tachometer Settings
On
(Self-
changing)
Hybrid System Indicator (Always)
—O—
Tachometer (Always)
Lamp brightnessStandardBright—O—
SPORT lampOnOff—O—
123
