2015 Lexus ES350 Quick Guide

8
ES350_QG_OM33B49U_(U)
“DISP” button P.31
Telephone switches P.63
Vehicle-to-vehicle distance button∗
P.42
Back switch*2
Talk switch P.63
Audio remote control switches
P.64
LDA (Lane Departure Alert)
switch
∗ P.44
Cruise control switch∗
Dynamic radar cruise control switch
∗
P.39
P.41
Horn*1
Tilt and telescopic steering
control switch
∗*1
∗: If equipped
*1: Refer to “OWNER’S MANUAL”.
*2: Refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.
Tilt and telescopic steering
control lever
∗*1

9
ES350_QG_OM33B49U_(U)
OverviewInstrument Panel
Remote Touch∗ P.50
Heated steering wheel switch∗*
VSC OFF switch*
Seat heater and ventilator switches∗ P.88
Driving mode select switch P.48
Shift lever P.27
Rear sunshade switch∗ P.89
Lexus Display Audio controller∗ P.70

10
ES350_QG_OM33B49U_(U)
OverviewRoof∗
: If equipped
*: Refer to “OWNER’S MANUAL”.
Moon roof switches P.100
Personal lights*
Interior light*
“SOS” button∗ P.93
Garage door opener switches P.91
Inside rear view mirror*
Vanity lights*

11
ES350_QG_OM33B49U_(U)
Floor mat installation
Insert the retaining hooks (clips) into
the floor mat eyelets.
Turn the upper knob of each retaining
hook (clip) to secure the floor mats in
place.
*:Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the illustration.
Use only floor mats designed specifically for vehicles of the same model and model year
as your vehicle. Fix them securely in place onto the carpet.
1
*
2

12
ES350_QG_OM33B49U_(U)

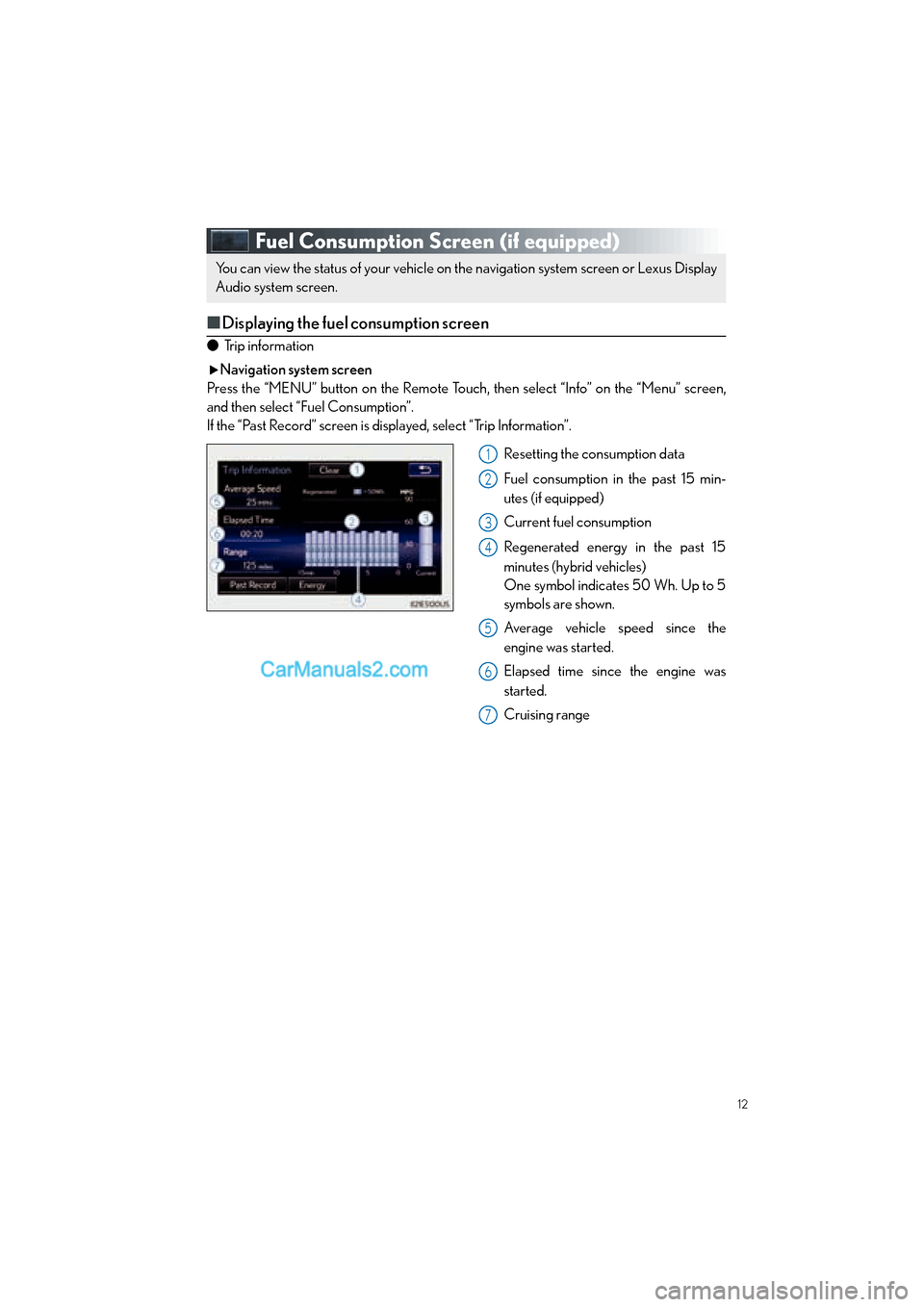

Fuel Consumption Screen (if equipped)
■Displaying the fuel consumption screen
● Trip information
Navigation system screen
Press the “MENU” button on the Remote Touch, then select “Info” on the “Menu” screen,
and then select “Fuel Consumption”.
If the “Past Record” screen is displayed, select “Trip Information”.
Resetting the consumption data
Fuel consumption in the past 15 min-
utes (if equipped)
Current fuel consumption
Regenerated energy in the past 15
minutes (hybrid vehicles)
One symbol indicates 50 Wh. Up to 5
symbols are shown.
Average vehicle speed since the
engine was started.
Elapsed time since the engine was
started.
Cruising range
You can view the status of your vehicle on the navigation system screen or Lexus Display
Audio system screen.
1
2
3
4
5
6
7

13
ES350_QG_OM33B49U_(U)
Lexus Display Audio screen
Press the “MENU” button on the Lexus Display Audio controller, then select “Info” on the
“Menu” screen, and then select “Fuel Consumption”.
If the “Trip Information” screen does not appear, move the controller to the right and select
“Trip Information”.
Fuel consumption in the past 15 min-
utes
Current fuel consumption
Regenerated energy in the past 15
minutes (if equipped) (hybrid vehicles)
One symbol indicates 50 Wh. Up to 5
symbols are shown.
Average vehicle speed since the
engine was started.
Elapsed time since the engine was
started.
Cruising range
Average fuel consumption for the past 15 minute s is divided by color into past averages and
averages attained since the “START STOP ENGINE” switch was last turned to IGNITION
ON mode. Use the displayed average fuel consumption as a reference. The image is an example only.
1
2
3
4
5
6

14
ES350_QG_OM33B49U_(U)
Keys
■Electronic key
Smart access system with push-button start
(→ P.1 5 , 2 4 )
Wireless remote control (→ P.1 5 )
■Mechanical key
To take out the mechanical key, push the
release button and take the key out.
After using the mechanical key, store it in
the electronic key. Carry the mechanical
key together with the electronic key. If
the electronic key battery is depleted or
the entry function does not operate
properly, you will need the mechanical
key.

15
ES350_QG_OM33B49U_(U)
■Wireless remote control
Locks all the doors
Check that the door is securely locked.
Unlocks all the doors
Pressing the button unlocks the driver’s
door. Pressing the button again within
5 seconds unlocks the other doors.
Opens the windows and moon roof
(press and hold)
*
Opens the trunk (press and hold)
If the vehicle is equipped with a power
trunk opener and closer, the trunk lid
automatically opens fully.
Sounds the alarm (press and hold)
*: This setting must be customized at your
Lexus dealer.
Smart Access System wi th Push-button Start
■Entering the vehicle
Grip the driver’s door handle to unlock the
door. Grip the passenger’s door handle to
unlock all the doors.
Make sure to touch the sensor on the
back of the handle.
The doors cannot be unlocked for 3 sec-
onds after the doors are locked.
1
2
3
4
5
The following operations can be performed simply by carrying the electronic key on your
person, for example in your pocket. (The driver should always carry the electronic key.)
For details on starting the engine, see page 24.
