CT200h_OM_OM76174U_(U)7-3. Do-it-yourself maintenance
Engine compartment
■12-volt battery
→
P. 4 8 4
Engine coolant reservoir
(→ P. 4 8 0 )
Engine oil level dipstick (→ P. 477)
Engine oil filler cap ( →P. 477)
Power control unit coolant reservoir (→ P. 4 8 0 ) Brake fluid reservoir (
→P. 4 8 2 )
Fuse box ( →P. 5 0 4 )
Radiator ( →P. 4 8 2 )
Condenser ( →P. 4 8 2 )
Electric cooling fans
Wa s h e r f l u i d t a n k ( →P. 4 8 3 )1
2
3
4
5
6
7
8
9
10

504
CT200h_OM_OM76174U_(U)7-3. Do-it-yourself maintenance
Checking and replacing fuses
Tu r n t h e p o w e r s w i t c h o f f .
Open the fuse box cover.
XEngine compartment
Push the tab in and lift the lid off.
XLeft side instrument panel
Remove the lid.
If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and replace the fuses as necessary.
1
2

CT200h_OM_OM76174U_(U)
5057-3. Do-it-yourself maintenance
7
Maintenance and care
Remove the fuse.
Only type A fuse can be removed
using the pullout tool.
Check if the fuse is blown.Normal fuse
Blown fuse
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
3
4
1
2
XTy p e AXTy p e B
XTy p e CXTy p e D

506
CT200h_OM_OM76174U_(U)7-3. Do-it-yourself maintenance
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. (
→P. 5 0 7 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protec ting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this vehicle.
Because certain bulbs are connected to circuits designed to prevent overload, nongenu-
ine parts or parts not designed for this vehicle may be unusable.
WA R N I N G
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
■Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring near the
fuse box.
Doing so may cause electric shock, resulting in death or serious injury.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus dealer as
soon as possible.

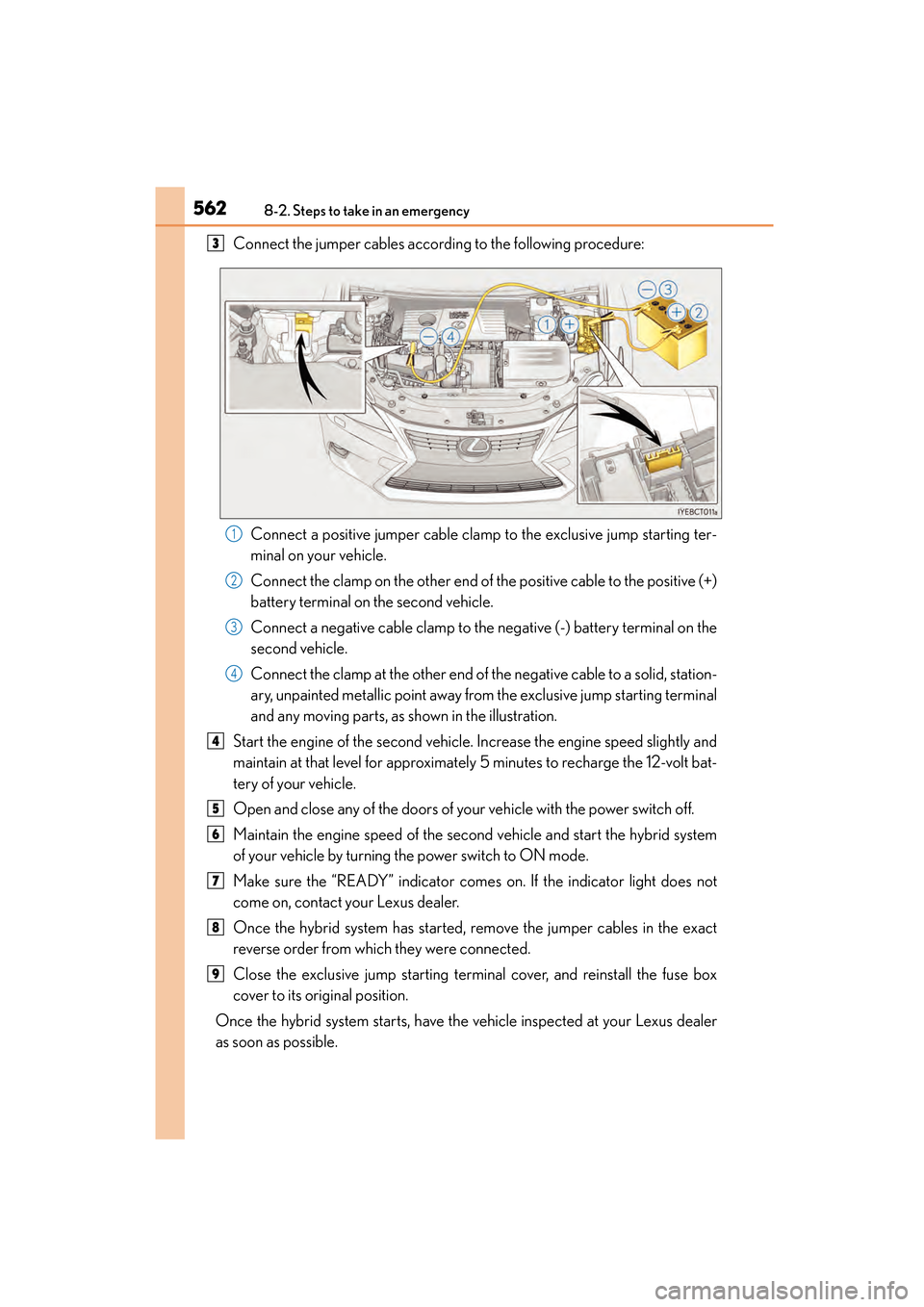

5628-2. Steps to take in an emergency
CT200h_OM_OM76174U_(U)
Connect the jumper cables according to the following procedure:Connect a positive jumper cable clamp to the exclusive jump starting ter-
minal on your vehicle.
Connect the clamp on the other end of the positive cable to the positive (+)
battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery terminal on the
second vehicle.
Connect the clamp at the other end of the negative cable to a solid, station-
ary, unpainted metallic point away from the exclusive jump starting terminal
and any moving parts, as shown in the illustration.
Start the engine of the second vehicle. Increase the engine speed slightly and
maintain at that level for approximately 5 minutes to recharge the 12-volt bat-
tery of your vehicle.
Open and close any of the doors of your vehicle with the power switch off.
Maintain the engine speed of the second vehicle and start the hybrid system
of your vehicle by turning the power switch to ON mode.
Make sure the “READY” indicator comes on. If the indicator light does not
come on, contact your Lexus dealer.
Once the hybrid system has started, remove the jumper cables in the exact
reverse order from which they were connected.
Close the exclusive jump starting terminal cover, and reinstall the fuse box
cover to its original position.
Once the hybrid system starts, have the vehicle inspected at your Lexus dealer
as soon as possible.3
1
2
3
4
4
5
6
7
8
9

622Alphabetical index
CT200h_OM_OM76174U_(U)
Front passenger occupant classification system ............................ 46
Front passenger’s seat belt reminder light ..................................... 529
Front seats .................................................. 119 Adjustment ............................................... 119
Cleaning .................................................463
Correct driving posture ....................30
Driving position memory .................123
Head restraints..................................... 126
Seat heaters .......................................... 423
Seat position memory........................123
Front side marker lights Light switch ............................................ 169
Replacing light bulbs ......................... 517
Front turn signal lights
Replacing light bulbs ...............514, 514
Turn signal lever ...................................167
Wattage ..................................................579
Fuel
Capacity .................................................573
Fuel gauge ................................................84
Gas station information ..................632
Information ...........................................580
Refueling.................................................. 183
Type .......................................................... 573
Fuel filler door ......................................... 183 Refueling.................................................. 183
When the fuel filler door cannot be opened .......................... 185
Fuses .......................................................... 504 Gas station information ......................632
Gauges........................................................ 84
Glove box ............................................... 428
Hands-free system
(for cellular phone)..................284, 371
HD Radio
® system ............................. 343
Head restraints........................................ 126
Headlight cleaner ..................................182
Headlights ................................................. 169 Automatic headlight leveling ........... 171
Light switch.............................................169
Replacing light bulbs ...................... 509, 510, 511, 517
Wattage ................................................. 579
Heated steering wheel .......................423
Heaters Automatic air conditioning
system ....................................... 408, 416
Outside rear view
mirrors ........................................ 412, 418
Seat heaters .......................................... 423
High mounted stoplight Replacing ................................................. 517
Hill-start assist control ........................232
