3. MEDIA OPERATION
CT200h_Navi_OM76146U_(U)14.06.17 09:48
4
AUDIO/VISUAL SYSTEM
2. DVD
For safety reasons, the DVD video discs can only be viewed when the following con-
ditions are met:
(a) The vehicle is completely stopped.
(b) The power switch is in ACCESSORY or ON mode.
(c) The parking brake is applied.
While driving in DVD video mode, only the DVD’s audio can be heard.
The playback condition of some DVD discs may be determined by the DVD software
producer. This DVD player plays a disc as the software producer intended. As such,
some functions may not work properly. Be sure to read the instruction manual that
comes with the individual DVD disc. ( →P.251)
OVERVIEW
The DVD operation screen can be reached by the following methods:
XInserting a disc ( →P.172)
X Using the instrument panel
Press the “MEDIA” button to display the audio control screen.
XUsing the Remote Touch
Press the “MENU” button on the Remote Touch, then select “Media” to display the
audio control screen.

214
3. MEDIA OPERATION
CT200h_Navi_OM76146U_(U)14.06.17 09:48
3. USB MEMORY
■CONTROL SCREEN
OVERVIEW
The USB memory operation screen can be reached by the following methods:
X Connecting a USB memory ( →P.173)
X Using the instrument panel
Press the “MEDIA” button to display the audio control screen.
XUsing the Remote Touch
Press the “MENU” button on the Remote Touch, then select “Media” to display the
audio control screen.

219
3. MEDIA OPERATION
CT200h_Navi_OM76146U_(U)14.06.17 09:48
4
AUDIO/VISUAL SYSTEM
4. iPod
■CONTROL SCREEN
OVERVIEW
The iPod operation screen can be reached by the following methods:
X Connecting an iPod ( →P.173)
X Using the instrument panel
Press the “MEDIA” button to display the audio control screen.
XUsing the Remote Touch
Press the “MENU” button on the Remote Touch, then select “Media” to display the
audio control screen.
X iPod audio
XiPod video

226
3. MEDIA OPERATION
CT200h_Navi_OM76146U_(U)14.06.17 09:48
5. Bluetooth® AUDIO
The Bluetooth® audio system enables users to enjoy listening to music that is played
on a portable player on the vehicle speakers via wireless communication.
This audio system supports Bluetooth
®, a wireless data system capable of playing por-
table audio music without cables. If your device does not support Bluetooth
®, the
Bluetooth® audio system will not function.
OVERVIEW
The Bluetooth® audio operation screen can be reached by the following methods:
Depending on the type of portable player connected, some functions may not be avail-
able and/or the screen may look diff erently than shown in this manual.
XConnecting a Bluetooth® audio device ( →P.230)
X Using the instrument panel
Press the “MEDIA” button to display the audio control screen.
XUsing the Remote Touch
Press the “MENU” button on the Remote Touch, then select “Media” to display the
audio control screen.

232
3. MEDIA OPERATION
CT200h_Navi_OM76146U_(U)14.06.17 09:48
6. AUX
■CONTROL SCREEN
OVERVIEW
The AUX operation screen can be reached by the following methods:
X Connecting a device to the AUX port ( →P.173)
X Using the instrument panel
Press the “MEDIA” button to display the audio control screen.
XUsing the Remote Touch
Press the “MENU” button on the Remote Touch, then select “Media” to display the
audio control screen.

235
3. MEDIA OPERATION
CT200h_Navi_OM76146U_(U)14.06.17 09:48
4
AUDIO/VISUAL SYSTEM
7. VTR
■CONTROL SCREEN
OVERVIEW
The VTR operation screen can be reached by the following methods:
X Connecting a device to the AUX port ( →P.173)
X Using the instrument panel
Press the “MEDIA” button to display the audio control screen.
XUsing the Remote Touch
Press the “MENU” button on the Remote Touch, then select “Media” to display the
audio control screen.

238
CT200h_Navi_OM76146U_(U)14.06.04 18:41
4. AUDIO/VISUAL REMOTE CONTROLS
1. STEERING SWITCHES
X“MODE” switch
X “∧∨ ” switch
Some parts of the audio/visual system can be adjusted using the switches on the steer-
ing wheel.
No.Switch
“MODE” switch
“∧∨ ” switch
Volume control switch
ModeOperationFunction
AM, FM,
SAT, AUX, VTRPressChange audio modes
Press and hold
(0.8 sec. or more)Mute
CD, MP3/
WMA/AAC disc, DVD,
USB, iPod, BT audio, APPSPressChange audio modes
Press and hold
(0.8 sec. or more)Pause
ModeOperationFunction
AM/FM
RadioPressPreset station up/down
Press and hold
(0.8 sec. or more)Seek up/down continuously while the switch is being
pressed

239

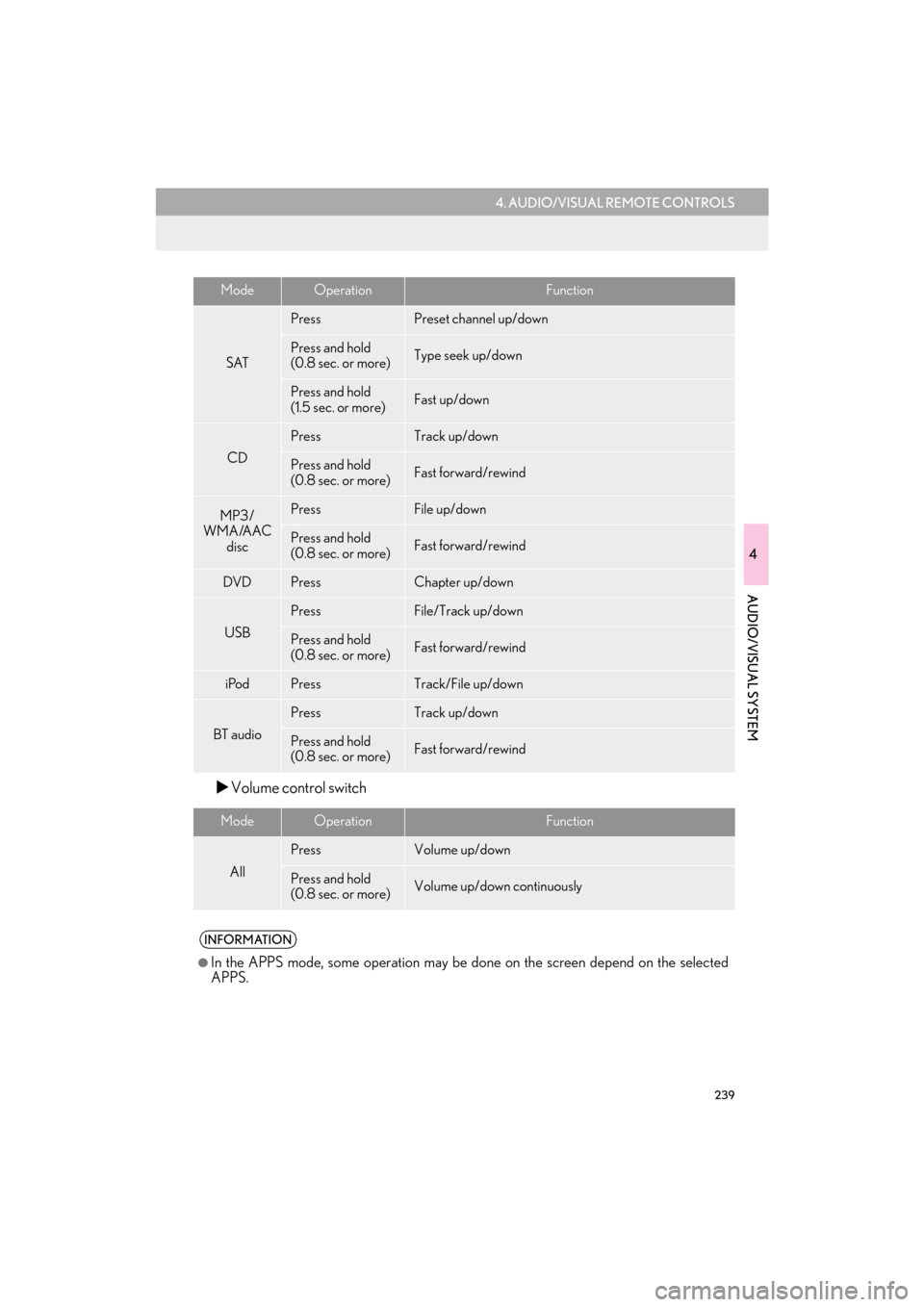

4. AUDIO/VISUAL REMOTE CONTROLS
4
AUDIO/VISUAL SYSTEM
CT200h_Navi_OM76146U_(U)14.06.04 18:41
XVolume control switch
SAT
PressPreset channel up/down
Press and hold
(0.8 sec. or more)Type seek up/down
Press and hold
(1.5 sec. or more)Fast up/down
CD
PressTrack up/down
Press and hold
(0.8 sec. or more)Fast forward/rewind
MP3/
WMA/AAC discPressFile up/down
Press and hold
(0.8 sec. or more)Fast forward/rewind
DVDPressChapter up/down
USB
PressFile/Track up/down
Press and hold
(0.8 sec. or more)Fast forward/rewind
iPodPressTrack/File up/down
BT audio
PressTrack up/down
Press and hold
(0.8 sec. or more)Fast forward/rewind
ModeOperationFunction
All
PressVolume up/down
Press and hold
(0.8 sec. or more)Volume up/down continuously
ModeOperationFunction
INFORMATION
●
In the APPS mode, some operation may be done on the screen depend on the selected
APPS.
