KNOWING YOUR CAR145
1
Version with 8 sensors
On the version with 4 front sens ors and 4 rear s ensors, the
system is activated when revers e gear is engaged or by
pressing the button fig. 84. If there ha s been a reque st to
activate the Magic Parking function, the front and rear
s ens ors are not automaticall y activated during the search
for a parking space, but can be activated b y pre ssing the
s pecial button
tor by engaging revers e gear when the
s peed is below around 15 km/h.
When revers e gear is released, the front and rear s ensors
remain activated until a speed of around 15 km/h i s ex-
ceeded to allow the parking manoeuvre to be completed.
The system can als o be activated by pressing the button
tin the central panel: a warning light in the button
s witches on when the system is activated.
The sens ors are deactivated by pressing the button
tagain or when a speed of 15 km/h is exceeded: thewarning light in the button i
s off when the system is not
active.
When the s ensors are activated, the system starts to pro-
duce acous tic signals from the front or rear buzzers as s oon
a s an obs tacle is detected with the frequency increasing as
the obs tacle gets closer.
When the obs tacle is less than about 30 cm away , the
s ound becomes continuous. Depending on the po sition of
the obs tacle (in front or behind) the sound is emitted by
the corres ponding buzzers (front or rear). The obs tacle
clos est to the car is signalled.
The acoustic signal stops immediately if the distance of
the obs tacle incr

eases. The s ound cy cle remains constant
if the dis tance meas ured by the centre s ensors remains un-
changed, whils t if this s ituation occurs for the side sen-
s ors , the s ignal is interrupted after about 3 s econds (for
example, to prevent s ignals in the cas e of manoeuvres
alongs ide walls ).
fig. 84L0E0249m
The responsibility for parking and other dan-
gerous manoeuvres always and in every case
lies with the driver. While carrying out these ma-
noeuvres, always make sure that no people (espe-
cially children) or animals are in the area con-
cerned. Parking sensors are designed to assist dri-
vers: in all cases, you must always pay the utmost
attention during potentially dangerous manoeuvres,
even when these are carried out a low speed.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 145

146KNOWING YOUR CAR
ACOUS TIC SIGNAL
The information concerning the pre sence and dis tance of
an obs tacle from the car is transmitted to the driver by
means of acous tic signals from 2 buzzers installed in the
passenger compartment:
❍ a front buzzer warns of the presence of obs tacles at the
front and a buzzer located at the rear warns of the pres-
ence of obs tacles at the rear. Thi s permits the driver to
perceive the direction (front/rear) of the ob stacles .
Operation i s automaticall y activated when rever se gear
i s engaged.
The acou stic signal:
❍ increas es a s the dis tance between the car and the ob-
s tacle decreas es;
❍ becomes continuous when the dis tance between the car
and the obs tacle is less than ar

ound 30 cm and stops
immediately if the distance increas es;
❍ is cons tant if the dis tance is unvaried; if this s ituation
occurs for the s ide sens ors, the indication will s top af-
ter about 3 s econds to avoid, for example, warning in-
dications in the event of manoeuvre s alongs ide walls .
The sensor must be clean of mud, dirt, snow
or ice in order for the system to operate cor-
rectly. Be careful not to scratch or damage the
sensors while cleaning them. Avoid using dry, rough
or hard cloths. The sensors must be washed using
clean water, with the addition of car shampoo if nec-
essary. When using special washing equipment such
as high pressure jets or steam cleaning, clean the
sensors very quickly keeping the jet more than 10
cm away.
Only have the bumpers repainted or any re-
touches to the paintwork in the area of the
sensors carried out by a Lancia Dealership.
If the paint is incorrectly applied this could ad-
versely affect the operation of the parking sensors.
S ENS OR OPERATING RANGE
The sens ors allow the system to check the front part (ver-
s ion with 8 s ensors) and rear part of the vehicle.
Their pos ition covers the middle and s ide areas of the front
and rear of the car. If an obs tacle is located in a middle area,
it is detected when the dis tance is less than about 0.9 m
(front) and 1.30 m (rear).
If the obs tacle is located at the s ide, it is detected at dis -
tances of less than 0.6 m.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 146

KNOWING YOUR CAR147
1
OPERATION WITH TRAILER
The operation of the sens ors is automaticall y deactivated
when the trailer’ s electric plug i s in serted in the car’ s tow
hook socket. The sens ors are automatically reactivated
when the trailer’ s cable plug is removed.
IMPORTANT If y ou wish to leave the tow hook fitted when
there is no trailer, it is advisable to go to a Lancia Deal-
ers hip to have the system updated becau se the tow hook
could be detected as an obstacle by the centre s ensors.
FAULT INDIC AT I O NS
Either symbol
S(if the Magic Parking system is fitted),
or symbol
t(if the Magic Parking i s not fitted) will light
up on the di splay in combination with a me ssage or with
ins trument panel
èwarning light if parking s
ensor faults
are detected while revers e is engaged.
IMPORTANT INFORMATION
During parking manoeuvre s, pay the utmos t attention to
any obs tacles that could be located above or below the s en-
s ors .
Under certain circum stances close objects located in front
of or behind the vehicle ma y not be detected and could
therefore caus e damage to the vehicle or be damaged
thems elves. The following condition
s ma y influence the performance
of the parking a ssistance system:
❍ Reduced sens or sens itivity and a reduction in the park-
ing assi stance system performance could be due to the
pres ence on the surface of the sens ors of: ice, s now
,
mud, thick paint.
❍ The sens ors detect a non-exi stent obs tacle (echo in-
terference) due to mechanical interference, for exam-
ple when was hing the vehicle, rain ( strong wind), hail.
❍ The indication s s ent by the sensors can als o be altered
b y the pres ence of ultras onic devices (e.g. truck pneu-
matic brake systems or pneumatic drill s) near the car.
❍ The performance of the parking a ssistance system may
als o be affected by the position of the s ensors. For ex-
ample, if the geometr y is altered (as a result of wear of
the shock abs orbers, su spens ion) or the ty res ar
e
changed, the vehicle i s too heavily laden, specific tun-
ing is carried out that lower s the vehicle.
❍ The detection of obs tacles to the upper part of the ve-
hicle is not guaranteed a s the system is designed to de-
tect obs tacles that could impact the lower part of the
vehicle.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 147

IN AN EMERGENCY227
4
F12
F12
F13
F13
F31
F33
F34
F35
F36
F37
F38
F39
F40
F417.515
7.5 15 5
20
20 5
20
7,5 10
10
30
7.539
39
39
39
39
39
39
39
39
39
39
39
39
39
FUSE SUMMARY TABLE
ELECTRIC DEVICES FUSE AMPERE FIGURE
Right dipped beam headlight
Right dipped beam headlight (Xenon gas discharge bulb)
Left dipped beam headlight, headlight alignment corrector
Left dipped beam headlight (Xenon gas discharge bulb)
Climate control system fan relay coil, Body Computer
Rear left electric window
Rear right electric window
Reversing lights, engine compartment junction unit relay coils,
brake light pedal control (normally closed contact), water in diesel sensor,
flow meter
Central locking system control unit, fuel flap, dead lock, tailgate release
Third brake light, instrument panel, Adaptive Headlights Node,
control unit on left-hand gas discharge headlight
Front roof lights, rear central roof light,
driver side and passenger side sun visor lights, luggage compartment lig\
ht,
glove compartment light (Platinum trim level with optional sun roof)
Radio setup/Radio/Radio Navigator, Blue&Me
TMnode, alarm siren, alarm
system on roof light, climate control unit, tyre pressure monitoring control
unit, diagnosis socket connector, rear roof lights
Heated rear window
Electric door mirror demisters, demisters on windscreen jets
195-232 Delta GB 1ed 03/03/14 09.15 Pagina 227

39
39
39
39
39
39
39
39
39
228IN AN EMERGENCY
F43
F44
F46
F47
F48
F49
F51
F52
F5330
15
20
20
205
5/7.5 (*)
15
7.5
ELECTRIC DEVICES FUSE AMPERE FIGURE
Windscreen wiper system on steering column stalk, bi-directional windscreen/rear window washer electrical pump system on steering column stalk
Cigar lighter/power socket on tunnel,
luggage compartment power socket
Sun roof motor
Driver’s front electric window
Passenger side front electric window
Hazard, right, left and central control panels (lighting),
steering wheel controls (lighting), controls on front roof light
(lighting), volumetric alarm system control unit,
electric sun roof system (control unit, control lighting),
rain/dusk sensor, electro-chromic mirror,
front seat heating controls, AUX socket (lighting)
Cigar lighter (lighting), radio setup,
Cruise Control system control, Blue&Me
TMnode, parking sensor node,
AQS sensor, climate control system, electric door mirror
adjustment, tyre pressure monitoring control unit, Lane assistance
node, Controlled damping suspension node, Eco button
(versions with automatic transmission), automatic transmission control
light guide, control unit on right-hand gas discharge headlight
Rear window wiper system on steering column stalk
Instrument panel, rear direction indicators
195-232 Delta GB 1ed 03/03/14 09.15 Pagina 228

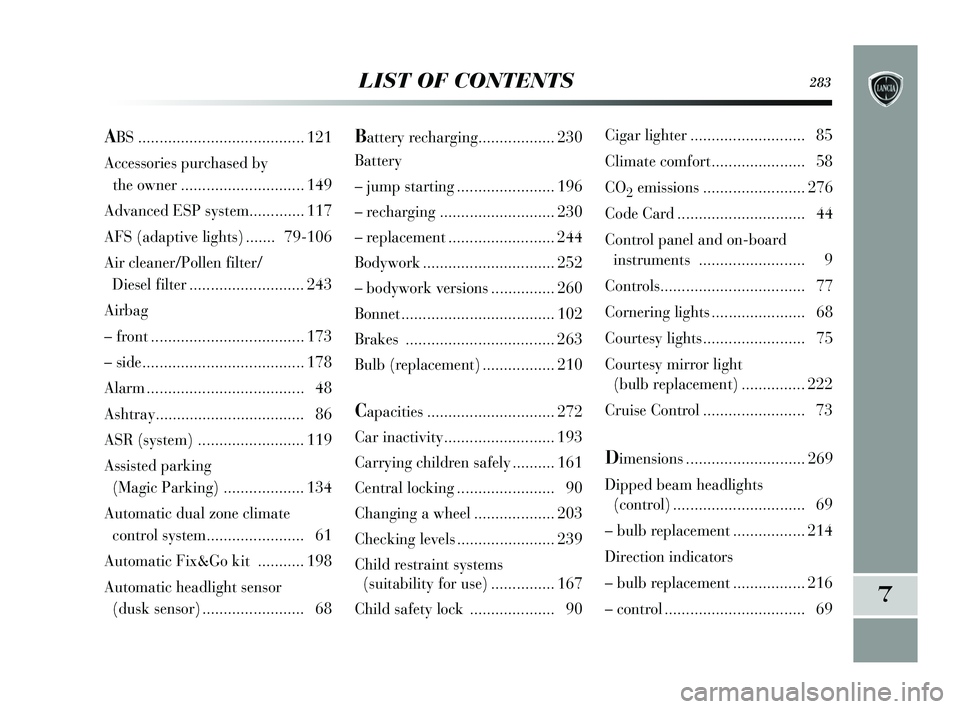

LIST OF CONTENTS 283
7
Battery recharging.................. 230
Battery
– jump starting ....................... 196
– recharging ........................... 230
– replacement ......................... 244
Bodywork ............................... 252
– bodywork versi ons ............... 260
Bonnet.................................... 102
Brakes ................................... 263
Bulb (replacement) ................. 210
Capacities .............................. 272
Car inactivity.......................... 193
Carrying children safely.......... 161
Central locking ....................... 90
Changing a wheel ................... 203
Checking lev els ....................... 239
Child restraint systems (suitability for use) ............... 167
Child safet y lock .................... 90 Cigar lighter ........................... 85
Climate comfort...................... 58
CO
2emissions ........................ 276
Code Card .............................. 44
Control panel and on-board instruments ......................... 9
Controls.................................. 77
Cornering lights ...................... 68
Courtesy lights........................ 75
Courtesy mirror light (bulb replacem ent) ............... 222
Cruise Cont rol ........................ 73
Dimensions ............................ 269
Dipped beam headlights (control) ............................... 69
– bulb replacement ................. 214
Direction indicators
– bulb replacement ................. 216
– control ................................. 69
ABS ....................................... 121
Accessories purchased by the owner ............................. 149
Advanced ESP sy stem.............117
AFS (adaptive lig hts) .......79-106
Air cleaner/Pollen filter/ Diesel filter ........................... 243
Airbag
– front .................................... 173
– side...................................... 178
Alarm ..................................... 48
Ashtray................................... 86
ASR (system) ......................... 119
Assisted parking (Magic Parking ) ................... 134
Automatic dual zone climate control syst em....................... 61
Automatic Fix&Go kit ........... 198
Automatic headlight sensor (dusk sensor) ........................ 68
281-288 Delta GB 1ed 03/03/14 09.32 Pagina 283

LIST OF CONTENTS285
7
Main beam headlights(control) ............................... 69
– bulb replacement ................. 215
Maintenance and care ............. 233
– demanding use of the car ..... 237
– periodic checks .................... 237
– Scheduled Serv icing Plan ..... 235
– scheduled servicing .............. 234
Manual climate control system....................... 59
Maximum speeds .................... 270
Menu items ............................. 30
MSR (system) ......................... 119
Number plate lights
(bulb repla cement)............... 218
Paint...................................... 253
Parking sens ors...................... 131 – Magic Parking
(Assisted pa rking)................ 134
Parking .................................. 187
Particulate filt er (DPF)........... 153
Performance ........................... 270
Power socket .......................... 85
Pretensioners .......................... 158
Protecting the environment ..... 152
Radio (system se tup)..............148
Radio transmitters and mobile phones . ..................... 150
Rain sensor ............................. 72
Reactive Suspension System.... 109
Rear fog light.......................... 79
– bulb replacement ................. 217
Rear roof lights (bulb replacem ent) ...............220
Rear view mirrors ................... 56
In an emer
gency..................... 195
Instrument panel .................... 8
Interior fittings ....................... 81
Interiors.................................. 256
“Isofix” (child restraint system setu p)........................ 169
“Isofix” child restraint systems (fitting setup) ....................... 169
Keys ...................................... 44
Knowing your car ................... 7
Lancia CODE (si stema).......... 43
Lifting the car ........................ 231
Lubricants (specif ications)...... 273
Luggage compartment light (bulb replacement) ............... 221
Luggage compartment ............ 96
Magic Parking ....................... 134
281-288 Delta GB 1ed 03/03/14 09.32 Pagina 285
