2015 KIA SOUL Owners Manual

15

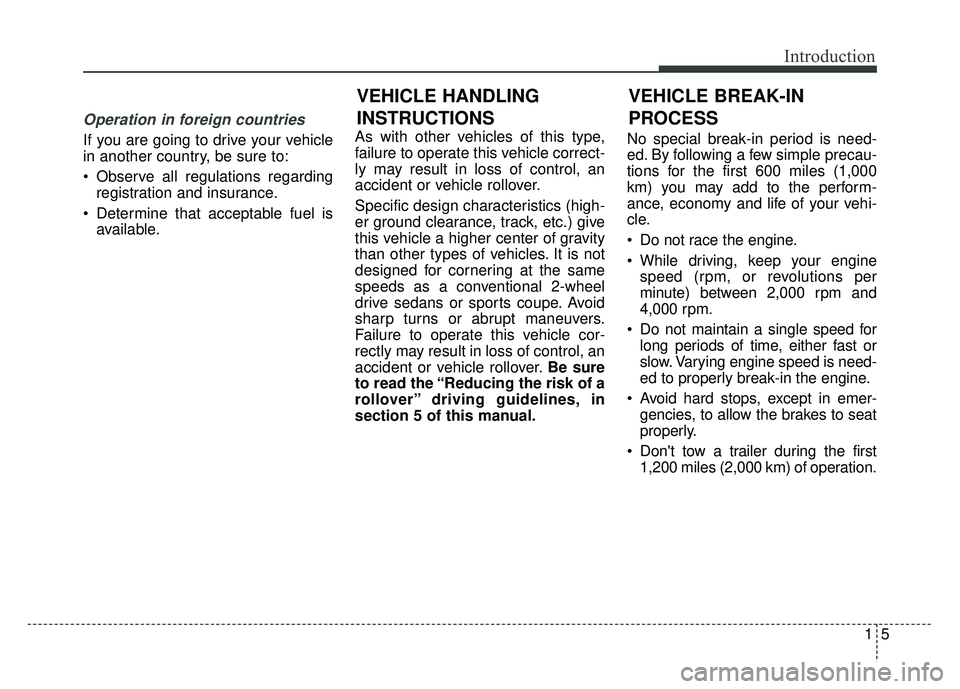

Introduction
Operation in foreign countries
If you are going to drive your vehicle
in another country, be sure to:
Observe all regulations regardingregistration and insurance.
Determine that acceptable fuel is available. As with other vehicles of this type,
failure to operate this vehicle correct-
ly may result in loss of control, an
accident or vehicle rollover.
Specific design characteristics (high-
er ground clearance, track, etc.) give
this vehicle a higher center of gravity
than other types of vehicles. It is not
designed for cornering at the same
speeds as a conventional 2-wheel
drive sedans or sports coupe. Avoid
sharp turns or abrupt maneuvers.
Failure to operate this vehicle cor-
rectly may result in loss of control, an
accident or vehicle rollover.
Be sure
to read the “Reducing the risk of a
rollover” driving guidelines, in
section 5 of this manual. No special break-in period is need-
ed. By following a few simple precau-
tions for the first 600 miles (1,000
km) you may add to the perform-
ance, economy and life of your vehi-
cle.
Do not race the engine.
While driving, keep your engine
speed (rpm, or revolutions per
minute) between 2,000 rpm and
4,000 rpm.
Do not maintain a single speed for long periods of time, either fast or
slow. Varying engine speed is need-
ed to properly break-in the engine.
Avoid hard stops, except in emer- gencies, to allow the brakes to seat
properly.
Don't tow a trailer during the first 1,200 miles (2,000 km) of operation.
VEHICLE BREAK-IN
PROCESS
VEHICLE HANDLING
INSTRUCTIONS

Introduction
61

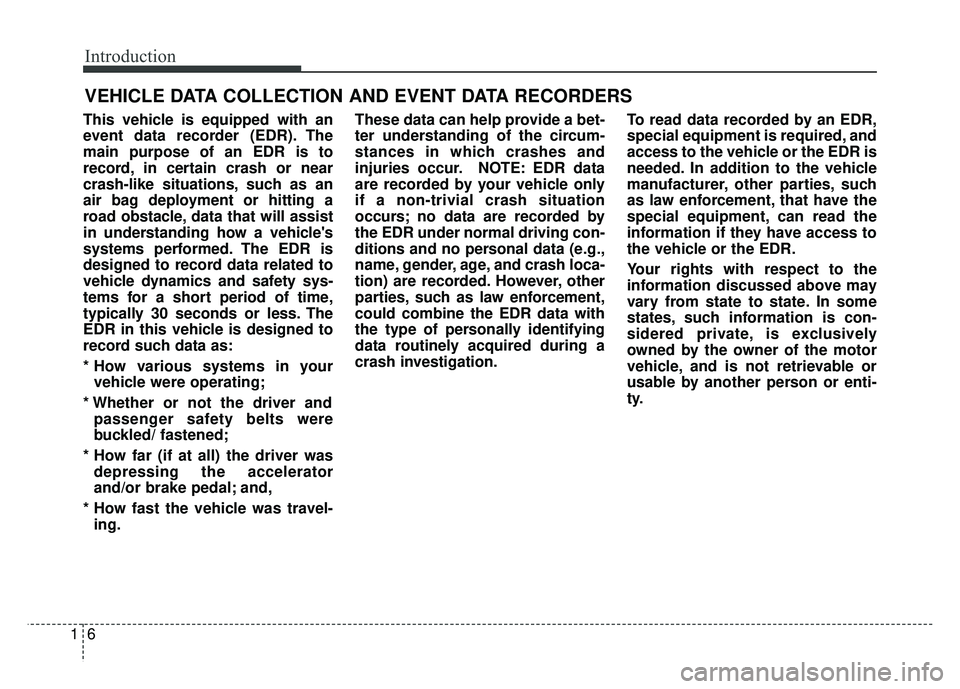

VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS
This vehicle is equipped with an
event data recorder (EDR). The
main purpose of an EDR is to
record, in certain crash or near
crash-like situations, such as an
air bag deployment or hitting a
road obstacle, data that will assist
in understanding how a vehicle's
systems performed. The EDR is
designed to record data related to
vehicle dynamics and safety sys-
tems for a short period of time,
typically 30 seconds or less. The
EDR in this vehicle is designed to
record such data as:
* How various systems in yourvehicle were operating;
* Whether or not the driver and passenger safety belts were
buckled/ fastened;
* How far (if at all) the driver was depressing the accelerator
and/or brake pedal; and,
* How fast the vehicle was travel- ing. These data can help provide a bet-
ter understanding of the circum-
stances in which crashes and
injuries occur. NOTE: EDR data
are recorded by your vehicle only
if a non-trivial crash situation
occurs; no data are recorded by
the EDR under normal driving con-
ditions and no personal data (e.g.,
name, gender, age, and crash loca-
tion) are recorded. However, other
parties, such as law enforcement,
could combine the EDR data with
the type of personally identifying
data routinely acquired during a
crash investigation.
To read data recorded by an EDR,
special equipment is required, and
access to the vehicle or the EDR is
needed. In addition to the vehicle
manufacturer, other parties, such
as law enforcement, that have the
special equipment, can read the
information if they have access to
the vehicle or the EDR.
Your rights with respect to the
information discussed above may
vary from state to state. In some
states, such information is con-
sidered private, is exclusively
owned by the owner of the motor
vehicle, and is not retrievable or
usable by another person or enti-
ty.

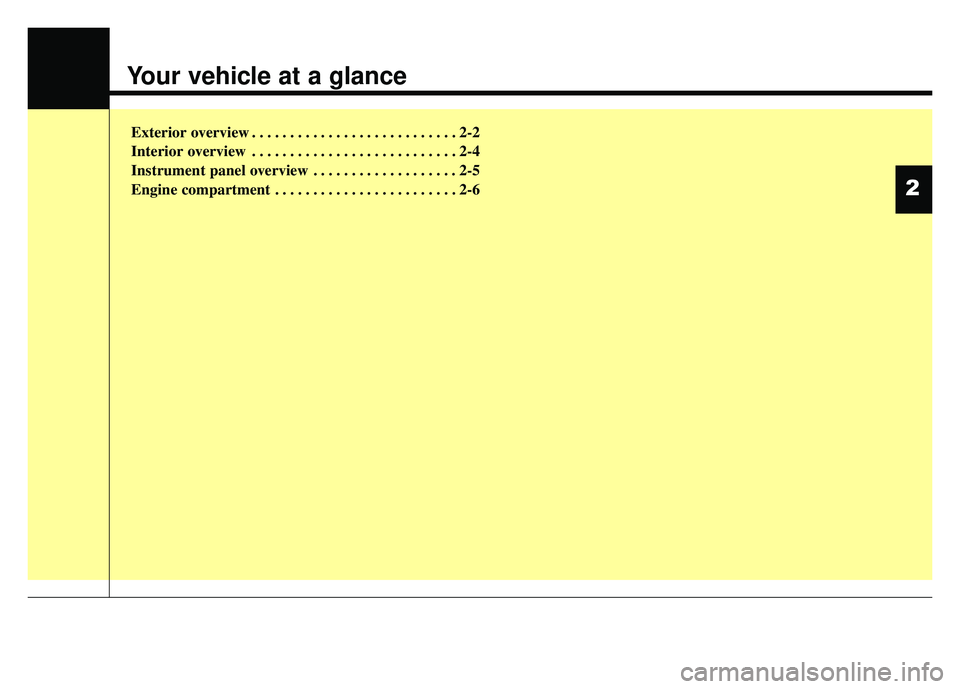

Your vehicle at a glance
Exterior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Instrument panel overview . . . . . . . . . . . . . . . . . . . 2-5
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-6
2

Your vehicle at a glance
22

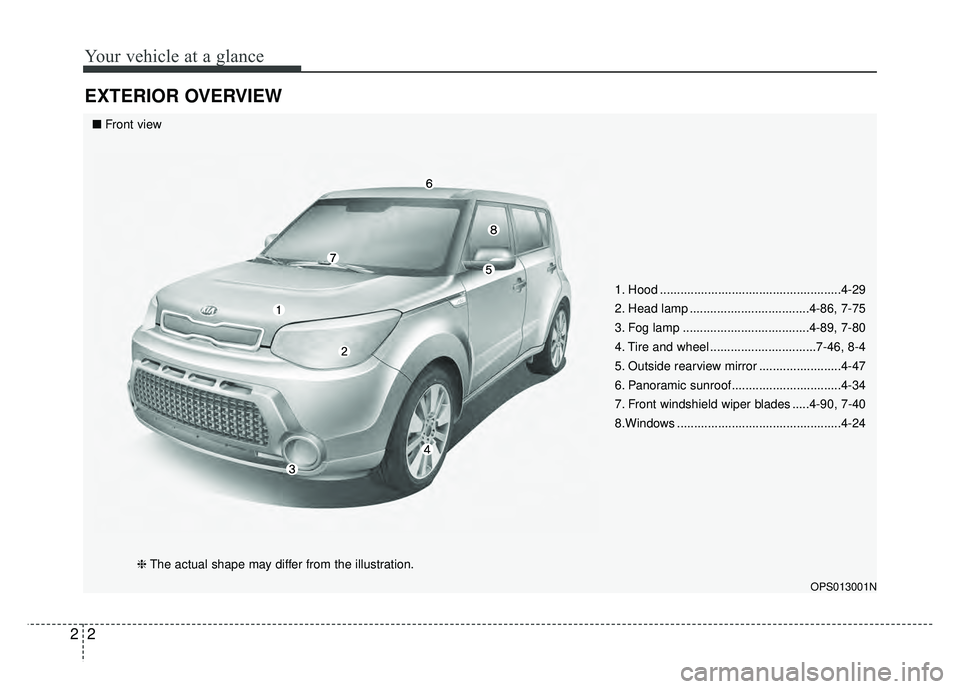

EXTERIOR OVERVIEW
1. Hood .....................................................4-29
2. Head lamp ...................................4-86, 7-75
3. Fog lamp .....................................4-89, 7-80
4. Tire and wheel ...............................7-46, 8-4
5. Outside rearview mirror ........................4-47
6. Panoramic sunroof................................4-34
7. Front windshield wiper blades .....4-90, 7-40
8.Windows ................................................4-24
OPS013001N
■Front view
❈The actual shape may differ from the illustration.

23
Your vehicle at a glance
9. Door ......................................................4-17
10. Fuel filler lid ........................................4-31
11. Rear combination lamp.......................7-81
12. Tail gate ..............................................4-22
13. High mounted stop lamp ....................7-83
14. Rear window defroster........................4-98
15. Antenna ............................................4-143
16. Rearview camera................................4-84
OPS013002N

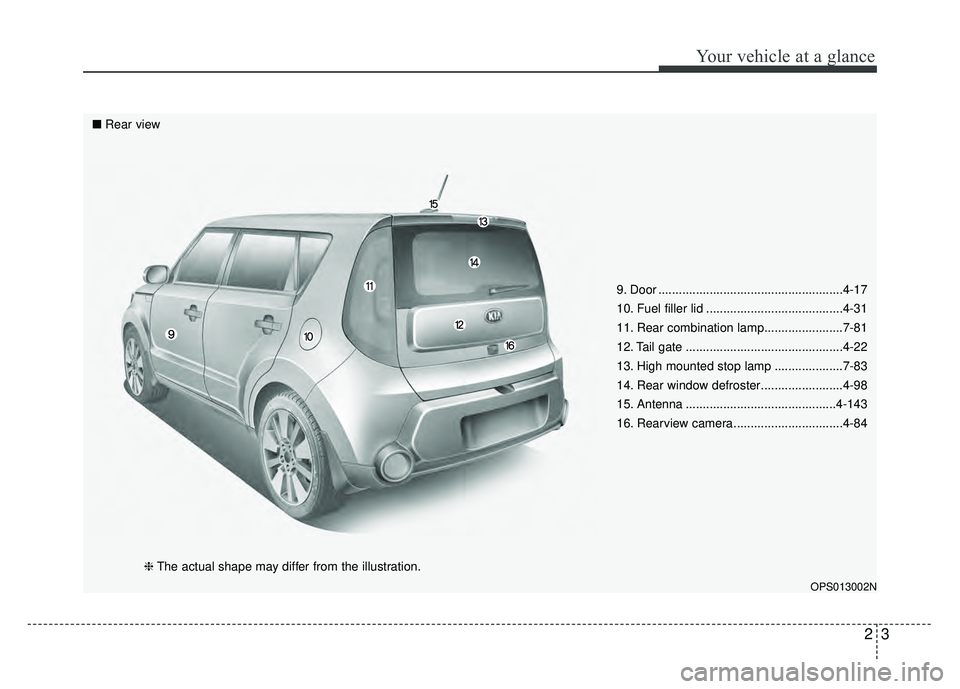

■Rear view
❈The actual shape may differ from the illustration.

Your vehicle at a glance
42
INTERIOR OVERVIEW
1. Inside door handle ................................4-18
2. Power window switch ............................4-24
3. Power window lock button .....................4-28
4. Central door lock switch ........................4-19
5. Outside rearview mirror control.............4-48
6. Outside rearview mirror folding .............4-49
7. Fuel filler lid open lever .........................4-31
8. Instrument panel illumination controlswitch ...................................................4-51
9. Steering wheel heater On/Off button ....4-42
10. Idle Stop and Go (ISG) OFF button ....5-44
11. ESC Off button ....................................5-29
12. Speaker lighting ...............................4-146
13. Steering wheel ....................................4-40
14. Tilt and telescopic steering control lever.....................................................4-41
15. Inner panel fuse panel ........................7-62
16. Hood release lever ..............................4-29
17. Seat .......................................................3-2
18. Transaxle shift lever ...................5-14, 5-17
OPS013004N❈ The actual shape may differ from the illustration.

25
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
1. Audio remote control buttons..............4-144
2. Driver’s front air bag .............................3-49
3. Horn ......................................................4-42
4. Cruise control button ............................5-37
5. Instrument cluster .................................4-50
6. Lighting control lever.............................4-86
7.Wiper and washer control lever .............4-90
8. Ignition switch or Engine start/stopbutton...............................................5-6, 5-9
9. Audio...................................................4-143
10. Hazard warning flasher.........................6-2
11. Climate control system ..........4-100, 4-110
12. Front seat warmer/ Seat air ventilation .................4-132, 4-134
13. Power outlet ......................................4-135
14. Center console storage box..............4-128
15. Glove box ..........................................4-128
16. Passenger’s front air bag ....................3-49
17. Parking brake......................................5-25
OPS013003N
❈The actual shape may differ from the illustration.

Your vehicle at a glance
62

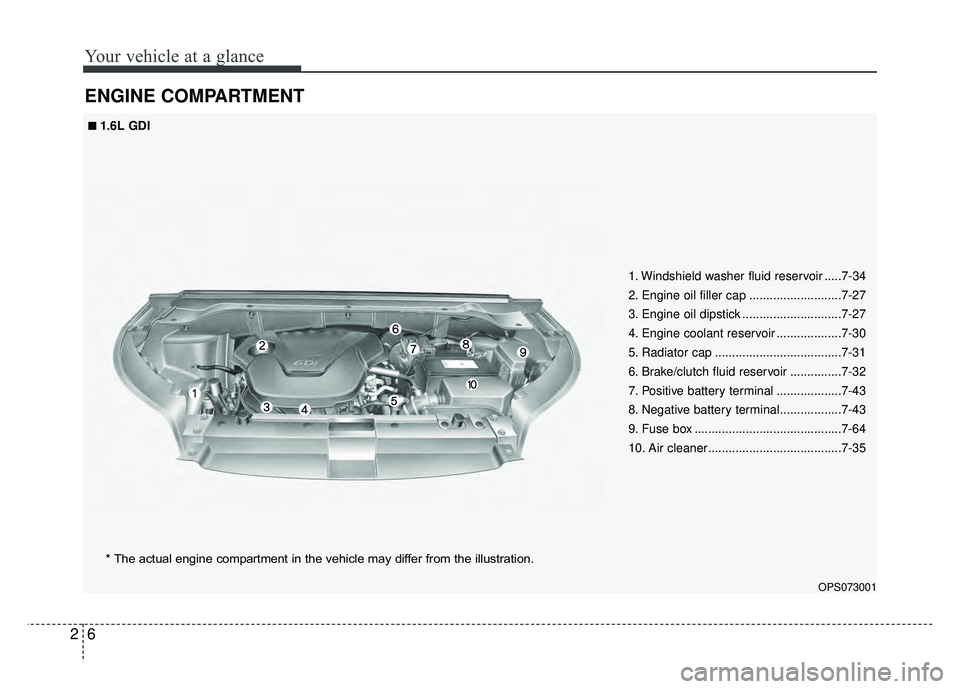

ENGINE COMPARTMENT
OPS073001
1. Windshield washer fluid reservoir .....7-34
2. Engine oil filler cap ...........................7-27
3. Engine oil dipstick .............................7-27
4. Engine coolant reservoir ...................7-30
5. Radiator cap .....................................7-31
6. Brake/clutch fluid reservoir ...............7-32
7. Positive battery terminal ...................7-43
8. Negative battery terminal..................7-43
9. Fuse box ...........................................7-64
10. Air cleaner.......................................7-35
* The actual engine compartment in the vehicle may differ from the illustration.
■ ■1.6L GDI
