Page 10 of 92
7
You can view the previous or next
image by flicking left/right on an
image on the USB Image screen.
Flick left/right on the frequency bar
in the radio player to look up the pre-
vious/next frequency available.
Press and Hold
Pressing the and
buttons in the music or video player
will fast forward/rewind the music or
video.
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1

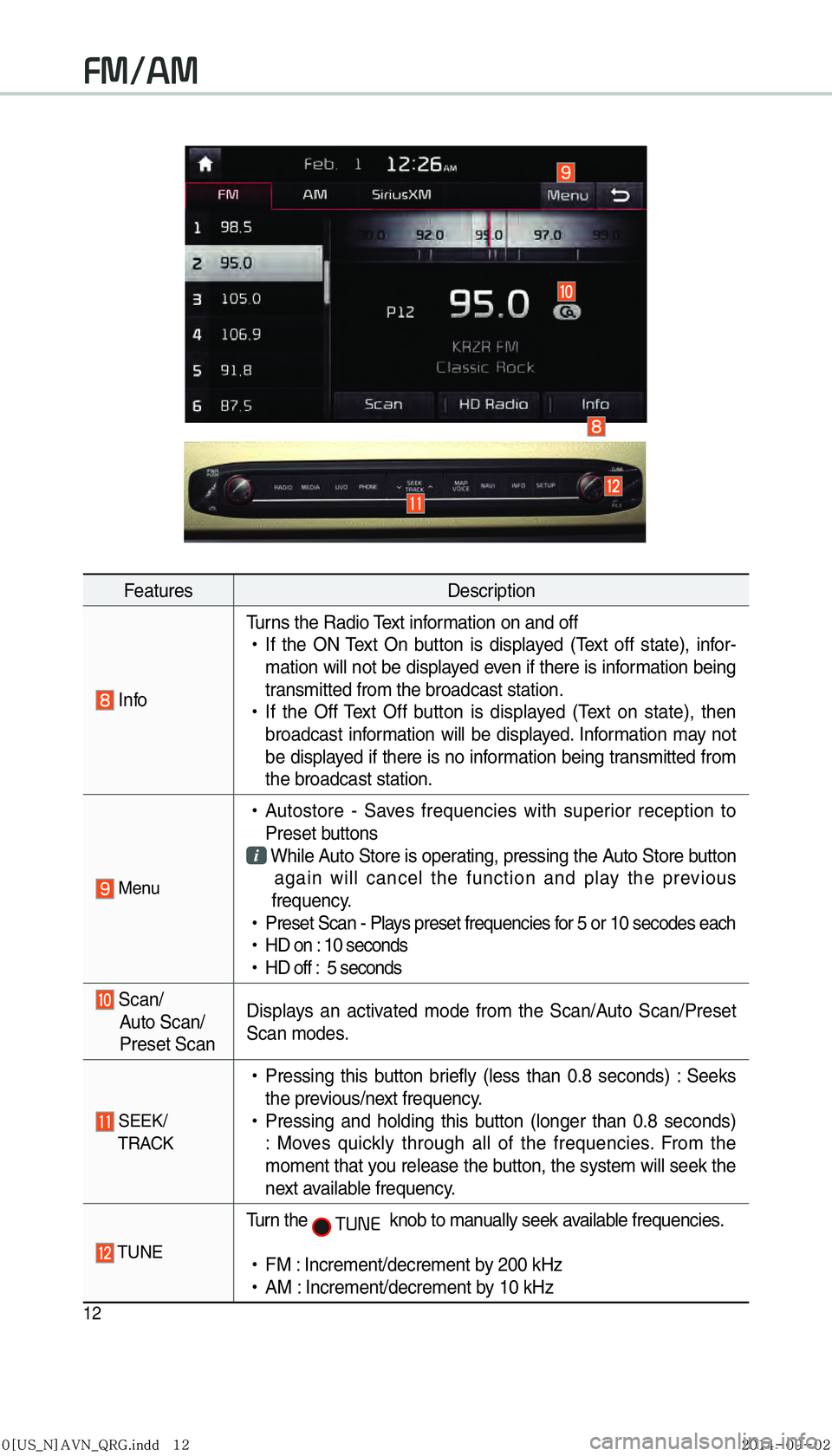

Page 15 of 92
12
FeaturesDescription
InfoTurns the Radio Text information on and off
!Ÿ
If the ON Text On button is displayed (Text off state), infor-
mation will not be displayed even if there is information being
transmitted from the broadcast station.
!Ÿ
If the Off Text Off button is displayed (Text on state), then
broadcast information will be displayed. Information may not
be displayed if there is no information being transmitted from
the broadcast station.
Menu
!Ÿ
Autostore - Saves frequencies with superior reception to
Preset buttons
While Auto Store is operating, pressing the Auto Store button
again will cancel the function and play the previous
frequency.
!Ÿ
Preset Scan - Plays preset frequencies for 5 or 10 secodes each
!Ÿ
HD on : 10 seconds
!Ÿ
HD off : 5 seconds
Scan/
Auto Scan/
Preset Scan Displays an activated mode from the Scan/Auto Scan/Preset
Scan modes.
SEEK/
TRA CK
!Ÿ
Pressing this button briefly (less than 0.8 seconds) : Seeks
the previous/next frequency.
!Ÿ
Pressing and holding this button (longer than 0.8 seconds)
: Moves quickly through all of the frequencies. From the
moment that you release the button, the system will seek the
next available frequency.
TUNE
Turn the
TUNE
knob to manually seek available frequencies.
!Ÿ
FM : Increment/decrement by 200 kHz
!Ÿ
AM : Increment/decrement by 10 kHz
FM/AM
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 16 of 92
13
Basic Mode Screen (HD Radio™ reception ON)
NameDescription
HDRadio™
Reception
&Channel buttons Displays main HD Radio™ channels and used to
directly select the currently available channels
As HD Radio™ reception is included within
Radio mode, the methods of moving between
channels, saving presets, searching, or methods of
searching frequencies are identical. However, while
the HD Radio™ related icon display will become
active when within regions where an HD Radio™
signal can be received.
HD Channel Number
HD Channel number saved in preset
Broadcast Info Displays detailed information about the current broad-
cast
HD RadioUsed to set whether to turn HD Radio™ reception
On/Off.
About HD Radio™ Technology
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E
< 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 18 of 92
15
SiriusXM™ Mode Display Controls
FeaturesDescription
Mode DisplayDisplays currently operating mode.
If select wanted mode tap, it will change to selected mode in Radio.
PresetShows saved presets for user selection
After selecting frequency
→
press and hold (over 0.8 seconds)
the preset button. A 'beep' will sound and the frequency is
saved to the selected preset button.
A total of 18 frequencies for SiriusXM™ modes can be saved.
Channel Logo
Displays the current channel logo
Channel Info Displays the current channel number and name
Contents InfoDisplays the artist, title and other informationabout the current
playing song
Category Info
Displays the current playing category
ScanPlays all receivable channels for 10 seconds each
Direct TuneUsed to search for channels by entering channel numbers
CategoryIf you press Category, when search channels through SEEK,
Tune and Scan, search it in the current category.
Category
Selection
Buttons
Used to select the previous/next category
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 53 of 92
50
With Download Center, you can
install paid/free applications or check
for related information. Only UVO
center verified applications can be
installed.
You can use Download Center after
agreeing to the User Agreement and
Privacy Policy. (Only 1 time for initial
launch)
Apps List
Select Home-screen ▶
All Menus or
My Menu ▶
Apps ▶
and then select
Download Center
Download Center
Name Description
Application
Download
and Run
buttons Button state changes
according to the appli-
cation state.
DownloadDownloads free appli-
cations.
PurchaseDownloads paid appli-
cations.
Re-downloadDownloads deleted
applications after pre-
viously installing them.
Retry
Downloads the appli-
cations that failed to
download due to net-
work or system errors.
RunRuns installed applica-
tions.
CancelCancels any downloads
and updates.
Menu
Updates and refreshes
the menu.
Update
After installation, it
shows applications
requiring updates.
The update screen
shows the
Update All
button to update all
applications that need
updates.
RefreshRefreshes the app list
status.
Detailed
Information When the application
list area is pressed, it
moves to the Detailed
Information screen.
Preview
Displays application
images.
InformationDisplays application
information.
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E
< 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 71 of 92
68
Select the desired destination
among the searched items.
Emergency
Search emergency facilities.
Press the
NAVI head unit key. ▶
Select the
Destination tab. ▶
Select the
Emergency
Check the current location informa-
tion and select the desired item in
the sub menu (ex. Police Station)
Select the desired destination
among the searched items.
Address Book
Search the destination with the
address book.
Press the
NAVI head unit key. ▶
Select the
Destination tab. ▶
Select
the
AddressBook
Select the desired group.
Save in the Favorite Places, then
route can be set easily by using
3 buttons such as
Go Home and
Office on the button of the menu.
Navigation
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 74 of 92
71
Coordinates
Press the NAVI head unit key.▶
Select the
Coordinates to search by
coordinates.
There are two ways to search by
coordinates (D.M.S or Decimal
degrees). After typing coordinates,
press the
Done button to search.
Press the Set as Destination button to
start guidance.
Favorite Places
Set the route using your favorite
places.
Press the
NAVI head unit key. ▶
Select the
Destination tab. ▶
Select
from our favorite places
On the button where locations are
not registered, the
icon is dis-
played. When a location is regis-
tered, the
button disappears and
the buttons 1 to 3 are displayed as
the registered place names.
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 75 of 92
72
Press the Go Home button and then
popup appears. Press the
Yes but-
ton for setting.
Register Go Home in various
searching methods. By using the
same methods, possible to register
Office, Special 1, Special 2, and
Special 3.
Route guidance starts by pressing
one of favorite place buttons.
Route Setting
After searching the destination, pos-
sible to set a route.
While the destination is set, the
buttons
Change Destination and
Add Waypoint appear. Press each
button to change a destination or
add a waypoint.
Destination Setting(Change)
After searching the destination,
press the
Set as Destination button to
set the location as a destination and
search a route.
Navigation
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
