2015 KIA Rio Owner's Manual

Maintenance
66
7

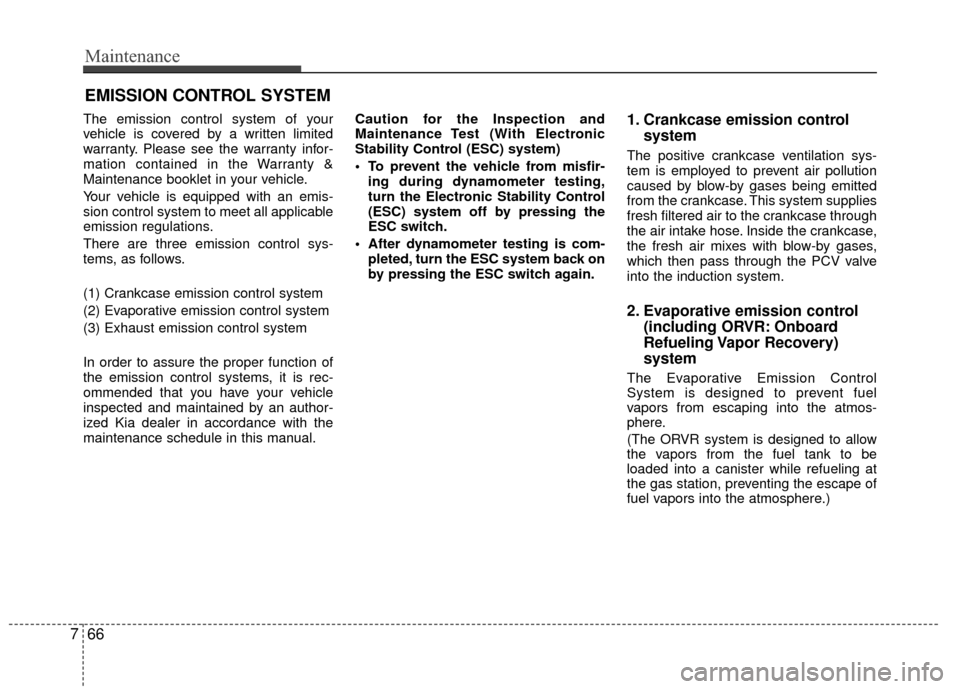

EMISSION CONTROL SYSTEM
The emission control system of your
vehicle is covered by a written limited
warranty. Please see the warranty infor-
mation contained in the Warranty &
Maintenance booklet in your vehicle.
Your vehicle is equipped with an emis-
sion control system to meet all applicable
emission regulations.
There are three emission control sys-
tems, as follows.
(1) Crankcase emission control system
(2) Evaporative emission control system
(3) Exhaust emission control system
In order to assure the proper function of
the emission control systems, it is rec-
ommended that you have your vehicle
inspected and maintained by an author-
ized Kia dealer in accordance with the
maintenance schedule in this manual. Caution for the Inspection and
Maintenance Test (With Electronic
Stability Control (ESC) system)
To prevent the vehicle from misfir-
ing during dynamometer testing,
turn the Electronic Stability Control
(ESC) system off by pressing the
ESC switch.
After dynamometer testing is com- pleted, turn the ESC system back on
by pressing the ESC switch again.1. Crankcase emission control system
The positive crankcase ventilation sys-
tem is employed to prevent air pollution
caused by blow-by gases being emitted
from the crankcase. This system supplies
fresh filtered air to the crankcase through
the air intake hose. Inside the crankcase,
the fresh air mixes with blow-by gases,
which then pass through the PCV valve
into the induction system.
2. Evaporative emission control(including ORVR: Onboard
Refueling Vapor Recovery)
system
The Evaporative Emission Control
System is designed to prevent fuel
vapors from escaping into the atmos-
phere.
(The ORVR system is designed to allow
the vapors from the fuel tank to be
loaded into a canister while refueling at
the gas station, preventing the escape of
fuel vapors into the atmosphere.)

767
Maintenance
Canister
Fuel vapors generated inside the fuel
tank are absorbed and stored in the
onboard canister. When the engine is
running, the fuel vapors absorbed in the
canister are drawn into the surge tank
through the purge control solenoid valve.
Purge Control Solenoid Valve (PCSV)
The purge control solenoid valve is con-
trolled by the Engine Control Module
(ECM); when the engine coolant temper-
ature is low during idling, the PCSV clos-
es so that evaporated fuel is not taken
into the engine. After the engine warms
up during ordinary driving, the PCSV
opens to introduce evaporated fuel to the
engine.
3. Exhaust emission control system
The Exhaust Emission Control System is
a highly effective system which controls
exhaust emissions while maintaining
good vehicle performance.
Vehicle modifications
This vehicle should not be modified.
Modification of your vehicle could affect
its performance, safety or durability and
may even violate governmental safety
and emissions regulations.
In addition, damage or performance
problems resulting from any modification
may not be covered under warranty.
If you use unauthorized electronic
devices, it may cause the vehicle to
operate abnormally, wire damage, bat-
tery discharge and fire. For your safety,
do not use unauthorized electronic
devices.
Engine exhaust gas precautions(carbon monoxide)
Carbon monoxide can be present with other exhaust fumes. Therefore, if you
smell exhaust fumes of any kind inside
your vehicle, have it inspected and
repaired immediately. If you ever sus-
pect exhaust fumes are coming into
your vehicle, drive it only with all the
windows fully open. Have your vehicle
checked and repaired immediately.
WARNING- Exhaust
Engine exhaust gases contain car-
bon monoxide (CO). Though color-
less and odorless, it is dangerous
and could be lethal if inhaled.
Follow the instructions on this
page to avoid CO poisoning.

Maintenance
68
7
Do not operate the engine in confined
or closed areas (such as garages) any
more than what is necessary to move
the vehicle in or out of the area.
When the vehicle is stopped in an open area for more than a short time
with the engine running, adjust the
ventilation system (as needed) to draw
outside air into the vehicle.
Never sit in a parked or stopped vehi- cle for any extended time with the
engine running.
When the engine stalls or fails to start, excessive attempts to restart the
engine may cause damage to the
emission control system.Operating precautions for catalyticconverters (if equipped)
Your vehicle is equipped with a catalytic
converter emission control device.
Therefore, the following precautions
must be observed: Use only UNLEADED FUEL for gaso-
line engines.
Do not operate the vehicle when there are signs of engine malfunction, such
as misfire or a noticeable loss of per-
formance.
Do not misuse or abuse the engine. Examples of misuse are coasting with
the ignition off and descending steep
grades in gear with the ignition off.
Do not operate the engine at high idle speed for extended periods (5 minutes
or more).
Do not modify or tamper with any part of the engine or emission control sys-
tem. All inspections and adjustments
must be made by an authorized Kia
dealer.
Avoid driving with a extremely low fuel level. Running out of fuel could cause
the engine to misfire, damaging the
catalytic converter.
Failure to observe these precautions
could result in damage to the catalytic
converter and to your vehicle.
Additionally, such actions could void your
warranties.
WARNING- Fire
Do not park, idle or drive the vehi- cle over or near flammable
objects, such as grass, vegeta-
tion, paper, leaves, etc. A hot
exhaust system can ignite flam-
mable items under your vehicle.
Also, do not remove the heat sink around the exhaust system, do
not seal the bottom of the vehicle
or do not coat the vehicle for cor-
rosion control. It may present a
fire risk under certain conditions.
WARNING- Catalytic converter
Keep away from the catalytic con-
verter and exhaust system while
the vehicle is running or immedi-
ately thereafter. The exhaust and
catalytic systems are very hot and
may burn you.

Engine / 8-2
Dimensions / 8-2
Bulb wattage / 8-3
Tires and wheels / 8-5
Weight/Volume / 8-5
Recommended lubricants and capacities / 8-6
Vehicle identification number (VIN) / 8-8
Vehicle certification label / 8-8
Tire specification and pressure label / 8-9
Engine number / 8-9
Specifications & Consumer information8

Specifications, Consumer information, Reporting safety defects
28
ENGINE
DIMENSIONS
ItemGasoline 1.6
Displacement [cc(cu.in)] 1,591
(97.09)
Bore x Stroke [mm(in)] 77 x 85.44
(3.03 x 3.36)
Firing order 1-3-4-2
No. of cylinders 4, In-line
Itemmm (in)
Overall length 4 door 4365 (171.8)
5 door 4045 (159.2)
Overall width
1720 (67.7)
Overall height1455 (57.2)
Front tread
185/65R151520 (59.8)
195/55R161507 (59.3)
205/45R171507 (59.3)
Rear tread
185/65R15 1525 (60)
195/55R161511 (59.4)
205/45R171511 (59.4)
Wheelbase 2570 (101.1)

83
Specifications, Consumer information, Reporting safety defects
BULB WATTAGE
Light BulbWattageBulb type
Front
Head lamp Low55WH11B
High55WH1
Position lamp8W or LEDPY28/8W or LED
DRL (Day time Running Lamp)*21W or LEDP21/5W or LED
Turn signal lamp21W or 28WPY21W or PY28/8W
Front fog lamp*55W9006
Side marker light5WW5W
Rear
Tail lampInside5W or LEDW5W or LED
Outside8W or LEDP28/8W or LED
Stop lampInsideLEDLED
Outside28W or LEDP28/8W or LED
Turn signal lamp21WPY21W
Back up lamp16WW16W
High mounted stop lampLEDLED
License plate lamp5W X 2EAW5W
Side marker light*as tail bulb*
LEDLED*
Interior
Map lamps*10W X 2EAW10W
Room lamps10WFESTON
Luggage lamp5WFESTON
Glove box lamp5WFESTON
Vanity mirror lamps*5WFESTON
* : if equipped
■
■5 door

Specifications, Consumer information, Reporting safety defects
48
Light BulbWattageBulb type
Front
Head lamp Low55WHB2
High60WHB2
Day time Running LampHB2
Position lamp5WW5W
Turn signal lamp28WPY28/8W
Front fog lamp*35WH8
Side marker light5WW5W
Rear
Tail lampInside8W or LEDP27/8W or LED
Outside8W or LEDP27/8W or LED
Stop lampInsideLEDLED
Outside27W or LEDP27/8W or LED
Turn signal lamp21WPY21W
Back up lamp16WW16W
High mounted stop lamp16WW16W
License plate lamp5W X 2EAW5W
Side marker lightas tail bulb
LEDLED*
Interior
Map lamps*10W X 2EAW10W
Room lamps10WFESTON
Luggage lamp5WFESTON
Glove box lamp5WFESTON
Vanity mirror lamps*5WFESTON
* : if equipped
■
■4 door

85
Specifications, Consumer information, Reporting safety defects
TIRES AND WHEELS
Item Tire size Wheel sizeCold tire inflation pressure kPa (psi)
Wheel lug nut torque
kg•m (lb N
Normal load Maximum load
Front Rear Front Rear
Full size tire
P185/65R15* 5.5J X 15 230
(33) 230
(33) 230
(33) 230
(33) 9~11
(65~79, 88~107)
P195/55R16* 6.0J X 16
P205/45R17* 6.5J X 17
Compact* spare tire
T125/80D15 3.5J X 15 420
(60) 420
(60) 420
(60) 420
(60)
* : if equipped
WEIGHT/VOLUME
Item Gasoline 1.6
M/T A/T
Gross vehicle weight kg (lbs.)3525
(1600) 3595
(1630)
Luggage volume
l(cu ft) 4 Door (SAE)
Min.13.7 (389)
Max.-
5 Door (VDA)
Min.10 (288)
Max.32 (923)
