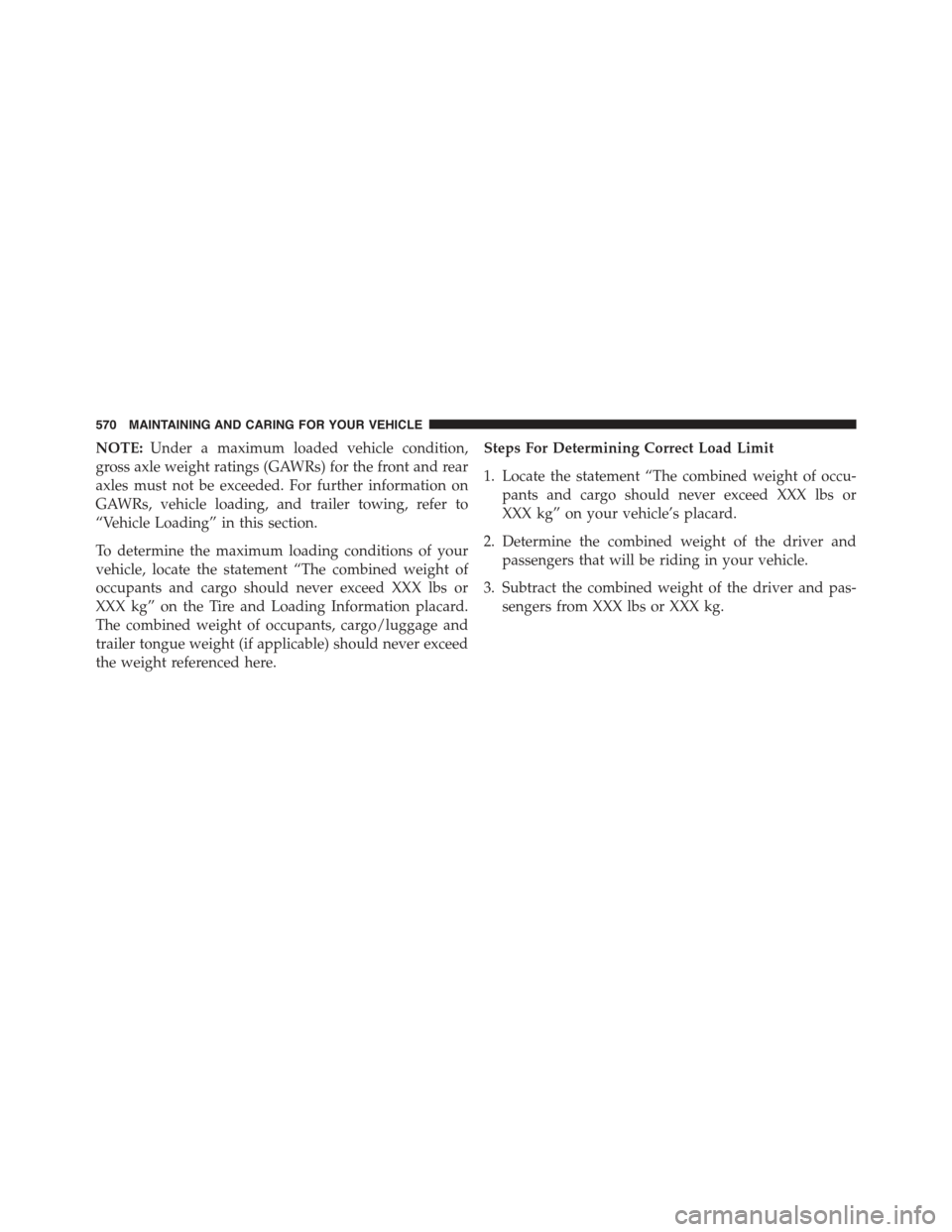

NOTE:Under a maximum loaded vehicle condition,
gross axle weight ratings (GAWRs) for the front and rear
axles must not be exceeded. For further information on
GAWRs, vehicle loading, and trailer towing, refer to
“Vehicle Loading” in this section.
To determine the maximum loading conditions of your
vehicle, locate the statement “The combined weight of
occupants and cargo should never exceed XXX lbs or
XXX kg” on the Tire and Loading Information placard.
The combined weight of occupants, cargo/luggage and
trailer tongue weight (if applicable) should never exceed
the weight referenced here.
Steps For Determining Correct Load Limit
1. Locate the statement “The combined weight of occu-
pants and cargo should never exceed XXX lbs or
XXX kg” on your vehicle’s placard.
2. Determine the combined weight of the driver and
passengers that will be riding in your vehicle.
3. Subtract the combined weight of the driver and pas-
sengers from XXX lbs or XXX kg.
570 MAINTAINING AND CARING FOR YOUR VEHICLE

4. The resulting figure equals the available amount of
cargo and luggage load capacity. For example, if
“XXX” amount equals 1,400 lbs (635 kg) and there will
be five 150 lb (68 kg) passengers in your vehicle, the
amount of available cargo and luggage load capacity
is 650 lbs (295 kg) (since 5 x 150 lbs (68 kg) = 750 lbs
(340 kg), and 1400 lbs (635 kg) – 750 lbs (340 kg) =
650 lbs [295 kg]).
5. Determine the combined weight of luggage and cargo
being loaded on the vehicle. That weight may not
safely exceed the available cargo and luggage load
capacity calculated in step 4.
NOTE:
•If your vehicle will be towing a trailer, load from your
trailer will be transferred to your vehicle. The follow-
ing table shows examples on how to calculate total
load, cargo/luggage, and towing capacities of your
vehicle with varying seating configurations and num-
ber and size of occupants. This table is for illustration
purposes only and may not be accurate for the seating
and load carry capacity of your vehicle.
•For the following example, the combined weight of
occupants and cargo should never exceed 865 lbs
(392 kg).
9
MAINTAINING AND CARING FOR YOUR VEHICLE 571

Run Flat Tires — If Equipped
Run Flat tires allow you the capability to drive 50 miles
(80 km) at 50 mph (80 km/h) after a rapid loss of inflation
pressure. This rapid loss of inflation is referred to as the
Run Flat mode. A Run Flat mode occurs when the tire
inflation pressure is of/or below 14 psi (96 kPa). Once a
Run Flat tire reaches the run flat mode it has limited
driving capabilities and needs to be replaced immedi-
ately. A Run Flat tire is not repairable.
It is not recommended driving a vehicle loaded at full
capacity or to tow a trailer while a tire is in the run flat
mode.
See the tire pressure monitoring section for more infor-
mation.
Spare Tires — If Equipped
NOTE:For vehicles equipped with Tire Service Kit
instead of a spare tire, please refer to “Tire Service Kit” in
“In Case Of Emergencies” for further information.
CAUTION!
Because of the reduced ground clearance, do not take
your vehicle through an automatic car wash with a
compact or limited-use temporary spare installed.
Damage to the vehicle may result.
Tire Spinning
When stuck in mud, sand, snow, or ice conditions, do not
spin your vehicle’s wheels above 30 mph (48 km/h) or
for longer than 30 seconds continuously without stop-
ping.
9
MAINTAINING AND CARING FOR YOUR VEHICLE 579

Hill Descent Control Indicator................231
Hill Start Assist...........................229
Hitches
Trailer Towing.........................412
Holder, Coin.............................169
Holder, Cup.............................170
Hood Prop..............................146
Hood Release............................146
Ignition
Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Ignition Key Removal......................501
Immobilizer (Sentry Key)....................49
Inside Rearview Mirror......................81
Instrument Cluster........................177
Instrument Panel Cover.....................558
Instrument Panel Lens Cleaning...............558
Interior and Instrument Lights................100
Interior Appearance Care....................556
Interior Lights...........................100
Intermittent Wipers (Delay Wipers).............106
Introduction..............................4
Inverter, Power...........................165
Jacking Instructions........................479
Jack Location............................477
Jack Operation...........................476
Jump Starting............................492
Key Fob
Arm The Alarm.........................51
Keyless Entry...........................56
Programming Additional Key Fobs...........40
Programming Additional Transmitters.........40
Keyless Enter-N-Go™.......................56
Enter The Trunk.........................56
Key Fob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Lock The Vehicle’s Doors..................56
12
INDEX 665

Selection of Coolant (Antifreeze)...............593
SENTRY KEY®
FCC General Information..................50
Sentry Key (Immobilizer)....................49
Sentry Key Replacement.....................40
Service Assistance..........................10
Service Contract...........................12
Service Manuals...........................14
Shifting
Manual Transmission....................332
Shift Lever Override.......................499
Shoulder Belts...........................256
Side View Mirror Adjustment.................83
Signals, Turn.............................99
Snow Chains (Tire Chains)...................583
Snow Tires..............................578
Spark Plugs.............................593
Specifications
Fuel (Gasoline).........................593
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..593
Speed Control (Cruise Control)................348
Starting.................................45
Cold Weather..........................321
Engine Fails to Start.....................320
Remote...............................45
Starting and Operating.....................319
Starting Procedures........................319
Steering
Tilt Column............................79
Wheel, Heated..........................80
Wheel, Tilt.............................79
Steering Wheel Audio Controls...............636
Steering Wheel Mounted Sound System Controls . . .636
Stuck, Freeing............................503
Sun Visor Extension.......................162
Supplemental Restraint System - Airbag.........270
Sway Control, Trailer.......................239
12
INDEX 671

System, Remote Starting.....................45
Telescoping Steering Column..................79
Temperature Control, Automatic (ATC)..........125
Tilt Steering Column........................79
Time Delay, Headlight.......................98
Tip Start................................320
Tire and Loading Information Placard...........568
Tire Markings............................561
Ti re s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 6
Aging (Life of Tires).....................581
Air Pressure...........................573
Chains...............................583
Changing.............................476
General Information.....................573
High Speed...........................576
Inflation Pressures.......................575
Jacking...............................476
Life of Tires...........................581
Load Capacity.........................568
Pressure Monitor System (TPMS)............378
Quality Grading.........................16
Radial...............................576
Replacement...........................581
Rotation..............................585
Safety...............................561
Sizes................................562
Snow Tires............................578
Spinning.............................579
Trailer Towing.........................416
Tread Wear Indicators....................580
Tire Safety Information.....................561
Tire Service Kit...........................488
Tongue Weight/Trailer Weight................413
Tow Hooks, Emergency.....................507
Towing................................408
Disabled Vehicle........................505
Guide...............................413
672 INDEX

Recreational...........................422
Weight...............................413
Trailer Sway Control (TSC)..................239
Trailer Towing...........................408
Cooling System Tips.....................421
Hitches..............................412
Minimum Requirements..................415
Trailer and Tongue Weight.................413
Wiring...............................418
Trailer Towing Guide.......................413
Trailer Weight............................413
Transfer Case
Fluid................................594
Transmission
Automatic............................336
Fluid................................594
Manual..............................332
Transmitter Programming (Remote Keyless Entry) . . .40
Transmitter, Remote Keyless Entry (RKE).........31
Transporting Pets.........................309
Tread Wear Indicators......................580
Turn Signals..............................99
UCI Connector...........................635
Uconnect®
Customer Programmable Features............48
Uconnect® Settings.......................48
Uconnect® Settings.........................34
Customer Programmable Features...........628
Passive Entry Programming................628
Uconnect® Settings......................628
Uconnect® Voice Command..................640
Uniform Tire Quality Grades..................16
Universal Consumer Interface (UCI) Connector . . . .635
Unleaded Gasoline........................388
Untwisting Procedure, Seat Belt...............261
Vanity Mirrors...........................102
12
INDEX 673
