5. Gently lower the tip of the wiper arm onto the glass.
Installing The Rear Wiper
1. Lift the rear wiper arm pivot cap away from the glass
to allow the rear wiper blade to be raised off of the
glass.
NOTE:The rear wiper arm cannot be fully raised off the
glass unless the wiper arm pivot cap is unsnapped first.
Attempting to fully raise the rear wiper arm without
unsnapping the wiper arm pivot cap may damage the
vehicle.
2. Lift the rear wiper arm fully off the glass.
3. Insert the wiper blade pivot pin into the opening on
the end of the wiper arm. Grab the bottom end of the
wiper arm with one hand, and press the wiper blade
flush with the wiper arm until it snaps into place.
4. Lower the wiper blade onto the glass and snap the
wiper arm pivot cap back into place.
Adding Washer Fluid
This vehicle is equipped with a Driver Information
Display (DID), the DID will indicate when the washer
fluid level is low. When the sensor detects a low fluid
level, the windshield will light on the vehicle graphic
outline and the “WASHER FLUID LOW” message will be
displayed.
The fluid reservoir for the windshield washers and the
rear window washer is shared. The fluid reservoir is
located in the engine compartment, be sure to check the
fluid level at regular intervals. Fill the reservoir with
windshield washer solvent only (not radiator antifreeze).
When refilling the washer fluid reservoir, take some
washer fluid and apply it to a cloth or towel and wipe
clean the wiper blades, this will help blade performance.
To prevent freeze-up of your windshield washer system
7
MAINTAINING YOUR VEHICLE 629

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Oil Change Required” message is
displayed. Severe Operating Conditions can cause the
change oil message to illuminate as early as 3,500 miles
(5,600 km) since last reset. Have your vehicle serviced as
soon as possible, within the next 500 miles (805 km).
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change.
NOTE:Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km) or twelve months,
whichever comes first.
Severe Duty All Models
Change Engine Oil at 4000 miles (6,500 km) if the vehicle
is operated in a dusty and off road environment. This
type of vehicle use is considered Severe Duty.
Once A Month Or Before A Long Trip:
•Check engine oil level
•Check windshield washer fluid level
•Check the tire inflation pressures and look for unusual
wear or damage
•Check the fluid levels of the coolant reservoir, brake
master cylinder and power steering, and fill as needed.
•Check function of all interior and exterior lights
8
MAINTENANCE
SCHEDULES
676 MAINTENANCE SCHEDULES

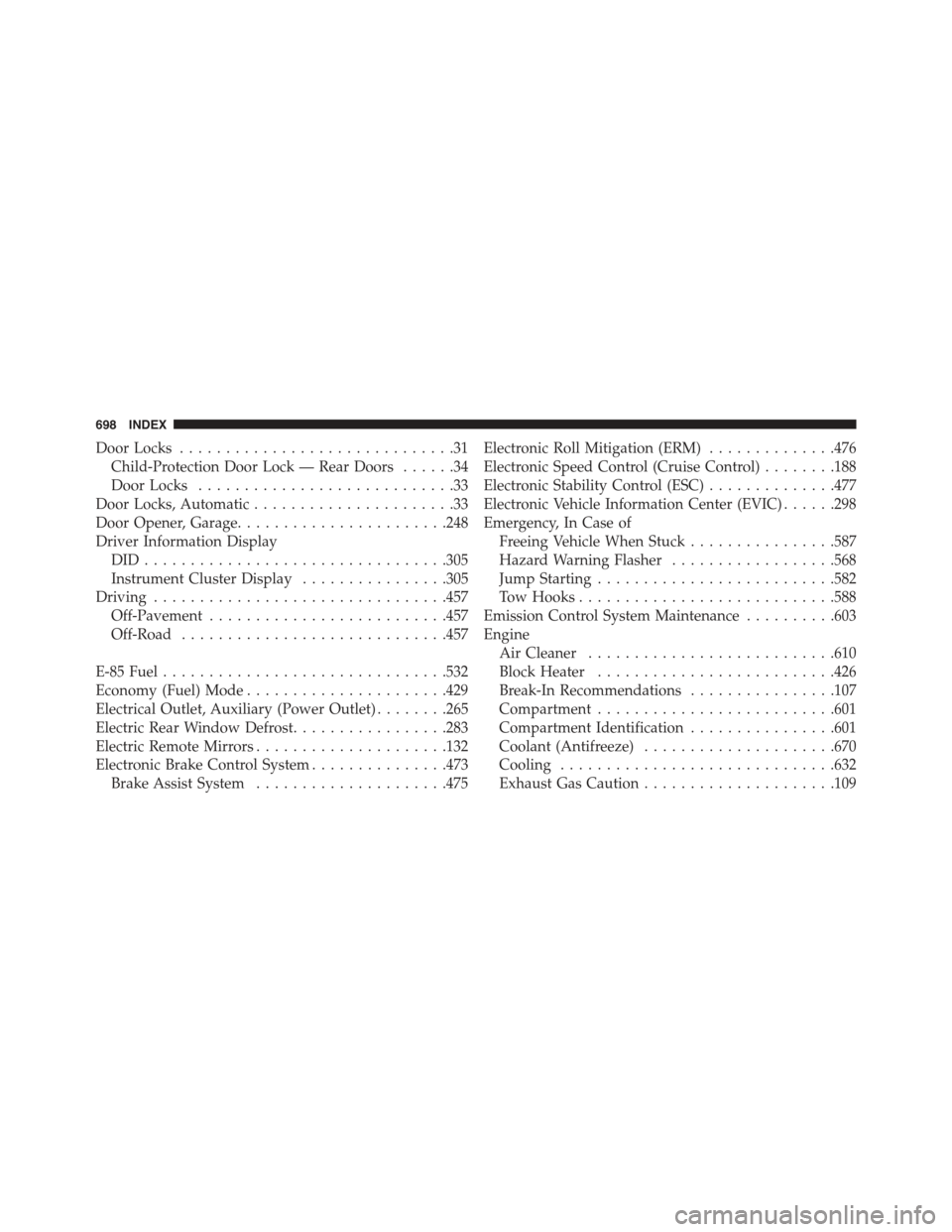

Door Locks..............................31
Child-Protection Door Lock — Rear Doors......34
Door Locks............................33
Door Locks, Automatic......................33
Door Opener, Garage.......................248
Driver Information Display
DID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..305
Instrument Cluster Display................305
Driving................................457
Off-Pavement..........................457
Off-Road.............................457
E-85 Fuel...............................532
Economy (Fuel) Mode......................429
Electrical Outlet, Auxiliary (Power Outlet)........265
Electric Rear Window Defrost.................283
Electric Remote Mirrors.....................132
Electronic Brake Control System...............473
Brake Assist System.....................475
Electronic Roll Mitigation (ERM)..............476
Electronic Speed Control (Cruise Control)........188
Electronic Stability Control (ESC)..............477
Electronic Vehicle Information Center (EVIC)......298
Emergency, In Case of
Freeing Vehicle When Stuck................587
Hazard Warning Flasher..................568
Jump Starting..........................582
Tow Hooks............................588
Emission Control System Maintenance..........603
Engine
Air Cleaner...........................610
Block Heater..........................426
Break-In Recommendations................107
Compartment..........................601
Compartment Identification................601
Coolant (Antifreeze).....................670
Cooling..............................632
Exhaust Gas Caution.....................109
698 INDEX
