Specifications & Consumer information
2 8
DIMENSIONS
*1with roof rackItem mm (in)
Overall length 4,690 (184.64)
Overall width 1,880 (74.01)
Overall height 1,680 (66.14)/1,690 (66.53) *
1
Front treadP235/65R17 1,633 (64.29)235/60R18
1,628 (64.09)P235/55R19
235/55R19
Rear tread
P235/65R171,644 (67.72)
235/60R18
1,639 (64.52) P235/55R19
235/55R19
Wheelbase 2,700 (106.29)
ItemGasoline
Theta II 2.0Gasoline
Theta II 2.4
Displacement
cc (cu. in)
1,998
(121.92)2,359
(143.95)
Bore x Stroke
mm (in.)
86x86
(3.38X3.38)88x97
(3.46X3.81)
Firing order
1-3-4-2 1-3-4-2
No. of cylinders
4. In-line 4. In-line
ENGINE

83
Specifications & Consumer information
BULB WATTAGE
Lamp Bulb Wattage Bulb type
FrontHeadlamp (Low) 55 or 35 (HID)* H7L or D3S
Headlamp (High) 55 H7L
Front turn signal lamp 28 PY28W
Front position lamp 5 or LED* W5W or LED
Front fog lamp* 35 H8
Front turn signal lamp (Outside mirror)* LED* LED
Front marker lamp 5 W5W
RearRear Stop/Tail lamp (Outside) 28 or 8, LED* P28 or W8W. LED
Tail lamp (Inside) 8, LED* W8W, LED
Rear turn signal lamp 27 PY27W
Back-up lamp 16 W16W
Rear marker lamp LED* LED
High mounted stop lamp* LED* LED
License plate lamp 5 W5W
InteriorMap lamp 10 FESTOON
Room lamp 8 FESTOON
Vanity mirror lamp 5 FESTOON
Glove box lamp 5 FESTOON
Luggage lamp 5 FESTOON
* If equipped
* HID : High Intensity Discharge

Specifications & Consumer information
4 8
TIRES AND WHEELS
Item Tire size Wheel sizeInflation pressure [kPa (psi)]
Wheel lug nut torque
kg•m (lb•ft, N•m) Normal load
()Maximum load
()
Front Rear Front Rear
Full size tireP235/65R17 7.0J×17
235
(34)235
(34)235
(34)235
(34)
9~11
(65~79, 88~107) 235/60R18 7.5J×18
P235/55R19 7.5J×19
235/55R19 7.5J×19
Compact spare tire
(if equipped)T165/90D17 4.0T×17420
(60)420
(60)420
(60)420
(60)
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make it work
irregularly.

85
Specifications & Consumer information

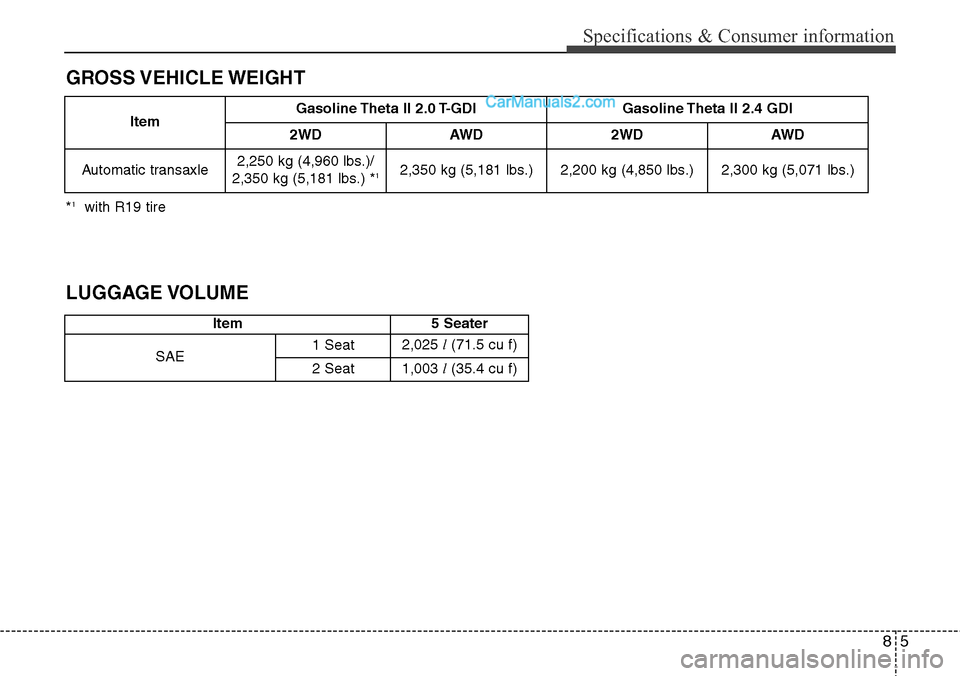

GROSS VEHICLE WEIGHT
LUGGAGE VOLUME
Item 5 Seater
SAE1 Seat2,025 l(71.5 cu f)
2 Seat1,003 l(35.4 cu f)
ItemGasoline Theta II 2.0 T-GDI Gasoline Theta II 2.4 GDI
2WD AWD 2WD AWD
Automatic transaxle2,250 kg (4,960 lbs.)/
2,350 kg (5,181 lbs.) *
12,350 kg (5,181 lbs.) 2,200 kg (4,850 lbs.) 2,300 kg (5,071 lbs.)
*1with R19 tire

Specifications & Consumer information
6 8
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *
1*2
(drain and refill)
Recommends Gasoline
EngineTheta II 2.0
T-GDI4.8 l(5.07 US qt.)HYUNDAI approved engine oil
ACEA A5 (or above)
Theta II 2.4
GDI4.8 l(5.07 US qt.)API Service SM *
3,
ILSAC GF-4 or above
ACEA A5 (or above)
Automatic transaxle fluid Gasoline
EngineTheta II 2.07.8 l(8.24 US qt.)MICHANG ATF SP-IV,
SK ATF SP-IV,
NOCA ATF SP-IV,
HYUNDAI genuine ATF SP-IV or other brands
meeting the above specification approved by
Hyundai Motor Co.. Theta II 2.47.1 l(7.50 US qt.)
Coolant Gasoline
EngineTheta II 2.09.7 l(10.24 US qt.)
Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for aluminum
radiator)
Theta II 2.47.1 ~7.4 l
(7.50 ~ 7.51 US qt.)
Brake/clutch fluid0.7~0.8 l
(0.74~0.85 US qt.)FMVSS116 DOT-3 or DOT-4

87
Specifications & Consumer information
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo-
my by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in
everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3If the API service SM or ACEA A5 engine oil is not available in your country, you are able to use API service SL.Lubricant Volume Classification
Rear differential oil (AWD) 0.53 l(0.56 US qt.)HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Transfer case oil (AWD) Theta II
2.0 / 2.40.6 l(0.63 US qt.)HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Fuel66 l(17.43 US gal.)
Refer to “Fuel requirements” in section 1

Specifications & Consumer information
8 8
Recommended SAE viscosity
number Engine oil viscosity (thickness) has an
effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosity
engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity engine
oils are required for satisfactory lubri-
cation in hot weather. Using oils of any
viscosity other than those recommend-
ed could result in engine damage.When choosing an oil, consider the
range of temperature your vehicle will
be operated in before the next oil
change. Proceed to select the recom-
mended oil viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain
plug, or dipstick before check-
ing or draining any lubricant.
This is especially important in
dusty or sandy areas and when
the vehicle is used on unpaved
roads. Cleaning the plug and
dipstick areas will prevent dirt
and grit from entering the
engine and other mechanisms
that could be damaged.
*1: For better fuel economy, it is recommended to use the engine oil
of a viscosity grade SAE 5W-30 (API SM / ILSAC GF-4). However,
if the engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.
Temperature Range for SAE Viscosity Numbers
Temperature
Theta ll 2.0
T-GDI Gasoline
Engine
Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Theta ll 2.4
GDI10W-30
5W-20, 5W-30
20W-50
10W-30
15W-40
5W-30, 5W-40

89
Specifications & Consumer information
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the
engine compartment bulkhead.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.The vehicle certification label
attached on the driver’s side center
pillar gives the vehicle identification
number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)
ODMEVS2002
Frame number
VEHICLE CERTIFICATION
LABEL
OEN086004N
VIN label
OCM056002
