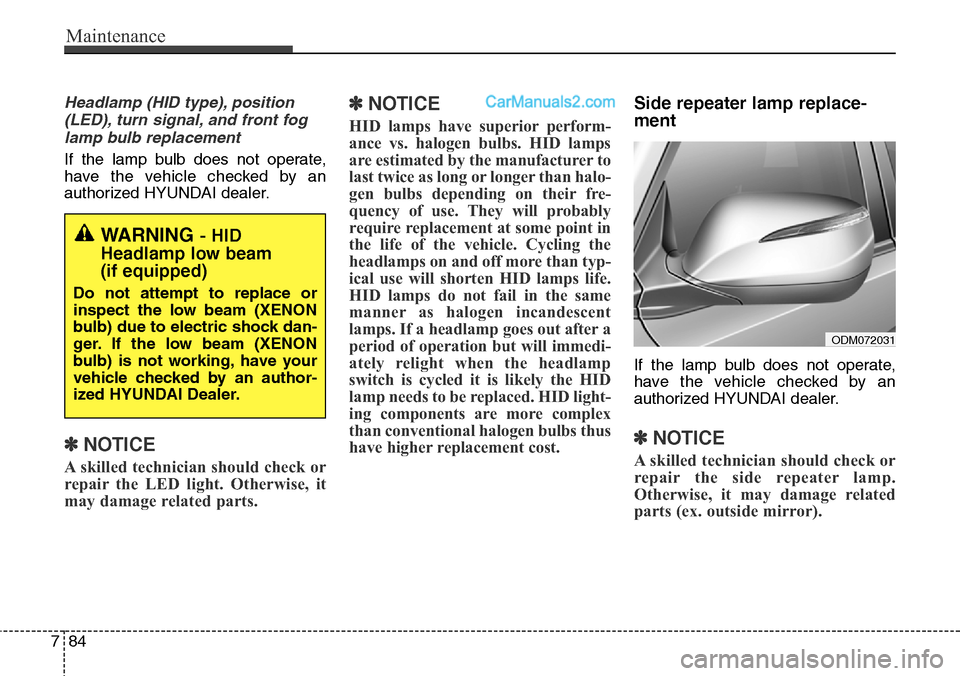

Maintenance
84 7
Headlamp (HID type), position
(LED), turn signal, and front fog
lamp bulb replacement
If the lamp bulb does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
✽NOTICE
A skilled technician should check or
repair the LED light. Otherwise, it
may damage related parts.
✽NOTICE
HID lamps have superior perform-
ance vs. halogen bulbs. HID lamps
are estimated by the manufacturer to
last twice as long or longer than halo-
gen bulbs depending on their fre-
quency of use. They will probably
require replacement at some point in
the life of the vehicle. Cycling the
headlamps on and off more than typ-
ical use will shorten HID lamps life.
HID lamps do not fail in the same
manner as halogen incandescent
lamps. If a headlamp goes out after a
period of operation but will immedi-
ately relight when the headlamp
switch is cycled it is likely the HID
lamp needs to be replaced. HID light-
ing components are more complex
than conventional halogen bulbs thus
have higher replacement cost.
Side repeater lamp replace-
ment
If the lamp bulb does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
✽NOTICE
A skilled technician should check or
repair the side repeater lamp.
Otherwise, it may damage related
parts (ex. outside mirror).
WARNING - HID
Headlamp low beam
(if equipped)
Do not attempt to replace or
inspect the low beam (XENON
bulb) due to electric shock dan-
ger. If the low beam (XENON
bulb) is not working, have your
vehicle checked by an author-
ized HYUNDAI Dealer.
ODM072031
83
Specifications & Consumer information
BULB WATTAGE
Lamp Bulb Wattage Bulb type
FrontHeadlamp (Low) 55 or 35 (HID)* H7L or D3S
Headlamp (High) 55 H7L
Front turn signal lamp 28 PY28W
Front position lamp 5 or LED* W5W or LED
Front fog lamp* 35 H8
Front turn signal lamp (Outside mirror)* LED* LED
Front marker lamp 5 W5W
RearRear Stop/Tail lamp (Outside) 28 or 8, LED* P28 or W8W. LED
Tail lamp (Inside) 8, LED* W8W, LED
Rear turn signal lamp 27 PY27W
Back-up lamp 16 W16W
Rear marker lamp LED* LED
High mounted stop lamp* LED* LED
License plate lamp 5 W5W
InteriorMap lamp 10 FESTOON
Room lamp 8 FESTOON
Vanity mirror lamp 5 FESTOON
Glove box lamp 5 FESTOON
Luggage lamp 5 FESTOON
* If equipped
* HID : High Intensity Discharge
