85
Specifications & Consumer information

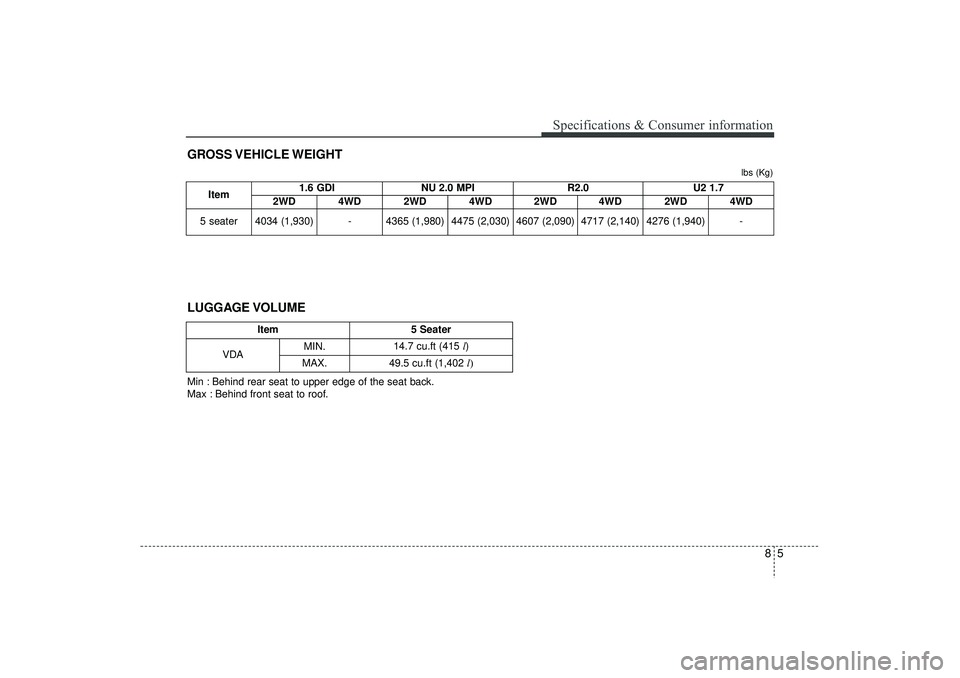

GROSS VEHICLE WEIGHT
Item1.6 GDI NU 2.0 MPI R2.0
U2 1.7
2WD 4WD 2WD 4WD 2WD
4WD
2WD 4WD
5 seater 4034 (1,930) - 4365 (1,980) 4475 (2,030) 4607 (2,090)
4717 (2,140)
4276 (1,940) -
lbs (Kg)
Min : Behind rear seat to upper edge of the seat back.
Max : Behind front seat to roof.LUGGAGE VOLUME
ltem 5 Seater
VDA MIN.
14.7 cu.ft (415 l)
MAX. 49.5 cu.ft (1,402 l)
EL(FL) UK 8.QXP 3/13/2015 5:44 PM Page 5
87
Specifications & Consumer information

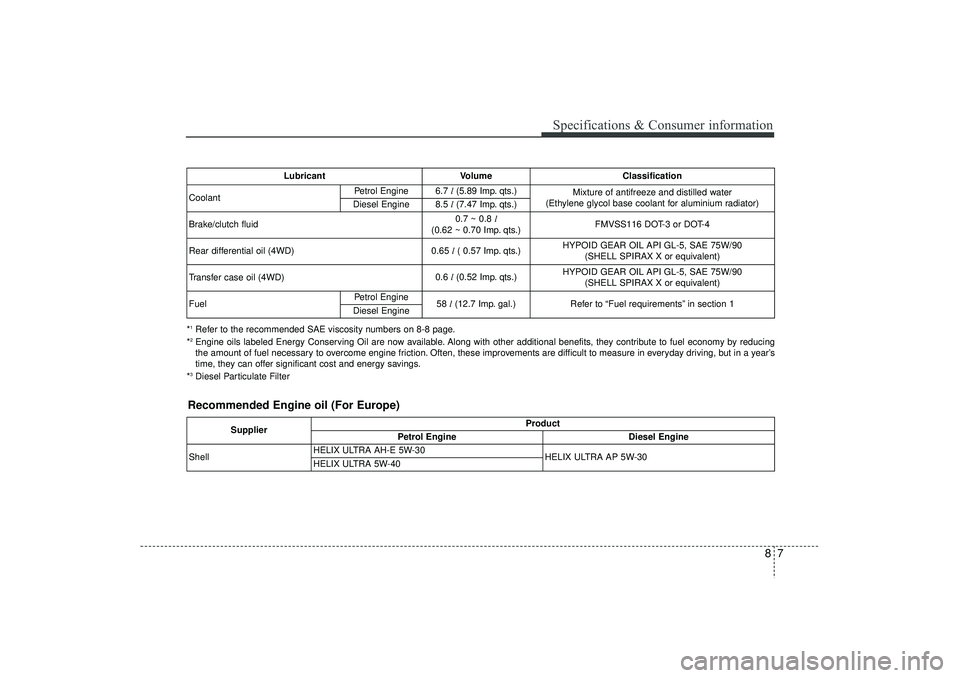

LubricantVolume Classification
Coolant
Petrol Engine
6.7 l(5.89 Imp. qts.)
Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for aluminium radiator)
Diesel Engine
8.5 l(7.47 Imp. qts.)
Brake/clutch fluid
0.7 ~ 0.8 l
(0.62 ~ 0.70 Imp. qts.)
FMVSS116 DOT-3 or DOT-4
Rear differential oil (4WD) 0.65
l( 0.57 Imp. qts.) HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Transfer case oil (4WD) 0.6
l(0.52 Imp. qts.) HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Fuel Petrol Engine
58 l(12.7 Imp. gal.)
Refer to “Fuel requirements” in section 1
Diesel Engine
Recommended Engine oil (For Europe)
Supplier Product
Petrol Engine Diesel Engine
Shell HELIX ULTRA AH-E 5W-30
HELIX ULTRA AP 5W-30
HELIX ULTRA 5W-40
*1Refer to the recommended SAE viscosity numbers on 8-8 page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*3Diesel Particulate Filter
