2015 HYUNDAI IX20 Owners Manual

Page 145 of 385

HYUNDAI IX20 2015  Owners Manual 469
Features of your vehicle
Battery saver function
• The purpose of this feature is to pre-
vent the battery from being dis-
charged. The system automatically
turns off the parking lights when t

Page 146 of 385

HYUNDAI IX20 2015  Owners Manual Features of your vehicle
70 4

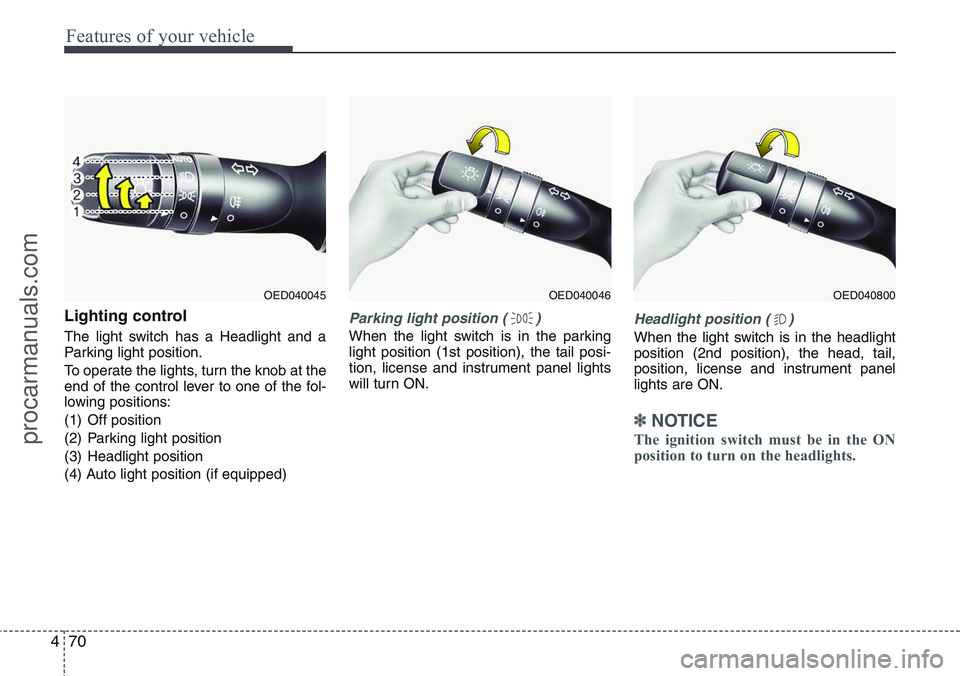

Lighting control
The light switch has a Headlight and a
Parking light position.
To operate the lights, turn the knob at the
end of the control lever to one of the fol-
lo

Page 147 of 385

HYUNDAI IX20 2015  Owners Manual 471
Features of your vehicle
Auto light position (if equipped)
When the light switch is in the AUTO light
position, the taillights and headlights will
be turned ON or OFF automatically
depending on th

Page 148 of 385

HYUNDAI IX20 2015  Owners Manual Features of your vehicle
72 4
To flash the headlights, pull the lever
towards you. It will return to the normal
(low beam) position when released. The
headlight switch does not need to be on
to use th

Page 149 of 385

HYUNDAI IX20 2015  Owners Manual 473
Features of your vehicle

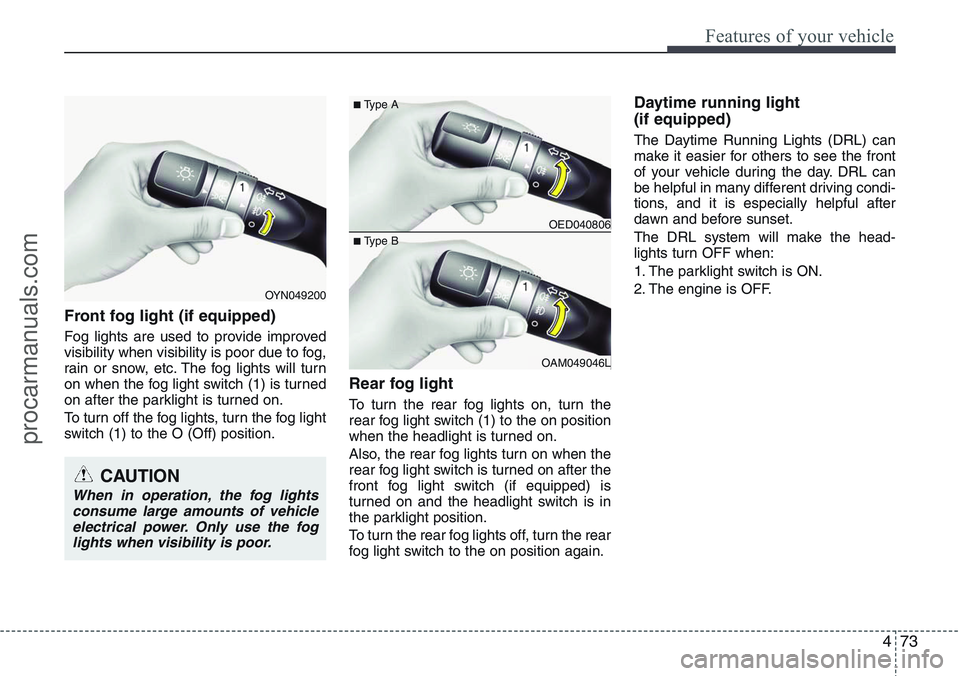

Front fog light (if equipped)
Fog lights are used to provide improved
visibility when visibility is poor due to fog,
rain or snow, etc. The fog lights will turn
on when

Page 150 of 385

HYUNDAI IX20 2015  Owners Manual Features of your vehicle
74 4
Headlight levelling device
(if equipped)
To adjust the headlight beam level
according to the number of the passen-
gers and loading weight in the luggage
area, turn the

Page 151 of 385

HYUNDAI IX20 2015  Owners Manual 475
Features of your vehicle
A : Wiper speed control (front)
· 2 – High wiper speed
· 1 – Low wiper speed
· --- – Intermittent wipe
· AUTO* – Automatic control wipe
· O – Off
·  – S

Page 152 of 385

HYUNDAI IX20 2015  Owners Manual Features of your vehicle
76 4

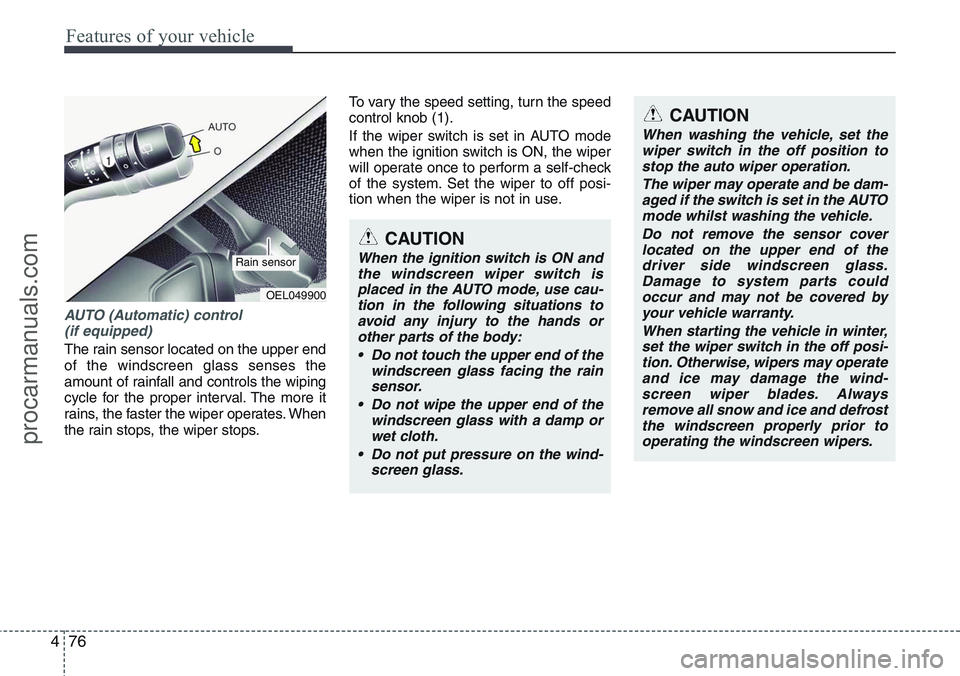

AUTO (Automatic) control
(if equipped)
The rain sensor located on the upper end
of the windscreen glass senses the
amount of rainfall and controls the wiping
cycle for t
