565
Driving your vehicle

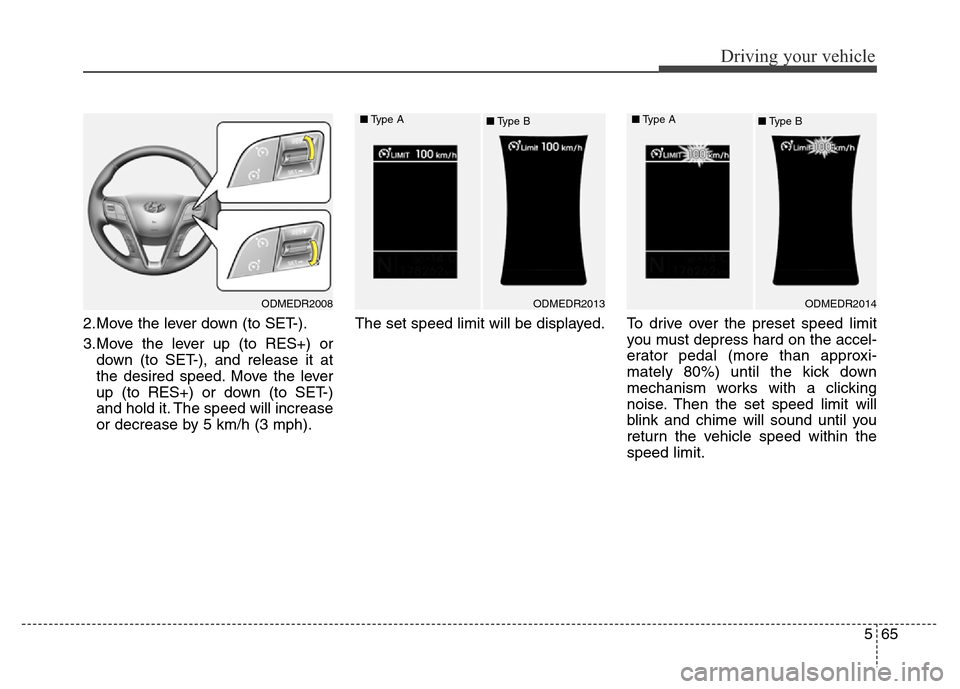

2.Move the lever down (to SET-).
3.Move the lever up (to RES+) or
down (to SET-), and release it at
the desired speed. Move the lever
up (to RES+) or down (to SET-)
and hold it. The speed will increase
or decrease by 5 km/h (3 mph).The set speed limit will be displayed. To drive over the preset speed limit
you must depress hard on the accel-
erator pedal (more than approxi-
mately 80%) until the kick down
mechanism works with a clicking
noise. Then the set speed limit will
blink and chime will sound until you
return the vehicle speed within the
speed limit.
ODMEDR2008ODMEDR2013ODMEDR2014 ■Type A
■Type B■Type A
■Type B

Driving your vehicle
66 5

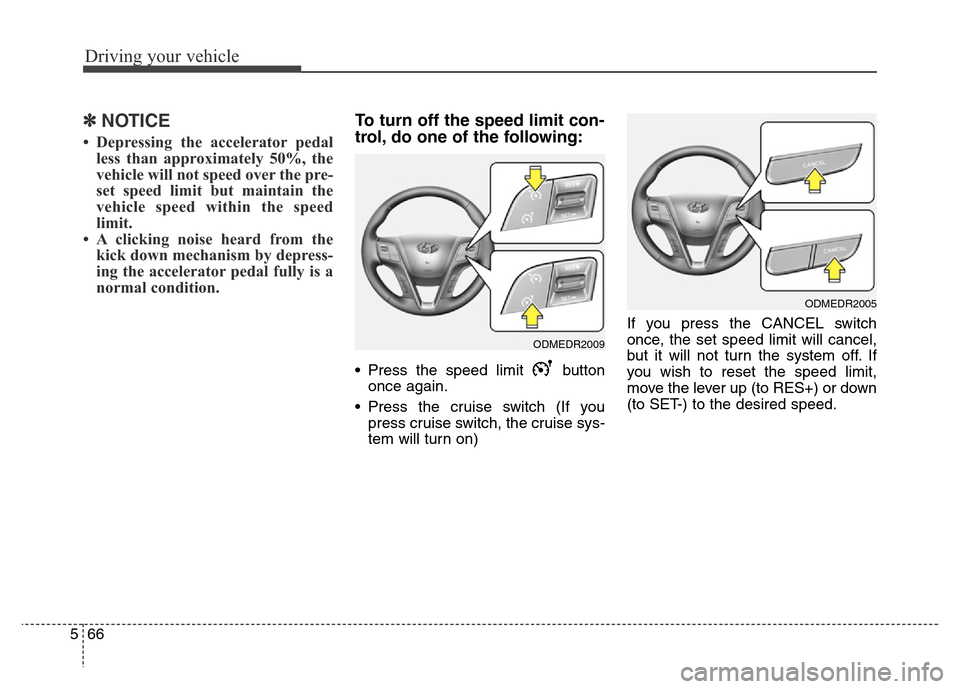

✽NOTICE
• Depressing the accelerator pedal
less than approximately 50%, the
vehicle will not speed over the pre-
set speed limit but maintain the
vehicle speed within the speed
limit.
• A clicking noise heard from the
kick down mechanism by depress-
ing the accelerator pedal fully is a
normal condition.
To turn off the speed limit con-
trol, do one of the following:
• Press the speed limit button
once again.
• Press the cruise switch (If you
press cruise switch, the cruise sys-
tem will turn on)If you press the CANCEL switch
once, the set speed limit will cancel,
but it will not turn the system off. If
you wish to reset the speed limit,
move the lever up (to RES+) or down
(to SET-) to the desired speed.
ODMEDR2009
ODMEDR2005

Maintenance
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . 7-4
• Owner’s responsibility . . . . . . . . . . . . . . . . . . . . . . . . 7-4
• Owner maintenance precautions . . . . . . . . . . . . . . . . 7-4
• Engine compartment precautions (Diesel engine) . . . 7-5
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
• Owner maintenance schedule . . . . . . . . . . . . . . . . . . . 7-7
Scheduled maintenance service . . . . . . . . . . . . . . 7-9
• Normal maintenance schedule - Gasoline engine. . . 7-10
• Maintenance under severe usage conditions
- Gasoline engine . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-14
• Normal maintenance schedule - Diesel engine
(for europe). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-16
• Maintenance under severe usage conditions
- Diesel engine (for europe) . . . . . . . . . . . . . . . . . . . 7-20
• Normal maintenance schedule - Diesel engine
(except europe). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-22
• Maintenance under severe usage conditions
- Diesel engine (except europe) . . . . . . . . . . . . . . . . 7-26
Explanation of scheduled maintenance items . . . 7-28
Engine oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32
• Checking the engine oil level . . . . . . . . . . . . . . . . . . 7-32
• Changing the engine oil and filter . . . . . . . . . . . . . . . 7-33
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-34
• Checking the coolant level . . . . . . . . . . . . . . . . . . . . . 7-34
• Changing the coolant . . . . . . . . . . . . . . . . . . . . . . . . . 7-36
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-37
• Checking the brake fluid level . . . . . . . . . . . . . . . . . 7-37
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-38
• Checking the washer fluid level . . . . . . . . . . . . . . . . 7-38
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-39
• Checking the parking brake. . . . . . . . . . . . . . . . . . . . 7-39
Fuel filter (for diesel) . . . . . . . . . . . . . . . . . . . . . . . 7-40
• Draining water from fuel filter . . . . . . . . . . . . . . . . . 7-40
• Fuel filter cartridge replacement . . . . . . . . . . . . . . . . 7-40
Air cleaner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-41
• Filter replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-41
Climate control air filter . . . . . . . . . . . . . . . . . . . . 7-43
• Filter inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43
• Filter replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-45
• Blade inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-45
• Blade replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-45
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-48
• For best battery service . . . . . . . . . . . . . . . . . . . . . . . 7-48
• Battery capacity label . . . . . . . . . . . . . . . . . . . . . . . . 7-49
• Battery recharging . . . . . . . . . . . . . . . . . . . . . . . . . . 7-50
• Reset items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-50
7

Maintenance
50 7
Battery recharging
Your vehicle has a maintenance-free,
calcium-based battery.
• If the battery becomes discharged
in a short time (because, for exam-
ple, the headlights or interior lights
were left on while the vehicle was
not in use), recharge it by slow
charging (trickle) for 10 hours.
• If the battery gradually discharges
because of high electric load while
the vehicle is being used, recharge
it at 20-30A for two hours.
Reset items
Items should be reset after the bat-
tery has been discharged or the bat-
tery has been disconnected.
• Auto up/down window
(See section 4)
• Sunroof (See section 4)
• Trip computer (See section 4)
• Climate control system
(See section 4)
• Clock (See section 4)
• Audio (See section 4)(Continued)
• Watch the battery during charg-
ing, and stop or reduce the
charging rate if the battery cells
begin gassing (boiling) violently
or if the temperature of the elec-
trolyte of any cell exceeds 49°C
(120°F).
• Wear eye protection when check-
ing the battery during charging.
• Disconnect the battery charger
in the following order.
1. Turn off the battery charger
main switch.
2. Unhook the negative clamp
from the negative battery ter-
minal.
3. Unhook the positive clamp
from the positive battery termi-
nal.
• Before performing maintenance
or recharging the battery, turn off
all accessories and stop the
engine.
• The negative battery cable must
be removed first and installed
last when the battery is discon-
nected.
WARNING- Recharging
battery
When recharging the battery,
observe the following precau-
tions:
• The battery must be removed
from the vehicle and placed in
an area with good ventilation.
• Do not allow cigarettes,
sparks, or flame near the bat-
tery.
(Continued)

755
Maintenance
Wheel alignment and tire bal-
ance
The wheels on your vehicle were
aligned and balanced carefully at the
factory to give you the longest tire life
and best overall performance.
In most cases, you will not need to
have your wheels aligned again.
However, if you notice unusual tire
wear or your vehicle pulling one way
or the other, the alignment may need
to be reset.
If you notice your vehicle vibrating
when driving on a smooth road, your
wheels may need to be rebalanced.
Tire replacement
If the tire is worn evenly, a tread wear
indicator will appear as a solid band
across the tread. This shows there is
less than 1.6 mm (1/16 in.) of tread
left on the tire. Replace the tire when
this happens.
Do not wait for the band to appear
across the entire tread before replac-
ing the tire.
CAUTION
Improper wheel weights can
damage your vehicle's alu-
minum wheels. Use only
approved wheel weights.
WARNING - Replacing
tires
• Driving on worn-out tires is
very hazardous and will
reduce braking effectiveness,
steering accuracy, and trac-
tion.
• Your vehicle is equipped with
tires designed to provide for
safe ride and handling capa-
bility. Do not use a size and
type of tire and wheel that is
different from the one that is
originally installed on your
vehicle. It can affect the safety
and performance of your vehi-
cle, which could lead to han-
dling failure or rollover and
serious injury. When replacing
the tires, be sure to equip all
four tires with the tire and
wheel of the same size, type,
tread, brand and load-carrying
capacity.
(Continued)
OEN076053
Tread wear indicator

765
Maintenance
If the headlights or other electrical
components do not work and the
fuses are OK, check the fuse block in
the engine compartment. If a fuse is
blown, it must be replaced.Fuse switch
Always, put the Fuse switch at the
ON position.
If you move the switch to the OFF
position, some items such as audio
and digital clock must be reset and
transmitter (or smart key) may not
work properly.
Engine compartment panel fuse
replacement
1. Turn the ignition switch and all
other switches off.
2. Remove the fuse box cover by
pressing the tap and pulling up.
ODM072019
CAUTION
Always place the fuse switch in
the ON position while driving
the vehicle.
ODM072027
ODM072028
Diesel only
