2015 Hyundai Grand Santa Fe 4WD

725
Maintenance

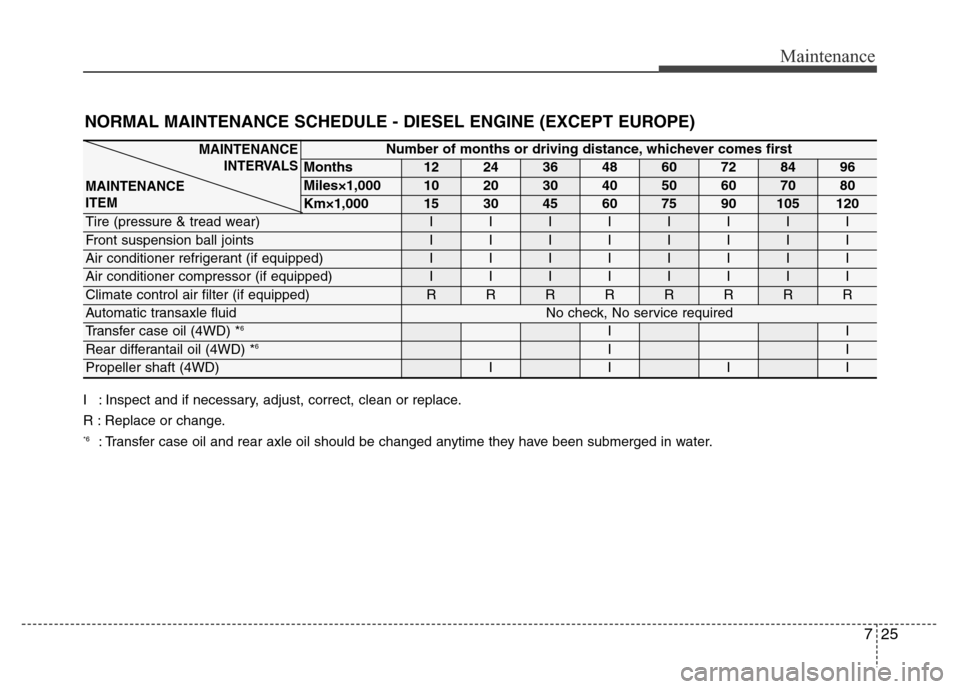

NORMAL MAINTENANCE SCHEDULE - DIESEL ENGINE (EXCEPT EUROPE)
Number of months or driving distance, whichever comes first
Months1224364860728496
Miles×1,0001020304050607080
Km×1,000153045607590105120
Tire (pressure & tread wear) IIIIIIII
Front suspension ball jointsIIIIIIII
Air conditioner refrigerant (if equipped)IIIIIIII
Air conditioner compressor (if equipped)IIIIIIII
Climate control air filter (if equipped)RRRRRRRR
Automatic transaxle fluid No check, No service required
Transfer case oil (4WD) *6II
Rear differantail oil (4WD) *6II
Propeller shaft (4WD)IIII
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
*6: Transfer case oil and rear axle oil should be changed anytime they have been submerged in water.
MAINTENANCE
INTERVALS
MAINTENANCE
ITEM

Maintenance
26 7

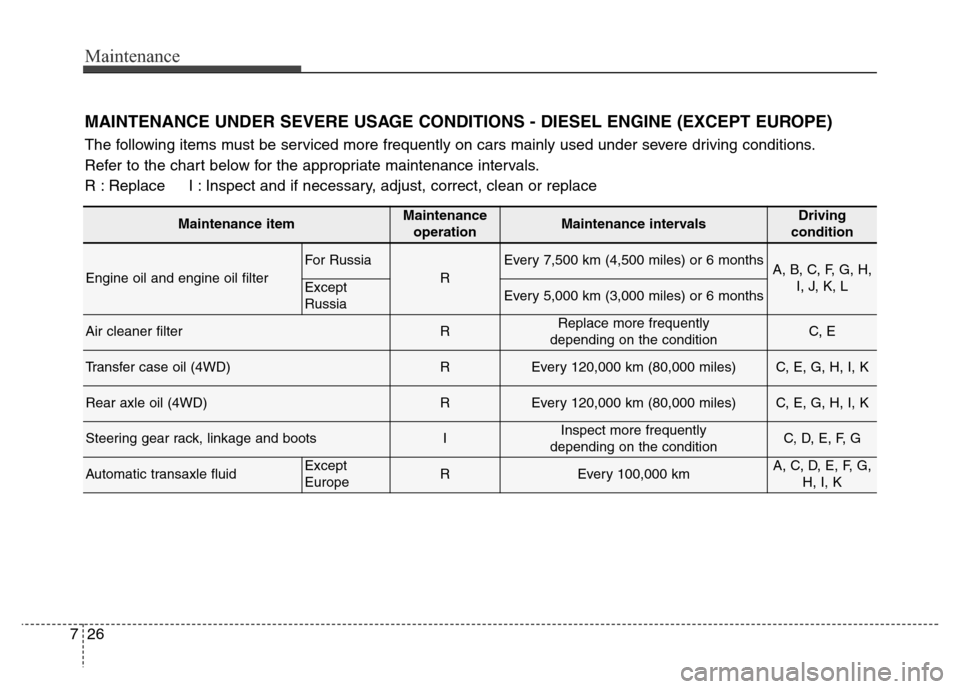

MAINTENANCE UNDER SEVERE USAGE CONDITIONS - DIESEL ENGINE (EXCEPT EUROPE)
The following items must be serviced more frequently on cars mainly used under severe driving conditions.
Refer to the chart below for the appropriate maintenance intervals.
R : Replace I : Inspect and if necessary, adjust, correct, clean or replace
Maintenance itemMaintenance
operationMaintenance intervalsDriving
condition
Engine oil and engine oil filter
For Russia
R
Every 7,500 km (4,500 miles) or 6 months A, B, C, F, G, H,
I, J, K, L
Except
RussiaEvery 5,000 km (3,000 miles) or 6 months
Air cleaner filter RReplace more frequently
depending on the conditionC, E
Transfer case oil (4WD)REvery 120,000 km (80,000 miles)C, E, G, H, I, K
Rear axle oil (4WD)REvery 120,000 km (80,000 miles)C, E, G, H, I, K
Steering gear rack, linkage and bootsIInspect more frequently
depending on the conditionC, D, E, F, G
Automatic transaxle fluidExcept
EuropeREvery 100,000 kmA, C, D, E, F, G,
H, I, K

Maintenance
68 7
DescriptionSymbol Fuse ratingProtected Component
A/BAG IND10AInstrument Cluster
A/BAG15ASRS Control Module, A/C Control Module
MODULE 57.5ARain Sensor, Sunroof, Smart Key Control Module, BCM, Parking Guide System, AC,
Inverter Module, Rear Blower Relay, Rear Seat Warmer LH/RH, Driver/Passenger
Climate Control Seat Control Module, Driver/Passenger Seat Warmer Module
MODULE 17.5ASport Mode Switch, Key Solenoid, Console Switch LH/RH, Front Console Switch,
Rear Power Window Switch LH/RH, RR_BLOWER SW
REAR FOG LAMP10AICM Relay Box (Rear Fog Lamp Relay)
MEMORY 210ABCM, Tire Pressure Monitoring Module, Driver IMS Module, Driver/Passenger Door
Module, Auto Light & Photo Sensor, Data Link Connector, A/C Control Module,
Instrument Cluster
SMART KEY 27.5ASmart Key Control Module, Immobilizer Module
MODULE 310A
BCM, Instrument Cluster, Tire Pressure Monitoring Module, AMP, Smart Parking Assist
Control Module, Electro Chromic Mirror, Lane Departure Warning Module, Steering
Angle Sensor, Audio, A/C Control Module, A/V & Navigation Head Unit, 4WD ECM
ATM Shift Lever Indicator, Rear Parking Assist Sensor LH/RH, Rear Seat Warmer
LH/RH, Driver/Passenger Climate Control Seat Control Module, Driver/Passenger Seat
Warmer Module, Driver IMS Module, Console Switch LH/RH, Rear Console Switch,
Rear Parking Assist Sensor (Center) LH/RH, Driver/Passenger Door Module, Electric
Parking Brake Module
SMART KEY 410AStart/Stop Button Switch, Immobilizer Module

775
Maintenance
DescriptionSymbol Fuse ratingProtected Component
FUSE
B+150ASmart Junction Box (Fuse - F22/F27/F32/F37/F42)
AC INVERTER30AAC Inverter Module
HORN15ARLY. 13 (Horn Relay)
ACTIVE HOOD LH30A-
ACTIVE HOOD RH30A-
EPB115AElectric Parking Brake Module
EPB215AElectric Parking Brake Module
DEICER15ARLY. 3 (Front Deicer Relay)
H/LP WASHER20ARLY. 14 (Head Lamp Washer Relay)
P/OUTLET25ARLY. 1 (Power Outlet Relay)
4WD20A4WD ECM
AMS10ABattery Sensor
TRAILER 215ATrailer Lamp & Power Outlet, IDB module

85
Specifications & Consumer information

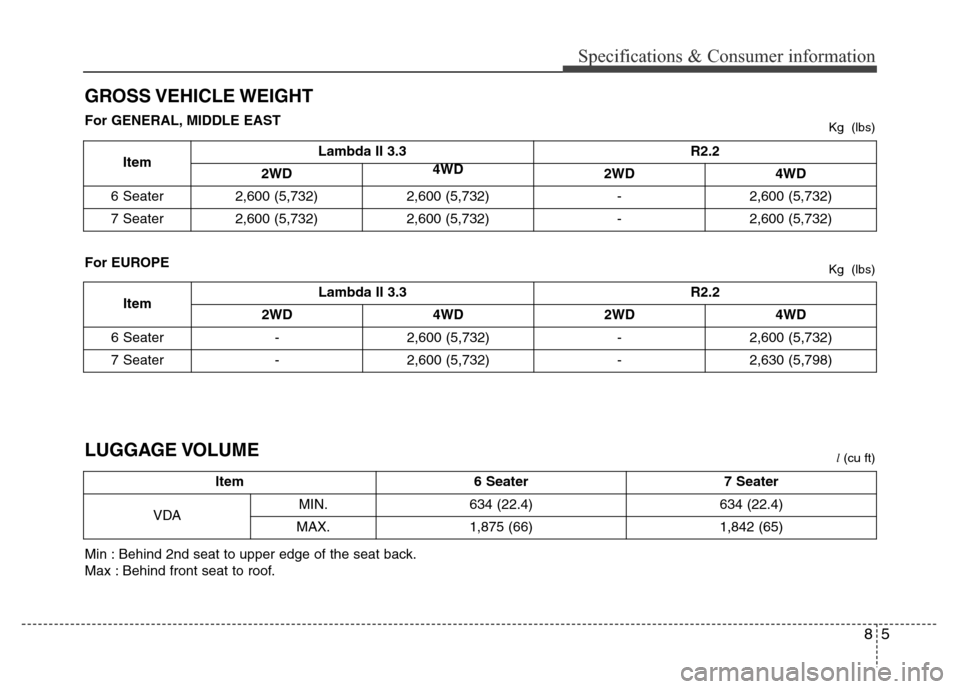

GROSS VEHICLE WEIGHT
ItemLambda II 3.3 R2.2
2WD 4WD 2WD 4WD
6 Seater - 2,600 (5,732) - 2,600 (5,732)
7 Seater - 2,600 (5,732) - 2,630 (5,798)
ItemLambda II 3.3 R2.2
2WD4WD
2WD 4WD
6 Seater 2,600 (5,732)
2,600 (5,732) - 2,600 (5,732)
7 Seater 2,600 (5,732)
2,600 (5,732) - 2,600 (5,732)
For GENERAL, MIDDLE EAST
For EUROPE
ltem 6 Seater 7 Seater
VDAMIN. 634 (22.4) 634 (22.4)
MAX. 1,875 (66) 1,842 (65)
Min : Behind 2nd seat to upper edge of the seat back.
Max : Behind front seat to roof.
LUGGAGE VOLUME
Kg (lbs)
Kg (lbs)
l(cu ft)

87
Specifications & Consumer information
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo-
my by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in
everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3If the API service SM or ACEA A5 engine oil is not available in your country, you are able to use API service SL or ACEA A3.
*4Diesel Particulate FilterLubricant Volume Classification
Rear differential oil (4WD)0.53 l(0.56 US qt.)HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Transfer case oil (4WD) R2.2L0.6 l(0.63US qt.)
HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
3.3L0.68 l(0.72 US qt.)
Fuel71 l(18.75 US gal.)
Refer to “Fuel requirements” in section 1
Available Engine oil (For Europe)
SupplierProduct
Gasoline Engine Diesel Engine
ShellHELIX ULTRA AH-E 5W-30
HELIX ULTRA AP 5W-30
HELIX ULTRA 5W-40
SK ZIC LD5W-30 ZIC LS 5W-30
Chevron KIXX G1 LL KIXX D1 5W-30
TotalQUARTZ HKS G-310
QUARTZ INEO MC3 5W-30
QUARTZ INEO MC3 5W-30
Fuchs TITAN SUPERSYN LONG LIFE 5W-30/40

Appendix
4 9

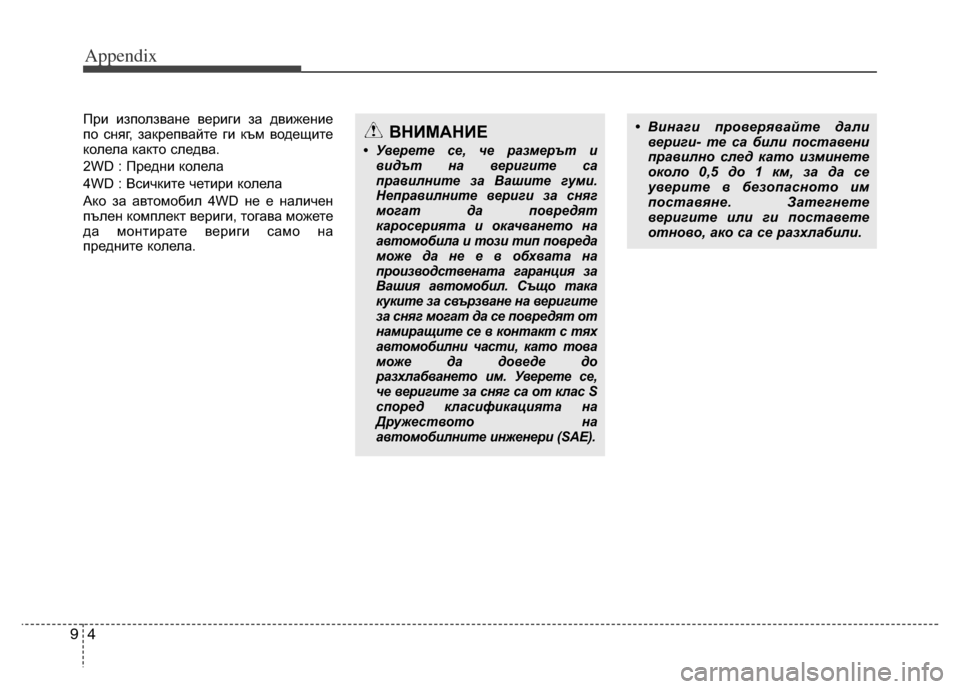

При използване вериги за движение
по сняг, закрепвайте ги към водещите
колела както следва.
2WD : Предни колела
4WD : Всичките четири колела
Ако за автомобил 4WD не е наличен
пълен комплект вериги, тогава можете
да монтирате вериги само на
предните колела.ВНИМАНИЕ
• Уверете се, че размерът и
видът на веригите са
правилните за Вашите гуми.
Неправилните вериги за сняг
могат да повредят
каросерията и окачването на
автомобила и този тип повреда
може да не е в обхвата на
производствената гаранция за
Вашия автомобил. Също така
куките за свързване на веригите
за сняг могат да се повредят от
намиращите се в контакт с тях
автомобилни части, като това
може да доведе до
разхлабването им. Уверете се,
че веригите за сняг са от клас S
според класификацията на
Дружеството на
автомобилните инженери (SAE).
• Винаги проверявайте дали
вериги- те са били поставени
правилно след като изминете
около 0,5 до 1 км, за да се
уверите в безопасното им
поставяне. Затегнете
веригите или ги поставете
отново, ако са се разхлабили.

97
Appendix

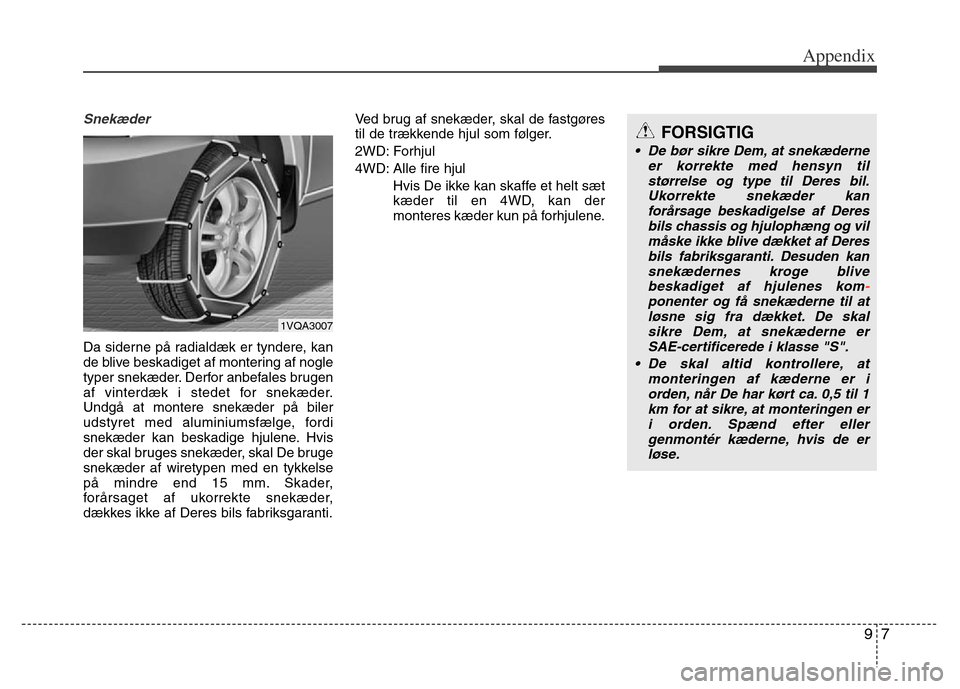

Snekæder
Da siderne på radialdæk er tyndere, kan
de blive beskadiget af montering af nogle
typer snekæder. Derfor anbefales brugen
af vinterdæk i stedet for snekæder.
Undgå at montere snekæder på biler
udstyret med aluminiumsfælge, fordi
snekæder kan beskadige hjulene. Hvis
der skal bruges snekæder, skal De bruge
snekæder af wiretypen med en tykkelse
på mindre end 15 mm. Skader,
forårsaget af ukorrekte snekæder,
dækkes ikke af Deres bils fabriksgaranti.Ved brug af snekæder, skal de fastgøres
til de trækkende hjul som følger.
2WD: Forhjul
4WD: Alle fire hjul
Hvis De ikke kan skaffe et helt sæt
kæder til en 4WD, kan der
monteres kæder kun på forhjulene.
FORSIGTIG
• De bør sikre Dem, at snekæderne
er korrekte med hensyn til
størrelse og type til Deres bil.
Ukorrekte snekæder kan
forårsage beskadigelse af Deres
bils chassis og hjulophæng og vil
måske ikke blive dækket af Deres
bils fabriksgaranti. Desuden kan
snekædernes kroge blive
beskadiget af hjulenes kom
-ponenter og få snekæderne til at
løsne sig fra dækket. De skal
sikre Dem, at snekæderne er
SAE-certificerede i klasse "S".
• De skal altid kontrollere, at
monteringen af kæderne er i
orden, når De har kørt ca. 0,5 til 1
km for at sikre, at monteringen er
i orden. Spænd efter eller
genmontér kæderne, hvis de er
løse.
1VQA3007
