2015 Hyundai Genesis Coupe ignition

25
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
1. Instrument cluster.............................4-45
2. Horn .................................................4-34
3. Driver’s front air bag .........................3-48
4. Wiper/Washer ...................................4-87
5. Ignition switch or engine
start/stop button ..........................5-5, 5-8
6. Hazard warning flasher switch ..4-81, 6-2
7. Climate control system .........4-92, 4-102
8. Shift lever ................................5-13, 5-17
9. Seat warmer .....................................3-10
10. Passenger’s front air bag ...............3-48
11. Glove box .....................................4-120
OBK012002N

35
Safety features of your vehicle
Seatback angle
To recline the seatback:
1. Lean forward slightly and lift up the
seatback recline lever.
2. Carefully lean back on the seat
and adjust the seatback of the
seat to the position you desire.
3. Release the lever and make sure
the seatback is locked in place.
(The lever MUST return to its orig-
inal position for the seatback to
lock.)
Seat cushion height
(for driver’s seat)
To change the height of the seat
cushion, push the lever upwards or
downwards.
• To lower the seat cushion, push the
lever down several times.
To raise the seat cushion, pull the
lever up several times.
Front seat adjustment - power
(for driver’s seat) (if equipped)
The front seat can be adjusted by
using the control knob located on the
outside of the seat cushion. Before
driving, adjust the seat to the proper
position so as to easily control the
steering wheel, pedals and switches
on the instrument panel.
OBK032003OBK032004WARNING
The power seat is operable with
the ignition OFF, therefore, chil-
dren should never be left unat-
tended in the car.

Safety features of your vehicle
10 3

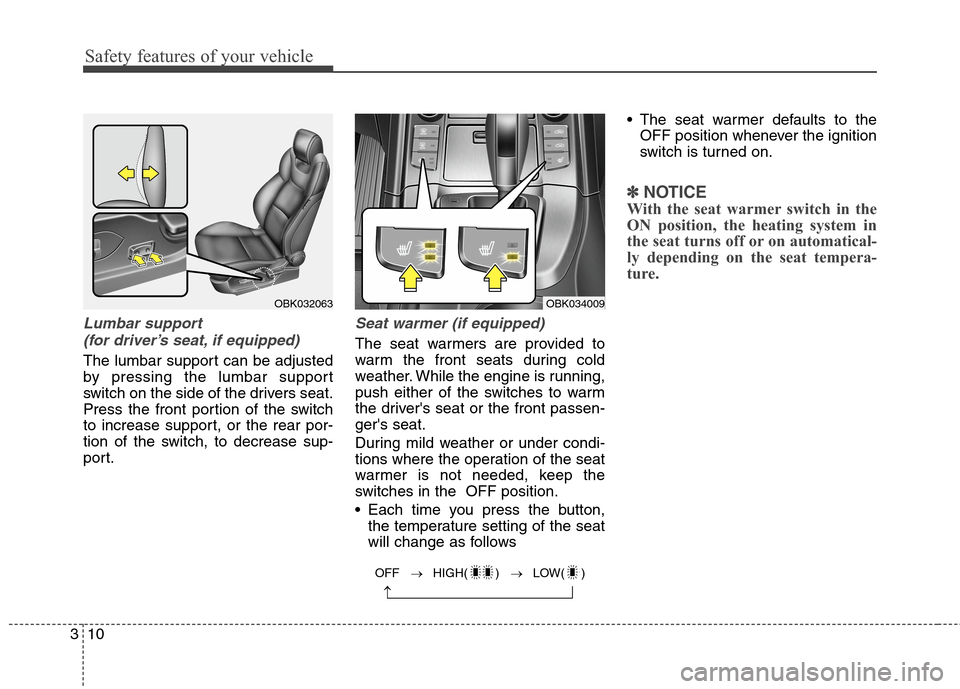

Lumbar support
(for driver’s seat, if equipped)
The lumbar support can be adjusted
by pressing the lumbar support
switch on the side of the drivers seat.
Press the front portion of the switch
to increase support, or the rear por-
tion of the switch, to decrease sup-
port.
Seat warmer (if equipped)
The seat warmers are provided to
warm the front seats during cold
weather. While the engine is running,
push either of the switches to warm
the driver's seat or the front passen-
ger's seat.
During mild weather or under condi-
tions where the operation of the seat
warmer is not needed, keep the
switches in the OFF position.
Each time you press the button,
the temperature setting of the seat
will change as follows The seat warmer defaults to the
OFF position whenever the ignition
switch is turned on.
✽ ✽
NOTICE
With the seat warmer switch in the
ON position, the heating system in
the seat turns off or on automatical-
ly depending on the seat tempera-
ture.
OBK034009
OFF → HIGH( ) → LOW( )
→
OBK032063

317
Safety features of your vehicle
Seat belt warning
(for driver’s seat)
As a reminder to the driver, the seat
belt warning light will blink for
approximately 6 seconds each time
you turn the ignition switch ON
and/or START regardless of belt fas-
tening.If the driver's seat belt is not fastened
when the ignition switch is turned ON
and/or START, the seat belt warning
light and the seat belt warning chime
will operate for approximately 6 sec-
onds. If the driver’s seat belt is fas-
tened within the 6 seconds, the
warning light will blink during the 6
seconds and the warning chime will
turn off immediately.
If the driver's seat belt is disconnect-
ed after the ignition switch is turned
to the ON position, the seat belt
warning light will blink for approxi-
mately 6 seconds until the belt is fas-
tened. If the driver's seat belt is not
fastened when the vehicle speed
exceeds 6 mph (10 km/h), the seat
belt warning light and chime will
operate for approximately 10 times
with a pattern of 6 seconds on and
24 seconds off until the belt is fas-
tened or the vehicle speed decreas-
es below 3 mph (5 km/h).
WARNING
No modifications or additions
should be made by the user
which will either prevent the
seat belt adjusting devices
from operating to remove
slack, or prevent the seat belt
assembly from being adjusted
to remove slack.
When you fasten the seat belt,
be careful not to latch the seat
belt in buckles of other seat. It's
very dangerous and you may
not be protected by the seat
belt properly.
Do not unfasten and fasten the
seat belt repeatedly while driv-
ing. This could result in loss of
control, and an accident caus-
ing death, serious injury, or
property damage.
When fastening the seat belt,
make sure that the seat belt
does not pass over objects that
are hard or can break easily.
Make sure there is nothing in
the buckle. The seat belt may
not be fastened securely.
1GQA2083

Safety features of your vehicle
22 3
✽
✽
NOTICE
• Both the driver's and front pas-
senger's pre-tensioner seat belts
may be activated in certain frontal
collisions.
• When the pre-tensioner seat belts
are activated, a loud noise may be
heard and fine dust, which may
appear to be smoke, may be visible
in the passenger compartment.
These are normal operating condi-
tions and are not hazardous.
• The fine dust may cause skin irri-
tation and should not be breathed
for prolonged periods. Wash all
exposed skin areas thoroughly
after an accident in which the pre-
tensioner seat belts were activated.
✽ ✽
NOTICE
Because the sensor that activates the
SRS air bag is connected with the
pre-tensioner seat belt, the SRS air
bag warning light on the instru-
ment panel will illuminate for
approximately 6 seconds after the
ignition switch has been turned to
the ON position, and then it should
turn off.
CAUTION
If the pre-tensioner seat belt is
not working properly, this warn-
ing light will illuminate even if
there is no malfunction of the
SRS air bag. If the SRS air bag
warning light does not illumi-
nate when the ignition switch is
turned ON, or if it remains illu-
minated after illuminating for
approximately 6 seconds, or if it
illuminates while the vehicle is
being driven, have an author-
ized HYUNDAI dealer inspect
the pre-tensioner seat belt and
SRS air bag system as soon as
possible.
WARNING
Pre-tensioners are designed
to operate only one time. After
activation, pre-tensioner seat
belts must be replaced. All
seat belts, of any type, should
always be replaced after they
have been worn during a colli-
sion.
The pre-tensioner seat belt
assembly mechanisms become
hot during activation. Do not
touch the pre-tensioner seat
belt assemblies for several min-
utes after they have been acti-
vated.
Do not attempt to inspect or
replace the pre-tensioner seat
belts yourself. This must be
done by an authorized
HYUNDAI dealer.
Do not strike the pre-tension-
er seat belt assemblies.
Do not attempt to service or
repair the pre-tensioner seat
belt system in any manner.
(Continued)

337
Safety features of your vehicle

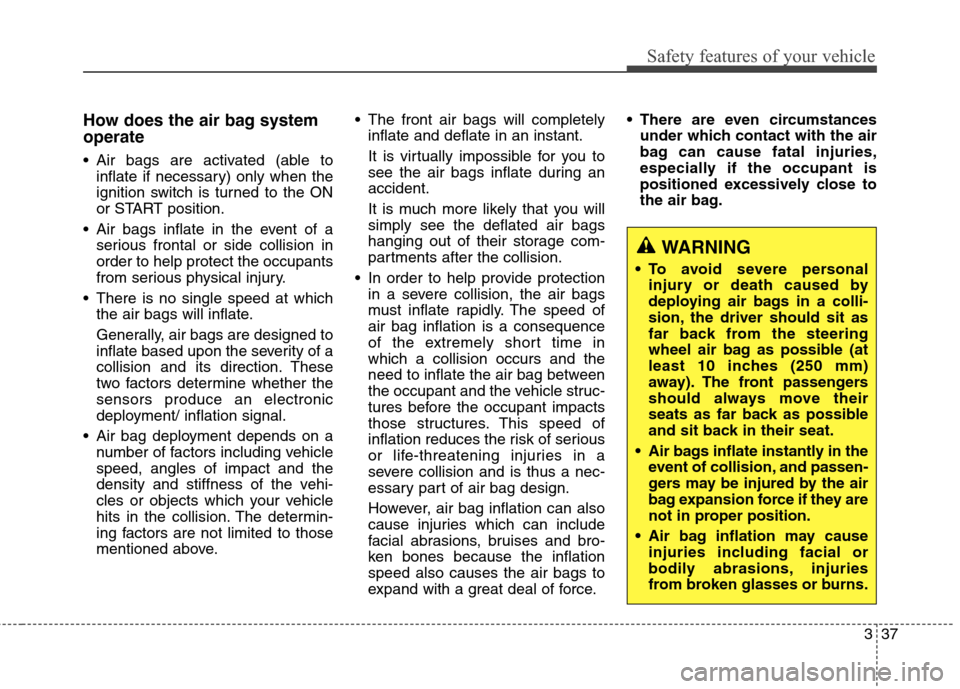

How does the air bag system
operate
Air bags are activated (able to
inflate if necessary) only when the
ignition switch is turned to the ON
or START position.
Air bags inflate in the event of a
serious frontal or side collision in
order to help protect the occupants
from serious physical injury.
There is no single speed at which
the air bags will inflate.
Generally, air bags are designed to
inflate based upon the severity of a
collision and its direction. These
two factors determine whether the
sensors produce an electronic
deployment/ inflation signal.
Air bag deployment depends on a
number of factors including vehicle
speed, angles of impact and the
density and stiffness of the vehi-
cles or objects which your vehicle
hits in the collision. The determin-
ing factors are not limited to those
mentioned above. The front air bags will completely
inflate and deflate in an instant.
It is virtually impossible for you to
see the air bags inflate during an
accident.
It is much more likely that you will
simply see the deflated air bags
hanging out of their storage com-
partments after the collision.
In order to help provide protection
in a severe collision, the air bags
must inflate rapidly. The speed of
air bag inflation is a consequence
of the extremely short time in
which a collision occurs and the
need to inflate the air bag between
the occupant and the vehicle struc-
tures before the occupant impacts
those structures. This speed of
inflation reduces the risk of serious
or life-threatening injuries in a
severe collision and is thus a nec-
essary part of air bag design.
However, air bag inflation can also
cause injuries which can include
facial abrasions, bruises and bro-
ken bones because the inflation
speed also causes the air bags to
expand with a great deal of force. There are even circumstances
under which contact with the air
bag can cause fatal injuries,
especially if the occupant is
positioned excessively close to
the air bag.
WARNING
To avoid severe personal
injury or death caused by
deploying air bags in a colli-
sion, the driver should sit as
far back from the steering
wheel air bag as possible (at
least 10 inches (250 mm)
away). The front passengers
should always move their
seats as far back as possible
and sit back in their seat.
Air bags inflate instantly in the
event of collision, and passen-
gers may be injured by the air
bag expansion force if they are
not in proper position.
Air bag inflation may cause
injuries including facial or
bodily abrasions, injuries
from broken glasses or burns.

Safety features of your vehicle
38 3
Noise and smoke
When the air bags inflate, they make
a loud noise and they leave smoke
and powder in the air inside of the
vehicle. This is normal and is a result
of the ignition of the air bag inflator.
After the air bag inflates, you may
feel substantial discomfort in breath-
ing due to the contact of your chest
with both the seat belt and the air
bag, as well as from breathing the
smoke and powder.Open your
doors and/or windows as soon as
possible after impact in order to
reduce discomfort and prevent
prolonged exposure to the smoke
and powder.
Though the smoke and powder are
non-toxic, they may cause irritation
to the skin (eyes, nose and throat,
etc). If this is the case, wash and
rinse with cold water immediately
and consult a doctor if the symptom
persists.
Do not install a child restraint on the
front passenger’s seat.
Never place a rear-facing child
restraint in the front passenger’s
seat. If the air bag deploys, it would
impact the rear-facing child restraint,
causing serious or fatal injury.
In addition, do not place front-facing
child restraints in the front passen-
ger’s seat either. If the front passen-
ger air bag inflates, it could cause
serious or fatal injuries to the child.
1JBH3051
WARNING
When the air bags deploy, the
air bag related parts in the
steering wheel and/or instru-
ment panel and/or in both sides
of the roof rails above the front
and rear doors and in the front
seatbacks are very hot. To pre-
vent injury, do not touch the air
bag storage area’s internal
components immediately after
an air bag has inflated.

339
Safety features of your vehicle
SRS components and func-
tions
The SRS consists of the following
components:
1. Driver's front air bag module
2. Passenger's front air bag module
3. Side impact air bag modules
4. Curtain air bag modules
5. Retractor pre-tensioner assemblies
6. Air bag warning light
7. SRS control module (SRSCM)
8. Front impact sensors
9. Side impact sensors
10. PASSENGER AIR BAG "OFF"
indicator (Front passenger’s seat
only)11. Occupant classification system
(Front passenger’s seat only)
The SRSCM continually monitors all
SRS components while the ignition
switch is ON to determine if a crash
impact is severe enough to require
air bag deployment or pre-tensioner
seat belt deployment.
OBK039059N
WARNING
Extreme Hazard! Do not use a
rearward facing child restraint
on a seat protected by an air
bag in front of it!
Never put a child restraint in
the front passenger’s seat. If
the front passenger air bag
inflates, it can cause serious
or fatal injuries.
