2015 HONDA FIT Radiator

67

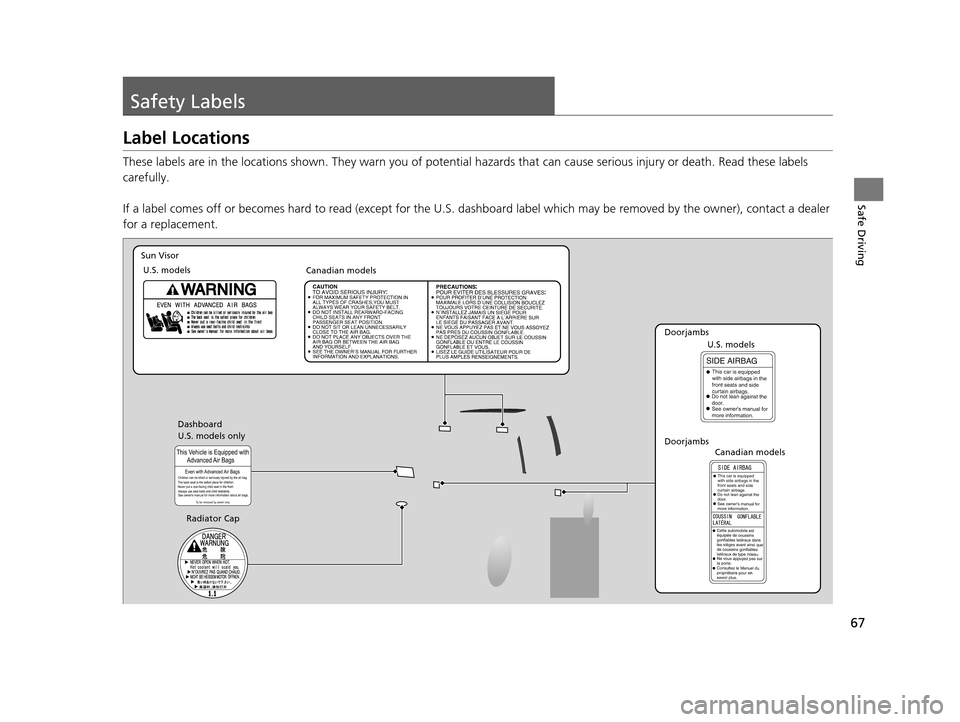

Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U. S. dashboard label which may be removed by the owner), contact a dealer
for a replacement.
U.S. models only Dashboard
Sun Visor
U.S. models Canadian models
Radiator Cap
DoorjambsU.S. models
Canadian models
Doorjambs
15 US FIT-31T5A6000.book 67 ページ ２０１４年３月６日　木曜日　午後７時５分

361
Maintenance
Maintenance Under the Hood
Maintenance Items Under the Hood
Brake Fluid
(Black Cap)
Engine Coolant Reserve Tank Radiator Cap
Washer Fluid
(Blue Cap)
Engine Oil Dipstick
(Orange)
Engine Oil Fill Cap
Battery
15 US FIT-31T5A6000.book 361 ページ ２０１４年３月６日　木曜日　午後７時５分

368
uuMaintenance Under the Hood uEngine Coolant
Maintenance
Engine Coolant
This coolant is premixed with 50% antifreeze and 50% water. Do not add any
straight antifreeze or water.
We recommend you check the engine coolant level every time you refuel. Check the
reserve tank first. If it is completely empty, also check the coolant level in the
radiator. Add the engine coolant accordingly.
1.Check the amount of coolant in the reserve
tank.
2. If the coolant level is below the MIN mark,
add the specified coolant until it reaches
the MAX mark.
3. Inspect the cooling system for leaks.
Specified coolant: Honda Long Life Antifreeze/Coolant Type 2
■Reserve Tank
1Engine Coolant
NOTICE
If Honda antifreeze /coolant is not available, you may
use another major brand non- silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminum engines.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda anti freeze/coolant as soon as
possible.
Do not add rust inhibitors or other additives to your
vehicle’s coolant system. They may not be compatible
with the coolant or with the engine components.
If temperatures consistent ly below -22°F (-30°C) are
expected, the coolant mixture should be changed to
a higher concentration. Cons ult a dealer for more
information.
Reserve Tank MAX
MIN
15 US FIT-31T5A6000.book 368 ページ ２０１４年３月６日　木曜日　午後７時５分

369
uuMaintenance Under the Hood uEngine Coolant
Maintenance
1. Make sure the engine and radiator are
cool.
2. Turn the radiator cap counterclockwise and
relieve any pressure in the cooling system.
Do not push the cap down when turning.
3. Push down and turn the radiator cap
counterclockwise to remove it.
4. The coolant level should be up to the base
of the filler neck. Add coolant if it is low.
5. Put the radiator cap back on, and tighten it
fully.
6. Pour coolant into the reserve tank until it
reaches the MAX mark. Put the cap back
on the reserve tank.
■Radiator1 Radiator
NOTICE
Pour the fluid slowly and ca refully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Radiator Cap
15 US FIT-31T5A6000.book 369 ページ ２０１４年３月６日　木曜日　午後７時５分

uuOverheating uHow to Handle Overheating
418
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
stop the engine once the high temperature
indicator goes off.
u If the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level an d check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolan t in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, restart it and check the high temperature
indicator.
If the high temperature indicator is off, resume driving. If it stays on, contact a dealer
for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
MAX
Reserve Tank MIN
15 US FIT-31T5A6000.book 418 ページ ２０１４年３月６日　木曜日　午後７時５分

446
Index
Indicator ............................................ 70, 421
Parking Brake .......................................... 340
Brake System Indicator ............................... 70
Brightness Control (Instrument Panel) .... 128
Bulb Replacement ..................................... 373
Back-Up Light and Rear Turn Signal
Lights..................................................... 377
Brake/Tail/Rear Side Marker Lights ........... 378
Fog Lights ................................................ 375
Headlights ............................................... 373
High-Mount Brake Light .......................... 378
Rear License Plate Light............................ 379
Side Turn Signal, Emergency Indicator Lights..................................................... 376
Bulb Specifications .................................... 432
C
Carbon Monoxide Gas ................................ 66
Cargo Area Cover ..................................... 152
Cargo Floor Box ........................................ 148
Carrying Cargo .................................. 303, 305
CD Player ................................................... 179
Certification Label .................................... 434
Changing Bulbs ......................................... 373
Charging System Indicator ................. 71, 419
Child Safety ................................................. 54
Childproof Door Locks ............................. 102
Child Seat .................................................... 54
Booster Seats ............................................. 65
Child Seat for Infants ................................. 56 Child Seat for Small Children ..................... 57
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 61
Larger Children ......................................... 64
Rear-facing Child Seat ............................... 56
Selecting a Child Seat ................................ 58
Childproof Door Locks ............................. 102
Cleaning the Exterior ............................... 400
Cleaning the Interior ................................ 398
Climate Control System ............................ 157
Clock ............................................................ 88
Coat Hook ................................................. 150
Compact Spare Tire .......................... 405, 433
Controls ....................................................... 87
Coolant (Engine) ...................................... 368
Adding to the Radiator ............................ 369
Adding to the Reserve Tank..................... 368
High Temperature Indicator ....................... 74
Low Temperature Indicator........................ 74
Overheating ............................................ 417
Creeping (Automatic Transmission) ........ 318
Cruise Control ........................................... 329
Indicator.................................................... 79
Cup Holders .............................................. 147
Customer Service Information ................. 442
D
Daytime Running Lights.......................... 125
Dead Battery ............................................ 414
Defrosting the Windshield and Windows ................................................. 156
Devices that Emit Radio Waves ............... 435
Dimming Headlights .............................................. 121
Rearview Mirror ...................................... 131
Dipstick (Engine Oil) ................................ 364
Directional Signals (Turn Signal) ............. 121
Display Setup .................................... 176, 198
Door Mirrors ............................................. 131
Doors .......................................................... 90
Auto Door Locking.................................. 103
Auto Door Unlocking .............................. 103
Door and Tailgate Open Indicator ....... 31, 75
Keys.......................................................... 90
Locking/Unlocking the Doors from the Inside ................................................ 99
Locking/Unlocking the Doors from the Outside ............................................. 93
Lockout Prevention System ....................... 98
DOT Tire Quality Grading ........................ 387
Driving ...................................................... 301
Automatic Transmission .......................... 318
Braking ................................................... 340
Cruise Control ........................................ 329
Shifting Gear .......................... 319, 321, 325
Starting the Engine ......................... 311, 313
Dust and Pollen Filter .............................. 397
15 US FIT-31T5A6000.book 446 ページ ２０１４年３月６日　木曜日　午後７時５分

447
Index
E
ECON Button............................................ 328
ECON Mode Indicator ................................ 78
Electric Power Steering (EPS) System Indicator ........................................... 75, 421
Electronic Stability Control (ESC) ............ 332
Emergency ................................................ 428
Emissions Testing (Readiness Codes) ...... 437
Engine Coolant .................................................. 368
Jump Starting ......................................... 414
Number .................................................. 434
Oil .......................................................... 363
Starting........................................... 311, 313
Switch Buzzer ......................................... 116
Engine Coolant ........................................ 368
Adding to the Radiator ........................... 369
Adding to the Reserve Tank .................... 368
High Temperature Indicator ...................... 74
Low Temperature Indicator ....................... 74
Overheating ............................................ 417
Engine Oil ................................................. 363
Adding ................................................... 365
Checking ................................................ 364
Displaying Oil Life ................................... 357
Low Oil Pressure Indicator ................. 71, 419
Recommended Engine Oil ....................... 363
EPS (Electric Power Steering)
System ............................................... 75, 421
Exhaust Gas Hazard (Carbon Monoxide) .................................. 66 Exterior Care (Cleaning)
........................... 400
Exterior Mirrors ........................................ 131
F
Features..................................................... 161
Filters
Dust and Pollen ....................................... 397
Oil ........................................................... 366
Flat Tire ..................................................... 405
Floor Mats ................................................. 398
Fluids Automatic Transmission (CVT) ................. 370
Brake ....................................................... 371
Engine Coolant ........................................ 368
Manual Transmission ............................... 370
Windshield Washer .................................. 372
FM/AM Radio ............................................ 177
Fog Light Indicator ..................................... 77
Folding Down the Rear Seats .................. 141
Foot Brake ................................................. 341
Front Airbags (SRS) ..................................... 44
Front Seats ................................................ 133
Adjusting ................................................. 133
Fuel ...................................................... 21, 347
Economy ................................................. 350
Gauge ....................................................... 85
Low Fuel Indicator ..................................... 73
Recommendation .................................... 347
Refueling ........................................... 21, 347
Fuel Economy ............................................ 350 Fuel Fill Cap
........................................ 21, 349
Message.................................................. 420
Fuel Fill Door ...................................... 21, 348
Fuses .......................................................... 423
Inspecting and Changing......................... 427
Locations................................................. 423
G
Gasoline (Fuel)
Economy ................................................. 350
Gauge ....................................................... 85
Information ............................................. 347
Low Fuel Indicator ..................................... 73
Refueling................................................. 347
Gauges ........................................................ 82
Gear Shift Lever Positions Automatic Transmission .................. 319, 321
Manual Transmission ............................... 326
Glass (care) ................................................ 401
Glove Box .................................................. 146
H
Halogen Bulbs .................................. 373, 375
Handling the Unexpected ........................ 403
HandsFreeLink ® (HFL) ............................... 248
Menus..................................................... 250
Phone Setup.................................... 254, 279
Hazard Warning Button .............................. 4
Head Restraints ........................................ 135
15 US FIT-31T5A6000.book 447 ページ ２０１４年３月６日　木曜日　午後７時５分

449
Index
L
LaneWatchTM............................................ 334
LATCH (Child Seats) ................................... 59
Lights ................................................ 121, 373
Bulb Replacement ................................... 373
Daytime Running Lights .......................... 125
Fog Lights ............................................... 124
High-Beam Indicator ................................. 77
Interior.................................................... 144
Light Switches......................................... 121
Lights On Indicator.................................... 77
Turn Signals ............................................ 121
Load Limits ............................................... 305
Locking/Unlocking ..................................... 90
Auto Door Locking/Unlocking ................. 103
Childproof Door Locks ............................ 102
From Inside ............................................... 99
From Outside ............................................ 93
Keys.......................................................... 90
Lockout Prevention System ....................... 98
Using a Key............................................... 97
Lockout Prevention System ....................... 98
Low Battery Charge ................................. 419
Low Fuel Indicator ..................................... 73
Low Oil Pressure Indicator ................. 71, 419
Lower Anchors ........................................... 59
Lubricant Specifications Chart ................ 433
Luggage (Maximum Load Limit) ............. 305
M
Maintenance............................................. 353
Battery .................................................... 393
Brake Fluid .............................................. 371
Cleaning .................................................. 398
Coolant ................................................... 368
Heating and Cooling System .................... 397
Maintenance Minder
TM............................ 357
Oil ........................................................... 364
Precautions .............................................. 355
Radiator .................................................. 369
Remote Transmitter ................................. 395
Replacing Light Bulbs ............................... 373
Safety ...................................................... 355
Service Items ........................................... 359
Tires ........................................................ 384
Transmission Fluid ................................... 370
Under the Hood ...................................... 361
Malfunction Indicator Lamp .............. 71, 420
Manual Transmission ................................ 325
Reverse Lockout ...................................... 327
Map Lights ................................................ 145
Maximum Load Limit ............................... 305
Meters, Gauges ........................................... 82
Mirrors ....................................................... 131
Adjusting ................................................. 131
Door ........................................................ 131
Exterior .................................................... 131
Interior Rearview ..................................... 131
Modifications (and Accessories) .............. 351
MP3 ........................................... 179, 185, 210 Multi-View Rear Camera
.......................... 345
N
Numbers (Identification).......................... 434
O
Odometer................................................... 84
Oil (Engine) ............................................... 363
Adding .................................................... 365
Checking................................................. 364
Displaying Oil Life .................................... 357
Low Oil Pressure Indicator ................. 71, 419
Recommended Engine Oil ....................... 363
Viscosity .................................................. 363
Opening and Closing the Moonroof ....... 115
Opening/Closing Hood....................................................... 362
Power Windows ...................................... 113
Tailgate ................................................... 107
Overheating .............................................. 417
15 US FIT-31T5A6000.book 449 ページ ２０１４年３月６日　木曜日　午後７時５分
