2015 HONDA FIT Owners Manual

376
uuReplacing Light Bulbs uSide Turn Signal/Emergency Indicator Light Bulbs*
Maintenance
3. Push the tab to remove the coupler.
4. Rotate the old bulb to the left to remove.
5. Insert a new bulb into the fog light
assembly and turn it to the right.
6. Insert the coupler into the connector of the
bulb.
Side Turn Signal/Emergency Indicator Light Bulbs*
Door mirrors have the side turn lights. Ha ve an authorized Honda dealer inspect and
replace the light assembly.
Tab
Bulb
Coupler
* Not available on all models
15 US FIT-31T5A6000.book 376 ページ ２０１４年３月６日　木曜日　午後７時５分

377
uuReplacing Light Bulbs uBack-Up Light and Rear Turn Signal Light Bulbs
Maintenance
Back-Up Light and Rear Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Use a Phillips-head sc rewdriver to remove
the bolts.
2. Pull the light assembly out of the rear pillar.
3. Turn the socket to th e left and remove it.
Remove the old bulb.
4. Insert a new bulb.
5. Slide the light assembly onto the guide on
the body.
Back-Up Light: 21 W
Rear Turn Signal Light: 21 W
Bolt
Bulb
Socket
15 US FIT-31T5A6000.book 377 ページ ２０１４年３月６日　木曜日　午後７時５分

378
uuReplacing Light Bulbs uBrake/Tail/Rear Side Marker Light Bulbs
Maintenance
Brake/Tail/Rear Side Marker Light Bulbs
Brake/tail/rear side marker light bulbs are the LED type. Have an authorized Honda
dealer inspect and replace the light assembly.
High-Mount Brake Light Bulb
High-mount brake light bulb is a LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
15 US FIT-31T5A6000.book 378 ページ ２０１４年３月６日　木曜日　午後７時５分

379
uuReplacing Light Bulbs uRear License Plate Light Bulbs
Maintenance
Rear License Plate Light Bulbs
When replacing, use the following bulb.
1.Push the lens on the left and pull out the
lens and the socket attached to it.
2. Remove the license plat e light assembly by
squeezing the tabs on both sides of the
socket.
3. Remove the old bulb and insert a new bulb.
Rear License Plate Light: 5 W
Lens
Bulb
15 US FIT-31T5A6000.book 379 ページ ２０１４年３月６日　木曜日　午後７時５分

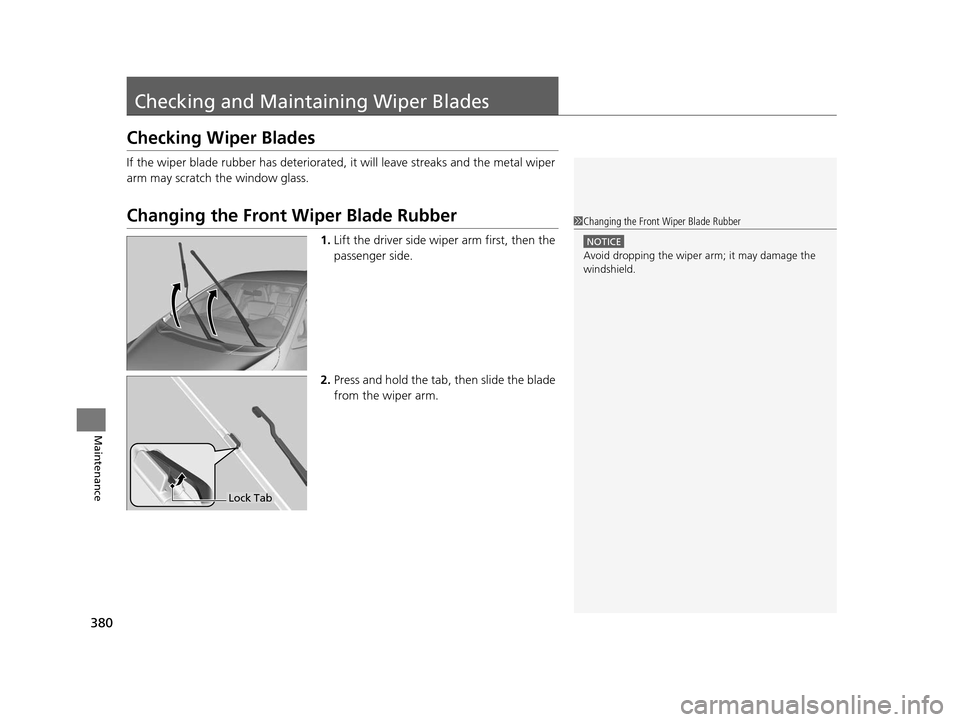

380
Maintenance
Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the metal wiper
arm may scratch the window glass.
Changing the Front Wiper Blade Rubber
1. Lift the driver side wiper arm first, then the
passenger side.
2. Press and hold the tab, then slide the blade
from the wiper arm.
1 Changing the Front Wiper Blade Rubber
NOTICE
Avoid dropping the wiper ar m; it may damage the
windshield.
Lock Tab
15 US FIT-31T5A6000.book 380 ページ ２０１４年３月６日　木曜日　午後７時５分

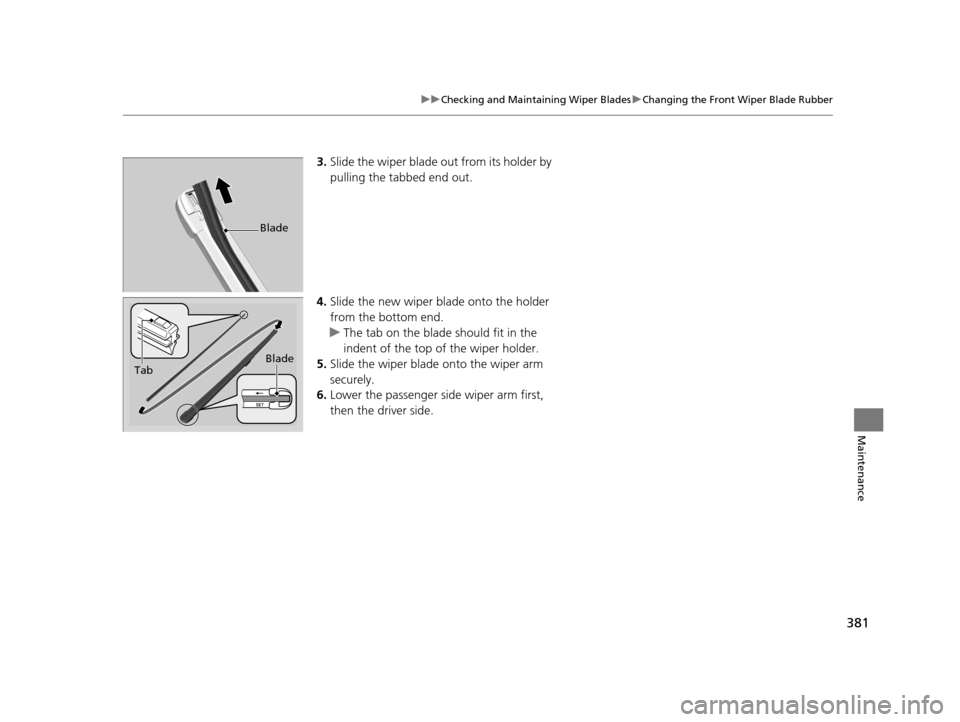

381
uuChecking and Maintaining Wiper Blades uChanging the Front Wiper Blade Rubber
Maintenance
3. Slide the wiper blade out from its holder by
pulling the tabbed end out.
4. Slide the new wiper bl ade onto the holder
from the bottom end.
u The tab on the blade should fit in the
indent of the top of the wiper holder.
5. Slide the wiper blade onto the wiper arm
securely.
6. Lower the passenger side wiper arm first,
then the driver side.
Blade
Tab Blade
15 US FIT-31T5A6000.book 381 ページ ２０１４年３月６日　木曜日　午後７時５分

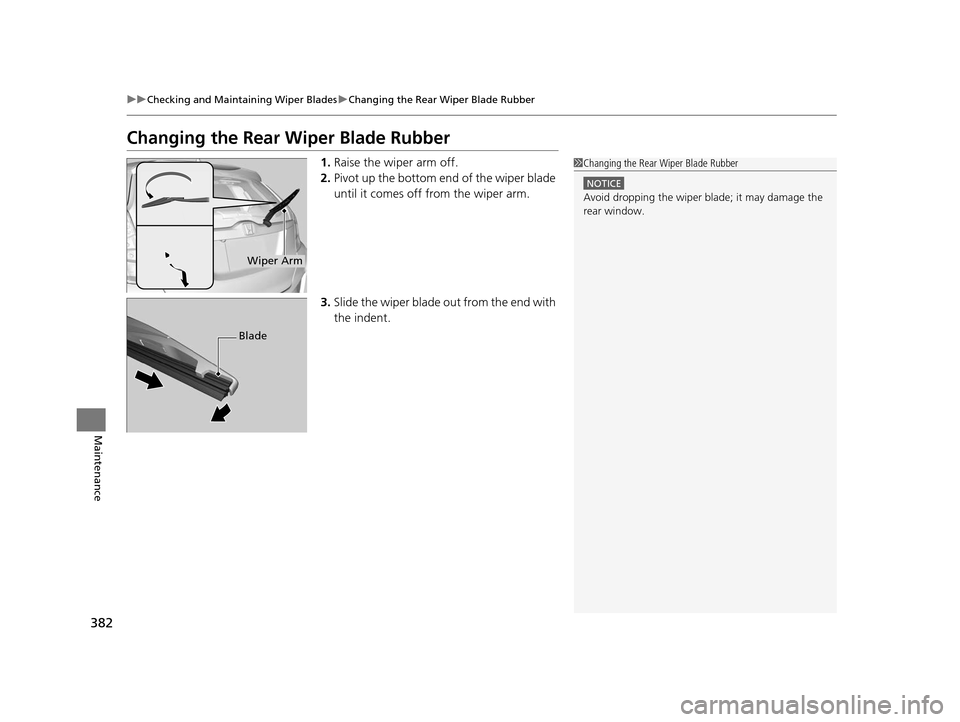

382
uuChecking and Maintaining Wiper Blades uChanging the Rear Wiper Blade Rubber
Maintenance
Changing the Rear Wiper Blade Rubber
1. Raise the wiper arm off.
2. Pivot up the bottom e nd of the wiper blade
until it comes off from the wiper arm.
3. Slide the wiper blade out from the end with
the indent.1 Changing the Rear Wiper Blade Rubber
NOTICE
Avoid dropping the wiper blade; it may damage the
rear window.
Wiper Arm
Blade
15 US FIT-31T5A6000.book 382 ページ ２０１４年３月６日　木曜日　午後７時５分

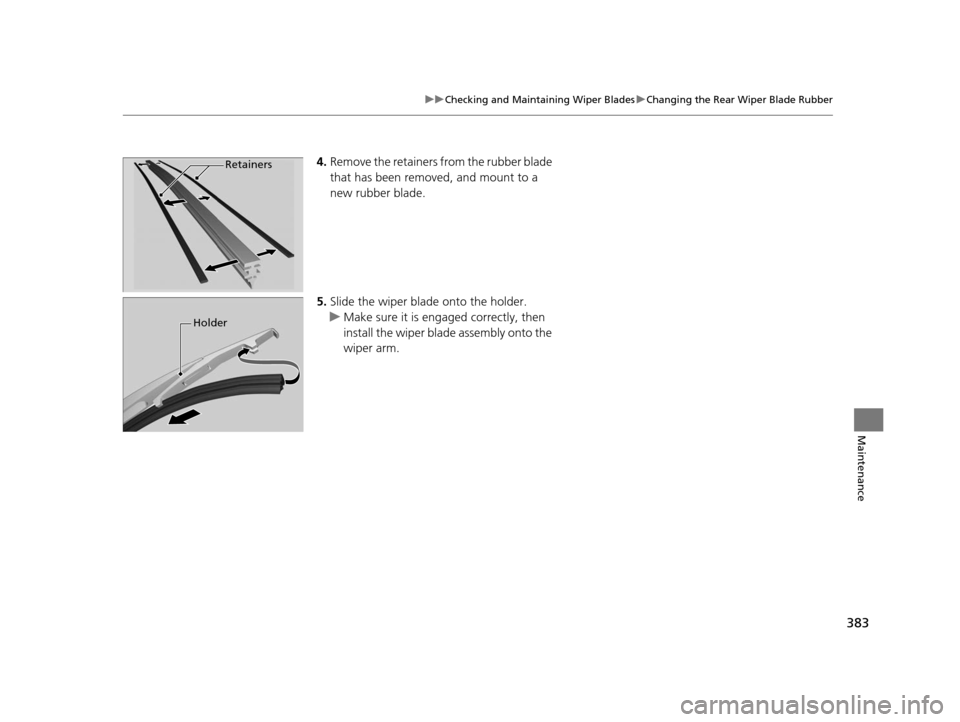

383
uuChecking and Maintaining Wiper Blades uChanging the Rear Wiper Blade Rubber
Maintenance
4. Remove the retainers from the rubber blade
that has been removed, and mount to a
new rubber blade.
5. Slide the wiper blade onto the holder.
u Make sure it is engaged correctly, then
install the wiper blade assembly onto the
wiper arm.Retainers
Holder
