2015 HONDA FIT warning light

334
uuWhen Driving uLaneWatchTM*
Driving
LaneWatchTM*
Is an assistance system that allows y ou to check the passenger side rear areas
displayed on the audio/information screen when the turn signal is activated to the
passenger’s side. A camera in the passenger side door mirror monitors these areas
and allows you to check for vehicles, in addition to your visual check and use of the
passenger door mirror. You can also keep th e system on for your convenience while
driving.1 LaneWatchTM*
Important Safety Reminder
Like all assistance systems, LaneWatch has
limitations. Over reliance on LaneWatch may result in
a collision.
The LaneWatch func tion can be affected by weather,
lighting (including headli ghts and low sun angle),
ambient darkness, camera condition, and loading.
The LaneWatch may not prov ide the intended display
of traffic to the side and rear under the following
conditions:
•Your vehicle’s suspension has been altered,
changing the height of the vehicle.
•Your tires are over or under inflated.
•Your tires or wheels are of varied size or
construction.
3WARNING
Failure to visually confirm that it is safe to
change lanes before do ing so may result in
a crash and serious injury or death.
Do not rely only on LaneWatch while
driving.
Always look in your mirrors, to either side
of your vehicle, and behind you for other
vehicles before changing lanes.
The system activates when you: The passenger side view
display appears on the
audio/information
screen.
Move the turn
signal lever to the
passenger side. Press the
LaneWatch
button.
The system deactivates when you:
Pull the turn signal
lever back. Press the LaneWatch
button again.
CameraAudio/Information Screen
* Not available on all models
15 US FIT-31T5A6000.book 334 ページ ２０１４年３月６日　木曜日　午後７時５分

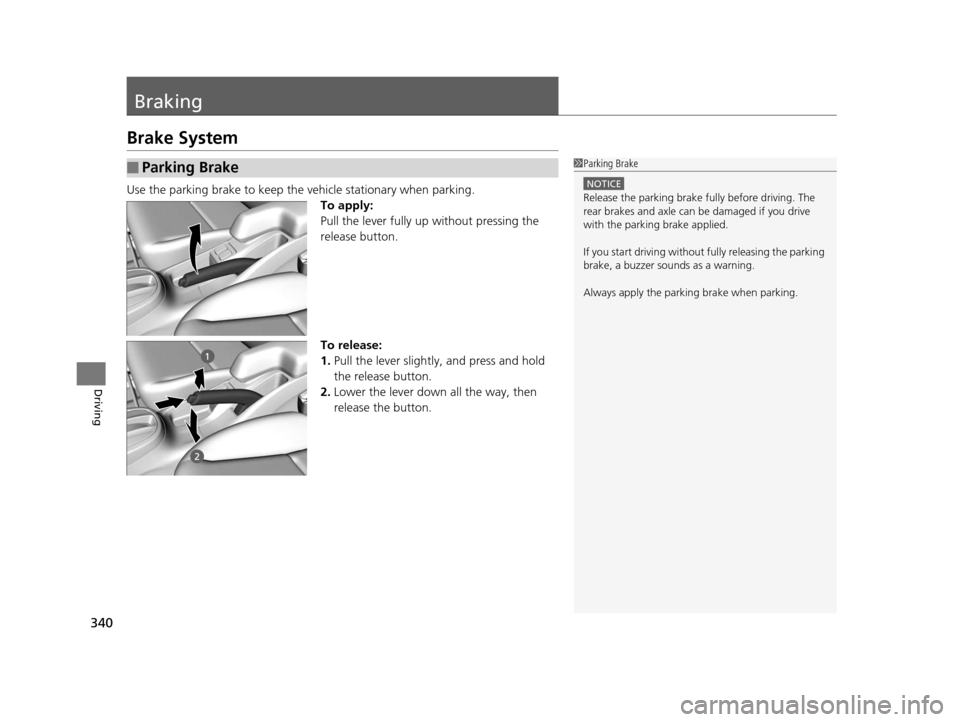

340
Driving
Braking
Brake System
Use the parking brake to keep the vehicle stationary when parking.To apply:
Pull the lever fully up without pressing the
release button.
To release:
1. Pull the lever slightly, and press and hold
the release button.
2. Lower the lever down all the way, then
release the button.
■Parking Brake1Parking Brake
NOTICE
Release the parking brake fu lly before driving. The
rear brakes and axle can be damaged if you drive
with the parki ng brake applied.
If you start driving without fully releasing the parking
brake, a buzzer sounds as a warning.
Always apply the parking brake when parking.
15 US FIT-31T5A6000.book 340 ページ ２０１４年３月６日　木曜日　午後７時５分

405Continued
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, and non- slippery surface and apply the parking
brake.
2. Move the shift lever to
(P.
2. Move the shift lever to
(R.
3. Turn on the hazard warning lights an d turn the ignition switch to LOCK
(0*1.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
1Changing a Flat Tire
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model.
Do not use them with another vehicle.
Do not use another type of compact spare tire or
wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Automatic transmission (CVT) models
Manual transmission models
All models
15 US FIT-31T5A6000.book 405 ページ ２０１４年３月６日　木曜日　午後７時５分

414
Handling the Unexpected
Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood. 1.Connect the first jump er cable to your
vehicle’s battery + terminal.
u Remove the cover from the under-hood
fuse box.
2 Engine Compartment Fuse Box P. 423
2.Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
u Connect when using the automotive
battery charger to boost your 12-volt
battery, select a lo wer charging voltage
than 15-volt. Check the charger manual
for the proper setting.
3. Connect the second jumper cable to the
booster battery - terminal.
4. Connect the other end of the second
jumper cable to the stud bolt as shown. Do
not connect this jumper cable to any other
part.
5. If your vehicle is connected to another
vehicle, start the assi sting vehicle’s engine
and increase its rpm slightly.
6. Attempt to start your vehicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
■Jump Starting Procedure1Jump Starting
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.
3WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Booster
Battery
15 US FIT-31T5A6000.book 414 ページ ２０１４年３月６日　木曜日　午後７時５分

417Continued
Handling the Unexpected
Overheating
How to Handle Overheating
Overheating symptoms are as follows:
•The high temperature indicator (red) co mes on or the engine suddenly loses
power.
• Steam or spray comes out of the engine compartment.
■First thing to do
1. Immediately park the vehicle in a safe place.
2. Turn off all accessories and turn on the hazard warning lights.
u No steam or spray present: Keep the engine running and open the hood.
u Steam or spray is present: Turn off the engine and wait until it subsides.
Then open the hood.
1 How to Handle Overheating
NOTICE
Continuing to drive with the high temperature
indicator on may da mage the engine.
3WARNING
Steam and spray from an overheated
engine can seriously scald you.
Do not open the hood if steam is coming
out.
15 US FIT-31T5A6000.book 417 ページ ２０１４年３月６日　木曜日　午後７時５分

419
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the hazard warning lights on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for about three minutes.
2. Open the hood and check the oil level.
u Add oil as necessary.
2 Oil Check P. 364
3.Start the engine and check th e low oil pressure indicator.
u The indicator goes off: Start driving again.
u The indicator does not go off with in 10 seconds: Stop the engine
and contact a dealer for repairs immediately.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.
■What to do when th e indicator comes on
Turn off the heating and cooling system*/climate control system*, rear
defogger, and other electrical system s, and immediately contact a dealer
for repairs.
1 If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.
* Not available on all models
15 US FIT-31T5A6000.book 419 ページ ２０１４年３月６日　木曜日　午後７時５分

447
Index
E
ECON Button............................................ 328
ECON Mode Indicator ................................ 78
Electric Power Steering (EPS) System Indicator ........................................... 75, 421
Electronic Stability Control (ESC) ............ 332
Emergency ................................................ 428
Emissions Testing (Readiness Codes) ...... 437
Engine Coolant .................................................. 368
Jump Starting ......................................... 414
Number .................................................. 434
Oil .......................................................... 363
Starting........................................... 311, 313
Switch Buzzer ......................................... 116
Engine Coolant ........................................ 368
Adding to the Radiator ........................... 369
Adding to the Reserve Tank .................... 368
High Temperature Indicator ...................... 74
Low Temperature Indicator ....................... 74
Overheating ............................................ 417
Engine Oil ................................................. 363
Adding ................................................... 365
Checking ................................................ 364
Displaying Oil Life ................................... 357
Low Oil Pressure Indicator ................. 71, 419
Recommended Engine Oil ....................... 363
EPS (Electric Power Steering)
System ............................................... 75, 421
Exhaust Gas Hazard (Carbon Monoxide) .................................. 66 Exterior Care (Cleaning)
........................... 400
Exterior Mirrors ........................................ 131
F
Features..................................................... 161
Filters
Dust and Pollen ....................................... 397
Oil ........................................................... 366
Flat Tire ..................................................... 405
Floor Mats ................................................. 398
Fluids Automatic Transmission (CVT) ................. 370
Brake ....................................................... 371
Engine Coolant ........................................ 368
Manual Transmission ............................... 370
Windshield Washer .................................. 372
FM/AM Radio ............................................ 177
Fog Light Indicator ..................................... 77
Folding Down the Rear Seats .................. 141
Foot Brake ................................................. 341
Front Airbags (SRS) ..................................... 44
Front Seats ................................................ 133
Adjusting ................................................. 133
Fuel ...................................................... 21, 347
Economy ................................................. 350
Gauge ....................................................... 85
Low Fuel Indicator ..................................... 73
Recommendation .................................... 347
Refueling ........................................... 21, 347
Fuel Economy ............................................ 350 Fuel Fill Cap
........................................ 21, 349
Message.................................................. 420
Fuel Fill Door ...................................... 21, 348
Fuses .......................................................... 423
Inspecting and Changing......................... 427
Locations................................................. 423
G
Gasoline (Fuel)
Economy ................................................. 350
Gauge ....................................................... 85
Information ............................................. 347
Low Fuel Indicator ..................................... 73
Refueling................................................. 347
Gauges ........................................................ 82
Gear Shift Lever Positions Automatic Transmission .................. 319, 321
Manual Transmission ............................... 326
Glass (care) ................................................ 401
Glove Box .................................................. 146
H
Halogen Bulbs .................................. 373, 375
Handling the Unexpected ........................ 403
HandsFreeLink ® (HFL) ............................... 248
Menus..................................................... 250
Phone Setup.................................... 254, 279
Hazard Warning Button .............................. 4
Head Restraints ........................................ 135
15 US FIT-31T5A6000.book 447 ページ ２０１４年３月６日　木曜日　午後７時５分
