2015 HONDA FIT TPMS

339
uuWhen Driving uTire Pressure Monitoring System (TPMS) - Required Federal Explanation
Driving
Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver ’s responsibility to maintain
correct tire pressure, even if un der-inflation has not reached the
level to trigger illumination of th e TPMS low tire pressure telltale.
Your vehicle has also been equi pped with a TPMS malfunction
indicator to indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale. When the syst em detects a malfunction, the
telltale will flash fo r approximately one minute and then remain
continuously illumina ted. This sequence will continue upon
subsequent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including
the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS to
continue to function properly.
15 US FIT-31T5A6000.book 339 ページ ２０１４年３月６日　木曜日　午後７時５分

384
Maintenance
Checking and Maintaining Tires
Checking Tires
To safely operate your vehicle, your tires must be of the proper type and size, in
good condition with adequate tread, and properly inflated.
■Inflation guidelines
Properly inflated tires provide the best combination of handlin g, tread life, and comfort.
Refer to the driver’s doorjamb label or spec ification’s page for the specified pressure.
Underinflated tires wear unevenly, adversely affect handling and fuel economy, and
are more likely to fail from overheating.
Overinflated tires make your vehicle ride harshly, are more prone to road hazards,
and wear unevenly.
Every day before you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.
At least once a month or before long trips, use a gauge to measure the pressure in
all tires, including the spare. Even tires in good condition can lose 1 to 2 psi (10 to
20 kPa, 0.1 to 0.2 kgf/cm
2) per month.
■Inspection guidelines
Every time you check inflation, also examine the tires and valve stems.
Look for:
• Bumps or bulges on the side or in the tread . Replace the tire if you find any cuts,
splits, or cracks in the si de of the tire. Replace it if you see fabric or cord.
• Remove any foreign objects and inspect for air leaks.
• Uneven tread wear. Have a deal er check the wheel alignment.
• Excessive tread wear.
2 Wear Indicators P. 389
•Cracks or other damage around valve stem.
1Checking Tires
Measure the air pressure when tires are cold. This
means the vehicle has been parked for at least three
hours, or driven less than 1 mile (1.6 km). If
necessary, add or releas e air until the specified
pressure is reached.
If checked when hot, tire pressure can be as much as
4–6 psi (30–40 kPa, 0.3–0.4 kgf/cm
2) higher than if
checked when cold.
Have a dealer check the tires if you feel a consistent
vibration while driving. Ne w tires and any that have
been removed and reinst alled should be properly
balanced.
Whenever tire pressure is adjusted, you must
calibrate the TPMS.
2 TPMS Calibration P. 336
3WARNING
Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding ti re inflation and
maintenance.
U.S. models
15 US FIT-31T5A6000.book 384 ページ ２０１４年３月６日　木曜日　午後７時５分

391
uuChecking and Maintaining Tires uTire Rotation
Maintenance

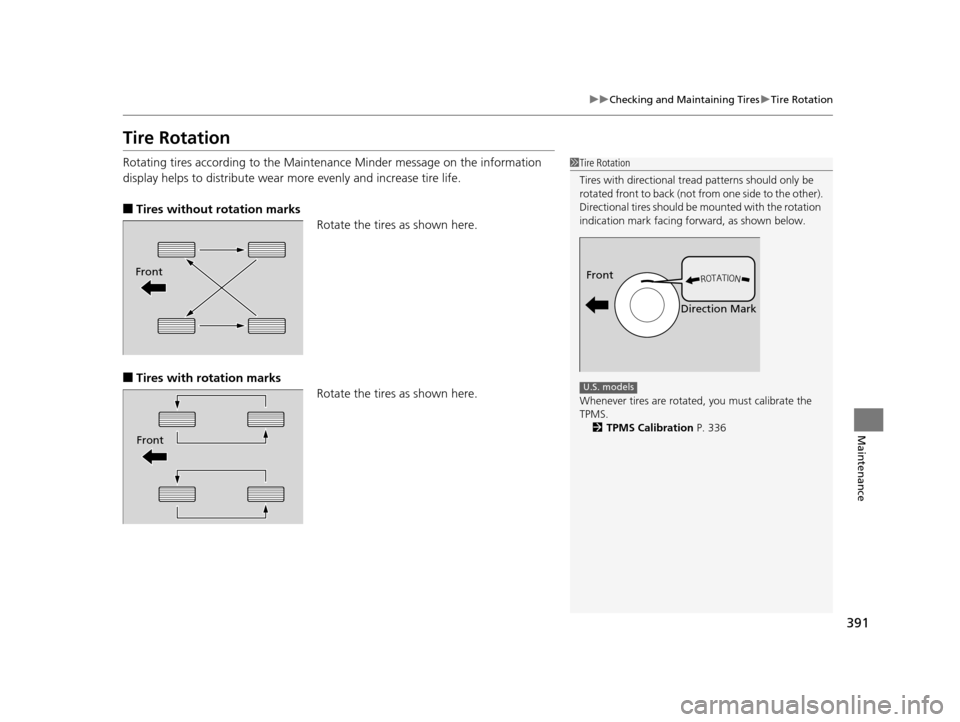

Tire Rotation
Rotating tires according to the Maintena nce Minder message on the information
display helps to distribute wear more evenly and increase tire life.
■Tires without rotation marks
Rotate the tires as shown here.
■Tires with rotation marksRotate the tires as shown here.
1Tire Rotation
Tires with directional trea d patterns should only be
rotated front to back (not fr om one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.
Whenever tires are rotated, you must calibrate the
TPMS. 2 TPMS Calibration P. 336
Front
Direction Mark
U.S. models
Front
Front
15 US FIT-31T5A6000.book 391 ページ ２０１４年３月６日　木曜日　午後７時５分

403
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 404
If a Tire Goes Flat Changing a Flat Tire ......................... 405
Engine Does Not Start Checking the Engine ........................ 411
If the Smart Entry Remote Battery is Weak ....... 412
Emergency Engine Stop ................... 413
Jump Starting .................................... 414
Shift Lever Does Not Move .............. 416
Overheating How to Handle Overheating ............. 417 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On................................................ 419
If the Charging System Indicator Comes
On ................................................. 419
If the Malfunction Indicator Lamp Comes On or Blinks ..................................... 420
If the Brake System Indicator (Red) Comes On...................................................... 421
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 421 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 422
Fuses Fuse Locations ................................. 423
Inspecting and Changing Fuses ........ 427
Emergency Towing ........................... 428
When You Cannot Open the Tailgate..... 429
15 US FIT-31T5A6000.book 403 ページ ２０１４年３月６日　木曜日　午後７時５分

uuIf a Tire Goes Flat uChanging a Flat Tire
410
Handling the Unexpected
1. Remove the center cap.
2. Place the flat tire face down in the spare tire
well.
3. Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.
4. Securely store the wheel nut wrench, jack
handle bar and jack back in the tool case.
Store the case in the cargo area under the
cargo floor lid.
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on, but this is normal.
Calibrate the TPMS when you replace the tire with a specified regular tire.
2TPMS Calibration P. 336
■Storing the Flat Tire1Storing the Flat Tire
Make sure the wire support ring is on the outer side
of the tire valve as shown.
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.
Models with wheel cover
Wire Support Ring
Tire Valve
For full-size
tire
For compact
spare tire
Wing BoltSpacer
Cone
Models with aluminum wheels
All models
■TPMS and the Spare Tire
U.S. models
15 US FIT-31T5A6000.book 410 ページ ２０１４年３月６日　木曜日　午後７時５分

422
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is signifi cantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS or the compact spare tire is installed,
the indicator blinks for about one minute, and then stays on
■What to do when the indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb. u Calibrate the TPMS after the tire pressure is adjusted.
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driv ing for a few miles (kilometers).
u Calibrate the TPMS after a full-size tire is reinstalled.
U.S. models
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
15 US FIT-31T5A6000.book 422 ページ ２０１４年３月６日　木曜日　午後７時５分

448
Index
Headlights................................................. 121
Aiming .................................................... 373
Dimming ......................................... 121, 125
Operating ................................................ 121
Heated Door Mirrors ................................ 129
Heating and Cooling System .................... 154
Cooling ................................................... 156
Defrosting the Windshield and
Windows ............................................... 156
Dust and Pollen Filter ............................... 397
Heating ................................................... 155
HFL (HandsFreeLink ®)............................... 248
High-Beam Indicator .................................. 77
I
Identification Numbers ............................ 434
Engine and Transmission.......................... 434
Vehicle Identification ............................... 434
Ignition Switch .......................................... 116
Illumination Control ................................. 128
Knob ....................................................... 128
Immobilizer System .................................. 110
Indicator .................................................... 78
Indicators ..................................................... 70
ABS (Anti-lock Brake System) ..................... 73
Brake System ............................................. 70
Charging System ............................... 71, 419
CRUISE CONTROL .............................. 79, 330
CRUISE MAIN .................................... 79, 329
Door and Tailgate Open....................... 31, 75 ECON Mode .............................................. 78
EPS (Electric Power Steering)
System ............................................ 75, 421
Fog Light ................................................... 77
High Temperature ..................................... 74
High-Beam ................................................ 77
Immobilizer System ................................... 78
Lights On .................................................. 77
Low Fuel ................................................... 73
Low Oil Pressure ................................ 71, 419
Low Temperature ...................................... 74
Low Tire Pressure .............................. 76, 336
Maintenance Minder
TM...................... 79, 357
Malfunction Indicator Lamp............... 71, 420
Parking Brake and Brake System ........ 70, 421
Seat Belt Reminder .............................. 33, 72
Security System Alarm ............................... 79
Shift Position ............................................. 72
Starter System ........................................... 77
Supplemental Restraint System ............ 51, 73
TPMS ........................................................ 76
Transmission ............................................. 72
Turn Signal ................................................ 77
VSA ® (Vehicle Stability Assist)
System ............................................ 74, 332
VSA ® OFF .......................................... 74, 333
Washer Level ............................................. 79
Information .............................................. 431
Information Display ................................... 83
Instrument Panel ........................................ 69
Brightness Control................................... 128 Interior Lights
........................................... 144
Interior Rearview Mirror ......................... 131
Internet Radio .................................. 208, 209
J
Jack (Wheel Nut Wrench) ................ 404, 408
Jump Starting ........................................... 414
K
Keyless Lockout Prevention ....................... 98
Keys ............................................................. 90
Lockout Prevention ................................... 98
Rear Door Won’t Open ........................... 102
Remote Transmitter .................................. 93
Types and Functions.................................. 90
Won’t Turn ............................................... 24
Kickdown (Automatic Transmission) ...... 318
15 US FIT-31T5A6000.book 448 ページ ２０１４年３月６日　木曜日　午後７時５分

451
Index
Setting the Clock........................................ 88
Shift Lever .......................... 20, 319, 321, 325
Shift Position Indicator .............. 72, 320, 322
Shifting (Transmission) ............ 319, 321, 325
Shoulder Anchor ........................................ 37
Side Airbags ............................................... 48
Side Curtain Airbags .................................. 50
Siri Eyes Free ............................................. 218
Snow Tires ................................................ 392
Spare Tire ......................................... 405, 433
Spark Plugs ............................................... 432
Specifications ........................................... 432
Specified Fuel ................................... 347, 432
Speedometer .............................................. 82
SRS Airbags (Airbags) ................................ 44
Starter System Indicator ............................ 77
Starting the Engine .......................... 311, 313
Does Not Start ........................................ 411
Engine Switch Buzzer .............................. 116
Jump Starting ......................................... 414
Steering Wheel ........................................ 130
Adjusting ................................................ 130
Stopping ................................................... 344
Summer Tires ............................................ 392
Supplemental Restraint System (SRS) ....... 44
Switches (Around the Steering Wheel) ........ 4, 5, 116T
Tachometer................................................. 82
Tailgate ..................................................... 107
Temperature High Temperature Indicator ....................... 74
Low Temperature Indicator ........................ 74
Tie-down Hooks ........................................ 151
Time (Setting) ............................................. 88
Tire Pressure Monitoring System (TPMS) ..................................................... 336
Indicator .................................................... 76
Tires ........................................................... 384
Air Pressure ..................................... 385, 433
Checking and Maintaining ....................... 384
Inspection ................................................ 384
Labeling .................................................. 385
Puncture (Flat Tire) ................................... 405
Regulations ............................................. 387
Rotation .................................................. 391
Spare Tire ........................................ 405, 433
Summer .................................................. 392
Tire Chains .............................................. 392
Wear Indicators ....................................... 389
Winter ..................................................... 392
Tools .......................................................... 404
Towing a Trailer ....................................... 307
Towing Your Vehicle Emergency .............................................. 428 TPMS
(Tire Pressure Monitoring System) ........ 336
Indicator.................................................... 76
Transmission ............................. 319, 321, 325
7-Speed Manual Shift Mode .................... 323
Automatic ............................................... 318
Fluid ........................................................ 370
Manual ................................................... 325
Number................................................... 434
Shift Position Indicator............... 72, 320, 322
Trip Meter ................................................... 84
Troubleshooting ....................................... 403
Blown Fuse...................................... 423, 425
Brake Pedal Vibrates .................................. 24
Buzzer Sounds When Opening Door.......... 25
Emergency Towing .................................. 428
Engine Won’t Start .................................. 411
Noise When Braking .................................. 25
Overheating ............................................ 417
Puncture/Flat Tire .................................... 405
Rear Door Won’t Open...................... 25, 102
Select Lever Won’t Move ......................... 416
Warning Indicators .................................... 70
Turn Signals .............................................. 121
Indicators (Instrument Panel) ..................... 77
15 US FIT-31T5A6000.book 451 ページ ２０１４年３月６日　木曜日　午後７時５分
