2015 HONDA CIVIC HYBRID Owners Manual

16
Quick Reference Guide

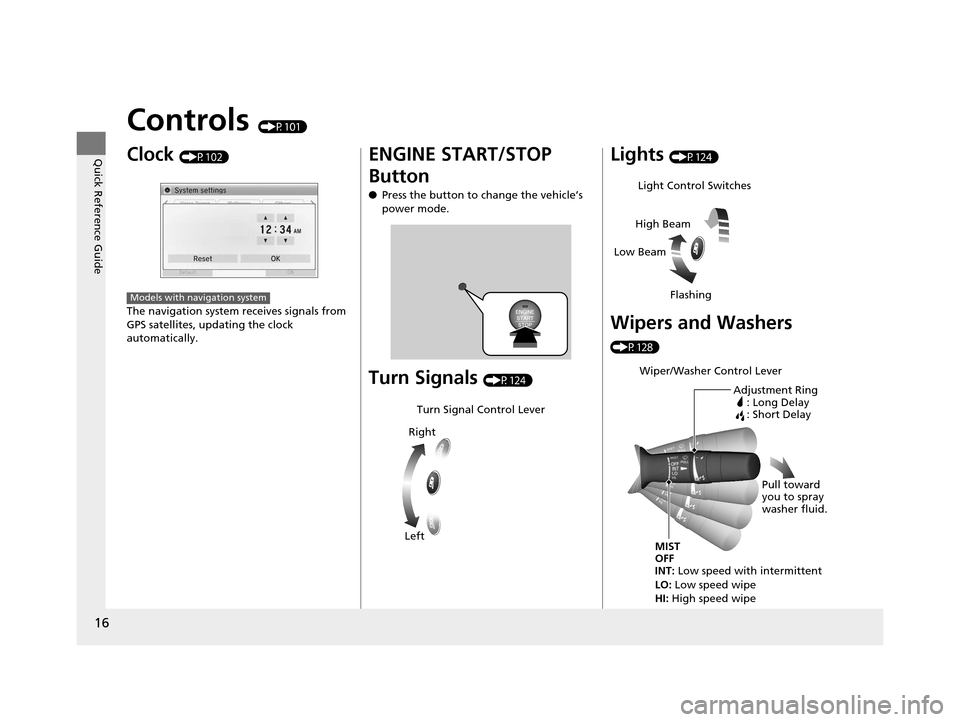

Controls (P101)
Clock (P102)
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
Models with navigation system
ENGINE START/STOP
Button
● Press the button to change the vehicle’s
power mode.
Turn Signals (P124)
Turn Signal Control Lever
Right
Left
Lights (P124)
Wipers and Washers
(P128)
Light Control Switches
Low Beam High Beam
Flashing
Wiper/Washer Control Lever Adjustment Ring: Long Delay
: Short Delay
MIST
OFF
INT: Low speed with intermittent
LO: Low speed wipe
HI: High speed wipe Pull toward
you to spray
washer fluid.
15 CIVIC IMA-31TR26300.book 16 ページ ２０１４年９月９日　火曜日　午後１２時２０分

17
Quick Reference Guide
Steering Wheel (P131)
● To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P111)
●Pull either front door inner handle to
unlock and open it at the same time.
Trunk (P114)
● To unlock and open the trunk:
•Pull the trunk release.
•Press the trunk release button on the
smart entry remote.
•Press the trunk release button on the
trunk lid.
Power Door Mirrors
(P132)
●With the power mode in ON, move the
selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Trunk Release
Selector Switch
Adjustment Switch
Power Windows (P119)
● With the power mode in ON, open and
close the power windows.
● If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
Power Window Lock Button
Window
Switch Indicator
15 CIVIC IMA-31TR26300.book 17 ページ ２０１４年９月９日　火曜日　午後１２時２０分

18
Quick Reference Guide
Climate Control System (P144)
● Press the AUTO button to activate the climate control system.
● Press the button to turn the system on or off.
● Press the button to defrost the windshield.
The climate control system is voice operable. See the Navigation System Manual for complete details.
(Mode Control) Button
(Windshield Defroster) Button
A/C (Air Conditioning) Button Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button
Temperature Control Dial
AUTO Button (On/Off) Button
Fan Control Dial
Models with navigation system
15 CIVIC IMA-31TR26300.book 18 ページ ２０１４年９月９日　火曜日　午後１２時２０分

19
Quick Reference Guide
Features (P147)
002300
75°F miles
Audio System (P148)For navigation system operation () See the Navigation System Manual
MENU VOL HOME
BACK i-MID
CD Slot HOME Screen
(Power)
Button
(CD Eject)
Button
Button
Audio Remote Controls
(P152)
●
( + / (- Button
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode: FM1/
FM2/AM/SiriusXM
*/CD/USB/iPod/
Pandora ®*/ahaTM */Apps*/Bluetooth®
Audio/AUX HDMI.
● / Button
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
CD/USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
(+ / (- Button
SOURCE
Button / Button
*
Not available on all models
15 CIVIC IMA-31TR26300.book 19 ページ ２０１４年９月９日　火曜日　午後１２時２０分

20
Quick Reference Guide

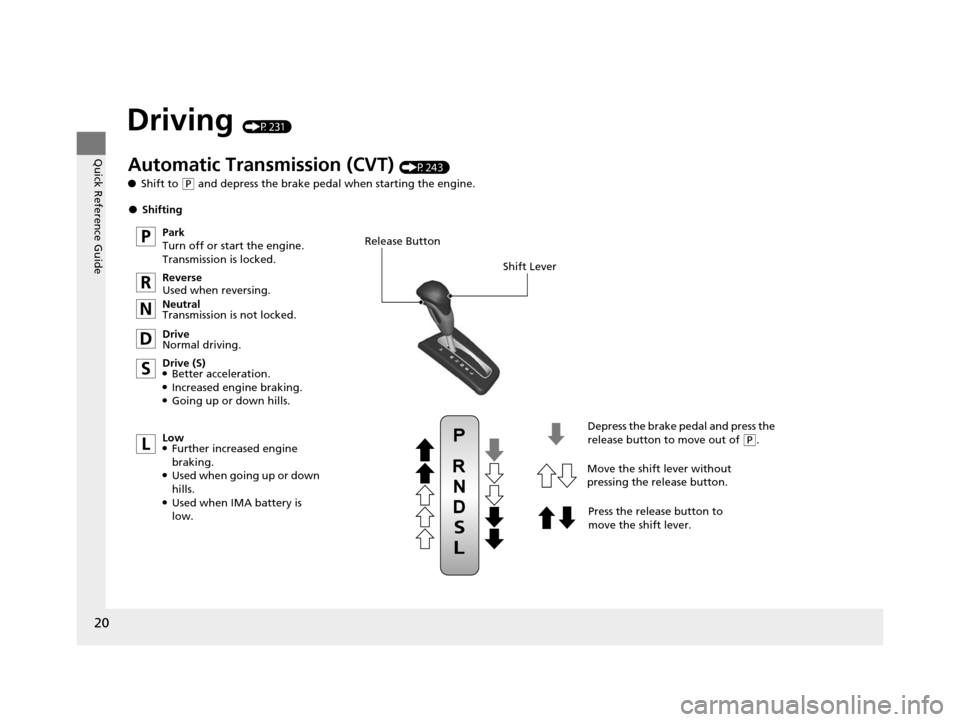

Driving (P231)
Release ButtonShift Lever
Depress the brake pedal and press the
release button to move out of
(P.
Move the shift lever without
pressing the release button.
Press the release button to
move the shift lever.
Automatic Transmission (CVT) (P243)
● Shift to
(P and depress the brake pedal when starting the engine.
● Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Normal driving.
Drive (S)
●Better acceleration.●Increased engine braking.●Going up or down hills.
Low
●Further increased engine
braking.
●Used when going up or down
hills.
●Used when IMA battery is
low.
15 CIVIC IMA-31TR26300.book 20 ページ ２０１４年９月９日　火曜日　午後１２時２０分

21
Quick Reference Guide
VSA® OFF Button (P260)
● The vehicle stability assist (VSA ®) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To turn VSA ® on or off, press and hold
the button until you hear a beep.
Cruise Control (P249)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press the –/SET button once
you have achieved the desired speed
(above 25 mph or 40 km/h).
Tire Pressure Monitoring
System (TPMS)
(P263)
● Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
● The TPMS is turned on automatically
every time you start the engine.
● A calibration procedure must be
performed when certain conditions arise.
U.S. models only
Refueling (P273)
Fuel recommendation: Unleaded gasoline with a pump octane number 87 or
higher required
Fuel tank capacity: 13.2 US gal (50 L)
aPush the fuel fill door
release handle.
bTurn the fuel fill cap
slowly to remove the
cap.
cPlace the cap in the
holder on the fuel fill
door.
dAfter refueling, screw
the cap back on until it
clicks at least once.
15 CIVIC IMA-31TR26300.book 21 ページ ２０１４年９月９日　火曜日　午後１２時２０分

22
Quick Reference Guide
Maintenance (P279)
Under the Hood (P288)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid.
● Check the 12-volt battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull the lever up, and lift up
the hood.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P300)
● Inspect all lights regularly.
Wiper Blades (P306)
● Replace blades if they leave streaks
across the windshield.
Tires (P308)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
15 CIVIC IMA-31TR26300.book 22 ページ ２０１４年９月９日　火曜日　午後１２時２０分

Quick Reference Guide
23
Handling the Unexpected (P325)
Flat Tire (P327)
● Park in a safe location and repair the flat
tire using the temporary tire repair kit.
● Park in a safe location and replace the
flat tire with the comp act spare tire in the
trunk.
Indicators Come On
(P349)
● Identify the indica tor and consult the
owner’s manual.
Models with an optional compact spare tire
Engine Won’t Start (P341)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P353)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P347)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P356)
● Call a professional towing service if you
need to tow your vehicle.
