2015 HONDA CIVIC COUPE navigation system

49Continued
System Setup
Map
HHOME uSetting su Navigation uMap
Select the landmark icons to display on the map, change the orientation of the map,
display your current location, and learn the meaning of the icons, colors, and
symbols displayed on the map.
Select an item.
The following items are available:
• Show Icon on Map : Selects the icons to display on the map.
2Showing Icons on the Map P. 51
•Color (Day) : Selects the color of the map for the Day mode.
2Color (Day) P. 53
•Color (Night) : Selects the color of th e map for the Night mode.
2Color (Night) P. 53
•View : Selects the map orientation (No rth-up, Heading-up, or 3D map).
2View (Map Orientation) P. 54
•3D Angle Adjustment : Adjusts the viewing angle for the 3D map.
23D Angle Adju stment P. 55
•Straight Line Guide : Sets whether to display a straight guideline to the
destination or waypoint.
2 Straight Line Guide P. 55
15 CIVIC NAVI-31TR38300.book 49 ページ ２０１４年８月７日　木曜日　午前１１時４９分

51
uuMap uShowing Icons on the Map
Continued
System Setup
Showing Icon s on the Map
H HOME uSetting su Navigation uMap uShow Icon on Map
Select the icons that ar e displayed on the map.
1.Select an icon.
2. Select an option.
u Repeat step 1 and 2 as
necessary.
3. Select OK.
The following options are available:
• All On : Displays the traffic or landmark icons.
2Map Screen Legend P. 10
2 Traffic ReroutingTM P. 109
•Customize : Fine-tunes the icon display.
2Fine-tuning the Icon s P. 52
• Off : Hides the traffic or landmark icons.
1Showing Icons on the Map
You can display or hide the icons using voice
commands on the map screen (e.g., say “ Display
hospital ”).
2 Map Display Command s P. 234
If there are no icon that can be fine-tuned, On is
displayed instead of All On.
Select All On at the bottom of the screen to select all
icons, and select All Off to deselect all icons.
CNG Station is displayed instead of Gas Station on
Compressed Natural Gas (CNG) models.
U.S. models
15 CIVIC NAVI-31TR38300.book 51 ページ ２０１４年８月７日　木曜日　午前１１時４９分

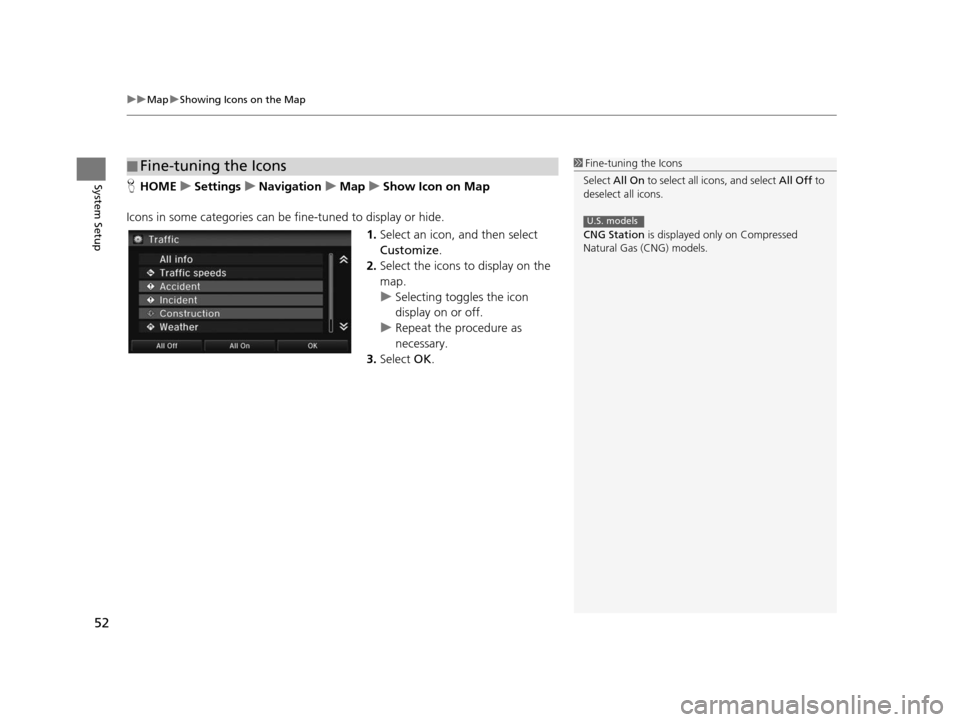

uuMap uShowing Icons on the Map
52
System SetupH HOME uSetting su Navigation uMap uShow Icon on Map
Icons in some categories can be fine-tuned to display or hide.
1.Select an icon, and then select
Customize .
2. Select the icons to display on the
map.
u Selecting toggles the icon
display on or off.
u Repeat the procedure as
necessary.
3. Select OK.
■Fine-tuning the Icons1
Fine-tuning the Icons
Select All On to select all icons, and select All Off to
deselect all icons.
CNG Station is displayed only on Compressed
Natural Gas (CNG) models.
U.S. models
15 CIVIC NAVI-31TR38300.book 52 ページ ２０１４年８月７日　木曜日　午前１１時４９分

53
uuMap uColor
System Setup
Color
Set separate map colors for Day and Night modes.
H HOME uSetting su Navigation uMap uColor (Day)
1. Select a color for the Day mode.
2. Select OK.
H HOME uSetting su Navigation uMap uColor (Night)
1. Select a color for the Night mode.
2. Select OK.
■Color (Day)
1
Color (Day)
The factory default is set to White.
■Color (Night)1
Color (Night)
The factory default is set to Blue.
15 CIVIC NAVI-31TR38300.book 53 ページ ２０１４年８月７日　木曜日　午前１１時４９分

54
uuMap uView (Map Orientation)
System Setup
View (Map Orientation)
H HOME uSetting su Navigation uMap uView
Select the map orientation. 1.Select an option.
2. Select OK.
The following options are available:
• North-Up: Displays the map wi th North always pointing up.
• Heading-Up: Displays the map so that th e direction you are traveling is always
pointing up.
• 3D Map: Displays th e bird’s eye view map.1View (Map Orientation)
“Display Heading-up ” (on Voice Portal screen),
“ Display North-up” (on Voice Portal screen),
“ Display 3D map ” (on Voice Portal screen)
The map orientation can also be selected from the
map menu, or by selecting the orientation icon.
The red arrow in the symbol always points North.
The heading-up view switch es to the north-up view
on map scales greater than 2 miles (3 km). The 3D
map view switches to th e north-up view on map
scales greater than 5 miles (8 km).
The bird’s eye view map switches to the Heading-up
map while scrolling the map.
The viewing angle for the bird’s eye view can be
adjusted. 2 3D Angle Adju stment P. 55
15 CIVIC NAVI-31TR38300.book 54 ページ ２０１４年８月７日　木曜日　午前１１時４９分

55
uuMap u3D Angle Adjustment
System Setup
3D Angle Adju stment
HHOME uSetting su Navigation uMap u3D Angle Adju stment
Adjust the viewing angle. 1.Select or to adjust the
angle.
2. Select OK.
u You can also slid e or flick the
bar to adjust the angle.
Straight Line Guide
H HOME uSetting su Navigation uMap uStraight Line Guide
Set whether to display a straight guid eline to the destination or waypoint.
Select an option.
The following options are available:
• On (factory default): Displays the straight guideline on the map.
• Off : Disables the feature.
15 CIVIC NAVI-31TR38300.book 55 ページ ２０１４年８月７日　木曜日　午前１１時４９分

56
uuMap uCurrent Location
System Setup
Current Location
H HOME uSetting su Navigation uMap uCurrent Location
Display and save your current location for future use as a destination. The address,
latitude, longitude, and elevation of your current location are displayed.
1.Select Address Book .
2. Select the user to save the
location.
3. Edit the name, phone number,
and category.
2 Address Book P. 28
4.Select OK.
1Current Location
“Display Current Location ” (on Voice Portal
screen)
You can also save the curre nt location by saying
“Register the Current Location ”, or selecting the
vehicle icon on the map.
If you have PIN-protecte d your address book, enter
your PIN when prompted. Select OK. PINs are
optional. 2 PIN Number s P. 34
Saving your current loca tion does not change or
cancel your current route.
15 CIVIC NAVI-31TR38300.book 56 ページ ２０１４年８月７日　木曜日　午前１１時４９分

57
uuMap uMap Legend
Continued
System Setup
Map Legend
H HOME uSetting su Navigation uMap uMap Legend
See an overview of the map lines, areas, routes, traffic informatio n, navigation icons.
Select an item.
u The system displays the map
legend.1Map Legend
A visual guide helps you see the map legend. 2 Map Screen Legend P. 10
2 Traffic Rerouting
TM P. 109
