2015 HONDA ACCORD COUPE rear view mirror

Visual Index
6Quick Reference Guide
❙Door Mirror Controls
(P 126)
❙Passenger's Front Airbag (P 42)❙Parking Brake
(P 440)
❙Glove Box
(P 137)
❙Rearview Mirror
(P 125)
❙Hood Release Handle
(P 461)
❙Power Door Lock Master Switch
(P 98)
❙Power Window Switches
(P 106)
❙Interior Fuse Box
(P 525)
❙Driver's Front Airbag
(P 42)
❙Trunk Main Switch
* (P 101)
❙Fuel Fill Door Release Handle
(P 448)
❙Trunk Release
(P 99)
❙Shift Lever
Continuously Variable
Transmission (CVT)
(P 409)
Automatic Transmission (P 413)Manual Transmission (P 417)❙USB Port
(P 151)
❙Auxiliary Input Jack
(P 152)
❙Accessory Power Socket (P 140)

Visual Index
8Quick Reference Guide
❙Maintenance Under the Hood
(P 459)
❙Windshield Wipers
(P 119, 483)
❙Tires
(P 485, 505)
❙Door Lock/Unlock Control
(P 91)
❙Power Door Mirrors
(P 126)
❙Headlights
(P 115, 475)
❙How to Refuel
(P 448)
❙High-Mount Brake Light
(P 482)
❙Emergency Trunk Release Lever
(P 102)
❙Opening/Closing the Trunk
(P 99)
❙Parking Lights
(P 115, 480)
❙Front Turn Signal/Side Marker Lights
(P 115, 479)
❙Fog Lights
* (P 117, 478)
❙Multi-View Rear Camera
(P 445)
❙Back-Up Lights
(P 481)
❙Rear Camera
(P 446)
❙Trunk Release Button
* (P 100)
❙Brake/Taillights
(P 481)
❙Rear Side Marker Lights
(P 481)
❙Rear Turn Signal Lights
(P 481)

85
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................... 86
Locking and Unlocking the Doors
Key Types and Functions .................... 88Low Smart Entry Remote Signal Strength
*...................................... 90
Locking/Unlocking the Doors from the
Inside ............................................... 96
Auto Door Locking/Unlocking ............ 98
Opening and Closing the Trunk ......... 99
Security System Immobilizer System .......................... 103
Security System Alarm ...................... 103
Opening and Closing the Windows ... 106Opening and Closing the Moonroof
*...109
Operating the Switches Around the
Steering Wheel
Ignition Switch
*............................... 110
ENGINE START/STOP Button
*........... 111
Ignition Switch and Power Mode
Comparison ................................... 114
Turn Signals ..................................... 115
Light Switches.................................. 115
Fog Lights
*...................................... 117
Daytime Running Lights ................... 118
Wipers and Washers ........................ 119
Brightness Control ........................... 120
Rear Defogger/Heated Door Mirror
*
Button ........................................... 121 Driving Position Memory System
*.... 122
Adjusting the Steering Wheel .......... 124
Adjusting the Mirrors Interior Rearview Mirror ................... 125
Power Door Mirrors ......................... 126
Adjusting the Seats .......................... 127
Interior Lights/Interior Convenience Items ................................................ 135
Climate Control System Using Automatic Climate Control .... 144
Synchronized Mode ......................... 146
Automatic Climate Control Sensors ... 147
* Not available on all models

125Controls
Adjusting the MirrorsInterior Rearview MirrorAdjust the angle of the rearview mirror when you are sitting in the correct driving
position.Flip the tab to switch the position.
The night position will help to reduce the glare
from headlights behind you when driving
after dark.
When driving after dark, the automatic
dimming rearview mirror reduces the glare
from headlights behind you, based in inputs
from the mirror sensor. This feature is always
active.■
Rearview Mirror with Day and Night Positions
*
1Adjusting the Mirrors
Keep the inside and outside mirrors clean and
adjusted for best visibility.
Adjust the mirrors before you start driving.
2 Adjusting the Seat Positions P. 127
Tab
Daytime
Position
Night PositionUp
Down■
Automatic Dimming Rearview Mirror
*
1 Automatic Dimming Rearview Mirror
*
The auto dimming function cancels when the shift
position is in
(R.
Sensor
Up
Down
* Not available on all models

Continued
425
uuWhen Driving uForward Collision Warning (FCW)
*
Driving
1Forward Collision Warning (FCW)
*
Never apply a film or attach any objects to the
windshield that could obstruct the FCW camera's
field of vision.
Scratches, nicks, and other damage to the windshield
within the FCW camera's field of vision can cause the
system to operate abnormally. If this occurs, we
recommend that you replace the windshield with a
genuine Honda replacement windshield. Making
even minor repairs within the camera's field of vision
or installing an aftermarket replacement windshield
may also cause the system to operate abnormally.
After replacing the windshield, have a dealer
recalibrate the camera. Proper calibration of the FCW
camera is necessary for the system to operate
properly.
Beep
Camera-based system
The camera is located
behind the rearview mirror.
The beeper sounds and
the FCW indicator blinks
until a possible collision
is avoided.
Head-up Warning LightsFlash twice.
1 How the system works
The head-up warning uses a lens located at the front
end of the dashboard.
Do not cover the lens or spill any liquid on it.
Lens
* Not available on all models

Continued
429

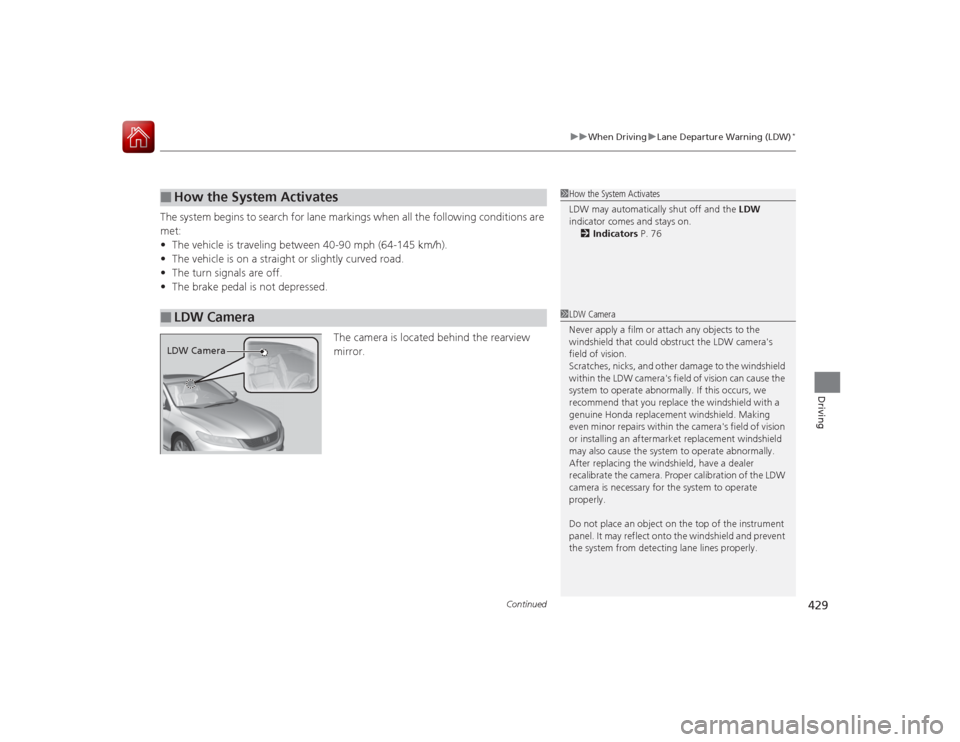

uuWhen Driving uLane Departure Warning (LDW)
*
Driving
The system begins to search for lane markings when all the following conditions are
met:
• The vehicle is traveling between 40-90 mph (64-145 km/h).
• The vehicle is on a straight or slightly curved road.
• The turn signals are off.
• The brake pedal is not depressed.
The camera is located behind the rearview
mirror.■
How the System Activates
■
LDW Camera
1How the System Activates
LDW may automatically shut off and the LDW
indicator comes and stays on.
2 Indicators P. 761LDW Camera
Never apply a film or attach any objects to the
windshield that could obstruct the LDW camera's
field of vision.
Scratches, nicks, and other damage to the windshield
within the LDW camera's field of vision can cause the
system to operate abnormally. If this occurs, we
recommend that you replace the windshield with a
genuine Honda replacement windshield. Making
even minor repairs within the camera's field of vision
or installing an aftermarket replacement windshield
may also cause the system to operate abnormally.
After replacing the windshield, have a dealer
recalibrate the camera. Proper calibration of the LDW
camera is necessary for the system to operate
properly.
Do not place an object on the top of the instrument
panel. It may reflect onto the windshield and prevent
the system from detecting lane lines properly.
LDW Camera

434

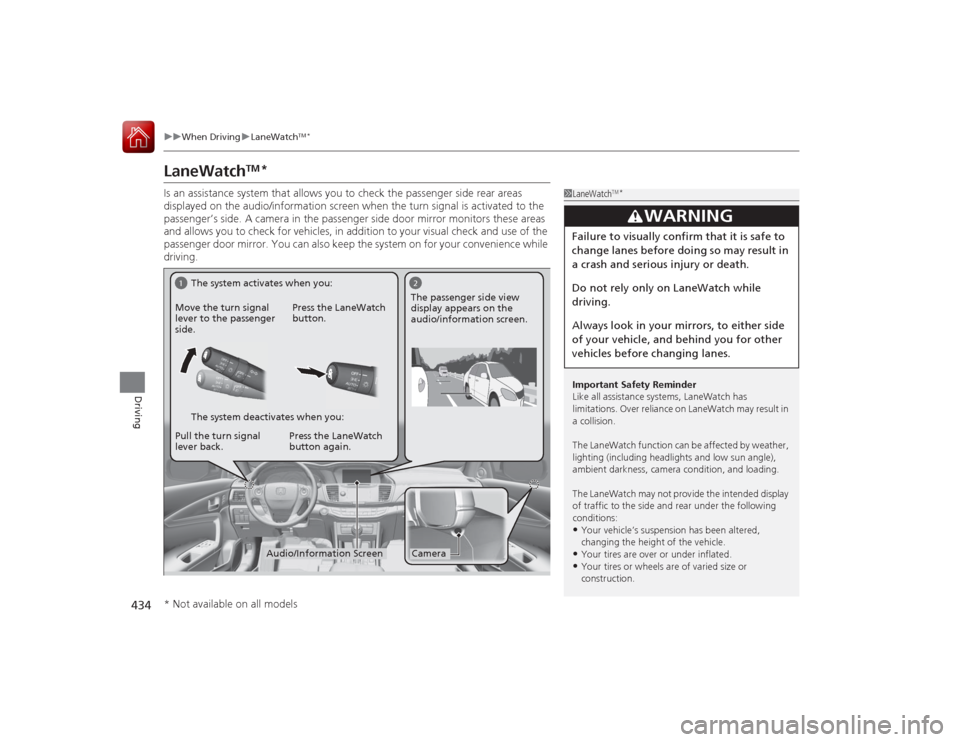

uuWhen Driving uLaneWatch
TM*
Driving
LaneWatch
TM
*
Is an assistance system that allows you to check the passenger side rear areas
displayed on the audio/information screen when the turn signal is activated to the
passenger’s side. A camera in the passenger side door mirror monitors these areas
and allows you to check for vehicles, in addition to your visual check and use of the
passenger door mirror. You can also keep the system on for your convenience while
driving.
1LaneWatch
TM*
Important Safety Reminder
Like all assistance systems, LaneWatch has
limitations. Over reliance on LaneWatch may result in
a collision.
The LaneWatch function can be af fected by weather,
lighting (including headlights and low sun angle),
ambient darkness, camera condition, and loading.
The LaneWatch may not provide the intended display
of traffic to the side and rear under the following
conditions:•Your vehicle’s suspension has been altered,
changing the height of the vehicle.•Your tires are over or under inflated.•Your tires or wheels are of varied size or
construction.
3
WARNING
Failure to visually confirm that it is safe to
change lanes before doing so may result in
a crash and serious in jury or death.
Do not rely only on LaneWatch while
driving.
Always look in your mirrors, to either side
of your vehicle, and behind you for other
vehicles before changing lanes.
1
2Camera
Audio/Information Screen
Move the turn signal
lever to the passenger
side.
Press the LaneWatch
button.
Pull the turn signal
lever back. Press the LaneWatch
button again. The passenger side view
display appears on the
audio/information screen.
The system activates when you:
The system deactivates when you:
* Not available on all models

435

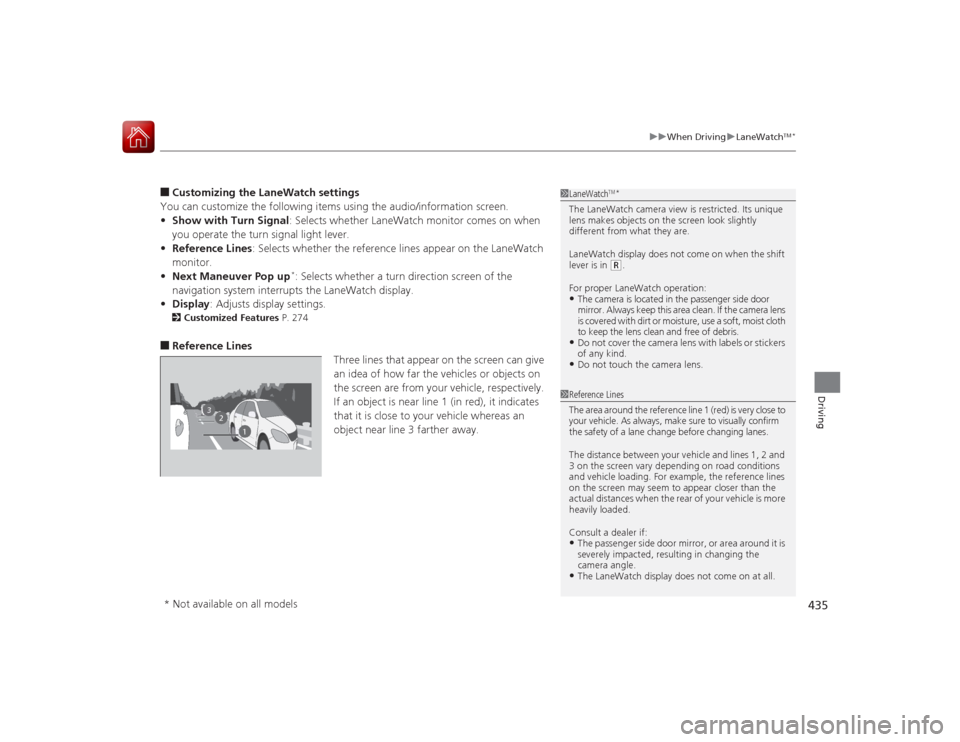

uuWhen Driving uLaneWatch
TM*
Driving
■Customizing the LaneWatch settings
You can customize the following items using the audio/information screen.
• Show with Turn Signal : Selects whether LaneWatch monitor comes on when
you operate the turn signal light lever.
• Reference Lines : Selects whether the reference lines appear on the LaneWatch
monitor.
• Next Maneuver Pop up
*: Selects whether a turn direction screen of the
navigation system interrupts the LaneWatch display.
• Display : Adjusts display settings.
2Customized Features P. 274■Reference Lines
Three lines that appear on the screen can give
an idea of how far the vehicles or objects on
the screen are from your vehicle, respectively.
If an object is near line 1 (in red), it indicates
that it is close to your vehicle whereas an
object near line 3 farther away.
1 LaneWatch
TM*
The LaneWatch camera view is restricted. Its unique
lens makes objects on the screen look slightly
different from what they are.
LaneWatch display does not come on when the shift
lever is in
(R.
For proper LaneWatch operation:
•The camera is located in the passenger side door
mirror. Always keep this area clean. If the camera lens
is covered with dirt or moisture, use a soft, moist cloth
to keep the lens clean and free of debris.•Do not cover the camera lens with labels or stickers
of any kind.•Do not touch the camera lens.
2
3
1
1 Reference Lines
The area around the reference line 1 (red) is very close to
your vehicle. As always, make sure to visually confirm
the safety of a lane change before changing lanes.
The distance between your vehicle and lines 1, 2 and
3 on the screen vary depending on road conditions
and vehicle loading. For example, the reference lines
on the screen may seem to appear closer than the
actual distances when the rear of your vehicle is more
heavily loaded.
Consult a dealer if:•The passenger side door mirror, or area around it is
severely impacted, resulting in changing the
camera angle.•The LaneWatch display does not come on at all.
* Not available on all models
