14Quick Reference Guide
Climate Control System
(P 144)
● Press the AUTO button to activate the climate control system.
● Press the button to turn the system on or off.
● Press the button to defrost the windshield.
The climate control system is voice operable. (P 220)
Models with navigation system
Driver’s Side
Temperature Control
Buttons (Windshield Defroster) ButtonSYNC
(Synchronized) Button
Air flows from floor and windshield
defroster vents.
Air flows from floor vents. Air flows from floor and dashboard
vents. Air flows from dashboard vents.AUTO
Button
(On/Off) Button
(Recirculation) Button
MODE Control Button
/ (Fan Control) Buttons
A/C (Air Conditioning) ButtonPassenger’s Side Temperature Control Buttons

144Controls
Climate Control SystemUsing Automatic Climate ControlThe automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heated or cooled air that raises or lowers
the interior temperature to your preference as quickly as possible.
Use the system when the engine is running.
1.Press the AUTO button.
2. Adjust the interior temperature using the driver’s side or passenger’s side control
buttons.
3. Press the (on/off) button to cancel.■Switching between the recirculation and fresh air modes
Press the (recirculation) button and switch the mode depending on
environmental conditions.
Recirculation mode (indicato r on): Recirculates air from the vehicle’s interior through
the system.
Fresh air mode (indicator off): Maintains outside ventilation. Keep the system in
fresh air mode in normal situations.
1 Using Automatic Climate Control
If any buttons are pressed while using the climate
control system in auto, the function of the button
that was pressed will take priority.
The AUTO indicator will go off, but functions
unrelated to the button that was pressed will be
controlled automatically.
To prevent cold air from blowing in from outside, the
fan may not start immediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partially opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh mode to
recirculation mode until the temperature cools down.
When you set the temperature to the lower or upper
limit, Lo or Hi is displayed.
Pressing the button switches the climate
control system between on and off. When turned on,
the system returns to your last selection.
Floor and
defroster
vents
Floor vents
Dashboard and floor
vents
Dashboard vents
AUTO Button
Driver’s Side
Temperature
Control Buttons (Recirculation) Button
/ (Fan Control) Buttons
A/C
(Air Conditioning)
Button Passenger’s Side
Temperature
Control Buttons

145

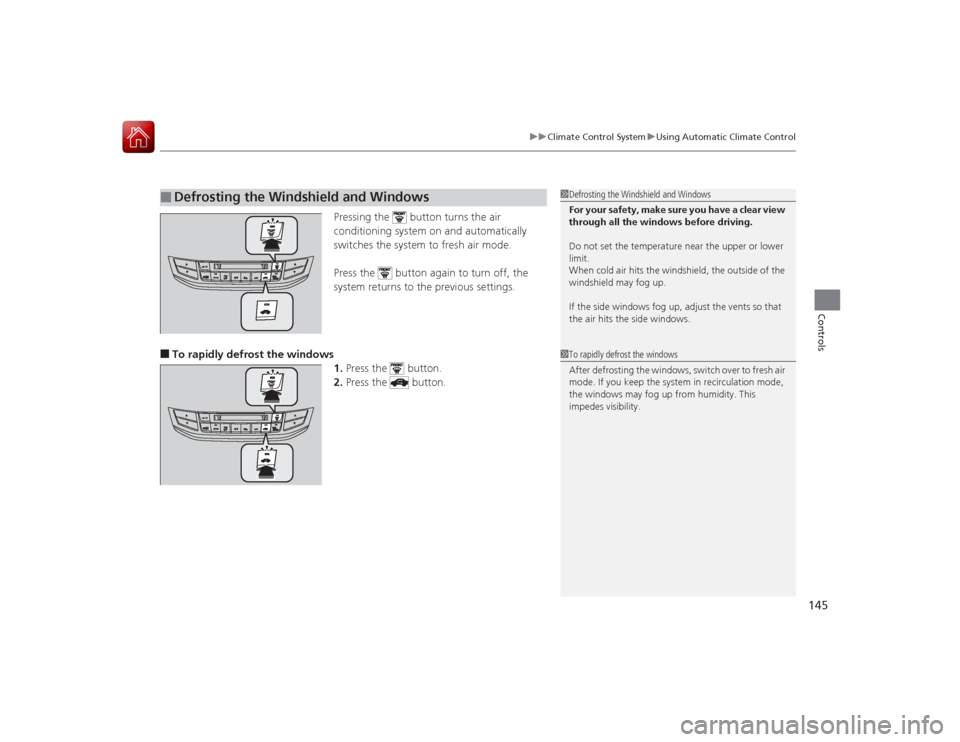

uuClimate Control System uUsing Automatic Climate Control
Controls
Pressing the button turns the air
conditioning system on and automatically
switches the system to fresh air mode.
Press the button again to turn off, the
system returns to the previous settings.
■To rapidly defrost the windows
1.Press the button.
2. Press the button.■
Defrosting the Windshield and Windows
1Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperature near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits the side windows.1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode. If you keep the system in recirculation mode,
the windows may fog up from humidity. This
impedes visibility.

530Information
Specifications■Vehicle Specifications*1: LX-S models
*2: Except LX-S models
*3: LX models
*4: Except LX modelsModel
Honda Accord Coupe
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating
U.S.: 4,189 lbs (1,900 kg)
*1
4,255 lbs (1,930 kg)
*2
Canada: 1,900 kg
*3
1,930 kg
*4
Gross Axle Weight
Rating (Front)
U.S.: 2,271 lbs (1,030 kg)
*1
2,315 lbs (1,050 kg)
*2
Canada: 1,040 kg
*3
1,055 kg
*4
Gross Axle Weight
Rating (Rear)
U.S.: 1,962 lbs (890 kg)
*1
2,006 lbs (910 kg)
*2
Canada: 890 kg
*3
910 kg
*4
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.0 – 16.8 oz (425 – 475 g)
Lubricant Type ND-OIL 84-cylinder models
■ Engine Specifications
■ Fuel
■ Washer FluidDisplacement
144 cu-in (2,356 cm
3)
Spark Plugs NGK
DILKAR7G11GS
DILKAR7H11GS
DENSO DXE22HQR-D11S
Fuel:
Type
Unleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank Capacity
U.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.12 US qt (4.85 ℓ)
■ Light BulbsHeadlights (Low Beam)
55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights
*
35W (H8)
Parking Lights 5W
Front Turn Signal/Side Marker Lights
28/8W (Amber)
Side Turn Signal Lights
(on Door Mirrors)
*
LED
Brake/Taillights
21/5W
Rear Side Marker Lights 3CP
Back-Up Lights
16W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake Light
LED
Rear License Plate Lights 5W
Trunk Light
5W
Interior Lights Map Lights 8W
Ceiling Light 8W
Vanity Mirror Lights 1.4W
* Not available on all models

532
uuSpecifications u
Information
■Vehicle Specifications*1: Manual transmission models
*2: Automatic transmission modelsModel
Honda Accord Coupe
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating
U.S.: 4,387 lbs (1,990 kg)
*1
4,475 lbs (2,030 kg)
*2
Canada: 1,990 kg
*1
2,030 kg
*2
Gross Axle Weight
Rating (Front)
U.S.: 2,403 lbs (1,090 kg)
*1
2,513 lbs (1,140 kg)
*2
Canada: 1,090 kg
*1
1,145 kg
*2
Gross Axle Weight
Rating (Rear)
U.S.: 2,006 lbs (910 kg)
Canada: 910 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.0 – 16.8 oz (425 – 475 g)
Lubricant Type ND-OIL 8
6-cylinder models
■ Engine Specifications
■ Fuel
■ Washer FluidDisplacement
212 cu-in (3,471 cm
3)
Spark Plugs NGK ILZKR7B11
DENSO SXU22HCR11
Fuel:
Type
Unleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank Capacity
U.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.12 US qt (4.85 ℓ)
■ Light BulbsHeadlights (Low Beam)
55W (H11)
*
LED
*
Headlights (High Beam) 60W (HB3)Fog Lights
35W (H8)
Parking/Daytime Running Lights LED
Front Turn Signal/Side Marker Lights
28/8W (Amber)
Side Turn Signal Lights
(on Door Mirrors) LED
Brake/Taillights
21/5W
Rear Side Marker Lights 3CP
Back-Up Lights
16W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake Light
LED
Rear License Plate Lights 5W
Trunk Light
5W
Interior Lights
Map Lights
8W
Ceiling Light
8W
Vanity Mirror Lights
1.4W
Courtesy Lights
2CP
* Not available on all models
