uuCleaning uInterior Care
Maintenance
The floor mats for the driver, and the rear
passenger on the pas senger’s side hook over
the floor anchors, which keep the mats from
sliding forward. To remove a mat for cleaning,
turn the anchor knobs to the unlock position.
When reinstalling the mat after cleaning, turn
the knobs to the lock position.
Do not put additional floor mats on top of
the anchored mat.
Vacuum dirt and dust from the leather frequently. Pay close attention to the pleats
and seams. Clean the leather with a soft cloth dampened with a 90% water and
10% neutral soap solution. Then buff it with a clean, dry cloth. Remove any dust or
dirt on leather surfaces immediately.
■
Floor Mats
1 Floor Mats
If you use any floor mats that were not originally
provided with your vehicle, make sure they are
designed for your specific vehicle, fit correctly, and
are securely anchored by the floor anchors.
Position the rear seat floor mats properly. If they are
not properly positioned, the floor mats can interfere
with the front seat functions.
Lock
UnlockLock
Unlock
Front (driver side)Rear (passenger side)■
Maintaining Genuine Leather
*
* Not available on all models

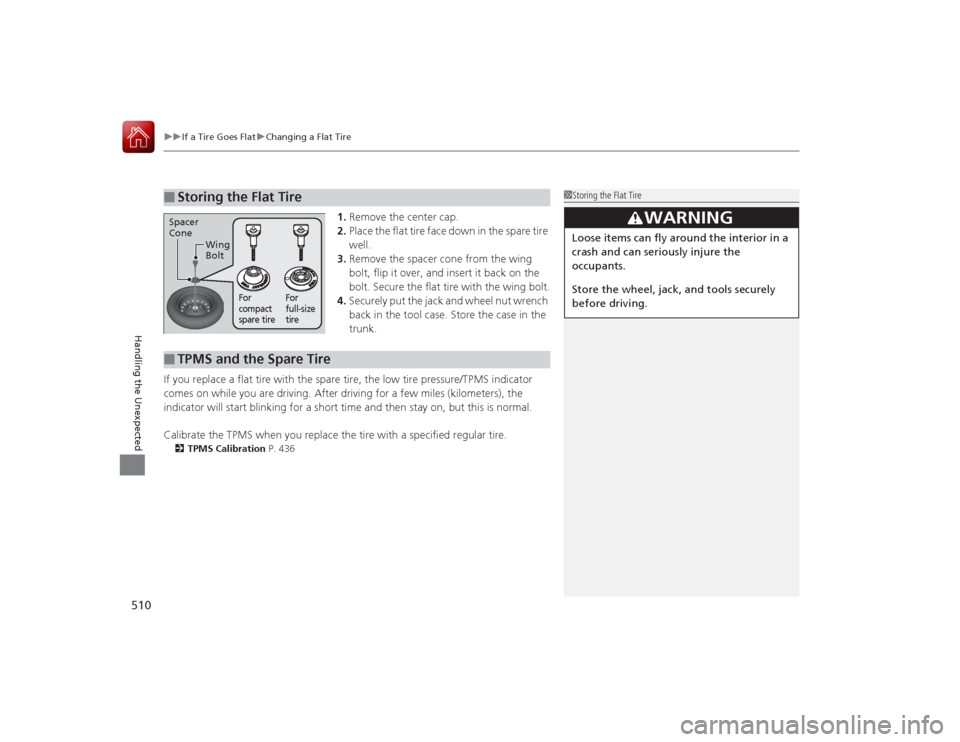

uuIf a Tire Goes Flat uChanging a Flat Tire
510Handling the Unexpected
1. Remove the center cap.
2. Place the flat tire face down in the spare tire
well.
3. Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.
4. Securely put the jack and wheel nut wrench
back in the tool case. Store the case in the
trunk.
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on, but this is normal.
Calibrate the TPMS when you replace the tire with a specified regular tire.
2 TPMS Calibration P. 436■
Storing the Flat Tire
1Storing the Flat Tire
3
WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.
Spacer
Cone
Wing
Bolt
For
compact
spare tire For
full-size
tire
■
TPMS and the Spare Tire

514Handling the Unexpected
Jump StartingTurn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood.1.Connect the first jumper cable to your
vehicle's battery + terminal.
2. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
u When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15-
volt. Check the charger manual for the
proper setting.
3. Connect the second jumper cable to the
booster battery - terminal.■
Jump Starting Procedure
1Jump Starting
Securely attach the jumper cables clips so that they
do not come off when the engine vibrates. Also be
careful not to tangle the jumper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
3
WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Booster Battery4-cylinder models6-cylinder modelsBooster Battery

Index
546Index
Index
Numbers7-Speed Manual Shift Mode.................... 411
Operation ................................................ 412AABS (Anti-lock Brake System) ................... 442
Accessories and Modifications ................. 450
Accessory Power Sockets .......................... 140
Additives
Coolant ................................................... 469
Engine Oil ................................................ 463
Washer .................................................... 474
Additives, Engine Oil ................................ 463
Adjusting Clock ......................................................... 86
Front Seats .............................................. 127
Head Restraints........................................ 130
Mirrors .................................................... 125
Rear Seats................................................ 134
Steering Wheel ........................................ 124
Temperature .............................................. 84
Aha
TM Radio ...................................... 205, 258
Air Conditioning System (Climate Control
System) .................................................... 144
Changing the Mode ................................ 144
Defrosting the Windshield and
Windows ............................................... 145
Dust and Pollen Filter ............................... 497
Recirculation/Fresh Air Mode ................... 144
Sensor ..................................................... 147 Synchronized Mode................................. 146
Using Automatic Climate Control ............ 144
Air Pressure ............................... 486, 531, 533
Airbags ........................................................ 39
Advanced Airbags ..................................... 45
After a Collision ........................................ 42
Airbag Care............................................... 51
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 42
Indicator.............................................. 49, 72
Passenger Airbag Off Indicator .................. 50
Sensors ..................................................... 39
Side Airbags .............................................. 46
Side Curtain Airbags.................................. 48
AM/FM Radio ............................ 163, 189, 228
Anti-lock Brake System (ABS) .................. 442
Indicator.................................................... 71
Audio Remote Controls ........................... 155
Audio System ............................................ 150
Adjusting the Sound................ 161, 187, 218
Auxiliary Input Jack.................................. 152
Error Messages ........................................ 264
General Information ................................ 270
HDD ........................................................ 238
Internet Radio ......................... 171, 203, 256
iPod ........................................ 168, 199, 248
MP3/WMA/AAC ...................... 173, 206, 259
Reactivating ............................................ 153
Recommended CDs ................................. 271
Recommended Devices............................ 273
Remote Controls ..................................... 155 Security Code ......................................... 153
Theft Protection ...................................... 153
Touch Screen .................................. 179, 212
USB Flash Drives...................................... 273
USB Port ................................................. 151
Authorized Manuals ................................ 541
Auto Door Locking/Unlocking .................. 98
Customize ...................................... 285, 303
Automatic Lighting .................................. 116
Automatic Transmission Creeping................................................. 408
Fluid ....................................................... 472
Kickdown ............................................... 408
Operating the Shift Lever .................. 19, 414
Shift Lever Does Not Move ...................... 517
Shifting ................................................... 413
Auxiliary Input Jack ................................. 152
Average Fuel Economy .............................. 83
BBattery...................................................... 494
Charging System Indicator ................ 69, 520
Jump Starting ......................................... 514
Maintenance (Checking the Battery) ....... 494
Maintenance (Replacing) ......................... 495
Belts (Seat) .................................................. 32
Beverage Holders ..................................... 139
Bluetooth ® Audio ..................... 176, 209, 262
Bluetooth ® HandsFreeLink ®............. 314, 351
Booster Seats (For Children) ...................... 63

549Index
Fuel..................................................... 20, 447
Economy................................................. 449
Gauge ...................................................... 81
Instant Fuel Economy ................................ 83
Low Fuel Indicator..................................... 71
Range ....................................................... 84
Recommendation.................................... 447
Refueling ................................................ 447
Fuel Economy ........................................... 449
Fuel Fill Cap ........................................ 20, 448
Message ................................................. 521
Fuel Fill Door ...................................... 20, 448
Fuses ......................................................... 524
Inspecting and Changing ........................ 526
Locations ........................................ 524, 525GGasoline (Fuel) Economy................................................. 449
Gauge ...................................................... 81
Information............................................. 447
Instant Fuel Economy ................................ 83
Low Fuel Indicator..................................... 71
Refueling ................................................ 447
Gauges ........................................................ 81
Gear Shift Lever Positions
Automatic Transmission .......................... 413
Continuously Variable Transmission (CVT) .................................................... 409
Manual Transmission .............................. 418 Glass (care)
................................................ 501
Glove Box .................................................. 137
HHalogen Bulbs ................................... 475, 478
Handling the Unexpected ........................ 503
HandsFreeLink ® (HFL) ....................... 314, 351
Auto Answer ................................... 330, 366
Automatic Import of Cellular Phonebook and
Call History .................................... 332, 368
Automatic Transferring .................... 330, 366
Displaying Messages ........................ 346, 385
Editing User Name ................................... 365
HFL Buttons ..................................... 314, 351
HFL Menus ...................................... 317, 353
HFL Status Display ........................... 316, 352
Limitations for Manual Operation .... 316, 352
Making a Call .................................. 336, 377
Options During a Call ...................... 343, 382
Phone Setup .................................... 322, 357
Phonebook Phonetic Modification ........... 372
Receiving a Call ............................... 342, 381
Receiving a Text/E-Mail Message ...... 344, 383
Ring Tone ........................................ 331, 367
Selecting a Mail Account ................. 345, 384
Speed Dial ....................................... 333, 369
To Create a Security PIN .................. 329, 364
To Set Up a Text/E-Mail Message Options ......................................... 327, 362
Use Contact Photo .......................... 331, 367 Hard Disk Drive (HDD) Audio
.................. 238
Hazard Warning Button .............................. 4
Head Restraints ........................................ 130
Headlights ................................................. 115
Aiming .................................................... 475
Automatic Operation............................... 116
Dimming ......................................... 115, 118
Operating................................................ 115
Heaters (Seat) ........................................... 143
High Beam Indicator .................................. 74
Hill Start Assist System ..................... 402, 406
HomeLink ® Universal Transceiver ............ 312
IIdentification Numbers
Engine and Transmission ......................... 534
Vehicle Identification ............................... 534
Ignition Switch ......................................... 110
Illumination Control Knob ....................................................... 120
Immobilizer System .................................. 103
Indicator.................................................... 74
Indicators .................................................... 68
Anti-lock Brake System (ABS)..................... 71
Brake System (Amber) ............................... 68
Brake System (Red) .................................... 68
Charging System ............................... 69, 520
CRUISE CONTROL ............................. 77, 422
CRUISE MAIN .................................... 77, 421

550Index
Door and Trunk Open ................................ 72
ECON Mode ...................................... 77, 420
Electric Power Steering (EPS) System ............................................. 73, 522
Fog Light ................................................... 74
Forward Collision Warning (FCW) .............. 75
High Beam................................................. 74
Immobilizer System .................................... 74
Lane Departure Warning (LDW) ................. 76
Light Control ............................................. 78
Lights On ................................................... 74
Low Fuel .................................................... 71
Low Oil Pressure ................................ 69, 520
Low Tire Pressure/TPMS ............. 73, 436, 438
Maintenance Minder ......................... 77, 455
Malfunction Indicator Lamp ............... 69, 521
Parking Brake and Brake System ........ 68, 522
Seat Belt Reminder .............................. 33, 71
Security System Alarm ............................... 74
Smart Entry System .................................... 77
Starter System ........................................... 78
Supplemental Restraint System ............ 49, 72
Transmission .............................................. 71
Turn Signal and Hazard Warning ............... 73
Vehicle Stability Assist (VSA ®)
System ............................................. 72, 432
VSA ® OFF .......................................... 72, 433
Washer Level ............................................. 77
Information ............................................... 529
Information Display .................................... 82 Instant Fuel Economy
................................. 83
Instrument Panel ........................................ 67
Brightness Control................................... 120
Interface Dial ............................................ 211
Interior Lights ........................................... 135
Interior Rearview Mirror .......................... 125
JJack (Wheel Nut Wrench) ........................ 508
Jump Starting ........................................... 514KKey Number Tag ......................................... 89
Keyless Lockout Prevention ....................... 95
Keys ............................................................. 88
Lockout Prevention.................................... 95
Master Keys .............................................. 88
Number Tag .............................................. 89
Remote Transmitter ................................... 91
Types and Functions .................................. 88
Valet Key........................................... 89, 101
Won’t Turn ............................................... 23
Kickdown (Automatic Transmission/ CVT) ......................................................... 408
LLane Departure Warning (LDW) ............. 428
LaneWatch
TM............................................ 434
Language (HFL) ................................ 316, 352
LATCH (Child Seats) ................................... 57
Lights ................................................ 115, 475
Automatic............................................... 116
Bulb Replacement ................................... 475
Daytime Running Lights .......................... 118
Fog Lights ............................................... 117
High Beam Indicator ................................. 74
Interior.................................................... 135
Light Switches......................................... 115
Lights On Indicator.................................... 74
Turn Signals ............................................ 115
Load Limits ............................................... 395
Locking/Unlocking ..................................... 88
Auto Door Locking/Unlocking ................... 98
From Inside ............................................... 96
From Outside ............................................ 91
Keys.......................................................... 88
Using a Key............................................... 95
Lockout Prevention System ....................... 95
Low Battery Charge ................................. 520
Low Fuel Indicator ..................................... 71
Low Oil Pressure Indicator ................. 69, 520
Low Smart Entry Remote Signal Strength .................................................... 90
Lower Anchors ........................................... 57
Lubricant Specifications Chart ........ 530, 532
Luggage (Maximum Load Limit) ............. 395

552Index
Remote Transmitter.................................... 91
Replacement
Battery..................................................... 495
Bulbs ....................................................... 475
Fuses ............................................... 524, 525
Tires ........................................................ 491
Wiper Blade Rubber ................................. 483
Reporting Safety Defects ......................... 536
Resetting a Trip Meter ............................... 83SSafe Driving................................................. 27
Safety Check ................................................ 31
Safety Labels ............................................... 65
Safety Message ............................................. 1
Seat Belts ..................................................... 32
Automatic Seat Belt Tensioners .................. 34
Checking ................................................... 38
Fastening ................................................... 35
Installing a Child Seat with a Lap/Shoulder Seat Belt .......................................................... 59
Pregnant Women ...................................... 37
Reminder ................................................... 33
Warning Indicator ................................ 33, 71
Seat Heaters .............................................. 143
Seats .......................................................... 127
Adjusting ................................................. 127
Front Seats .............................................. 127
Rear Seats................................................ 134
Seat Heaters ............................................ 143 Security System
......................................... 103
Immobilizer System Indicator ..................... 74
Security System Alarm Indicator................. 74
Select/Reset Knob ....................................... 82
Selecting a Child Seat ................................. 56
Selector Knob (Audio) ...................... 156, 178
Sequential Shift Mode ............................. 415
Operation................................................ 416
Shift Lever ........................... 18, 409, 413, 417
Operation.......................... 18, 410, 414, 417
Releasing................................................. 517
Won’t Move ............................................ 517
Shift Lever Position Indicator .... 70, 410, 414
Shifting (Transmission) ............. 409, 413, 417
Side Airbags ................................................ 46
Side Curtain Airbags .................................. 48
SiriusXM ® Radio ................................ 193, 232
Smart Entry with Push Button Start System ....................................................... 93
Snow Tires ................................................. 493
Spare Tire .................................. 505, 531, 533
Spark Plugs ....................................... 530, 532
Specifications ............................................ 530
Specified Fuel ........................... 447, 530, 532
Speedometer .............................................. 81
SRS Airbags (Airbags) ................................. 42
Starting the Engine .......................... 401, 403
Does Not Start......................................... 511
Engine Switch Buzzer .............................. 110
Jump Starting .......................................... 514 Steering Wheel
........................................ 124
Adjusting ................................................ 124
Stopping ................................................... 444
Summer Tires ............................................ 493
Sunglasses Holder .................................... 142
Supplemental Restraint System (SRS) ....... 42
Switches (Around the Steering Wheel) ............................................ 4, 5, 110
SYNC Mode .............................................. 146
TTachometer................................................ 81
Temperature Outside Temperature Display .................... 84
Temperature Sensor .......................... 84, 147
Time (Setting) ............................................. 86
Tire Pressure Monitoring System
(TPMS) ..................................................... 436
Indicator ........................................... 73, 523
Tires .......................................................... 485
Air Pressure............................. 486, 531, 533
Checking and Maintaining ...................... 485
Inspection ............................................... 485
Labeling .................................................. 486
Puncture (Flat Tire) .................................. 505
Regulations ............................................. 488
Rotation.................................................. 492
Spare Tire ............................... 505, 531, 533
Summer .................................................. 493
Tire Chains.............................................. 493
