520Handling the Unexpected
Indicator, Coming On/BlinkingIf the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.■What to do as soon as the indicator comes on
1. Immediately park the vehicle in a safe place.
2. If necessary, turn the hazard warning lights on.■What to do after parking the vehicle
1. Stop the engine and let it sit for about three minute.
2. Open the hood and check the oil level.
u Add oil as necessary.
3. Start the engine and check the low oil pressure indicator.
u The indicator goes off: Start driving again.
u The indicator does not go off within 10 seconds: Stop the engine
and contact a dealer for repairs immediately.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.■What to do when the indicator comes on
Turn off the climate control system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.
1 If the Low Oil Pressure Indicator Comes OnNOTICERunning the engine with low oil pressure can cause
serious mechanical damage almost immediately.1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engine may rapidly discharge
the battery.

524Handling the Unexpected
FusesFuse LocationsIf any electrical devices are not working,
turn the ignition switch to LOCK
(0
*1 and
check to see if any applicable fuse is blown.
Located near the brake fluid reservoir. Push
the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Circuit protected and fuse rating■
Engine Compartment Fuse Box
Circuit Protected
Amps
1
Battery
125 A
2
EPS
70 A
Fuse Box Main 1 (60 A)
Fuse Box Option 1
(40 A)
−−
−
−
ABS/VSA FSR 40 A
ABS/VSA Motor 30 A
3
−
−
−
−
−
−
−
−
4 Front Fog Light
*
(15 A)
5
Horn
10 A
6 Stop Light 10 A
7
FI Sub
15 A
8 DRL (7.5 A)
9
IG Coil
15 A
10 Injector
*2
20 A
11
Hazard
15 A
12 Fuse Box Main 2 60 A
Fuse Box Option 2 (40 A)
IG Main 1 50 A
30 A
*4
IG Main 2
*4
30 A
Sub Fan Motor 20 A
*2
30 A
*3
Headlight Low Beam Main 30 A
Fuse Box 30 A
Wiper Motor 30 A
Main Fan Motor 30 A Starter Motor
*4
30 A
13
Rear Defogger
40 A
14 Heater Motor 40 A
15
FI Main
15 A
Circuit Protected
Amps
*1:
Models with the smart entry system have an
ENGINE START/STOP button instead of an
ignition switch.
*2:4-cylinder models
*3:6-cylinder models
*4:Models with smart entry system 16 Heated Door Mirror
*
(10 A)
17
MG Clutch
7.5 A
18 DBW 15 A
19
Small Light
20 A
20 Interior Light 7.5 A
21
Back Up
10 A
22 Audio 10 A
23
Fan Timer
7.5 A
24 Right Headlight Low Beam 10 A
25
Left Headlight Low Beam
10 A
26 − −
Circuit Protected
Amps
* Not available on all models

537
Continued
Information
Emissions TestingTesting of Readiness CodesYour vehicle has “Readiness Codes,” as part of the onboard self diagnostic system.
Some States use these codes as a test to see if your vehicle's emissions components
are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w
*1, without starting the
engine. The malfunction indicator lamp will come on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle tested before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for six hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P
(automatic transmission/CVT) or
(N
(manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
three minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility dete rmines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing faci lity determines the readiness codes
are still not set, see a dealer.

540

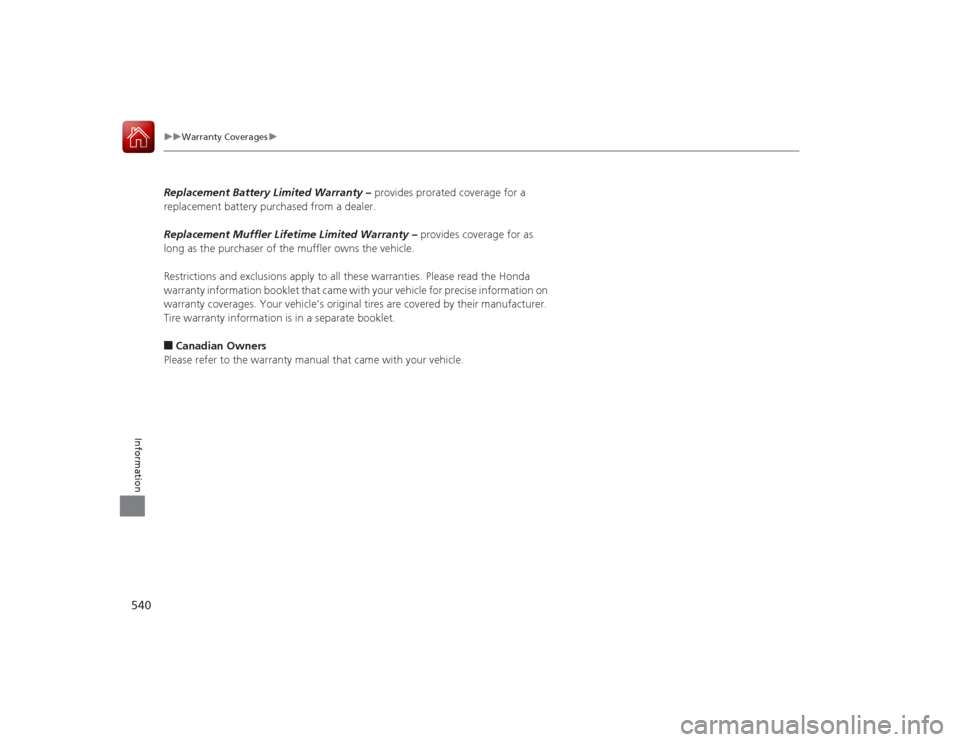

uuWarranty Coverages u
Information
Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from a dealer.
Replacement Muffler Lifetime Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to all these warranties. Please read the Honda
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehicle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.■Canadian Owners
Please refer to the warranty manual that came with your vehicle.

Index
546Index
Index
Numbers7-Speed Manual Shift Mode.................... 411
Operation ................................................ 412AABS (Anti-lock Brake System) ................... 442
Accessories and Modifications ................. 450
Accessory Power Sockets .......................... 140
Additives
Coolant ................................................... 469
Engine Oil ................................................ 463
Washer .................................................... 474
Additives, Engine Oil ................................ 463
Adjusting Clock ......................................................... 86
Front Seats .............................................. 127
Head Restraints........................................ 130
Mirrors .................................................... 125
Rear Seats................................................ 134
Steering Wheel ........................................ 124
Temperature .............................................. 84
Aha
TM Radio ...................................... 205, 258
Air Conditioning System (Climate Control
System) .................................................... 144
Changing the Mode ................................ 144
Defrosting the Windshield and
Windows ............................................... 145
Dust and Pollen Filter ............................... 497
Recirculation/Fresh Air Mode ................... 144
Sensor ..................................................... 147 Synchronized Mode................................. 146
Using Automatic Climate Control ............ 144
Air Pressure ............................... 486, 531, 533
Airbags ........................................................ 39
Advanced Airbags ..................................... 45
After a Collision ........................................ 42
Airbag Care............................................... 51
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 42
Indicator.............................................. 49, 72
Passenger Airbag Off Indicator .................. 50
Sensors ..................................................... 39
Side Airbags .............................................. 46
Side Curtain Airbags.................................. 48
AM/FM Radio ............................ 163, 189, 228
Anti-lock Brake System (ABS) .................. 442
Indicator.................................................... 71
Audio Remote Controls ........................... 155
Audio System ............................................ 150
Adjusting the Sound................ 161, 187, 218
Auxiliary Input Jack.................................. 152
Error Messages ........................................ 264
General Information ................................ 270
HDD ........................................................ 238
Internet Radio ......................... 171, 203, 256
iPod ........................................ 168, 199, 248
MP3/WMA/AAC ...................... 173, 206, 259
Reactivating ............................................ 153
Recommended CDs ................................. 271
Recommended Devices............................ 273
Remote Controls ..................................... 155 Security Code ......................................... 153
Theft Protection ...................................... 153
Touch Screen .................................. 179, 212
USB Flash Drives...................................... 273
USB Port ................................................. 151
Authorized Manuals ................................ 541
Auto Door Locking/Unlocking .................. 98
Customize ...................................... 285, 303
Automatic Lighting .................................. 116
Automatic Transmission Creeping................................................. 408
Fluid ....................................................... 472
Kickdown ............................................... 408
Operating the Shift Lever .................. 19, 414
Shift Lever Does Not Move ...................... 517
Shifting ................................................... 413
Auxiliary Input Jack ................................. 152
Average Fuel Economy .............................. 83
BBattery...................................................... 494
Charging System Indicator ................ 69, 520
Jump Starting ......................................... 514
Maintenance (Checking the Battery) ....... 494
Maintenance (Replacing) ......................... 495
Belts (Seat) .................................................. 32
Beverage Holders ..................................... 139
Bluetooth ® Audio ..................... 176, 209, 262
Bluetooth ® HandsFreeLink ®............. 314, 351
Booster Seats (For Children) ...................... 63

547Index
Brake System............................................ 440
Anti-lock Brake System (ABS) .................. 442
Brake Assist System................................. 443
Fluid ....................................................... 473
Foot Brake .............................................. 441
Indicator ........................................... 68, 522
Parking Brake.......................................... 440
Brake System Indicator (Amber) ............... 68
Brake System Indicator (Red) .................... 68
Brightness Control (Instrument Panel) ... 120
Bulb Replacement .................................... 475
Brake/Taillights, Back-Up Lights, Rear Turn Signal Lights and Rear Side Marker
Lights .................................................... 481
Fog Lights ............................................... 478
Front Turn Signal/Side Marker Lights ....... 479
Headlights .............................................. 475
High-Mount Brake Light.......................... 482
Parking Lights ......................................... 480
Parking/Daytime Running Lights .............. 480
Rear License Plate Lights ......................... 482
Side Turn Signal/Emergency Indicator Lights .................................................... 479
Bulb Specifications ........................... 530, 532CCarbon Monoxide Gas ............................... 64
Cargo Hooks ............................................. 141
Carrying Cargo ................................. 393, 395
CD Player .................................. 165, 196, 235 Center Pocket
........................................... 138
Certification Label .................................... 534
Changing Bulbs ......................................... 475
Charging System Indicator ................. 69, 520
Child Safety ................................................. 52
Emergency Trunk Opener ........................ 102
Child Seat .................................................... 52
Booster Seats ............................................. 63
Child Seat for Infants ................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat with a Lap/Shoulder Seat
Belt.......................................................... 59
Larger Children .......................................... 62
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Using a Tether ........................................... 61
Cleaning the Exterior ............................... 500
Cleaning the Interior ................................ 498
Climate Control System ............................ 144
Changing the Mode ................................ 144
Defrosting the Windshield and Windows ............................................... 145
Dust and Pollen Filter ............................... 497
Recirculation and Fresh Air Mode ............ 144
Sensors .................................................... 147
Synchronized Mode ................................. 146
Using Automatic Climate Control ............ 144
Clock ............................................................ 86
Clutch Fluid ............................................... 473
Coat Hook ................................................. 141
Compact Spare Tire .................. 505, 531, 533 Compass
.................................................... 389
Console Compartment ............................. 137
Continuously Variable Transmission (CVT)
Creeping ................................................. 408
Fluid ........................................................ 471
Kickdown ................................................ 408
Operating the Shift Lever................... 18, 410
Shift Lever Does Not Move ...................... 517
Shifting ................................................... 409
Controls ....................................................... 85
Coolant (Engine) ...................................... 469
Adding to the Engine Coolant Reserve Tank ...................................................... 469
Adding to the Radiator ............................ 470
Overheating ............................................ 518
Creeping (Automatic Transmission/ CVT) ......................................................... 408
Cruise Control ........................................... 421
Indicator.................................................... 77
Cup Holders .............................................. 139
Customer Service Information ................. 542
Customized Features ................................ 274
DDaytime Running Lights .......................... 118
Dead Battery ............................................. 514
Defrosting the Windshield and Windows ................................................. 145
Devices that Emit Radio Waves ............... 535

550Index
Door and Trunk Open ................................ 72
ECON Mode ...................................... 77, 420
Electric Power Steering (EPS) System ............................................. 73, 522
Fog Light ................................................... 74
Forward Collision Warning (FCW) .............. 75
High Beam................................................. 74
Immobilizer System .................................... 74
Lane Departure Warning (LDW) ................. 76
Light Control ............................................. 78
Lights On ................................................... 74
Low Fuel .................................................... 71
Low Oil Pressure ................................ 69, 520
Low Tire Pressure/TPMS ............. 73, 436, 438
Maintenance Minder ......................... 77, 455
Malfunction Indicator Lamp ............... 69, 521
Parking Brake and Brake System ........ 68, 522
Seat Belt Reminder .............................. 33, 71
Security System Alarm ............................... 74
Smart Entry System .................................... 77
Starter System ........................................... 78
Supplemental Restraint System ............ 49, 72
Transmission .............................................. 71
Turn Signal and Hazard Warning ............... 73
Vehicle Stability Assist (VSA ®)
System ............................................. 72, 432
VSA ® OFF .......................................... 72, 433
Washer Level ............................................. 77
Information ............................................... 529
Information Display .................................... 82 Instant Fuel Economy
................................. 83
Instrument Panel ........................................ 67
Brightness Control................................... 120
Interface Dial ............................................ 211
Interior Lights ........................................... 135
Interior Rearview Mirror .......................... 125
JJack (Wheel Nut Wrench) ........................ 508
Jump Starting ........................................... 514KKey Number Tag ......................................... 89
Keyless Lockout Prevention ....................... 95
Keys ............................................................. 88
Lockout Prevention.................................... 95
Master Keys .............................................. 88
Number Tag .............................................. 89
Remote Transmitter ................................... 91
Types and Functions .................................. 88
Valet Key........................................... 89, 101
Won’t Turn ............................................... 23
Kickdown (Automatic Transmission/ CVT) ......................................................... 408
LLane Departure Warning (LDW) ............. 428
LaneWatch
TM............................................ 434
Language (HFL) ................................ 316, 352
LATCH (Child Seats) ................................... 57
Lights ................................................ 115, 475
Automatic............................................... 116
Bulb Replacement ................................... 475
Daytime Running Lights .......................... 118
Fog Lights ............................................... 117
High Beam Indicator ................................. 74
Interior.................................................... 135
Light Switches......................................... 115
Lights On Indicator.................................... 74
Turn Signals ............................................ 115
Load Limits ............................................... 395
Locking/Unlocking ..................................... 88
Auto Door Locking/Unlocking ................... 98
From Inside ............................................... 96
From Outside ............................................ 91
Keys.......................................................... 88
Using a Key............................................... 95
Lockout Prevention System ....................... 95
Low Battery Charge ................................. 520
Low Fuel Indicator ..................................... 71
Low Oil Pressure Indicator ................. 69, 520
Low Smart Entry Remote Signal Strength .................................................... 90
Lower Anchors ........................................... 57
Lubricant Specifications Chart ........ 530, 532
Luggage (Maximum Load Limit) ............. 395

551Index
MMaintenance............................................ 451
Battery .................................................... 494
Brake/Clutch Fluid ................................... 473
Cleaning ................................................. 498
Climate Control System .......................... 497
Coolant .................................................. 469
Maintenance Minder
TM............................ 455
Oil .......................................................... 464
Precautions ............................................. 452
Radiator .................................................. 470
Remote Transmitter ................................ 495
Replacing Light Bulbs .............................. 475
Safety ..................................................... 453
Service Items ........................................... 457
Tires........................................................ 485
Transmission Fluid ................................... 471
Under the Hood ...................................... 459
Malfunction Indicator Lamp ............. 69, 521
Manual Transmission ............................... 417
Map Lights ................................................ 136
Maximum Load Limit ............................... 395
Meters, Gauges .......................................... 81
Mirrors ...................................................... 125
Adjusting ................................................ 125
Door ....................................................... 126
Exterior ................................................... 126
Interior Rearview ..................................... 125
Modifications (and Accessories) .............. 450
Moonroof ................................................. 109
MP3 ................... 165, 173, 196, 206, 235, 259 Multi-View Rear Camera
.......................... 445
NNumbers (Identification).......................... 534OOdometer.................................................... 83
Oil (Engine) ............................................... 463
Adding .................................................... 466
Checking ................................................. 464
Displaying Oil Life .................................... 455
Low Oil Pressure Indicator .................. 69, 520
Recommended Engine Oil ........................ 463
Viscosity .................................................. 463
Opening/Closing
Hood ....................................................... 461
Moonroof................................................ 109
Power Windows ...................................... 106
Trunk ........................................................ 99
Outside Temperature Display .................... 84
Overheating .............................................. 518PPaddle Shifters (7-Speed Manual Shift
Mode) ...................................................... 411
Paddle Shifters (Sequential Shift Mode) ...................................................... 415
Pandora® ................................... 172, 204, 257
Panic Mode ............................................... 105 Parking
...................................................... 444
Parking Brake ........................................... 440
Parking Brake and Brake System Indicator ............................................ 68, 522
Passenger Airbag Off Indicator ................. 50
Passing Indicators ..................................... 115
Power Windows ....................................... 106
Precautions While Driving ....................... 407
Rain ........................................................ 407
Pregnant Women ....................................... 37
Puncture (Tire) .......................................... 505
RRadiator.................................................... 470
Radio (AM/FM) ......................... 163, 189, 228
Radio (SiriusXM ®) ............................. 193, 232
Radio Data System (RDS) ......... 164, 191, 230
Range .......................................................... 84
RDS (Radio Data System) ......... 164, 191, 230
Readiness Codes (Emissions Testing) ....... 537
Rear Defogger/Heated Door Mirror Button ..................................................... 121
Rear Seat (Folding Down) ........................ 134
Rearview Camera ..................................... 446
Rearview Mirror ....................................... 125
Refueling .................................................. 447
Fuel Gauge................................................ 81
Gasoline .................................. 447, 530, 532
Low Fuel Indicator ..................................... 71
Regulations ............................... 438, 488, 535
