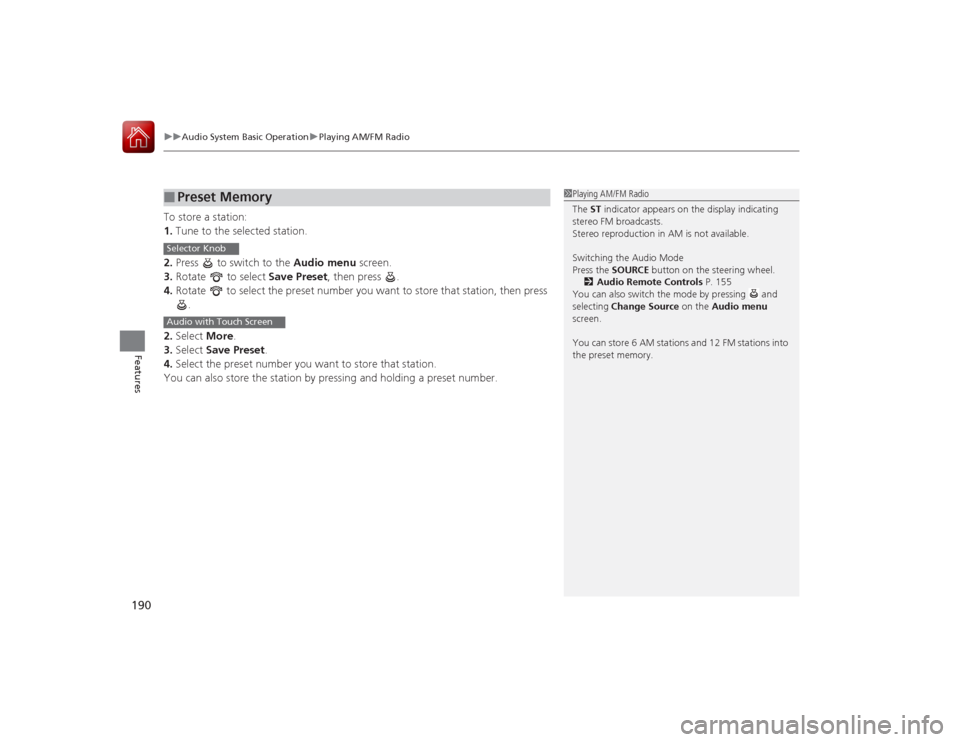

uuAudio System Basic Operation uPlaying AM/FM Radio
190Features
To store a station:
1. Tune to the selected station.
2. Press to switch to the Audio menu screen.
3. Rotate to select Save Preset, then press .
4. Rotate to select the preset number you want to store that station, then press \
.
2. Select More.
3. Select Save Preset .
4. Select the preset number you want to store that station.
You can also store the station by pressing and holding a preset number.■
Preset Memory
1 Playing AM/FM Radio
The ST indicator appears on the display indicating
stereo FM broadcasts.
Stereo reproduction in AM is not available.
Switching the Audio Mode
Press the SOURCE button on the steering wheel.
2 Audio Remote Controls P. 155
You can also switch the mode by pressing and
selecting Change Source on the Audio menu
screen.
You can store 6 AM stations and 12 FM stations into
the preset memory.
Selector KnobAudio with Touch Screen

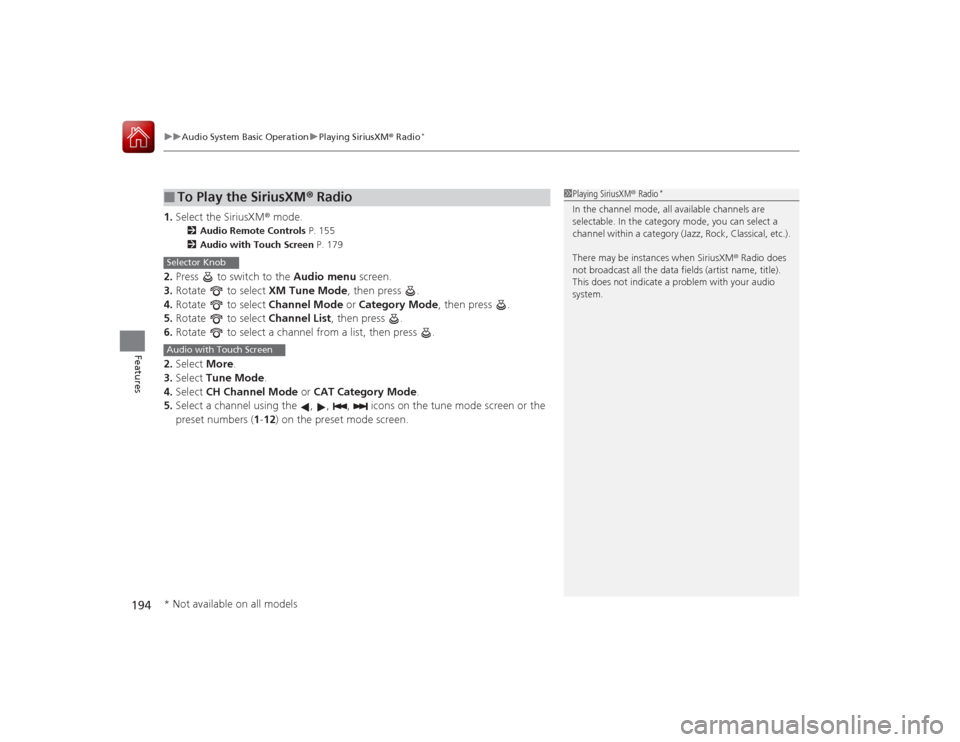

uuAudio System Basic Operation uPlaying SiriusXM ® Radio
*
194Features
1. Select the SiriusXM® mode.
2 Audio Remote Controls P. 155
2 Audio with Touch Screen P. 179
2.Press to switch to the Audio menu screen.
3. Rotate to select XM Tune Mode, then press .
4. Rotate to select Channel Mode or Category Mode, then press .
5. Rotate to select Channel List, then press .
6. Rotate to select a channel from a list, then press .
2. Select More.
3. Select Tune Mode .
4. Select CH Channel Mode or CAT Category Mode .
5. Select a channel using the , , , ico ns on the tune mode screen or the
preset numbers ( 1-12 ) on the preset mode screen.■
To Play the SiriusXM® Radio
1Playing SiriusXM ® Radio
*
In the channel mode, all available channels are
selectable. In the category mode, you can select a
channel within a category (Jazz, Rock, Classical, etc.).
There may be instances when SiriusXM ® Radio does
not broadcast all the data fields (artist name, title).
This does not indicate a problem with your audio
system.
Selector KnobAudio with Touch Screen* Not available on all models
Continued
229

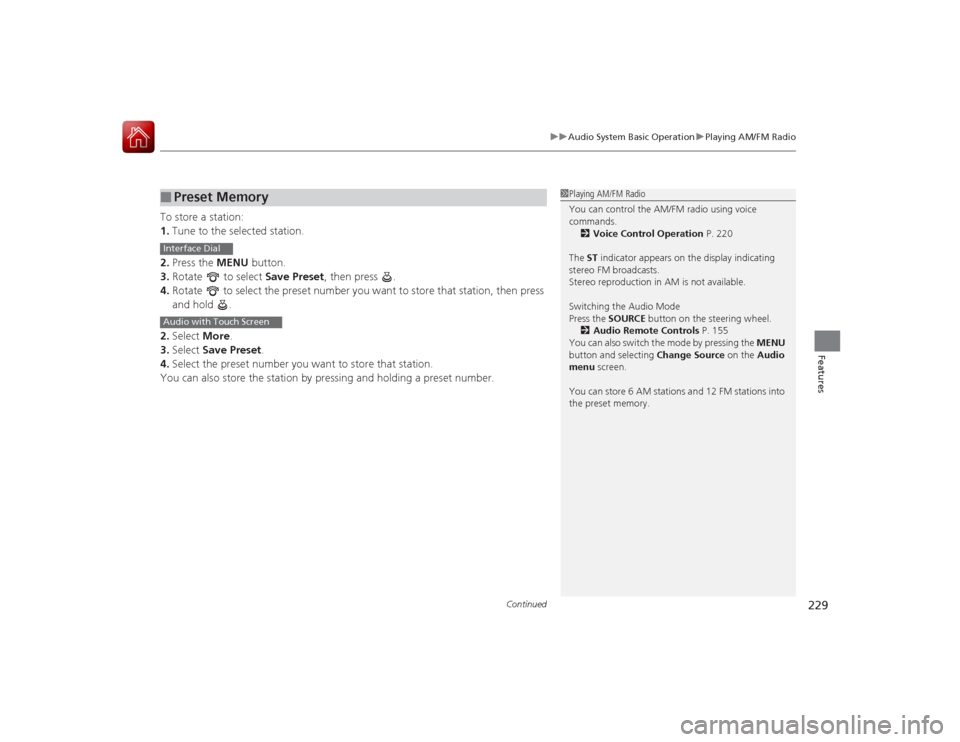

uuAudio System Basic Operation uPlaying AM/FM Radio
Features
To store a station:
1. Tune to the selected station.
2. Press the MENU button.
3. Rotate to select Save Preset, then press .
4. Rotate to select the preset number you want to store that station, then press
and hold .
2. Select More.
3. Select Save Preset .
4. Select the preset number you want to store that station.
You can also store the station by pressing and holding a preset number.■
Preset Memory
1Playing AM/FM Radio
You can control the AM/FM radio using voice
commands.
2 Voice Control Operation P. 220
The ST indicator appears on the display indicating
stereo FM broadcasts.
Stereo reproduction in AM is not available.
Switching the Audio Mode
Press the SOURCE button on the steering wheel.
2 Audio Remote Controls P. 155
You can also switch the mode by pressing the MENU
button and selecting Change Source on the Audio
menu screen.
You can store 6 AM stations and 12 FM stations into
the preset memory.
Interface DialAudio with Touch Screen
Continued
233

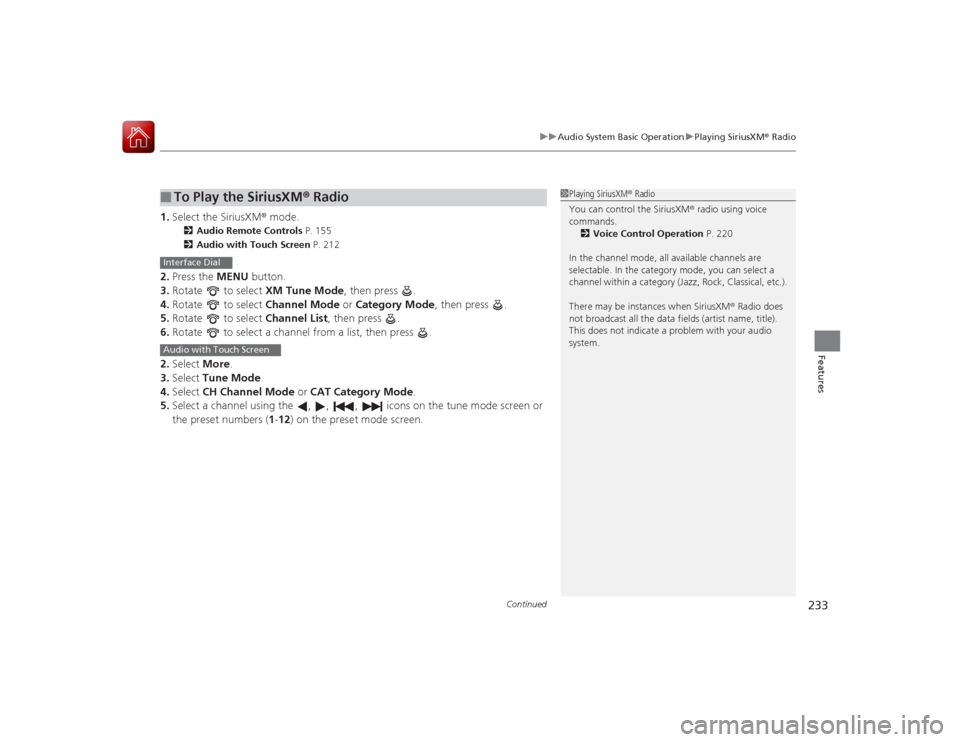

uuAudio System Basic Operation uPlaying SiriusXM ® Radio
Features
1. Select the SiriusXM ® mode.
2Audio Remote Controls P. 155
2 Audio with Touch Screen P. 212
2.Press the MENU button.
3. Rotate to select XM Tune Mode, then press .
4. Rotate to select Channel Mode or Category Mode , then press .
5. Rotate to select Channel List, then press .
6. Rotate to select a channel from a list, then press .
2. Select More.
3. Select Tune Mode .
4. Select CH Channel Mode or CAT Category Mode .
5. Select a channel using the , , , icons on the tune mode screen or
the preset numbers ( 1-12) on the preset mode screen.■
To Play the SiriusXM ® Radio
1 Playing SiriusXM ® Radio
You can control the SiriusXM ® radio using voice
commands.
2 Voice Control Operation P. 220
In the channel mode, all available channels are
selectable. In the category mode, you can select a
channel within a category (Jazz, Rock, Classical, etc.).
There may be instances when SiriusXM ® Radio does
not broadcast all the data fields (artist name, title).
This does not indicate a problem with your audio
system.
Interface DialAudio with Touch Screen
Index
546Index
Index
Numbers7-Speed Manual Shift Mode.................... 411
Operation ................................................ 412AABS (Anti-lock Brake System) ................... 442
Accessories and Modifications ................. 450
Accessory Power Sockets .......................... 140
Additives
Coolant ................................................... 469
Engine Oil ................................................ 463
Washer .................................................... 474
Additives, Engine Oil ................................ 463
Adjusting Clock ......................................................... 86
Front Seats .............................................. 127
Head Restraints........................................ 130
Mirrors .................................................... 125
Rear Seats................................................ 134
Steering Wheel ........................................ 124
Temperature .............................................. 84
Aha
TM Radio ...................................... 205, 258
Air Conditioning System (Climate Control
System) .................................................... 144
Changing the Mode ................................ 144
Defrosting the Windshield and
Windows ............................................... 145
Dust and Pollen Filter ............................... 497
Recirculation/Fresh Air Mode ................... 144
Sensor ..................................................... 147 Synchronized Mode................................. 146
Using Automatic Climate Control ............ 144
Air Pressure ............................... 486, 531, 533
Airbags ........................................................ 39
Advanced Airbags ..................................... 45
After a Collision ........................................ 42
Airbag Care............................................... 51
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 42
Indicator.............................................. 49, 72
Passenger Airbag Off Indicator .................. 50
Sensors ..................................................... 39
Side Airbags .............................................. 46
Side Curtain Airbags.................................. 48
AM/FM Radio ............................ 163, 189, 228
Anti-lock Brake System (ABS) .................. 442
Indicator.................................................... 71
Audio Remote Controls ........................... 155
Audio System ............................................ 150
Adjusting the Sound................ 161, 187, 218
Auxiliary Input Jack.................................. 152
Error Messages ........................................ 264
General Information ................................ 270
HDD ........................................................ 238
Internet Radio ......................... 171, 203, 256
iPod ........................................ 168, 199, 248
MP3/WMA/AAC ...................... 173, 206, 259
Reactivating ............................................ 153
Recommended CDs ................................. 271
Recommended Devices............................ 273
Remote Controls ..................................... 155 Security Code ......................................... 153
Theft Protection ...................................... 153
Touch Screen .................................. 179, 212
USB Flash Drives...................................... 273
USB Port ................................................. 151
Authorized Manuals ................................ 541
Auto Door Locking/Unlocking .................. 98
Customize ...................................... 285, 303
Automatic Lighting .................................. 116
Automatic Transmission Creeping................................................. 408
Fluid ....................................................... 472
Kickdown ............................................... 408
Operating the Shift Lever .................. 19, 414
Shift Lever Does Not Move ...................... 517
Shifting ................................................... 413
Auxiliary Input Jack ................................. 152
Average Fuel Economy .............................. 83
BBattery...................................................... 494
Charging System Indicator ................ 69, 520
Jump Starting ......................................... 514
Maintenance (Checking the Battery) ....... 494
Maintenance (Replacing) ......................... 495
Belts (Seat) .................................................. 32
Beverage Holders ..................................... 139
Bluetooth ® Audio ..................... 176, 209, 262
Bluetooth ® HandsFreeLink ®............. 314, 351
Booster Seats (For Children) ...................... 63
547Index
Brake System............................................ 440
Anti-lock Brake System (ABS) .................. 442
Brake Assist System................................. 443
Fluid ....................................................... 473
Foot Brake .............................................. 441
Indicator ........................................... 68, 522
Parking Brake.......................................... 440
Brake System Indicator (Amber) ............... 68
Brake System Indicator (Red) .................... 68
Brightness Control (Instrument Panel) ... 120
Bulb Replacement .................................... 475
Brake/Taillights, Back-Up Lights, Rear Turn Signal Lights and Rear Side Marker
Lights .................................................... 481
Fog Lights ............................................... 478
Front Turn Signal/Side Marker Lights ....... 479
Headlights .............................................. 475
High-Mount Brake Light.......................... 482
Parking Lights ......................................... 480
Parking/Daytime Running Lights .............. 480
Rear License Plate Lights ......................... 482
Side Turn Signal/Emergency Indicator Lights .................................................... 479
Bulb Specifications ........................... 530, 532CCarbon Monoxide Gas ............................... 64
Cargo Hooks ............................................. 141
Carrying Cargo ................................. 393, 395
CD Player .................................. 165, 196, 235 Center Pocket
........................................... 138
Certification Label .................................... 534
Changing Bulbs ......................................... 475
Charging System Indicator ................. 69, 520
Child Safety ................................................. 52
Emergency Trunk Opener ........................ 102
Child Seat .................................................... 52
Booster Seats ............................................. 63
Child Seat for Infants ................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat with a Lap/Shoulder Seat
Belt.......................................................... 59
Larger Children .......................................... 62
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Using a Tether ........................................... 61
Cleaning the Exterior ............................... 500
Cleaning the Interior ................................ 498
Climate Control System ............................ 144
Changing the Mode ................................ 144
Defrosting the Windshield and Windows ............................................... 145
Dust and Pollen Filter ............................... 497
Recirculation and Fresh Air Mode ............ 144
Sensors .................................................... 147
Synchronized Mode ................................. 146
Using Automatic Climate Control ............ 144
Clock ............................................................ 86
Clutch Fluid ............................................... 473
Coat Hook ................................................. 141
Compact Spare Tire .................. 505, 531, 533 Compass
.................................................... 389
Console Compartment ............................. 137
Continuously Variable Transmission (CVT)
Creeping ................................................. 408
Fluid ........................................................ 471
Kickdown ................................................ 408
Operating the Shift Lever................... 18, 410
Shift Lever Does Not Move ...................... 517
Shifting ................................................... 409
Controls ....................................................... 85
Coolant (Engine) ...................................... 469
Adding to the Engine Coolant Reserve Tank ...................................................... 469
Adding to the Radiator ............................ 470
Overheating ............................................ 518
Creeping (Automatic Transmission/ CVT) ......................................................... 408
Cruise Control ........................................... 421
Indicator.................................................... 77
Cup Holders .............................................. 139
Customer Service Information ................. 542
Customized Features ................................ 274
DDaytime Running Lights .......................... 118
Dead Battery ............................................. 514
Defrosting the Windshield and Windows ................................................. 145
Devices that Emit Radio Waves ............... 535
