2015 GMC YUKON XL Owners Manual

Black plate (26,1)GMC 2015i Yukon/Yukon XL Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-8431503) - 2015 - crc - 8/11/14
1-26 In Brief
2NOTES

Black plate (1,1)GMC 2015i Yukon/Yukon XL Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-8431503) - 2015 - crc - 8/11/14
Keys, Doors, and Windows 2-1
Keys, Doors, and
Windows
Keys and Locks
Keys (Keys) . . . . . . . . . . . . . . . . . . . 2-2
Keys (Keyless) . . . . . . . . . . . . . . . . 2-4
Remote Keyless Entry (RKE)System . . . . . . . . . . . . . . . . . . . . . . 2-5
Remote Keyless Entry (RKE) System Operation (Key) . . . . . 2-5
Remote Keyless Entry (RKE) System Operation
(Keyless) . . . . . . . . . . . . . . . . . . . . 2-8
Remote Vehicle Start . . . . . . . . 2-15
Door Locks . . . . . . . . . . . . . . . . . . 2-16
Power Door Locks . . . . . . . . . . . 2-17
Delayed Locking . . . . . . . . . . . . . 2-18 Automatic Door Locks . . . . . . . 2-18
Lockout Protection . . . . . . . . . . . 2-18
Safety Locks . . . . . . . . . . . . . . . . . 2-18
Doors
Liftgate . . . . . . . . . . . . . . . . . . . . . . 2-19
Power Assist Steps . . . . . . . . . . 2-23
Vehicle Security
Vehicle Security . . . . . . . . . . . . . . 2-24
Vehicle Alarm System . . . . . . . 2-24
Immobilizer . . . . . . . . . . . . . . . . . . 2-26
Immobilizer Operation (Key
Access) . . . . . . . . . . . . . . . . . . . . 2-26
Immobilizer Operation (Keyless Access) . . . . . . . . . . . 2-27
Exterior Mirrors
Convex Mirrors . . . . . . . . . . . . . . 2-28
Power Mirrors . . . . . . . . . . . . . . . . 2-29 Folding Mirrors . . . . . . . . . . . . . . . 2-29
Heated Mirrors . . . . . . . . . . . . . . . 2-30
Automatic Dimming Mirror . . . 2-30
Blind Spot Mirrors . . . . . . . . . . . 2-30
Reverse Tilt Mirrors . . . . . . . . . . 2-31
Interior Mirrors
Interior Rearview Mirrors . . . . . 2-31
Manual Rearview Mirror . . . . . . 2-31
Automatic Dimming Rearview
Mirror . . . . . . . . . . . . . . . . . . . . . . . 2-32
Child-View Mirror . . . . . . . . . . . . 2-32
Windows
Windows . . . . . . . . . . . . . . . . . . . . . 2-32
Power Windows . . . . . . . . . . . . . 2-33
Sun Visors . . . . . . . . . . . . . . . . . . . 2-35
Roof
Sunroof . . . . . . . . . . . . . . . . . . . . . . 2-35

Black plate (2,1)GMC 2015i Yukon/Yukon XL Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-8431503) - 2015 - crc - 8/11/14

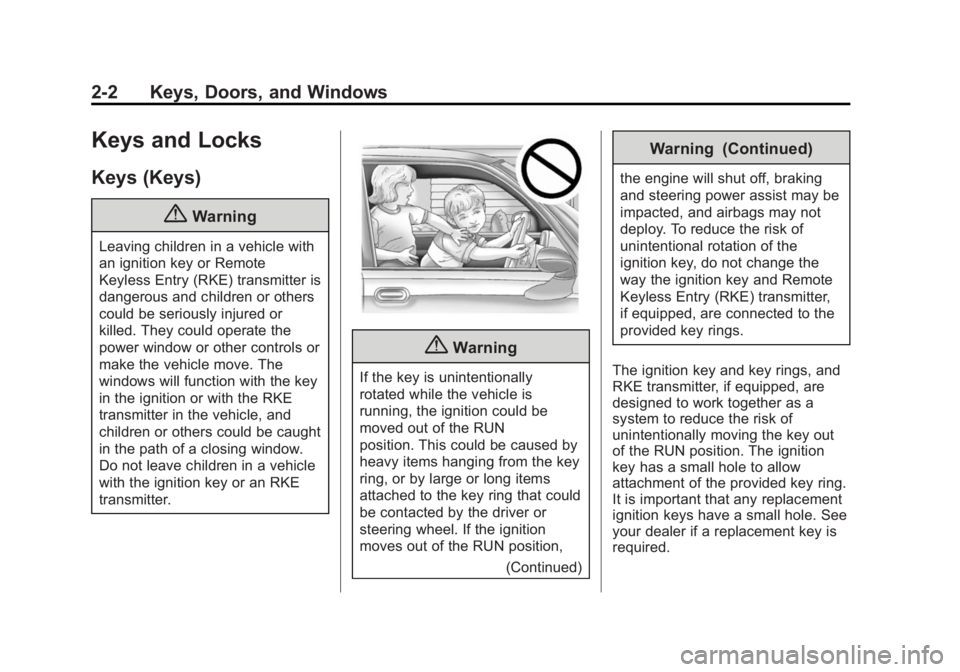

2-2 Keys, Doors, and Windows
Keys and Locks
Keys (Keys)
{Warning
Leaving children in a vehicle with
an ignition key or Remote
Keyless Entry (RKE) transmitter is
dangerous and children or others
could be seriously injured or
killed. They could operate the
power window or other controls or
make the vehicle move. The
windows will function with the key
in the ignition or with the RKE
transmitter in the vehicle, and
children or others could be caught
in the path of a closing window.
Do not leave children in a vehicle
with the ignition key or an RKE
transmitter.
{Warning
If the key is unintentionally
rotated while the vehicle is
running, the ignition could be
moved out of the RUN
position. This could be caused by
heavy items hanging from the key
ring, or by large or long items
attached to the key ring that could
be contacted by the driver or
steering wheel. If the ignition
moves out of the RUN position,(Continued)
Warning (Continued)
the engine will shut off, braking
and steering power assist may be
impacted, and airbags may not
deploy. To reduce the risk of
unintentional rotation of the
ignition key, do not change the
way the ignition key and Remote
Keyless Entry (RKE) transmitter,
if equipped, are connected to the
provided key rings.
The ignition key and key rings, and
RKE transmitter, if equipped, are
designed to work together as a
system to reduce the risk of
unintentionally moving the key out
of the RUN position. The ignition
key has a small hole to allow
attachment of the provided key ring.
It is important that any replacement
ignition keys have a small hole. See
your dealer if a replacement key is
required.

Black plate (3,1)GMC 2015i Yukon/Yukon XL Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-8431503) - 2015 - crc - 8/11/14
Keys, Doors, and Windows 2-3
The combination and size of the
rings that came with your keys were
specifically selected for your
vehicle. The rings are connected to
the key like two links of a chain to
reduce the risk of unintentionally
moving the key out of the RUN
position. Do not add any additional
items to the ring attached to the
ignition key. Attach additional items
only to the second ring, and limit
added items to a few essential keys
or small, light items no larger than
an RKE transmitter.The key is used for the driver door,
ignition, and glove box.
Programming Keys
Follow these procedures to program
up to eight keys to the vehicle.
Programming with a Recognized
Key (Key Vehicles Only)
To program a new key:
1. Insert the original, alreadyprogrammed key in the ignition
and turn the key to the ON/RUN
position.
2. Turn the key to LOCK/OFF, and remove the key.
3. Insert the new key to be programmed and turn it to the
ON/RUN position within
five seconds.
The security light will turn off
once the key has been
programmed.
4. Repeat Steps 1–3 if additional keys are to be programmed. If a key is lost or damaged, see your
dealer to have a new key made.
Programming without a
Recognized Key (Key
Vehicles Only)
Program a new key to the vehicle
when a recognized key is not
available. Canadian regulations
require that Canadian owners see
their dealer.
If there are no currently recognized
keys available, follow this procedure
to program the first key.
This procedure will take
approximately 30 minutes to
complete for the first key. The
vehicle must be off and all of the
keys must be with you.
1. Insert the new vehicle key into
the ignition.
2. Turn to ON/RUN. The security light will come on.
3. Wait 10 minutes until the security light turns off.
4. Turn the ignition to LOCK/OFF.

Black plate (4,1)GMC 2015i Yukon/Yukon XL Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-8431503) - 2015 - crc - 8/11/14

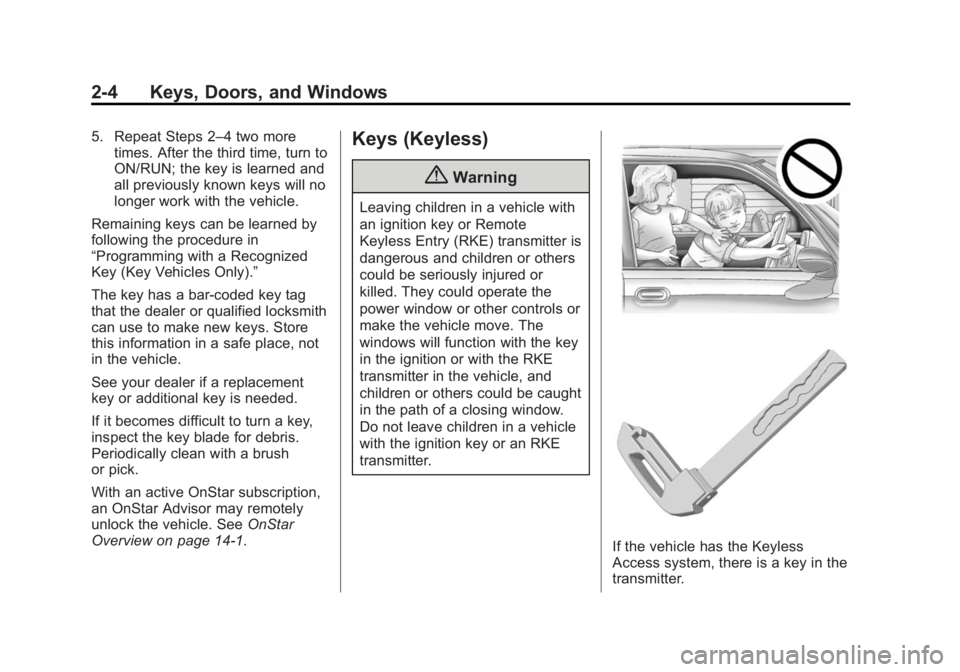

2-4 Keys, Doors, and Windows
5. Repeat Steps 2–4 two moretimes. After the third time, turn to
ON/RUN; the key is learned and
all previously known keys will no
longer work with the vehicle.
Remaining keys can be learned by
following the procedure in
“Programming with a Recognized
Key (Key Vehicles Only).”
The key has a bar-coded key tag
that the dealer or qualified locksmith
can use to make new keys. Store
this information in a safe place, not
in the vehicle.
See your dealer if a replacement
key or additional key is needed.
If it becomes difficult to turn a key,
inspect the key blade for debris.
Periodically clean with a brush
or pick.
With an active OnStar subscription,
an OnStar Advisor may remotely
unlock the vehicle. See OnStar
Overview on page 14-1.Keys (Keyless)
{Warning
Leaving children in a vehicle with
an ignition key or Remote
Keyless Entry (RKE) transmitter is
dangerous and children or others
could be seriously injured or
killed. They could operate the
power window or other controls or
make the vehicle move. The
windows will function with the key
in the ignition or with the RKE
transmitter in the vehicle, and
children or others could be caught
in the path of a closing window.
Do not leave children in a vehicle
with the ignition key or an RKE
transmitter.
If the vehicle has the Keyless
Access system, there is a key in the
transmitter.

Black plate (5,1)GMC 2015i Yukon/Yukon XL Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-8431503) - 2015 - crc - 8/11/14
Keys, Doors, and Windows 2-5
This key is used for the driver door
and glove box.
If the vehicle has the Keyless
Access system, the transmitter has
a button on the side of the
transmitter used to remove the key.
Do not pull the key out without
pressing the button.
See your dealer if a replacement
key or additional key is needed.
If it becomes difficult to turn a key,
inspect the key blade for debris.
Periodically clean with a brush
or pick.With an active OnStar subscription,
an OnStar Advisor may remotely
unlock the vehicle. See
OnStar
Overview on page 14-1.
Remote Keyless Entry
(RKE) System
See Radio Frequency Statement on
page 13-12.
If there is a decrease in the RKE
operating range:
.Check the distance. The
transmitter may be too far from
the vehicle.
.Check the location. Other
vehicles or objects may be
blocking the signal.
.Check the transmitter's battery.
See “Battery Replacement” later
in this section.
.If the transmitter is still not
working correctly, see your
dealer or a qualified technician
for service.
Remote Keyless Entry
(RKE) System
Operation (Key)
The RKE transmitter functions may
work up to 60 m (197 ft) away from
the vehicle.
Other conditions can affect the
performance of the transmitter. See
Remote Keyless Entry (RKE)
System on page 2-5.

Black plate (6,1)GMC 2015i Yukon/Yukon XL Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-8431503) - 2015 - crc - 8/11/14
2-6 Keys, Doors, and Windows
With Remote Start (withoutRemote Start Similar)
/(Remote Vehicle Start):
If equipped, press and release
Q,
then immediately press and hold
/
until the turn signal flash or for at
least four seconds. The engine may
be started from outside the vehicle
using the RKE transmitter. See
Remote Vehicle Start on page 2-15.
Q(Lock): Press to lock all doors.
If enabled through the Driver
Information Center (DIC), the turn
signal lamps flash once to indicate locking has occurred. If enabled
through the DIC, the horn chirps
when
Qis pressed again within
three seconds. See Vehicle
Personalization on page 5-44.
Pressing
Qarms the alarm system.
See Vehicle Alarm System on
page 2-24.
If equipped with auto mirror folding,
pressing and holding
Qfor
one second will fold the mirrors. The
auto mirror folding feature will not
operate unless it is enabled. See
Vehicle Personalization on
page 5-44.
K(Unlock): Press once to unlock
only the driver door. If
Kis pressed
again within three seconds, all
remaining doors unlock. The interior
lamps may come on and stay on for
20 seconds or until the ignition is
turned on.
If enabled through the DIC, the turn
signal lamps flash twice to indicate
unlocking has occurred. See Vehicle
Personalization on page 5-44. If enabled through the DIC, the
exterior lamps may turn on. See
Vehicle Personalization on
page 5-44.
If equipped, memory seat positions
may be recalled when unlocking the
vehicle if enabled. See
Vehicle
Personalization on page 5-44 and
Memory Seats on page 3-5.
Pressing
Kon the RKE transmitter
disarms the alarm system. See
Vehicle Alarm System on
page 2-24.
If equipped with auto mirror folding,
pressing and holding
Kfor
one second will unfold the mirrors.
The auto mirror folding feature will
not operate unless it is enabled.
See Vehicle Personalization on
page 5-44.
b(Liftgate): Press twice to open
or close the liftgate. Press once to
stop the liftgate from moving.
c(Liftglass): Press twice to open
the liftglass.

Black plate (7,1)GMC 2015i Yukon/Yukon XL Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-8431503) - 2015 - crc - 8/11/14

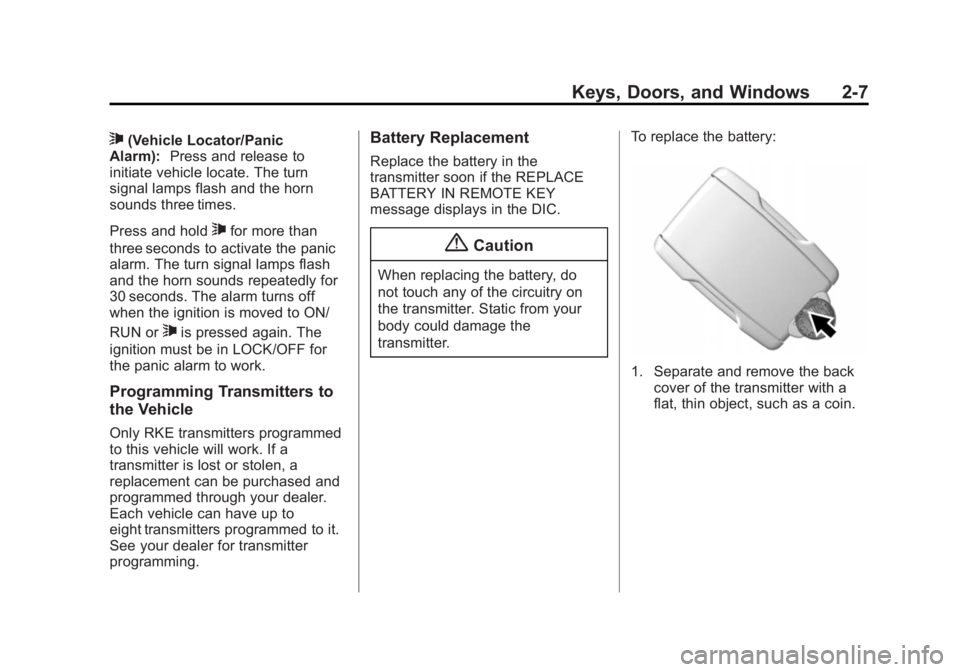

Keys, Doors, and Windows 2-7
7(Vehicle Locator/Panic
Alarm): Press and release to
initiate vehicle locate. The turn
signal lamps flash and the horn
sounds three times.
Press and hold
7for more than
three seconds to activate the panic
alarm. The turn signal lamps flash
and the horn sounds repeatedly for
30 seconds. The alarm turns off
when the ignition is moved to ON/
RUN or
7is pressed again. The
ignition must be in LOCK/OFF for
the panic alarm to work.
Programming Transmitters to
the Vehicle
Only RKE transmitters programmed
to this vehicle will work. If a
transmitter is lost or stolen, a
replacement can be purchased and
programmed through your dealer.
Each vehicle can have up to
eight transmitters programmed to it.
See your dealer for transmitter
programming.
Battery Replacement
Replace the battery in the
transmitter soon if the REPLACE
BATTERY IN REMOTE KEY
message displays in the DIC.
{Caution
When replacing the battery, do
not touch any of the circuitry on
the transmitter. Static from your
body could damage the
transmitter. To replace the battery:
1. Separate and remove the back
cover of the transmitter with a
flat, thin object, such as a coin.
