2015 FORD FUSION (AMERICAS) Owners Manual

Protected components
Fuse amp rating
Fuse or relay number
Not used.
—
46
Not used.
—
47
Not used.
—
48
Keep alive power.
10A 1
49
Horn.
20A 1
50
Not used.
—
51
Not used.
—
52
Power seats.
10A 1
53
Brake on off switch.
10A 2
54
ALT sensor.
10A 2
55
1 Micro fuse.
2 Dual micro fuse.
3 M-type fuse.
Power Distribution Box - Bottom
There are fuses located on the bottom of
the fuse box. To access the bottom of the
fuse box, do the following:
238
Fusion/Mondeo (CC7), enUSA Fuses

1. Release the two latches, located on
both sides of the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse box
to access the bottom side.
239
Fusion/Mondeo (CC7), enUSA FusesE145983

Protected components
Fuse amp rating
Fuse or relay number
Not used.
—
56
Diesel vaporizer or E100.
30A 1
57
Fuel pump feed.
30A 1
58
500W Electronic fan 3.
30A 2
59
500W Electronic fan 1.
30A 2
60
Not used.
—
61
Body control module 1.
50A 2
62
500W Electronic fan 2.
20A 1
63
Not used (spare).
30A 1
64
Front heated seat.
20A 1
65
240
Fusion/Mondeo (CC7), enUSA FusesE144949

Protected components
Fuse amp rating
Fuse or relay number
Not used.
—
66
Body control module 2.
50A 2
67
Heated rear window.
40A 1
68
Anti-lock brake system valves.
30A 1
69
Passenger seat.
30A 1
70
Active front steering.
50A 2
71
Trans oil pump.
20A 1
72
Rear heated seats.
20A 1
73
Driver seat module.
30A 1
74
Wiper motor 1.
25A 1
75
Power lift-gate module.
30A 1
76
Climate control seat module.
30A 1
77
Not used (spare).
40A 1
78
—
Blower motor.
40A 2
79
Wiper motor 2.
25A 1
80
110 volt inverter.
40A 1
81
Not used.
–
82
TRCM shifter.
25A 1
83
Starter solenoid.
30A 1
84
Moonroof 2.
30A 1
85
241
Fusion/Mondeo (CC7), enUSA Fuses

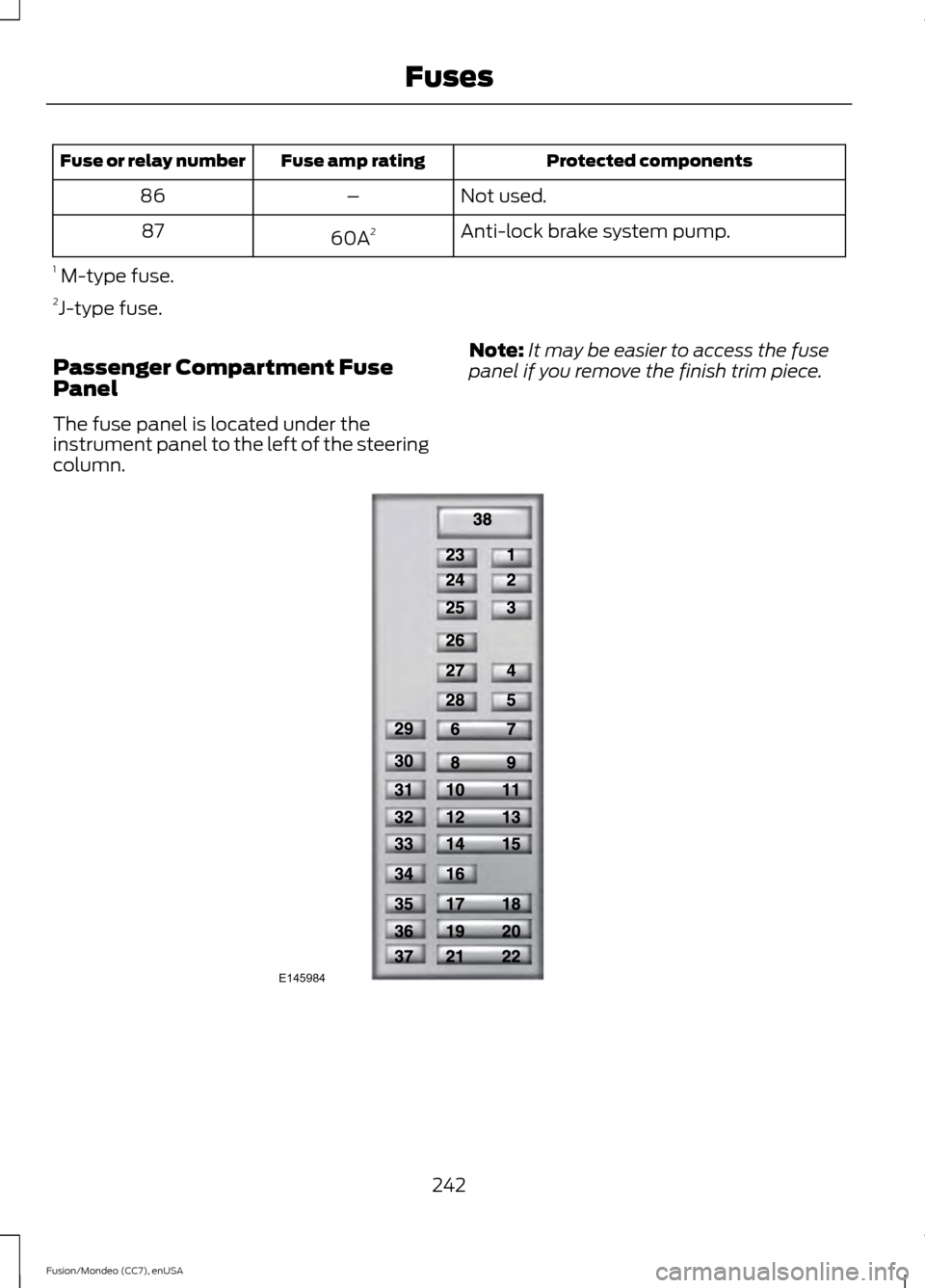

Protected components
Fuse amp rating
Fuse or relay number
Not used.
–
86
Anti-lock brake system pump.
60A 2
87
1 M-type fuse.
2 J-type fuse.
Passenger Compartment Fuse
Panel
The fuse panel is located under the
instrument panel to the left of the steering
column. Note:
It may be easier to access the fuse
panel if you remove the finish trim piece. 242
Fusion/Mondeo (CC7), enUSA FusesE145984

Protected components
Fuse amp rating
Fuse or relay number
Lighting (ambient, glove box, vanity, dome,
trunk).
10A
1
1
Memory seats, lumbar, power mirror.
7.5A 1
2
Driver door unlock.
20A 1
3
Not used (spare).
5A 1
4
Subwoofer amplifier.
20A 1
5
Heated seat relay coil.
10A 2
6
Not used (spare).
10A 2
7
Not used (spare).
10A 2
8
Not used (spare).
10A 2
9
Keypad.
5A 2
10
Power decklid module.
Not used.
5A 2
11
Climate control.
7.5A 2
12
Steering wheel column lock.
7.5A 2
13
Cluster.
Datelink logic.
Not used.
10A 2
14
Datalink gateway module.
10A 2
15
Child lock.
15A 1
16
Decklid-liftglass release.
Not used (spare).
5A 2
17
Ignition.
5A 2
18
Push button stop start switch.
Passenger airbag disabled indicator.
5A 2
19
Transmission range
243
Fusion/Mondeo (CC7), enUSA Fuses

Protected components
Fuse amp rating
Fuse or relay number
Not used (spare).
5A 2
20
Humidity and in–car temperature sensor.
5A 2
21
Blind spot information system.
Rear video camera.
Adaptive cruise control.
Occupant classification sensor.
5A 2
22
Delayed accessory (power inverter logic,
moonroof logic).
10A
1
23
Central lock unlock.
20A 1
24
Driver door (window, mirror).
30A 1
25
Front passenger door (window, mirror).
30A 1
26
Moonroof.
30A 1
27
Amplifier.
20A 1
28
Rear driver side door (window).
30A 1
29
Rear passenger side door (window).
30A 1
30
Spare.
–
31
Global positioning system.
10A 1
32
Display.
Voice control.
Adaptive cruise control.
Radio frequency receiver.
Radio.
20A 1
33
Run-start bus (fuse 19, 20, 21, 22, 35, 36,
37, circuit breaker).
30A
1
34
Restraints control module.
5A 1
35
Auto-dimming rear view mirror.
15A 1
36
Heated seat.
All-wheel drive.
244
Fusion/Mondeo (CC7), enUSA Fuses

Protected components
Fuse amp rating
Fuse or relay number
Voltage stability module logic power.
15A 1
37
Not used (spare).
30A
38
1 Micro fuse.
2 Dual micro fuse.
CHANGING A FUSE
Fuses WARNING
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. A
break in the fuse wire will indicate a blown
fuse. Check the appropriate fuses before
replacing any electrical components.
245
Fusion/Mondeo (CC7), enUSA FusesE142430
