2015 FORD FIESTA fuse box

FUSE SPECIFICATION CHART
Engine Compartment Fuse Box
4-door and 5-door
168
Fiesta (CCT), enUSA, Second Printing FusesE78332 E156752

Circuits protected
Fuse rating
Fuse
Stability assist.
60 A
1 Anti-lock brake system. 1
40 A
Transmission control module.
40 A
2
Cooling fan.
40 A
3 Cooling fan module.3
60 A
Blower motor.
40 A
4
Passenger compartment fuse box supply.
60 A
5
Central locking system.
30 A
6
Ignition switch.
60 A
7
Powertrain control module.
60 A
8
Stability assist module.
40 A
9
Engine start inhibitor.
30 A
10
Fuel system.
30 A
11
Power windows.
60 A
12
High-speed cooling fan. 2
60 A
13
Not used.
-
14
Not used.
-
15
Not used.
-
16
High beam.
20 A
17
Powertrain control module.
15 A
18
Front fog lamps.
20 A
19
Emissions system.
15 A
20
High beam.
7.5 A
21
Ignition coil.
15 A
22 Ignition coil.3
20 A
169
Fiesta (CCT), enUSA, Second Printing Fuses

Circuits switched
Relay
Not used.
R14
Not used.
R15
1 If equipped.
2 1.0L and 1.6L EcoBoost.
3 6-Speed PowerShift Transmission.
Passenger Compartment Fuse Box
This fuse box is located behind the glove
box. Open the glove box and empty the
contents. Press the sides inwards and
swivel the glove box downward.
172
Fiesta (CCT), enUSA, Second Printing Fuses

UNDER HOOD OVERVIEW - 1.0L ECOBOOST™
Engine coolant reservoir
*
: See Engine Coolant Check (page 183).
A
Engine oil filler cap *
:
See Engine Oil Check (page 182).
B
Battery:
See Changing the 12V Battery (page 186).
C
Brake and clutch fluid reservoir *
:
See Brake Fluid Check (page 186).
D
Engine compartment fuse box:
E
Windshield and rear window washer fluid reservoir:
See Washer Fluid Check
(page 186).
F
Air cleaner:
See Changing the Engine Air Filter (page 199).
G
Engine oil dipstick *
:
See Engine Oil Check (page 182).
H
* The filler caps and the engine oil dipstick are colored for easy identification.
179
Fiesta (CCT), enUSA, Second Printing MaintenanceE163005
ABCD
EGHF

UNDER HOOD OVERVIEW - 1.6L DURATEC-16V TI-VCT (SIGMA)
Engine coolant reservoir
*
: See Engine Coolant Check (page 183).
A
Engine oil filler cap *
:
See Engine Oil Check (page 182).
B
Battery:
See Changing the 12V Battery (page 186).
C
Brake and clutch fluid reservoir :
See Brake Fluid Check (page 186).
D
Engine compartment fuse box:
E
Windshield and rear window washer fluid reservoir:
See Washer Fluid Check
(page 186).
F
Air cleaner:
See Changing the Engine Air Filter (page 199).
G
Engine oil dipstick *
:
See Engine Oil Check (page 182).
H
* The filler caps and the engine oil dipstick are colored for easy identification.
180
Fiesta (CCT), enUSA, Second Printing MaintenanceE163006
ABCD
HGFE

UNDER HOOD OVERVIEW - 1.6L ECOBOOST™
Engine coolant reservoir
*
: See Engine Coolant Check (page 183).
A
Engine oil filler cap *
:
See Engine Oil Check (page 182).
B
Engine oil dipstick *
:
See Engine Oil Check (page 182).
C
Battery:
See Changing the 12V Battery (page 186).
D
Brake and clutch fluid reservoir *
:
See Brake Fluid Check (page 186).
E
Engine compartment fuse box:
F
Windshield and rear window washer fluid reservoir:
See Washer Fluid Check
(page 186).
G
Air cleaner:
See Changing the Engine Air Filter (page 199).
H
* The filler caps and the engine oil dipstick are colored for easy identification.
181
Fiesta (CCT), enUSA, Second Printing MaintenanceABCD
FGH
E
E163007

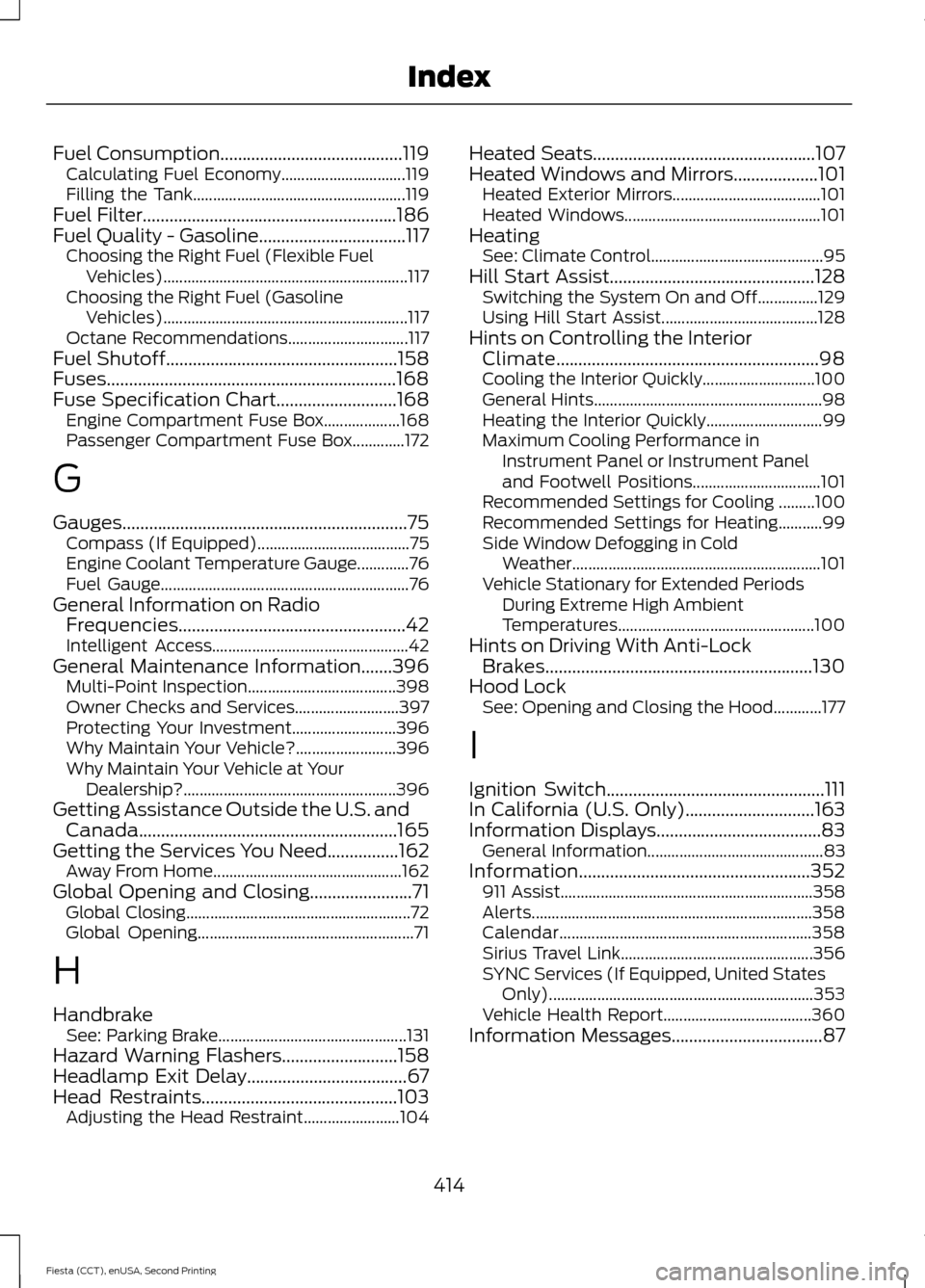

Fuel Consumption.........................................119
Calculating Fuel Economy............................... 119
Filling the Tank..................................................... 119
Fuel Filter.........................................................186
Fuel Quality - Gasoline.................................117
Choosing the Right Fuel (Flexible Fuel
Vehicles)............................................................. 117
Choosing the Right Fuel (Gasoline Vehicles)............................................................. 117
Octane Recommendations.............................. 117
Fuel Shutoff
....................................................158
Fuses.................................................................168
Fuse Specification Chart
...........................168
Engine Compartment Fuse Box................... 168
Passenger Compartment Fuse Box.............172
G
Gauges................................................................75 Compass (If Equipped)...................................... 75
Engine Coolant Temperature Gauge.............76
Fuel Gauge.............................................................. 76
General Information on Radio Frequencies...................................................42
Intelligent Access................................................. 42
General Maintenance Information.......396 Multi-Point Inspection..................................... 398
Owner Checks and Services.......................... 397
Protecting Your Investment.......................... 396
Why Maintain Your Vehicle?......................... 396
Why Maintain Your Vehicle at Your Dealership?..................................................... 396
Getting Assistance Outside the U.S. and Canada..........................................................165
Getting the Services You Need................162 Away From Home............................................... 162
Global Opening and Closing.......................71 Global Closing........................................................ 72
Global Opening...................................................... 71
H
Handbrake See: Parking Brake............................................... 131
Hazard Warning Flashers..........................158
Headlamp Exit Delay....................................67
Head Restraints............................................103 Adjusting the Head Restraint........................ 104Heated Seats..................................................107
Heated Windows and Mirrors...................101
Heated Exterior Mirrors..................................... 101
Heated Windows................................................. 101
Heating See: Climate Control........................................... 95
Hill Start Assist..............................................128 Switching the System On and Off...............129
Using Hill Start Assist....................................... 128
Hints on Controlling the Interior Climate
...........................................................98
Cooling the Interior Quickly............................ 100
General Hints......................................................... 98
Heating the Interior Quickly............................. 99
Maximum Cooling Performance in Instrument Panel or Instrument Panel
and Footwell Positions................................ 101
Recommended Settings for Cooling .........100
Recommended Settings for Heating...........99
Side Window Defogging in Cold Weather.............................................................. 101
Vehicle Stationary for Extended Periods During Extreme High Ambient
Temperatures................................................. 100
Hints on Driving With Anti-Lock Brakes............................................................130
Hood Lock See: Opening and Closing the Hood............177
I
Ignition Switch
.................................................111
In California (U.S. Only).............................163
Information Displays.....................................83 General Information............................................ 83
Information....................................................352 911 Assist............................................................... 358
Alerts...................................................................... 358
Calendar............................................................... 358
Sirius Travel Link................................................ 356
SYNC Services (If Equipped, United States Only).................................................................. 353
Vehicle Health Report..................................... 360
Information Messages
..................................87
414
Fiesta (CCT), enUSA, Second Printing Index
