Opening and Closing the Hood.............209
Under Hood Overview - Hybrid Electric
Vehicle (HEV)............................................210
Under Hood Overview -
Plug-In Hybrid
Electric Vehicle (PHEV)..........................212
Engine Oil Dipstick........................................213
Engine Oil Check...........................................213
Engine Coolant Check
................................214
Automatic Transmission Fluid Check............................................................218
Brake Fluid Check.........................................218
Power Steering Fluid Check......................218
Washer Fluid Check
.....................................218
Fuel Filter.........................................................218
Changing the 12V Battery..........................219
Checking the Wiper Blades.....................220
Changing the Wiper Blades.....................220
Adjusting the Headlamps
.........................222
Removing a Headlamp..............................223
Changing a Bulb...........................................223
Bulb Specification Chart...........................228
Changing the Engine Air Filter................230
Vehicle Care
General Information
...................................233
Cleaning Products.......................................233
Cleaning the Exterior..................................233
Waxing.............................................................234
Cleaning the Engine....................................234
Cleaning the Windows and Wiper Blades..........................................................235
Cleaning the Interior
...................................235
Cleaning the Instrument Panel and Instrument Cluster Lens........................235
Cleaning Leather Seats.............................236
Repairing Minor Paint Damage...............237
Cleaning the Alloy Wheels
........................237
Vehicle Storage.............................................237 Wheels and Tires
Temporary Mobility Kit..............................240
Tire Care
..........................................................246
Using Snow Chains....................................260
Tire Pressure Monitoring System..........260
Technical Specifications
...........................264
Capacities and Specific- ations
Engine Specifications................................266
Motorcraft Parts...........................................267
Vehicle Identification Number
...............268
Vehicle Certification Label.......................268
Transmission Code Designation
............269
Capacities and Specifications................270
Audio System
General Information....................................273
Audio Unit -
Vehicles With: SYNC/AM/
FM/CD..........................................................274
Audio Unit - Vehicles With: Premium AM/ FM/
CD..........................................................276
Audio Unit - Vehicles With: Sony AM/FM/ CD..................................................................278
Digital Radio
...................................................281
Satellite Radio..............................................283
Audio Input Jack..........................................286
USB Port
.........................................................286
Media Hub
......................................................287
SYNC™
General Information
...................................288
Using Voice Recognition...........................290
Using SYNC™ With Your Phone............292
SYNC™ Applications and Services......303
Using SYNC™ With Your Media Player............................................................310
SYNC™ Troubleshooting..........................318
4
C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review Table of Contents

GENERAL INFORMATION ON
RADIO FREQUENCIES
This device complies with Part 15 of the
FCC Rules and with Industry Canada
license-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference received,
including interference that may cause
undesired operation.
Note:
Changes or modifications not
expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term IC before the radio certification
number only signifies that Industry Canada
technical specifications were met.
The typical operating range for your
transmitter is approximately 33 feet (10
meters). Vehicles with the remote start
feature will have a greater range. One of
the following could cause a decrease in
operating range:
• Weather conditions.
• Nearby radio towers.
• Structures around the vehicle.
• Other vehicles parked next to your
vehicle.
The radio frequency used by your remote
control can also be used by other short
distance radio transmissions, for example
amateur radios, medical equipment,
wireless headphones, remote controls and
alarm systems. If the frequencies are
jammed, you will not be able to use your
remote control. You can lock and unlock
the doors with the key.
Note: Make sure to lock your vehicle before
leaving it unattended.
Note: If you are in range, the remote control
will operate if you press any button
unintentionally. Intelligent Access
(If Equipped)
The system uses a radio frequency signal
to communicate with your vehicle and
authorize your vehicle to unlock when one
of the following conditions are met:
• You activate the front exterior door
handle switch.
• You press the luggage compartment
button.
• You press a button on the transmitter.
If excessive radio frequency interference
is present in the area or if the transmitter
battery is low, you may need to
mechanically unlock your door. You can
use the mechanical key blade in your
intelligent access key to open the driver
door in this situation. See
Remote
Control (page 43).
REMOTE CONTROL
Integrated Keyhead Transmitters
(If Equipped) Use the key blade to start your vehicle and
unlock or lock the driver door from outside
your vehicle. The transmitter portion
functions as the remote control.
43
C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review Keys and Remote ControlsE142585

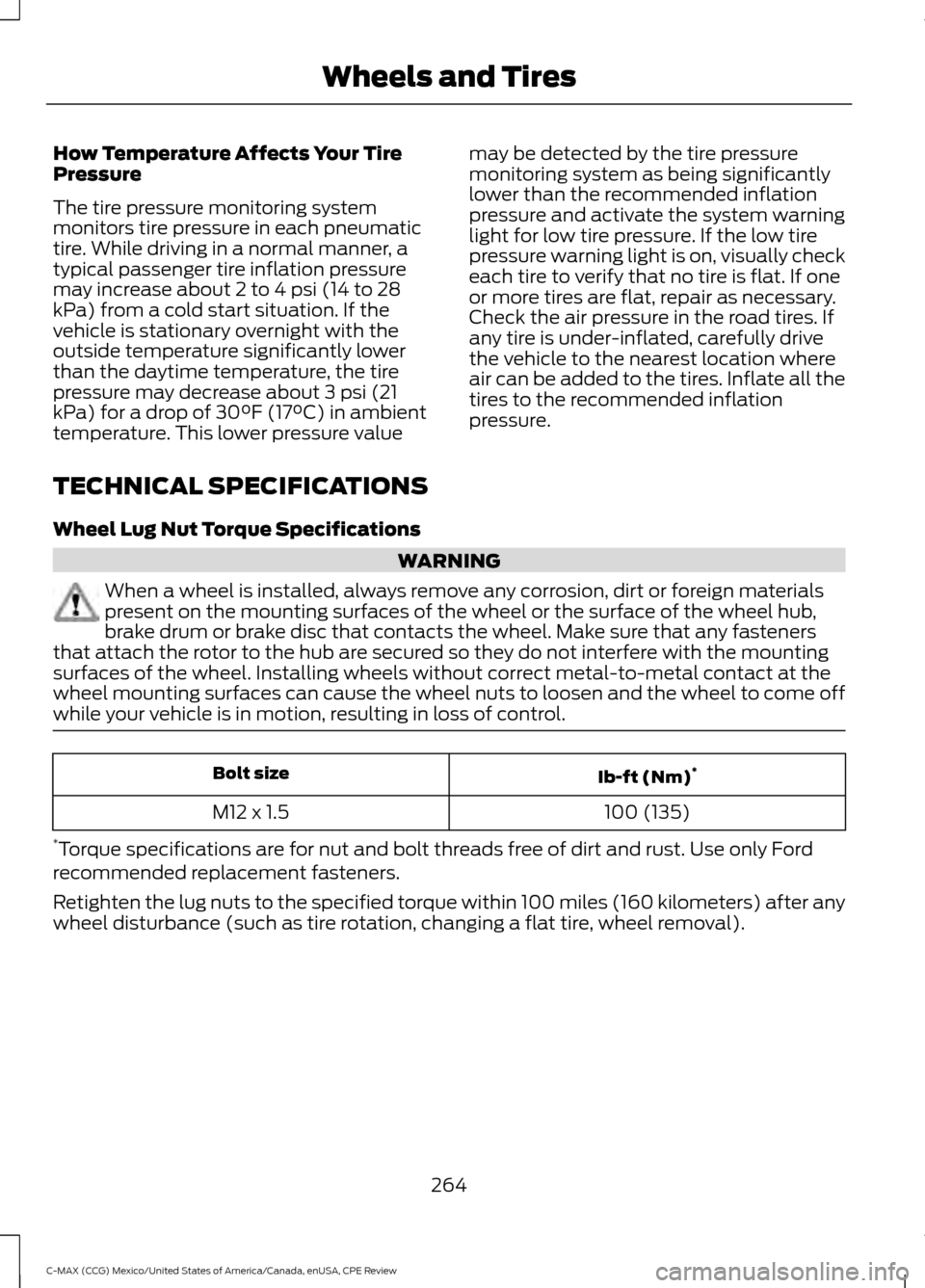

How Temperature Affects Your Tire
Pressure
The tire pressure monitoring system
monitors tire pressure in each pneumatic
tire. While driving in a normal manner, a
typical passenger tire inflation pressure
may increase about 2 to 4 psi (14 to 28
kPa) from a cold start situation. If the
vehicle is stationary overnight with the
outside temperature significantly lower
than the daytime temperature, the tire
pressure may decrease about 3 psi (21
kPa) for a drop of 30°F (17°C) in ambient
temperature. This lower pressure value
may be detected by the tire pressure
monitoring system as being significantly
lower than the recommended inflation
pressure and activate the system warning
light for low tire pressure. If the low tire
pressure warning light is on, visually check
each tire to verify that no tire is flat. If one
or more tires are flat, repair as necessary.
Check the air pressure in the road tires. If
any tire is under-inflated, carefully drive
the vehicle to the nearest location where
air can be added to the tires. Inflate all the
tires to the recommended inflation
pressure.
TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications WARNING
When a wheel is installed, always remove any corrosion, dirt or foreign materials
present on the mounting surfaces of the wheel or the surface of the wheel hub,
brake drum or brake disc that contacts the wheel. Make sure that any fasteners
that attach the rotor to the hub are secured so they do not interfere with the mounting
surfaces of the wheel. Installing wheels without correct metal-to-metal contact at the
wheel mounting surfaces can cause the wheel nuts to loosen and the wheel to come off
while your vehicle is in motion, resulting in loss of control. Ib-ft (Nm)
*
Bolt size
100 (135)
M12 x 1.5
* Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford
recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any
wheel disturbance (such as tire rotation, changing a flat tire, wheel removal).
264
