2015 FORD C MAX HYBRID remote start

HomeLink Wireless Control
System (If Equipped)
WARNING
Do not use the system with any
garage door opener that does not
have the safety stop and reverse
feature as required by U.S. Federal Safety
Standards (this includes any garage door
opener manufactured before April 1, 1982).
A garage door opener which cannot detect
an object, signaling the door to stop and
reverse, does not meet current federal
safety standards. Using a garage door
opener without these features increases
the risk of serious injury or death. Note:
Make sure that the garage door and
security device are free from obstruction
when you are programming. Do not program
the system with the vehicle in the garage.
Note: Make sure you keep the original
remote control transmitter for use in other
vehicles as well as for future system
programming.
Note: We recommend that upon the sale
or lease termination of your vehicle, you
erase the programmed function buttons for
security reasons. See Erasing the function
button codes later in this section.
Note: You can program a maximum of
three devices. To change or replace any of
the three devices after it has been initially
programmed, you must first erase the
current settings. See Erasing the function
button codes later in this section. The universal garage door opener replaces
the common hand-held garage door
opener with a three-button transmitter
that is integrated into the driver
’s sun visor.
The system includes two primary features,
a garage door opener and a platform for
remote activation of devices within the
home. As well as being programmed for
garage doors, the system transmitter can
be programmed to operate entry gate
operators, security systems, entry door
locks and home or office lighting.
Additional system information can be
found online at www.homelink.com or by
calling the toll-free help line on
1-800-355-3515.
In-vehicle programming
This process is to program your hand-held
transmitter and your in-vehicle HomeLink
button.
Note: Put a new battery in the hand-held
transmitter. This will ensure quicker training
and accurate transmission of the
radio-frequency signal. 1.
With your vehicle parked outside of the
garage, turn your ignition to the
on
position, but do not start your vehicle.
2. Hold your hand-held garage door transmitter 1– 3 inches (2–8
centimeters) away from the HomeLink
button you want to program.
116
C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review Universal Garage Door OpenerE142657 E142658

Note:
The green ready indicator illuminates
letting you know that the vehicle is ready
for driving. Since your vehicle is equipped
with a silent key start, the engine may not
start at the time of the vehicle start. See
Hybrid Electric Vehicle (page 128).
The system does not function if:
• The key frequencies are jammed.
• The key battery has no charge.
If you are unable to start the vehicle, do
the following:
3-button remote 5-button remote
1. Hold the key next to the steering
column as shown. 2. With the key in this position, you can
use the start button to switch the
ignition on and start your vehicle.
Fast Restart
The fast restart feature allows you to
restart the vehicle within 20 seconds of
switching it off, even if a valid key is not
present.
Within 20 seconds of switching the vehicle
off, press the brake pedal and press the
button. After 20 seconds have expired, you
can no longer restart the vehicle without
the key present inside your vehicle.
Once the vehicle has started, it remains
running until you press the button, even if
the system does not detect a valid key. If
you open and close a door while the vehicle
is running, the system searches for a valid
key. You cannot restart the vehicle if the
system does not detect a valid key within
20 seconds.
Switching Off the Vehicle When It
Is Stationary
Vehicles with an Ignition Key
1. Move the transmission selector lever to position
P.
2. Turn the key to position
0.
3. Apply the parking brake.
Vehicles with Keyless Start
1. Move the transmission selector lever to position
P.
2. Press the button once.
3. Apply the parking brake.
Note: This switches off the ignition, all
electrical circuits, warning lamps and
indicators.
125
C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review Starting and Stopping the EngineE145988 E142874

Canadian roadside coverage and benefits
may differ from the U.S. coverage. If you
require more information, please refer to
the coverage section of your warranty
guide, call us in Canada at
1-800-665-2006, or visit our website at
www.ford.ca.
Sykes Assistance Services Corporation
administers the Roadside Assistance
program. You must receive covered
services in Canada or the continental
United States. Coverage extends to
vehicles that use public, non-seasonal,
annually traveled roadways. Roadside
Assistance coverage does not extend to
vehicles involved in cross-country driving,
logging, autocross and any other form of
off-road use. Well maintained roads and
surfaces help ensure safe travel for the
supplier, and allow their representatives
to perform service as per the standard
operating procedures.
In Remote Locations
If our supplier cannot take your vehicle by
road to the nearest authorized dealership,
transportation by rail or water may be
necessary. The program covers a tow to
the dock or rail terminal and also to the
dealership at the end of the trip.
For rail or water transportation, however,
contact your authorized dealer to confirm
if you are eligible for additional coverage
before you authorize or pay for the service.
Call the Ford Roadside Assistance at
1-800-665-2006 for additional
information.
HAZARD WARNING FLASHERS
Note:
If used when the vehicle is not
running, the battery will lose charge. There
may be insufficient power to restart your
vehicle. The hazard warning button is
located on the instrument panel.
Use it when your vehicle is
creating a safety hazard for other
motorists.
• Press the button to turn on the hazard
warning function, and the front and
rear direction indicators will flash.
• Press the button again to turn them
off.
FUEL SHUTOFF WARNING
Failure to inspect and, if necessary,
repair fuel leaks after a collision may
increase the risk of fire and serious
injury. Ford Motor Company recommends
that the fuel system be inspected by an
authorized dealer after any collision. In the event of a moderate to severe
collision, this vehicle has a fuel pump
shut-off feature that stops the flow of fuel
to the engine. Not every impact will cause
a shut-off.
Should your vehicle shut off after a
collision, you may restart your vehicle.
For vehicles equipped with a key system:
1. Switch off the ignition.
2. Switch on the ignition.
3. Check the information display for the
Ready to Drive light as the gasoline
engine may not start, but the electric
motor may be running. If you do not see
the Ready to Drive light, repeat Steps
1 and 2 up to two more times.
For vehicles equipped with a push button
start system:
1. Press the push button start to switch off the ignition.
187
C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review Roadside Emergencies

Protected components
Fuse amp rating
Fuse or relay number
Reversing lamp supply.
10A
F76
Washer pump.
20A
F77
Ignition switch, Start button.
5A
F78
Radio.
15A
F79
Hazard light switch.
Not used (spare).
20A
F80
Power sun shade.
5A
F81
Remote receiver antenna.
Washer pump ground.
20A
F82
Central locking ground.
20A
F83
Drive door unlock ground.
20A
F84
Electronic 15 feed.
7.5A
F85
Restraints control module.
10A
F86
Passenger air bag deactivation indicator.
Not used (spare).
15A
F87
Not used (spare).
25A
F88
Not used.
—
F89
Luggage Compartment Fuse Panel
The fuse panel is located in the luggage
compartment behind the left side wheel
well. Remove the fuse panel cover to gain
access to the fuses.
205
C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review Fuses

For a complete listing of the accessories
that are available for your vehicle, please
contact an authorized dealer or visit our
online store at www.Accessories.Ford.com
(United States only).
Ford Motor Company will repair or replace
any properly authorized dealer-installed
Ford Custom Accessory found to be
defective in factory-supplied materials or
workmanship during the warranty period,
as well as any component damaged by the
defective accessories.
Ford Motor Company will warrant your
vehicle's accessory through the warranty
that provides the greatest benefit:
•
24 months, unlimted mileage.
• The remainder of your new vehicle
limited warranty.
Contact an authorized dealer for details
and a copy of the warranty.
Exterior style
• Hood deflector*.
• Side window deflectors.
• Splash guards.
• Custom graphics*.
Interior style
• Floor mats.
• Accent lighting.
• Cargo area protector.
Lifestyle
• Ash cup or smoker's packages.
• Soft cargo organizers.
• Cargo net*.
• Roof racks and carriers*.
Peace of mind
• Keyless entry keypad.
• Remote start. •
Vehicle security systems.
• Wheel locks.
• Bumper-mounted parking assist
system*.
• Rear bumper protector.
• Car covers.
• Charge cord storage bag*.
*Ford Licensed Accessory. The accessory
manufacturer designs, develops and
therefore warrants Ford Licensed
Accessories, and does not design or test
these accessories to Ford Motor Company
engineering requirements. Contact an
authorized Ford dealer for the
manufacturer's limited warranty details,
and request a copy of the Ford Licensed
Accessories product limited warranty from
the accessory manufacturer.
For maximum vehicle performance, keep
the following information in mind when
adding accessories or equipment to your
vehicle:
• When adding accessories, equipment,
passengers and luggage to your
vehicle, do not exceed the total weight
capacity of the vehicle or of the front
or rear axle (GVWR or GAWR as
indicated on the Safety Compliance
Certification label). Ask an authorized
dealer for specific weight information.
• The Federal Communications
Commission (FCC) and Canadian
Radio Telecommunications
Commission (CRTC) regulate the use
of mobile communications systems
that are equipped with radio
transmitters, for example, two-way
radios, telephones and theft alarms.
Any such equipment installed in your
vehicle should comply with Federal
Communications Commission (FCC)
and Canadian Radio
Telecommunications Commission
(CRTC) regulations and should be
installed only by an authorized dealer.
407
C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review Accessories

Information....................................................379
911 Assist............................................................... 385
Alerts...................................................................... 385
Calendar............................................................... 385
Sirius Travel Link................................................ 383
SYNC Services (If Equipped, United States Only)................................................................. 380
Vehicle Health Report (If Equipped, United States Only).................................................... 387
Where Am I?....................................................... 388
Information Messages..................................97 AdvanceTrac®....................................................... 97
Alarm........................................................................\
. 97
Battery and Charging System (High Voltage).............................................................. 98
Doors........................................................................\
98
Fuel........................................................................\
.... 99
Hill Start Assist..................................................... 99
Keys and Intelligent Access............................. 99
Maintenance........................................................ 100
MyKey...................................................................... 101
Park Aid.................................................................. 102
Park Brake............................................................. 102
Power Steering.................................................... 102
Remote Start........................................................ 102
Tire Pressure Monitoring System.................103
Transmission........................................................ 103
Installing Child Seats.....................................15 Child Seats............................................................... 15
Using Lap and Shoulder Belts.......................... 16
Using Lower Anchors and Tethers for CHildren (LATCH)............................................ 18
Using Tether Straps............................................. 20
Instrument Cluster.........................................81
Instrument Lighting Dimmer.......................71 Vehicles With Front Fog Lamps....................... 71
Vehicles Without Front Fog Lamps...............72
Interior Lamps
..................................................73
Front Interior Lamp.............................................. 73
Front Interior Lamp - With Panorama Roof....................................................................... 74
Rear Interior Lamp................................................ 74
Interior Mirror
....................................................79
Auto-Dimming Mirror.......................................... 79
Introduction.........................................................7 J
Jump Starting the Vehicle.........................188
Connecting the Jumper Cables..................... 188
Jump Starting...................................................... 190
Preparing Your Vehicle..................................... 188
Removing the Jumper Cables....................... 190
K
Keyless Starting.............................................123 Ignition Modes..................................................... 124
Keys and Remote Controls.........................43
L
Lighting Control..............................................70 Headlamp Flasher............................................... 70
High Beams............................................................ 70
Lighting..............................................................70
Load Carrying
..................................................173
Load Limit........................................................174
Vehicle Loading.................................................... 174
Locking and Unlocking
.................................54
Activating Intelligent Access ........................... 55
Autolock.................................................................. 56
Battery Saver.......................................................... 57
Illuminated Entry................................................... 57
Illuminated Exit...................................................... 57
Mechanical Key..................................................... 55
Opening a Rear Door from Inside................... 55
Power Door Locks................................................ 54
Remote Control.................................................... 54
Smart Unlocks For Integrated Keyhead Transmitter........................................................ 56
Smart Unlocks For Intelligent Access Keys ........................................................................\
........ 56
Locks...................................................................54
Luggage Covers..............................................173 Removing the Shade......................................... 173
M
Maintenance.................................................209 General Information......................................... 209
Manual Liftgate..............................................58 Closing the Liftgate............................................. 58
Opening the Liftgate........................................... 58
447
C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review Index

Rear Under Floor Storage..........................173
Rear View Camera........................................167
Using the Rear View Camera System.........167
Rear View Camera See: Rear View Camera.................................... 167
Rear Window Wiper and Washers..........68 Rear Window Washer......................................... 69
Rear Window Wiper............................................ 68
Refueling..........................................................137 Easy Fuel ™ Capless Fuel System
(Non-Energi Vehicles)................................. 138
Easy Fuel ™ Capless System (Energi
Vehicles Only)................................................. 139
Remote Control..............................................43 Car Finder................................................................ 47
Integrated Keyhead Transmitters .................43
Intelligent Access Key........................................ 44
Remote Start (If Equipped)............................. 47
Replacing the Battery......................................... 45
Sounding a Panic Alarm.................................... 47
Remote Start
.................................................108
Automatic Settings........................................... 108
Removing a Headlamp..............................223
Repairing Minor Paint Damage
...............237
Replacement Parts Recommendation.........................................11
Collision Repairs..................................................... 11
Scheduled Maintenance and Mechanical Repairs................................................................... 11
Warranty on Replacement Parts..................... 12
Replacing a Lost Key or Remote Control............................................................48
Reporting Safety Defects (Canada Only)
..............................................................199
Reporting Safety Defects (U.S. Only)..............................................................198
Roadside Assistance..................................186 Vehicles Sold in Canada: Getting Roadside
Assistance........................................................ 186
Vehicles Sold in Canada: Using Roadside Assistance........................................................ 186
Vehicles Sold in the United States: Getting Roadside Assistance.................................... 186
Vehicles Sold in the United States: Using Roadside Assistance.................................... 186
Roadside Emergencies
..............................186
Running-In See: Breaking-In.................................................. 183Running Out of Fuel
....................................136
Refilling With a Portable Fuel
Container.......................................................... 136
S
Safety Belt Height Adjustment.................29
Safety Belt Minder.........................................30 Belt-Minder™........................................................ 30
Safety Belts......................................................26 Principle of Operation........................................ 26
Safety Belt Warning Lamp and Indicator Chime..............................................................30
Conditions of operation..................................... 30
Safety Canopy ™
............................................40
Safety Precautions.......................................134
Satellite Radio..............................................283 Satellite Radio Electronic Serial Number
(ESN)................................................................ 284
Satellite Radio Reception Factors..............284
SIRIUS® Satellite Radio Service.................284
Troubleshooting................................................. 285
Scheduled Maintenance Record...........436
Scheduled Maintenance
..........................426
Seats.................................................................109
Security..............................................................62
Settings...........................................................335 Clock....................................................................... 336
Display................................................................... 336
Settings................................................................. 338
Sound..................................................................... 337
Vehicle.................................................................... 337
Side Airbags
.....................................................38
Sitting in the Correct Position.................109
Snow Chains See: Using Snow Chains................................. 260
Special Notices................................................12 New Vehicle Limited Warranty......................... 12
Notice to Owners of Pickup Trucks and Utility Type Vehicles........................................ 12
Special Instructions.............................................. 12
Using Your Vehicle as an Ambulance............12
Using Your Vehicle With a Snowplow............12
Special Operating Conditions Scheduled Maintenance...............................................433
Exceptions............................................................ 435
Speed Control See: Cruise Control............................................. 170
449
C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review Index

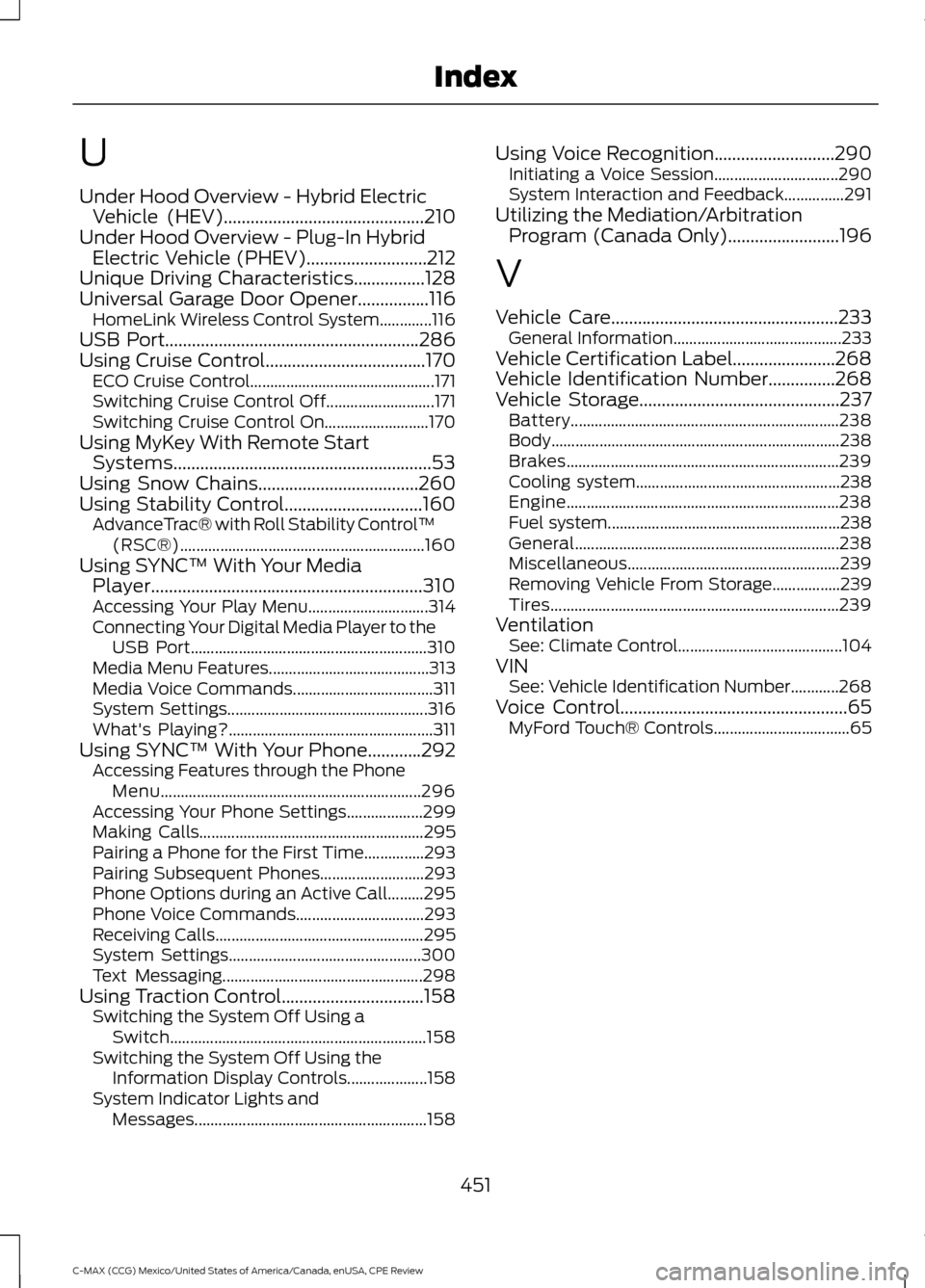

U
Under Hood Overview - Hybrid Electric
Vehicle (HEV).............................................210
Under Hood Overview - Plug-In Hybrid Electric Vehicle (PHEV)...........................212
Unique Driving Characteristics................128
Universal Garage Door Opener................116 HomeLink Wireless Control System.............116
USB Port
.........................................................286
Using Cruise Control....................................170
ECO Cruise Control.............................................. 171
Switching Cruise Control Off........................... 171
Switching Cruise Control On.......................... 170
Using MyKey With Remote Start Systems..........................................................53
Using Snow Chains
....................................260
Using Stability Control...............................160 AdvanceTrac® with Roll Stability Control ™
(RSC®)............................................................. 160
Using SYNC™ With Your Media Player.............................................................310
Accessing Your Play Menu.............................. 314
Connecting Your Digital Media Player to the USB Port........................................................... 310
Media Menu Features........................................ 313
Media Voice Commands................................... 311
System Settings.................................................. 316
What's Playing?................................................... 311
Using SYNC™ With Your Phone............292 Accessing Features through the Phone
Menu................................................................. 296
Accessing Your Phone Settings................... 299
Making Calls........................................................ 295
Pairing a Phone for the First Time...............293
Pairing Subsequent Phones.......................... 293
Phone Options during an Active Call.........295
Phone Voice Commands................................ 293
Receiving Calls.................................................... 295
System Settings................................................ 300
Text Messaging.................................................. 298
Using Traction Control................................158 Switching the System Off Using a
Switch................................................................ 158
Switching the System Off Using the Information Display Controls.................... 158
System Indicator Lights and Messages.......................................................... 158Using Voice Recognition
...........................290
Initiating a Voice Session............................... 290
System Interaction and Feedback...............291
Utilizing the Mediation/Arbitration Program (Canada Only).........................196
V
Vehicle Care
...................................................233
General Information.......................................... 233
Vehicle Certification Label.......................268
Vehicle Identification Number
...............268
Vehicle Storage.............................................237 Battery................................................................... 238
Body........................................................................\
238
Brakes.................................................................... 239
Cooling system................................................... 238
Engine.................................................................... 238
Fuel system.......................................................... 238
General.................................................................. 238
Miscellaneous..................................................... 239
Removing Vehicle From Storage.................239
Tires........................................................................\
239
Ventilation See: Climate Control......................................... 104
VIN See: Vehicle Identification Number............268
Voice Control
...................................................65
MyFord Touch® Controls.................................. 65
451
C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review Index
