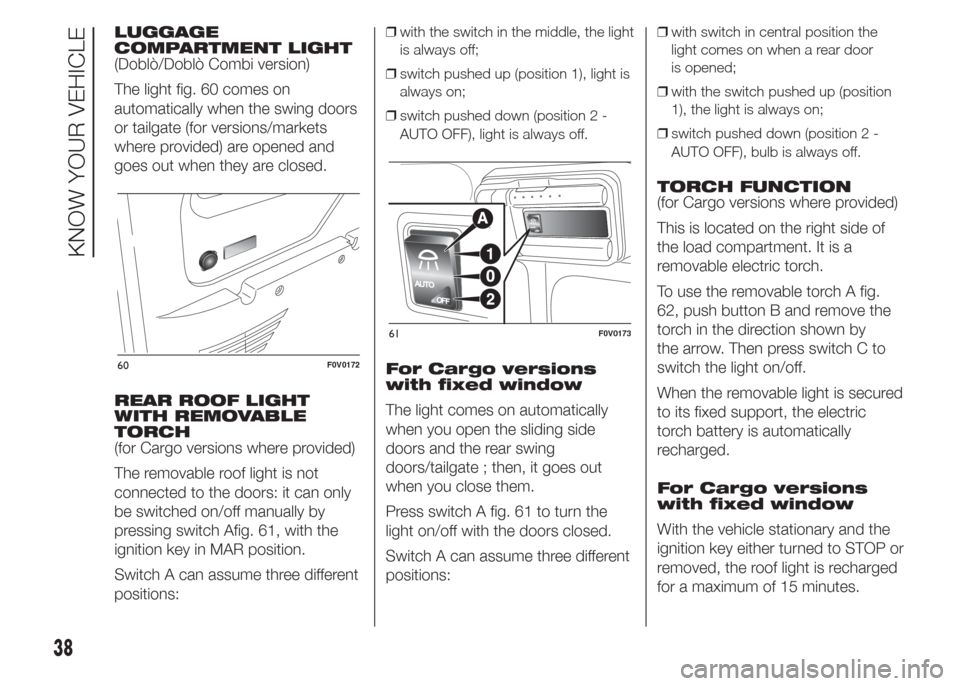

2015 FIAT DOBLO PANORAMA key

LUGGAGE
COMPARTMENT LIGHT
(Doblò/Doblò Combi version)
The light fig. 60 comes on
automatically when the swing doors
or tailgate (for versions/markets
where provided) are opened and
goes out when they are closed.
REAR ROOF LIGHT
WITH REMOVABLE
TORCH
(for Cargo versions where provided)
The removable roof light is not
connected to the doors: it can only
be switched on/off manually by
pressing switch Afig. 61, with the
ignition key in MAR position.
Switch A can assume three different
positions:❒with the switch in the middle, the light
is always off;
❒switch pushed up (position 1), light is
always on;
❒switch pushed down (position 2 -
AUTO OFF), light is always off.
For Cargo versions
with fixed window
The light comes on automatically
when you open the sliding side
doors and the rear swing
doors/tailgate ; then, it goes out
when you close them.
Press switch A fig. 61 to turn the
light on/off with the doors closed.
Switch A can assume three different
positions:
❒with switch in central position the
light comes on when a rear door
is opened;
❒with the switch pushed up (position
1), the light is always on;
❒switch pushed down (position 2 -
AUTO OFF), bulb is always off.
TORCH FUNCTION
(for Cargo versions where provided)
This is located on the right side of
the load compartment. It is a
removable electric torch.
To use the removable torch A fig.
62, push button B and remove the
torch in the direction shown by
the arrow. Then press switch C to
switch the light on/off.
When the removable light is secured
to its fixed support, the electric
torch battery is automatically
recharged.
For Cargo versions
with fixed window
With the vehicle stationary and the
ignition key either turned to STOP or
removed, the roof light is recharged
for a maximum of 15 minutes.
60F0V0172
61F0V0173
38
KNOW YOUR VEHICLE

SWITCHING ROOF
LIGHTS ON/OFF
Cargo versions
Roof lights switching on
The front roof light comes on when
one of the two front doors is opened
and remains on for 3 minutes if at
least one of the two doors continues
to remain open.
The rear roof lights come on when
one of the sliding side doors or
the rear door (swing or tailgate) is
opened and they stay on for 3
minutes if at least one of these
doors remains open.Roof lights switching off
The front roof light goes out
immediately (with fading), if the key
is in the MAR position when all
the front doors are closed.
The front roof light goes out after 10
secs. (with fading), if the key is in
the OFF position when all the front
doors are closed.
The rear roof lights go out
immediately (with fading), if the key
is in the MAR position when all
the side doors and the rear door
(swing or tailgate) are closed.
The rear roof lights go out after 10
secs. (with fading), if the key is in the
OFF position when all the side
doors and the rear door (swing or
tailgate) are closed.
Doblò/Doblò Combi
versions
Roof lights switching on
The front and rear roof lights come
on when one of the front doors
or a sliding side door is opened and
they stay on for 3 minutes if at
least one of these doors continues
to remain open.Roof lights switching off
The front and rear roof lights go out
immediately (with fading), if the
key is in the MAR position when all
the front doors and the sliding
side doors are closed.
The front and rear roof lights go out
after 10 secs. (with fading), if the
key is in the OFF position when all
the front doors and the sliding
side doors are closed.
62F0V0174
39

WINDSCREEN/REAR
WINDOW WIPER
IN BRIEF
The right-hand stalk fig. 63
controls windscreen wiper/washer
and rear window wiper/washer
operation (for versions/markets
where provided).
WINDSCREEN
WIPER/WASHER
This operates only with the ignition
key turned to MAR.
Ring nut A fig. 63 has four different
positions:
windscreen wiper off.
intermittent operation.
continuous slow operation.
continuous fast operation.
Move the stalk upwards (unstable
position) to limit operation to the
time for which the stalk is held in this
position. When released, the stalk
will return to its default position and
the windscreen wiper will be
automatically stopped.With ring nut A fig. 63 in
position, the windscreen wiper
will automatically adapt its operating
speed to the speed of the vehicle.
With the windscreen wipers
operational, if reverse gear is
engaged, the rear window wiper is
automatically activated.
3) 4)
“Smart washing” function
Pull the stalk towards the steering
wheel (unstable position) to operate
the windscreen washer.
Keeping the stalk pulled for more
than half a second, with just one
movement it is possible to operate
the washer jet and the wiper at
the same time.The windscreen wiper stops working
three strokes after the stalk is
released.
A further stroke after approximately
6 seconds completes the cycle.
REAR WINDOW
WIPER/WASHER
This operates only with the ignition
key turned to MAR.
Activation
Turn the ring nut to
to operate
the rear window wiper:
❒in intermittent mode when the
windscreen wiper is not operating;
❒in synchronous mode (at half the
speed of the windscreen wiper) when
the windscreen wiper is operating;
❒in continuous mode with reverse gear
engaged and the control active.
With the windscreen wiper on and
reverse gear engaged, rear window
wiping will be continuous.
63F0V0517
40
KNOW YOUR VEHICLE

Pushing the stalk towards the
dashboard (unstable position) will
activate the rear window washer jet.
Keep the stalk pushed for more
than half a second to activate the
rear window wiper as well.
Releasing the stalk will activate the
smart washing function, as
described for the windscreen wiper.
The function stops when the stalk
is released.
5)
HEADLIGHT WASHERS
(for versions/markets, where
provided)
They are activated when the dipped
headlights are on and the
windscreen washer is activated.
IMPORTANT Check jet function and
cleanliness at regular intervals.
6)
IMPORTANT
3) Do not use the windscreen wiper
to remove layers of snow or ice
from the windscreen. In such
conditions, the windscreen wiper
may be subjected to excessive
stress and the motor cut-out
switch, which prevents operation
for a few seconds, may intervene.
If operation is not restored (even
after turning the key and
restarting the engine), contact a
Fiat Dealership.
4) Do not operate the windscreen
wiper with the blades lifted from
the windscreen.
5) Do not use the rear window wiper
to remove layers of snow or ice. In
such conditions, the wiper may
be subjected to excessive stress
and the motor protection, which
prevents operation for a few
seconds, may intervene. If
operation is not restored, contact
a Fiat Dealership.
6) The headlamp washer jet does not
function when the level of fluid in
the reservoir falls below 1.6 litres.
41

When this function is active, the LED
on the corresponding button and
the one on the heated rear window
button switch on. The message
FULL AUTO goes off on the display.
You can only adjust the fan speed
and switch off the heated rear
window manually when this function
is active.
To restore the previous operating
conditions, simply press button B,
air recirculation button G,
compressor button F or AUTO
button A.
Heated rear window
and door mirrors
electric control
demisting/defrosting
button (L)
(for versions/markets, where
provided)
Push this button to activate the
demisting/defrosting of the heated
rear window and electric door
mirrors
When this function is active, the
button LED is on.This function switches off
automatically after about 20 minutes
or when you push the button again,
or when the engine is turned off. It
will not be switched on automatically
when the engine is restarted.
IMPORTANT Do not affix decals to
the inside of the heated rear window
over the heating filaments, to avoid
damage that might cause them
to stop working properly.
Switching the system
OFF (E)
Press button E to switch the climate
control system off. The display will
go out.
With the system off, the climate
control system conditions are as
follows: display off, temperature
setting not display, air recirculation
on thereby insulating the passenger
compartment from the outside
(recirculation LED on), climate
control compressor off, fan off.
Press the AUTO button to switch
the climate control system back on
in full automatic mode.ELECTRIC WINDOWS
FRONT ELECTRIC
WINDOWS
There are buttons on the driver side
door panel which control the
following functions, with the ignition
key turned to MAR:
A: Opening/closing left window
B: Opening/closing right window
Push button A or B to open/close
the appropriate window.
70F0V0020
56
KNOW YOUR VEHICLE

When one of the two buttons is
pressed briefly, the window moves
in stages; if the button is held down,
"continuous automatic" operation
is activated both for closing and
opening. Press button A or B again
to stop the window in its current
position.
The electric windows are fitted with
a security system (where provided)
that can detect the presence of
an obstacle whilst the window
is closing; when this happens, the
system kicks in and the movement
of the glass is immediately reversed.
IMPORTANT In the event that the
anti-crushing function is activated 5
times in only 1 minute, the system
will automatically enter the
"recovery" mode (self-protection).
This condition is apparent from the
window closing in stages.
If this occurs, restore the system as
follows:
❒open the windows.
If no malfunction is present, the
window returns to its normal
operation automatically.IMPORTANT With the ignition key at
STOP or removed, the electric
windows remain activated for about
two minutes and are deactivated
as soon as a door is opened.
28) 29)
FRONT AND REAR
ELECTRIC WINDOWS
(for versions/markets, where
provided)
Driver side door
Five switches fig. 71 on the inner
armrest control the following with
the ignition key turned to MAR:
A left front window opening/closing;
B right front window opening/
closing;
C left rear window opening/closing;
D right rear window opening/
closing;
E inhibition of control switches on
rear doors.Passenger side and rear doors
(for versions/markets, where
provided)
The switch controlling the
corresponding window is located on
the inner armrest of each door.
ELECTRIC WINDOWS
SYSTEM
INITIALISATION
The window automatic lifting control
system must be reinitialised as a
result of:
❒on front doors:
– protection fuse or battery
disconnection;
❒on rear doors:
– protection fuse or battery
disconnection when the window is
moving;
71F0V0175
57

– door opening with window
moving, due to the intervention of
the anti-pinch system;
– 50 window movements without
ever closing the window;
– 3 door opening movements, with
moving window, without ever
closing the window.
Proceed as follows for the
initialisation:
1. completely close the driver's door
window, keeping the operating
button pressed for at least 5
seconds after the (upper) end of
travel position
2. proceed in the same way on the
passenger's side door button and
on the buttons of rear doors.
WARNING
28) Incorrect use of the electric
windows may be dangerous.
Before and during their operation,
ensure that any passengers are
not at risk from the moving glass
either by personal objects getting
caught in the mechanism or by
being hit by it directly.
29) When leaving the vehicle,
always remove the ignition key to
avoid the risk of injury due to
accidental operation of the
electric windows.
CONTROLS
FOG LIGHTS
(for versions/markets, where
provided)
Press the
button to turn them
on. The
warning light on the
panel switches on.
When the fog lights are on, the side
lights also come on, while the
daytime running lights go off
irrespective of the position of the
twist switch.
Press the button again to switch the
lights off.
72F0V0507
58
KNOW YOUR VEHICLE

WARNING
30) Incorrect positioning of the
supporting rod may cause the
bonnet to drop suddenly. Perform
this operation only when the
vehicle is stationary.31) Before opening the bonnet,
make sure that windscreen wiper
arm is not raised, but is rather
positioned against the
windscreen.
32) When the engine is warm, work
carefully inside the engine
compartment to avoid getting
burnt. Do not place your hands
near the fan as it may be activated
even when the key is removed.
Wait for the engine to cool down.
33) Pay attention to scarves, ties and
other loose-fitting garments. If
they accidentally come into
contact with moving parts, they
may get caught up and dragged
with serious risks for those
wearing them.
34) For safety reasons, the bonnet
must always be properly closed
while driving. Make sure that the
bonnet is perfectly closed and
that the lock is engaged. If you
notice when driving that the
bonnet has not been properly
locked, stop immediately
and close the bonnet correctly.
BOOT
35) 36) 37) 38) 39) 40)
OPENING/CLOSING
THE BOOT FROM THE
OUTSIDE
The tailgate (when unlocked) can
only be opened from the outside of
the vehicle using the electric
opening handle A fig. 76 located
under the handle. The tailgate can
be opened at any time if the doors
are unlocked.
To open it the handle must be
enabled by opening one of the front
doors or operating the remote
control unlocking button (for
Doblò/Doblò Combi versions). On
Cargo versions, the opening of
the tailgate is subject to the enabling
of the handle.
The handle is enabled after pressing
the third button on the remote
control or by operating the
unlocking button from the interior of
the vehicle. Opening can also take
place by using the mechanical
key or the metal insert for the
remote control key.
7)
75F0V0049
60
KNOW YOUR VEHICLE
