UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
!INSTRUMENT PANEL FEATURES..........143
!TURBO BOOST GAUGE..................144
!INSTRUMENT CLUSTER — ECO...........145
!INSTRUMENT CLUSTER — POP, LOUNGE,
500C................................146
!INSTRUMENT CLUSTER.................147
!INSTRUMENT CLUSTER DESCRIPTIONS.....148
!ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC)..............................161
▫EVIC Displays.......................162
▫EVIC Control Buttons..................163
▫Electronic Vehicle Information Center (EVIC)
Setup Menu.........................164
▫Change Engine Oil Indicator System........165
▫Trip Computer.......................166
▫Trip Button..........................166
▫Trip Functions.......................167
▫Values Displayed......................168
▫Personal Settings (Customer-Programmable
Features)............................169
4

INSTRUMENT PANEL FEATURES
1—SideVent7—PassengerAirBag13 — Storage Compartment2—MultifunctionLever–LightControl8—GloveCompartment14 — Shift Lever3—Instrument Cluster And Warning Lights9—RearDefrostButton15 — Sport Button4 — Windshield Wiper, Washer, Trip Computer10 — Hazard Button16 — Horn/Driver Airbag5 — Central Air Vents11 — Climate Controls17 — Boost Gauge6—StorageCompartment/Radio12 — Power Windows Control
4
UNDERSTANDING YOUR INSTRUMENT PANEL 143

ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC)
The Electronic Vehicle Information Center (EVIC) fea-
tures a driver-interactive display that is located in the
instrument cluster.
The EVIC consists of the following:
•System Status
•Vehicle Information Warning Message Displays
•Personal Settings (Customer-Programmable Features)
•Outside Temperature Display
•Trip Computer Functions
•Tire Pressure Monitoring Display
Electronic Vehicle Information Center (EVIC) Display
4
UNDERSTANDING YOUR INSTRUMENT PANEL 161

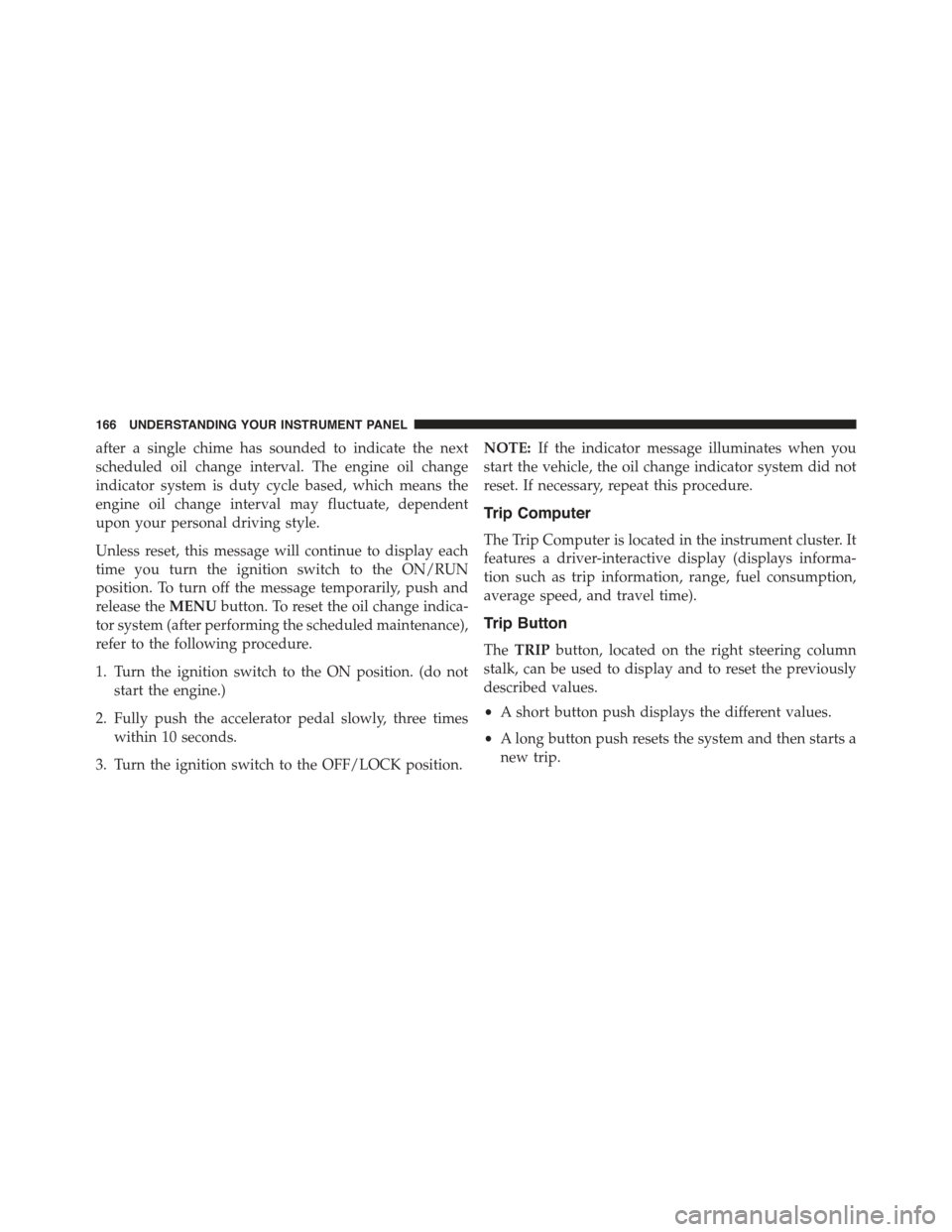

after a single chime has sounded to indicate the next
scheduled oil change interval. The engine oil change
indicator system is duty cycle based, which means the
engine oil change interval may fluctuate, dependent
upon your personal driving style.
Unless reset, this message will continue to display each
time you turn the ignition switch to the ON/RUN
position. To turn off the message temporarily, push and
release theMENUbutton. To reset the oil change indica-
tor system (after performing the scheduled maintenance),
refer to the following procedure.
1. Turn the ignition switch to the ON position. (do not
start the engine.)
2. Fully push the accelerator pedal slowly, three times
within 10 seconds.
3. Turn the ignition switch to the OFF/LOCK position.
NOTE:If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure.
Trip Computer
The Trip Computer is located in the instrument cluster. It
features a driver-interactive display (displays informa-
tion such as trip information, range, fuel consumption,
average speed, and travel time).
Trip Button
TheTRIPbutton, located on the right steering column
stalk, can be used to display and to reset the previously
described values.
•A short button push displays the different values.
•A long button push resets the system and then starts a
new trip.
166 UNDERSTANDING YOUR INSTRUMENT PANEL

To cancel the setting, proceed as follows:
1. Briefly push and release theMENUbutton. “On” will
flash on the display.
2. Push and release the DOWNbutton. “Off” will
flash on the display.
3. Briefly push and release theMENUbutton to go back
to the menu screen, or push and hold theMENU
button (approximately one second) to go back to the
main screen without storing the settings.
Trip B Data (Trip B On)
Through this option, it is possible to activate (On) or
deactivate (Off) the Trip B (partial trip) display.
For further information, see “Trip Computer.”
For activation / deactivation, proceed as follows:
1. Briefly push and release theMENUbutton.
2. Push and release the UPor DOWNbutton to
select Trip B data. Push and release the UPor
DOWNbuttons to turn ON or OFF
3. Briefly push and release theMENUbutton to go back
to the menu screen, or push and hold theMENU
button (approximately one second) to go back to the
main screen without storing the settings.
Set Time (Clock)
This function may be used to set the clock through two
submenu items: “Time” and “Mode.”
Proceed as follows:
1. Briefly push and release theMENUbutton. Push and
release the UPor DOWNbuttons to highlight
Set Time — Push and release the MENU button.
2. Push and release the UPor DOWNbutton to
navigate the two sub-menu items.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 171

Inspection............................363
Points to Remember.....................362
Pressure Cap..........................362
Selection of Coolant (Antifreeze).............359
Corrosion Protection.......................369
Cruise Light.............................148
Cupholders.............................135
Customer Assistance.......................398
Data Recorder, Event.......................55
Daytime Running Lights....................110
Dealer Service............................342
Defroster, Windshield.......................79
Diagnostic System, Onboard.................340
Dipsticks
Automatic Transmission..................368
Disposal
Antifreeze (Engine Coolant)................362
Door Locks..............................20
Door Locks, Automatic......................23
Downshifting............................232
Driving
Through Flowing, Rising, or Shallow Standing
Water................................245
Electrical Power Outlets.....................132
Electric Remote Mirrors......................91
Electronic Brake Control System...............252
Brake Assist System.....................254
Electronic Speed Control (Cruise Control)........118
Electronic Stability Control (ESC)..............256
Electronic Vehicle Information Center (EVIC)......161
Exit Trip..............................167
New Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . ..167
Start Of Trip Procedure...................167
Trip Computer.........................166
Trip Functions.........................167
10
INDEX 411
