2015 FIAT 500 ABARTH Owners Manual

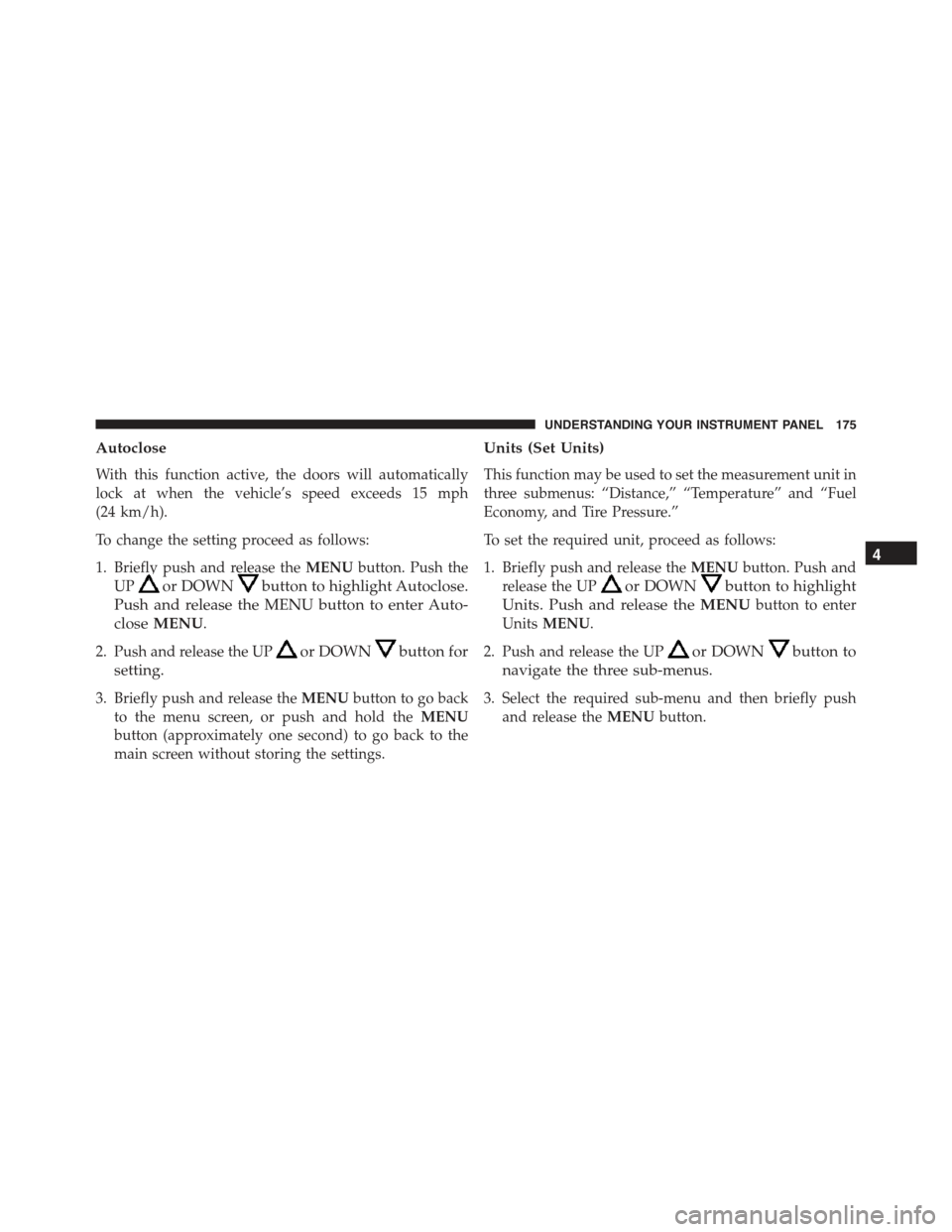

Autoclose
With this function active, the doors will automatically
lock at when the vehicle’s speed exceeds 15 mph
(24 km/h).
To change the setting proceed as follows:
1. Briefly push and release theMENUbutton. Push the
UPor DOWNbutton to highlight Autoclose.
Push and release the MENU button to enter Auto-
closeMENU.
2. Push and release the UPor DOWNbutton for
setting.
3. Briefly push and release theMENUbutton to go back
to the menu screen, or push and hold theMENU
button (approximately one second) to go back to the
main screen without storing the settings.
Units (Set Units)
This function may be used to set the measurement unit in
three submenus: “Distance,” “Temperature” and “Fuel
Economy, and Tire Pressure.”
To set the required unit, proceed as follows:
1. Briefly push and release theMENUbutton. Push and
release the UPor DOWNbutton to highlight
Units. Push and release theMENUbutton to enter
UnitsMENU.
2. Push and release the UPor DOWNbutton to
navigate the three sub-menus.
3. Select the required sub-menu and then briefly push
and release theMENUbutton.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 175

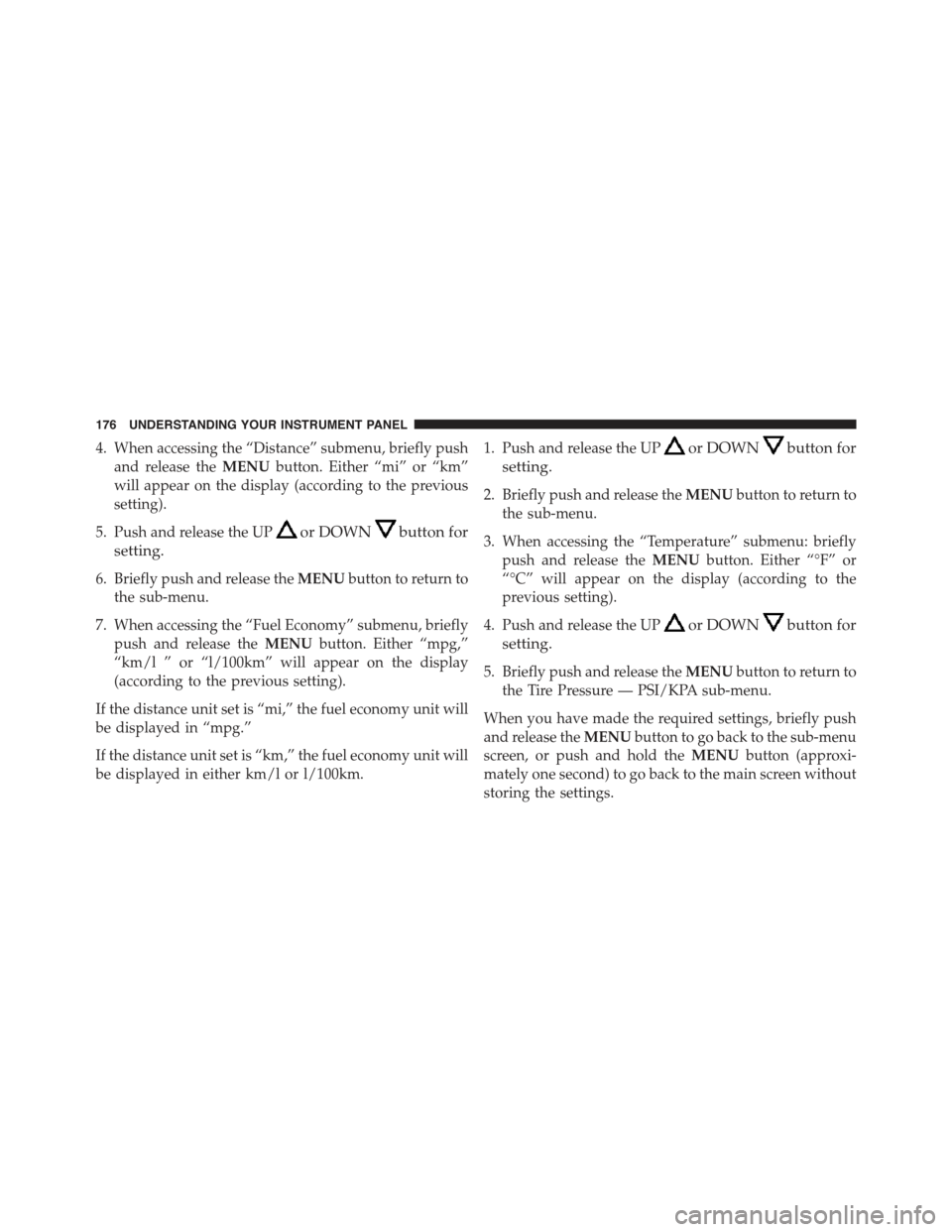

4. When accessing the “Distance” submenu, briefly push
and release theMENUbutton. Either “mi” or “km”
will appear on the display (according to the previous
setting).
5. Push and release the UPor DOWNbutton for
setting.
6. Briefly push and release theMENUbutton to return to
the sub-menu.
7. When accessing the “Fuel Economy” submenu, briefly
push and release theMENUbutton. Either “mpg,”
“km/l ” or “l/100km” will appear on the display
(according to the previous setting).
If the distance unit set is “mi,” the fuel economy unit will
be displayed in “mpg.”
If the distance unit set is “km,” the fuel economy unit will
be displayed in either km/l or l/100km.
1. Push and release the UPor DOWNbutton for
setting.
2. Briefly push and release theMENUbutton to return to
the sub-menu.
3. When accessing the “Temperature” submenu: briefly
push and release theMENUbutton. Either “°F” or
“°C” will appear on the display (according to the
previous setting).
4. Push and release the UPor DOWNbutton for
setting.
5. Briefly push and release theMENUbutton to return to
the Tire Pressure — PSI/KPA sub-menu.
When you have made the required settings, briefly push
and release theMENUbutton to go back to the sub-menu
screen, or push and hold theMENUbutton (approxi-
mately one second) to go back to the main screen without
storing the settings.
176 UNDERSTANDING YOUR INSTRUMENT PANEL

Language (Selecting The Language)
The messages can be displayed in the following lan-
guages: Italian, English, Turkce, Nederlands, Spanish,
French, Dutch, Polish, Brasilian.
To set the required language, proceed as follows:
1. Briefly push and release theMENUbutton. Push and
release the UPor DOWNbutton to highlight
Language. Push and release theMENUbutton to
enter the LanguageMENU.
2. Push and release the UPor DOWNbutton for
setting.
3. Briefly push and release theMENUbutton to go back
to the menu screen, or push and hold theMENU
button (approximately one second) to go back to the
main screen without storing the settings.
Buzzer Volume (Adjusting The Failure/Warning
Buzzer Volume)
With this function the volume of the buzzer accompany-
ing any failure/warning indication can be adjusted to
one of eight volume levels.
To adjust the volume proceed as follows:
1. Briefly push and release theMENUbutton. Push and
release the UPor DOWNbutton, then high-
light the Buzzer Volume. Push and release the
MENU button to enter the Buzzer VolumeMENU.
2. Push and release the UPor DOWNbutton for
setting.
3. Briefly push and release theMENUbutton to go back
to the menu screen, or push and hold theMENU
button (approximately one second) to go back to the
main screen without storing the settings.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 177

Button Volume (Button Volume Adjustment)
This function may be used to adjust the volume of the
beep accompanying the buttons.MENU,UPor
DOWNbuttons can be adjusted according to 8
levels.
To adjust the volume, proceed as follows:
1. Briefly push and release theMENUbutton. Push and
release the UPor DOWNbutton to highlight
the Buzzer Volume, push and release theMENU
button.
2. Push and release the UPor DOWNbutton for
setting.
3. Briefly push and release theMENUbutton to go back
to the menu screen, or push and hold theMENU
button (approximately one second) to go back to the
main screen without storing the settings.
Belt Buzzer (Buzzer Activation For S.B.R.
Indication)
This function will only be displayed after a FIAT Group
Automobiles dealership has deactivated the S.B.R. sys-
tem.
Daytime Running Lamps (DRL)
This function may be used to activate / deactivate the
Daytime Running Lamps.
Proceed as follows to switch this function on or off:
1. Briefly push and release theMENUbutton. Push and
release the Upor DOWNbutton to highlight
Daytime Running Lamps (DRL). Push and release
the MENU button to enter the DRLMENU.
2. Briefly push and release theMENUbutton. “On” or
“Off” will flash on the display (according to previous
setting).
178 UNDERSTANDING YOUR INSTRUMENT PANEL

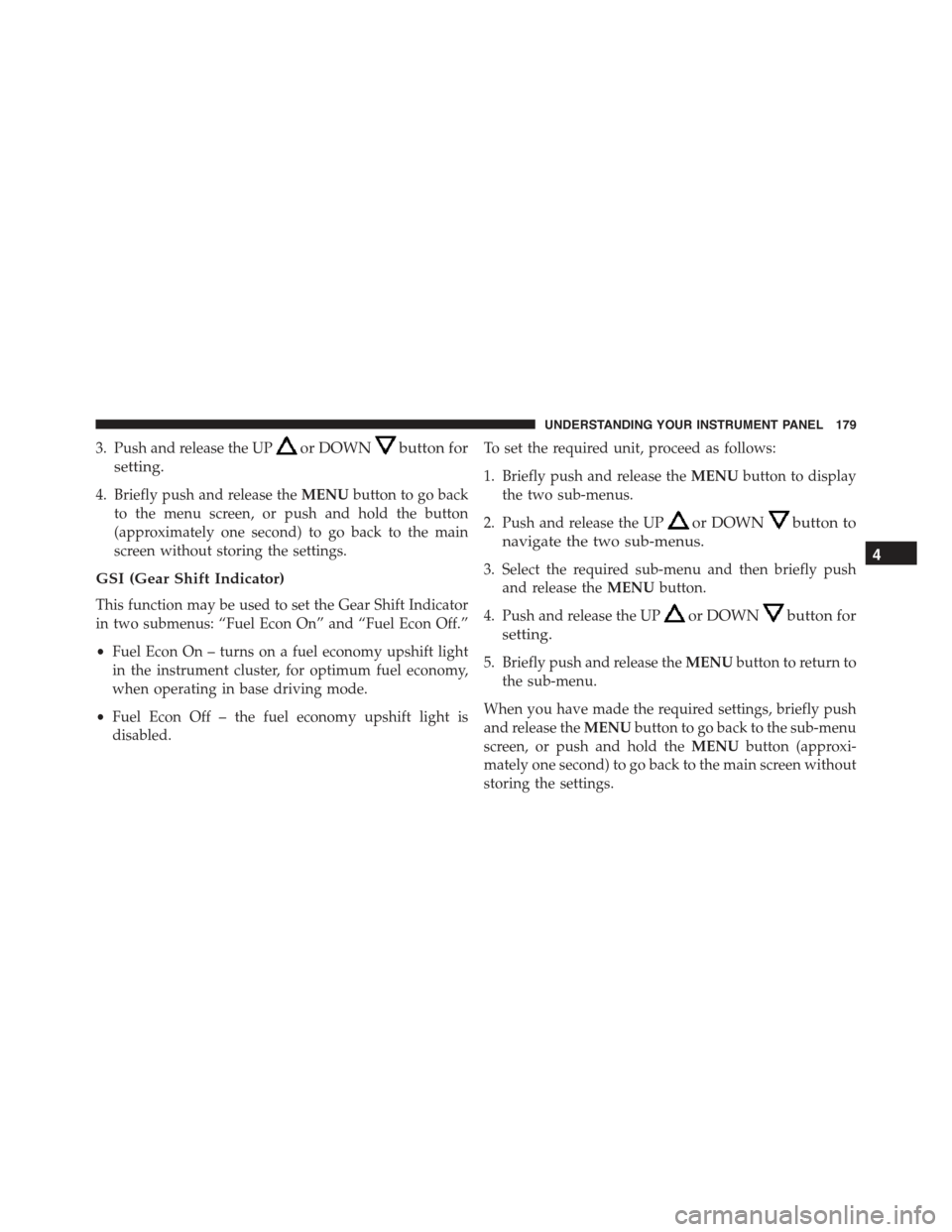

3. Push and release the UPor DOWNbutton for
setting.
4. Briefly push and release theMENUbutton to go back
to the menu screen, or push and hold the button
(approximately one second) to go back to the main
screen without storing the settings.
GSI (Gear Shift Indicator)
This function may be used to set the Gear Shift Indicator
in two submenus: “Fuel Econ On” and “Fuel Econ Off.”
•Fuel Econ On – turns on a fuel economy upshift light
in the instrument cluster, for optimum fuel economy,
when operating in base driving mode.
•Fuel Econ Off – the fuel economy upshift light is
disabled.
To set the required unit, proceed as follows:
1. Briefly push and release theMENUbutton to display
the two sub-menus.
2. Push and release the UPor DOWNbutton to
navigate the two sub-menus.
3. Select the required sub-menu and then briefly push
and release theMENUbutton.
4. Push and release the UPor DOWNbutton for
setting.
5. Briefly push and release theMENUbutton to return to
the sub-menu.
When you have made the required settings, briefly push
and release theMENUbutton to go back to the sub-menu
screen, or push and hold theMENUbutton (approxi-
mately one second) to go back to the main screen without
storing the settings.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 179

Hill Start Assist
This function is used when starting a vehicle from a stop
on a hill. Hill Start Assist maintains the same level of
brake pressure the driver applied for a short period of
time after the foot has been removed from the brake
pedal.
Proceed as follows to switch this function on or off:
1. Briefly push and release theMENUbutton. Push and
release the UPor DOWNbutton to highlight
the Hill Start Assist. Push and release theMENU
button to enter the Hill Start AssistMENU.
2. Push and release the UPor DOWNbutton for
setting.
3. Briefly push and release theMENUbutton to go back
to the menu screen, or push and hold the button
(approximately one second) to go back to the main
screen without storing the settings.
Tire Pressure
This function will be used to display the tire pressures
individually for all four tires by location.
Proceed as follows:
1. Briefly push and release theMENUbutton. Push and
release the UPor DOWNbutton to highlight
the Tire Pressure. Push and release theMENU
button to enter the Tire PressureMENU.
2. Push and release the UP or DOWN button to scroll
through all four tire pressure value locations.
3. Briefly push and release theMENUbutton to go back
to the menu screen, or push and hold the button
(approximately one second) to go back to the main
screen.
180 UNDERSTANDING YOUR INSTRUMENT PANEL

Lock
WhenUnlock Driver Dooris selected, only the driver’s
door will unlock on the first push of the Remote Keyless
Entry (RKE) transmitter UNLOCK button. When Unlock
Drivers Door is selected, you must push the RKE trans-
mitter UNLOCK button twice to unlock the passenger
door. WhenAll Doorsis selected, both of the doors will
unlock on the first push of the RKE transmitter UNLOCK
button. To make your selection, push and release the
SELECT button until “Unlock Driver Door” or “All
Doors” appears.
Exit Menu
This function closes the initial menu screen.
Briefly push and release theMENUbutton to go back to
the main screen.
Push and release thebutton to return to the first
menu option (Speed Beep).
Push and release thebutton to return to the last
menu option (Daylights).
4
UNDERSTANDING YOUR INSTRUMENT PANEL 181

SALES CODE (RAB) RADIOIntroduction
The radio has been designed according to the specifica-
tions of the passenger compartment, with a personalized
design to match the style of the dashboard.
If the radio has BLUE&ME™, refer to the appropriate
“BLUE&ME™ User ’s Manual” for further information.
The instructions for use are given below and we recom-
mend you to read them carefully.
Suggestions
Road Safety
Please, learn how to use all different radio functions (e.g.
store stations) before beginning to drive.RAB Radio
