2015 DODGE CHALLENGER SRT window

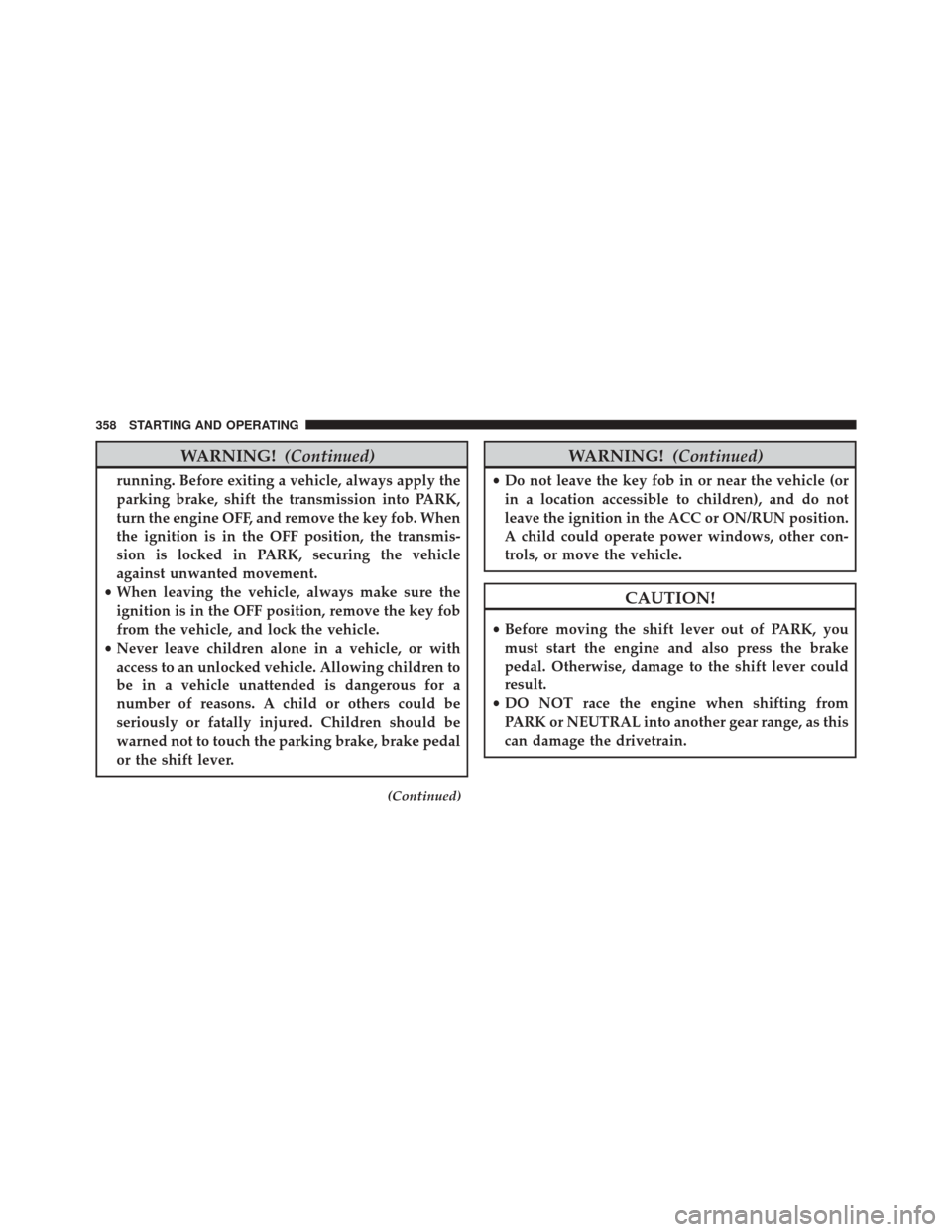

WARNING!(Continued)
running. Before exiting a vehicle, always apply the
parking brake, shift the transmission into PARK,
turn the engine OFF, and remove the key fob. When
the ignition is in the OFF position, the transmis-
sion is locked in PARK, securing the vehicle
against unwanted movement.
• When leaving the vehicle, always make sure the
ignition is in the OFF position, remove the key fob
from the vehicle, and lock the vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake pedal
or the shift lever.
(Continued)
WARNING! (Continued)
•Do not leave the key fob in or near the vehicle (or
in a location accessible to children), and do not
leave the ignition in the ACC or ON/RUN position.
A child could operate power windows, other con-
trols, or move the vehicle.
CAUTION!
• Before moving the shift lever out of PARK, you
must start the engine and also press the brake
pedal. Otherwise, damage to the shift lever could
result.
• DO NOT race the engine when shifting from
PARK or NEUTRAL into another gear range, as this
can damage the drivetrain.
358 STARTING AND OPERATING

WARNING!
•Never use the PARK position as a substitute for the
parking brake. Always apply the parking brake
(Continued)
WARNING! (Continued)
fully when parked to guard against vehicle move-
ment and possible injury or damage.
• When leaving the vehicle, always remove the Key
Fob from the ignition and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake pedal
or the shift lever.
• Do not leave the Key Fob in or near the vehicle (or
in a location accessible to children), and do not
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go™ in the ACC or ON/RUN
mode. A child could operate power windows, other
controls, or move the vehicle.
(Continued)
Automatic Transmission Parking Brake
384 STARTING AND OPERATING

2. Installing aftermarket window tinting that containsmaterials that may block radio wave signals.
3. Accumulation of snow or ice around the wheels or wheel housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM sensors.
The DID will also display a SERVICE TPM SYSTEM
message for a minimum of five seconds when a system
fault related to an incorrect sensor location fault is
detected. In this case, the SERVICE TPM SYSTEM
message is then followed with a graphic display with
pressure values still shown. This indicates that the pres-
sure values are still being received from the TPM sensors
but they may not be located in the correct vehicle
position. The system still needs to be serviced as long as
the SERVICE TPM SYSTEM message is displayed. Vehicles With Compact Spare
1. The compact spare tire does not have a TPM sensor.
Therefore, the TPMS will not monitor the pressure in
the compact spare tire.
2. If you install the compact spare tire in place of a road tire that has a pressure below the low-pressure warn-
ing limit, upon the next ignition switch cycle, the
“TPM Telltale Light” will remain ON and a chime will
sound. In addition, the graphic in the DID will still
display the low pressure values in a different color and
the Inflate Tire to XX message.
3. After driving the vehicle for up to 20 minutes above 15 mph (24 km/h), the “TPM Telltale Light” will flash
on and off for 75 seconds and then remain on solid. In
addition, the DID will display a SERVICE TPM
SYSTEM message for a minimum of five seconds and
then display dashes (- -) in place of the pressure value.
424 STARTING AND OPERATING

WARNING!(Continued)
time the vehicle is raised. Have any abnormal
conditions repaired promptly. Until repaired, drive
with all side windows fully open.
ADDING FUEL
Fuel Filler Cap (Gas Cap)
The gas cap is located behind the fuel filler door on the
left side of the vehicle. Use a finger to pull open the door.
If the gas cap is lost or damaged, be sure the replacement
cap is for use with this vehicle.
NOTE:When removing the fuel filler cap, lay the cap
tether in the hook, located on the fuel filler door.
Fuel Fill Cap
430 STARTING AND OPERATING

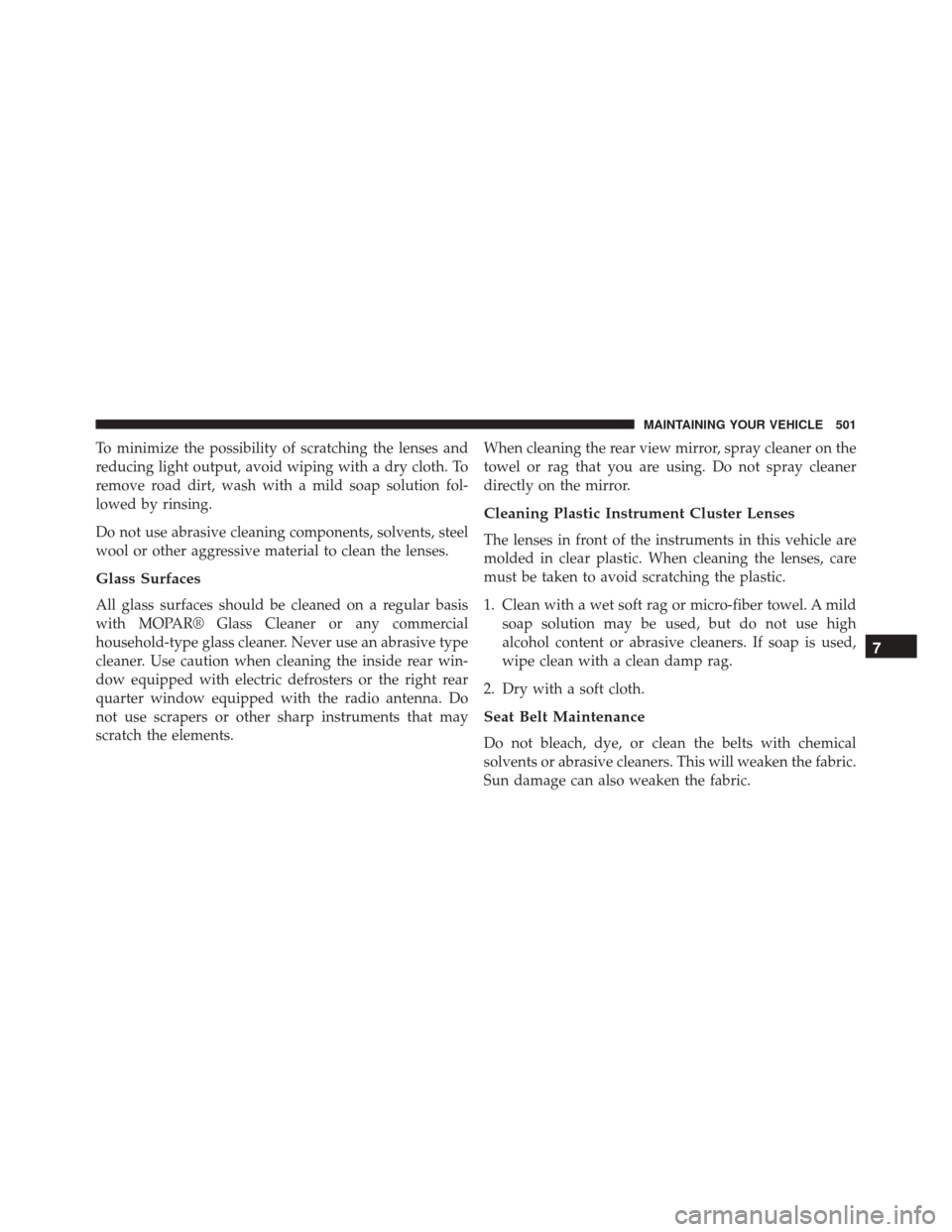

To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPAR® Glass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instruments that may
scratch the elements.When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag or micro-fiber towel. A mild
soap solution may be used, but do not use high
alcohol content or abrasive cleaners. If soap is used,
wipe clean with a clean damp rag.
2. Dry with a soft cloth.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
7
MAINTAINING YOUR VEHICLE 501

CavityCartridge Fuse Mini-FuseDescription
61 —20 Amp Yellow Cigar Lighter (LA) – If
Equipped
62 ——Fuse — Spare
63 ——Fuse — Spare
64 —25 Amp Breaker Rear Windows (LD/LX)
65 —10 Amp Red Airbag Module
66 ——Fuse — Spare
67 —10 Amp Red Rain and Light Sensor/
Sunroof
68 —10 Amp Red Dual USB Power Outlet –
R/A Sense (LD/LX) Rear
Sunshade (LD/LX)
69 ——Fuse — Spare
70 ——Fuse — Spare
7
MAINTAINING YOUR VEHICLE 515

Alterations/Modifications, Vehicle...............7
Antifreeze (Engine Coolant) ...............486, 522
Disposal ............................. .489
Anti-Lock Brake System (ABS) ................386
Anti-Lock Warning Light .................221, 388
Appearance Care ........................ .496
Arming System (Security Alarm) ...............18
Auto Down Power Windows ..................38
Automatic Door Locks ......................32
Automatic Headlights ..................... .135
Automatic High Beams .....................136
Automatic Temperature Control (ATC) .......310, 318
Automatic Transmission ..............355, 494, 495
Adding Fluid ...................... .495, 525
Autostick ............................ .362
Fluid and Filter Changes ..................495
Fluid Change ......................... .495
Fluid Level Check ...................... .495
Fluid Type ........................... .525Special Additives
...................... .494
Automatic Transmission Limp Home Mode .......361
Autostick .............................. .362
Auto Unlock, Doors ........................32
Axle Fluid ............................. .525
Axle Lubrication ......................... .525
Battery ................................ .476
Keyless Transmitter Replacement (RKE) ........24
Location ............................. .476
Belts, Seat ...............................93
Body Mechanism Lubrication .................481
B-Pillar Location ......................... .403
Brake Assist System ...................... .389
Brake Control System, Electronic ..............386
Brake Fluid ............................ .525
Brake, Parking .......................... .382
Brakes ................................ .385
Brake System ........................ .385,
491
10
INDEX 553

Lower Anchors And Tethers For Children.......75
Older Children And Child Restraints ..........71
Seating Positions ........................74
Using The Top Tether Anchorage .............87
Clean Air Gasoline ....................... .426
Cleaning Wheels .............................. .498
Climate Control ......................... .310
Automatic ........................... .310
Cold Weather Operation ....................346
Console, Overhead ....................... .194
Contract, Service ......................... .545
Coolant Pressure Cap (Radiator Cap) ...........489
Cooling System .......................... .485
Adding Coolant (Antifreeze) ...............487
Coolant Capacity ...................... .522
Coolant Level ..................... .485, 490
Disposal of Used Coolant .................489
Drain, Flush, and Refill ...................486 Inspection
........................... .490
Points to Remember .....................490
Pressure Cap ......................... .489
Radiator Cap ......................... .489
Selection of Coolant (Antifreeze) ......486, 522, 523
Corrosion Protection ...................... .496
Cruise Control (Speed Control) ................155
Cupholders ......................... .210, 502
Customer Assistance ...................... .543
Customer Programmable Features .............249
Data Recorder, Event .......................67
Daytime Brightness, Interior Lights .............143
Daytime Running Lights ....................138
Dealer Service ........................... .469
Deck Lid, Emergency Release .................40
Deck Lid, Power Release .....................39
Defroster, Rear Window .....................213
Defroster, Windshield .......................93
10
INDEX 555
