2015 DODGE CHALLENGER fuse

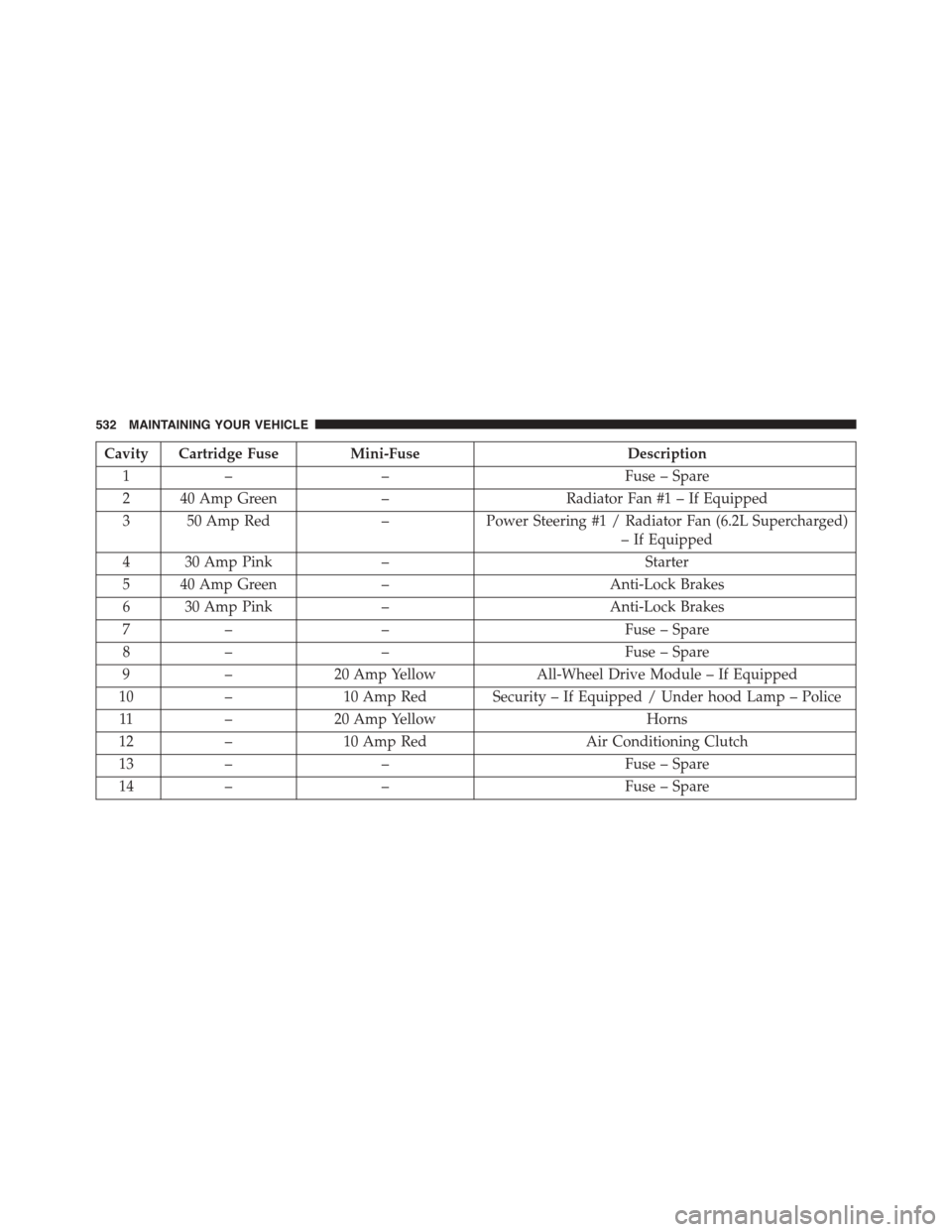

Cavity Cartridge Fuse Mini-FuseDescription
1––Fuse – Spare
2 40 Amp Green–Radiator Fan #1 – If Equipped
3 50 Amp Red–Power Steering #1 / Radiator Fan (6.2L Supercharged)
– If Equipped
4 30 Amp Pink–Starter
5 40 Amp Green–Anti-Lock Brakes
6 30 Amp Pink–Anti-Lock Brakes
7––Fuse – Spare
8––Fuse – Spare
9–20 Amp YellowAll-Wheel Drive Module – If Equipped
10–10 Amp Red Security – If Equipped / Under hood Lamp – Police
11–20 Amp YellowHorns
12–10 Amp RedAir Conditioning Clutch
13––Fuse – Spare
14––Fuse – Spare
532 MAINTAINING YOUR VEHICLE

Cavity Cartridge Fuse Mini-FuseDescription
15–20 Amp YellowLH HID
16–20 Amp YellowRH HID
18 40 Amp Green–Radiator Fan #2 – If Equipped
19 50 Amp Red–Power Steering #2 / Radiator Fan (6.2L Supercharged)
20 30 Amp Pink–Wiper Motor
21 30 Amp Pink–Headlamp Washers – If Equipped
22 40 Amp Green /
20 Amp Blue –
Police
–Engine Cooling/Intercooler Pump / Police Bat Feed #
3 – If Equipped
23 20 Amp Blue–Police Bat Feed#1–IfEquipped
24 20 Amp Blue–Police Bat Feed#3–IfEquipped
28––Fuse – Spare
29–15 Amp BlueTransmission – If Equipped
30––Fuse – Spare
31–25 Amp ClearEngine Module
7
MAINTAINING YOUR VEHICLE 533

Cavity Cartridge Fuse Mini-FuseDescription
32––Fuse – Spare
33––Fuse – Spare
34–25 Amp ClearPowertrain #1
35–20 Amp YellowPowertrain #2
36–10 Amp RedAnti-Lock Brake Module
37–10 Amp RedEngine Controller/Rad Fan Relays – If Equipped
38–10 Amp RedAirbag Module
39–10 Amp RedPower Steering Module/AC Clutch Relay
48–10 Amp Red AWD Module/Front Axle Disconnect/Adaptive Cruise
– if Equipped
49––Fuse – Spare
50––Fuse – Spare
51–20 Amp YellowVacuum Pump
52–10 Amp RedDriver Assistance Systems Module – If Equipped
53––Fuse – Spare
534 MAINTAINING YOUR VEHICLE

Rear Power Distribution Center (Fuses)
There is also a power distribution center located in the
trunk under the spare tire access panel. This center
contains fuses and relays.
Opening The Access Cover
Rear Power Distribution Center
7
MAINTAINING YOUR VEHICLE 535

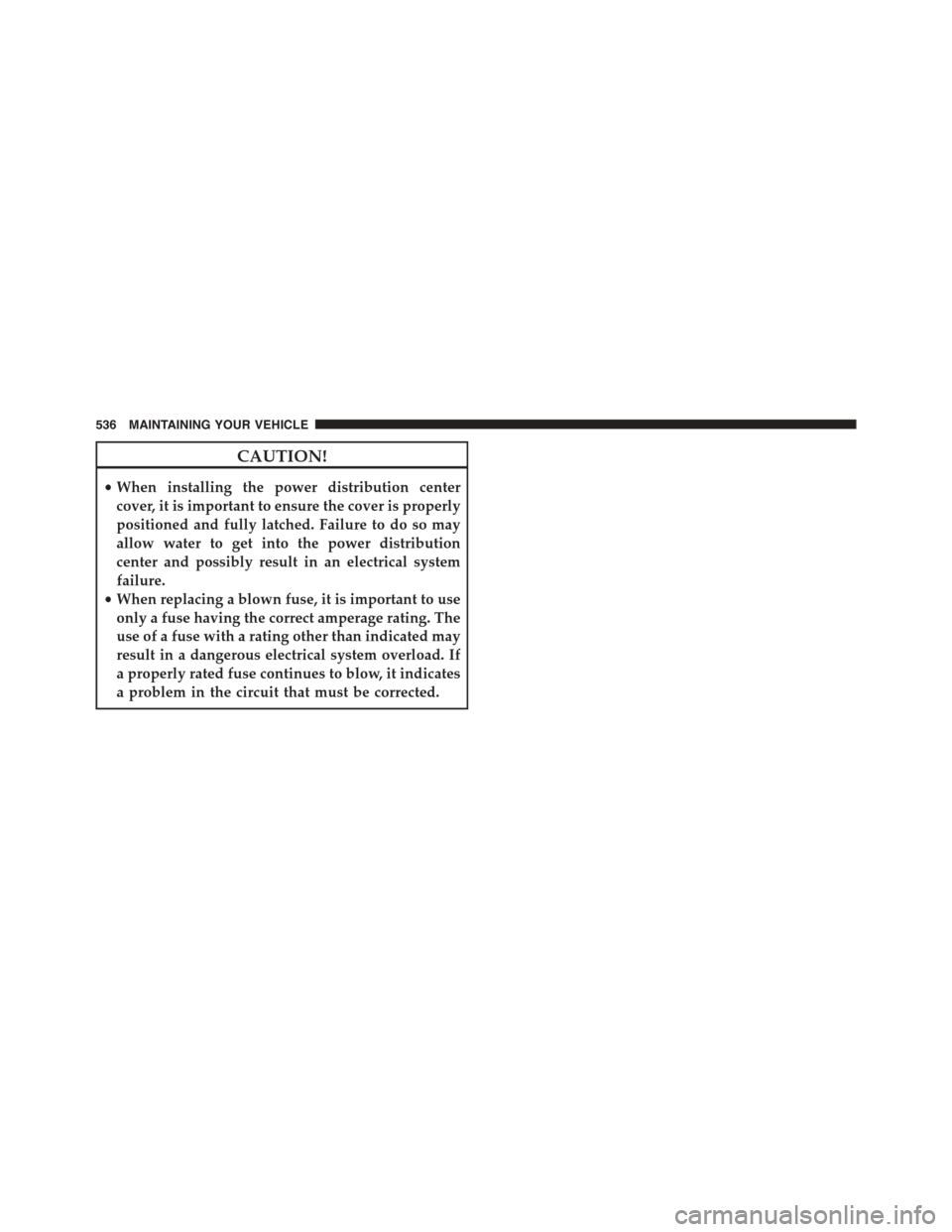

CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the power distribution
center and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
536 MAINTAINING YOUR VEHICLE

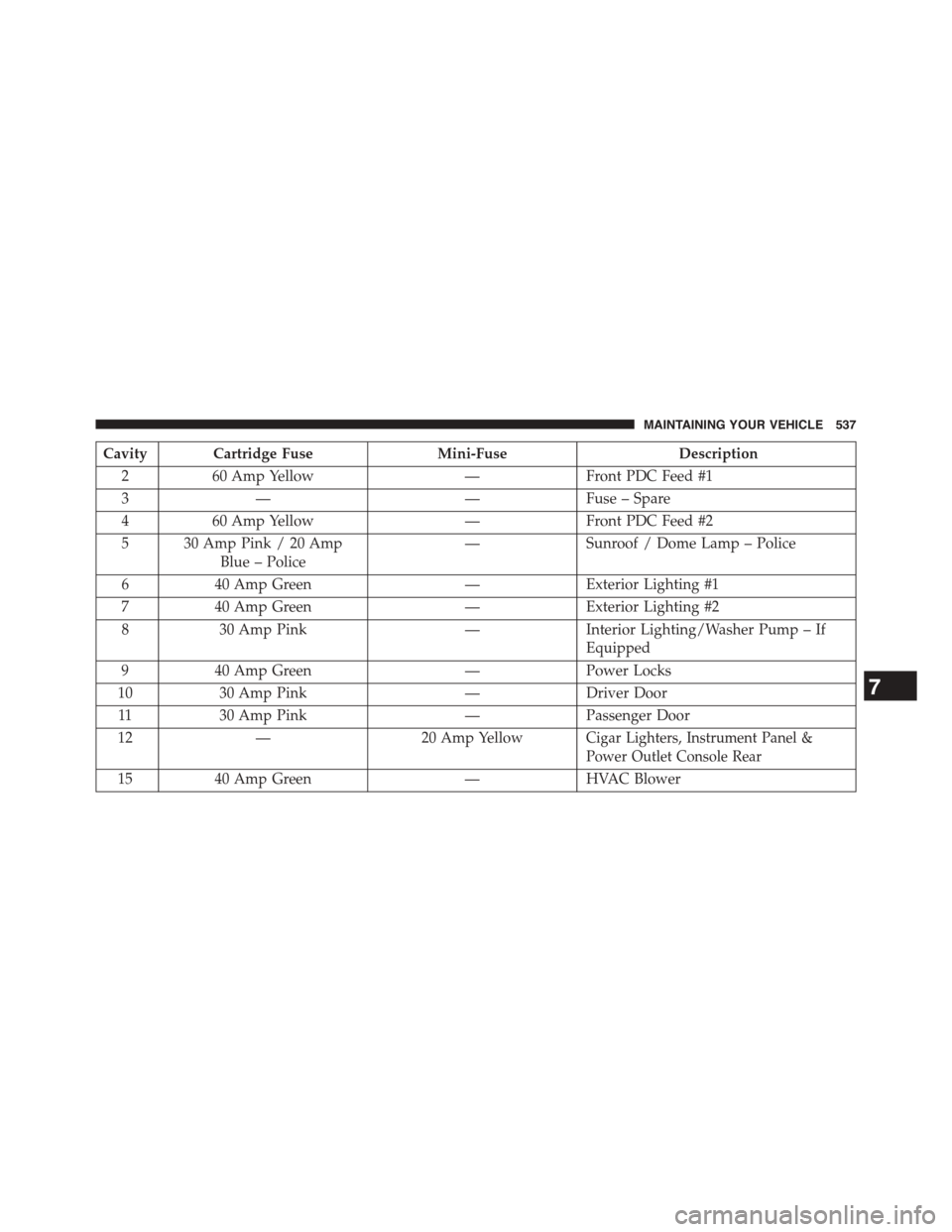

Cavity Cartridge FuseMini-FuseDescription
260 Amp Yellow—Front PDC Feed #1
3——Fuse – Spare
460 Amp Yellow—Front PDC Feed #2
5 30 Amp Pink / 20 Amp
Blue – Police
—Sunroof / Dome Lamp – Police
640 Amp Green—Exterior Lighting #1
740 Amp Green—Exterior Lighting #2
830 Amp Pink—Interior Lighting/Washer Pump – If
Equipped
940 Amp Green—Power Locks
1030 Amp Pink—Driver Door
1130 Amp Pink—Passenger Door
12—20 Amp YellowCigar Lighters, Instrument Panel &
Power Outlet Console Rear
1540 Amp Green—HVAC Blower
7
MAINTAINING YOUR VEHICLE 537

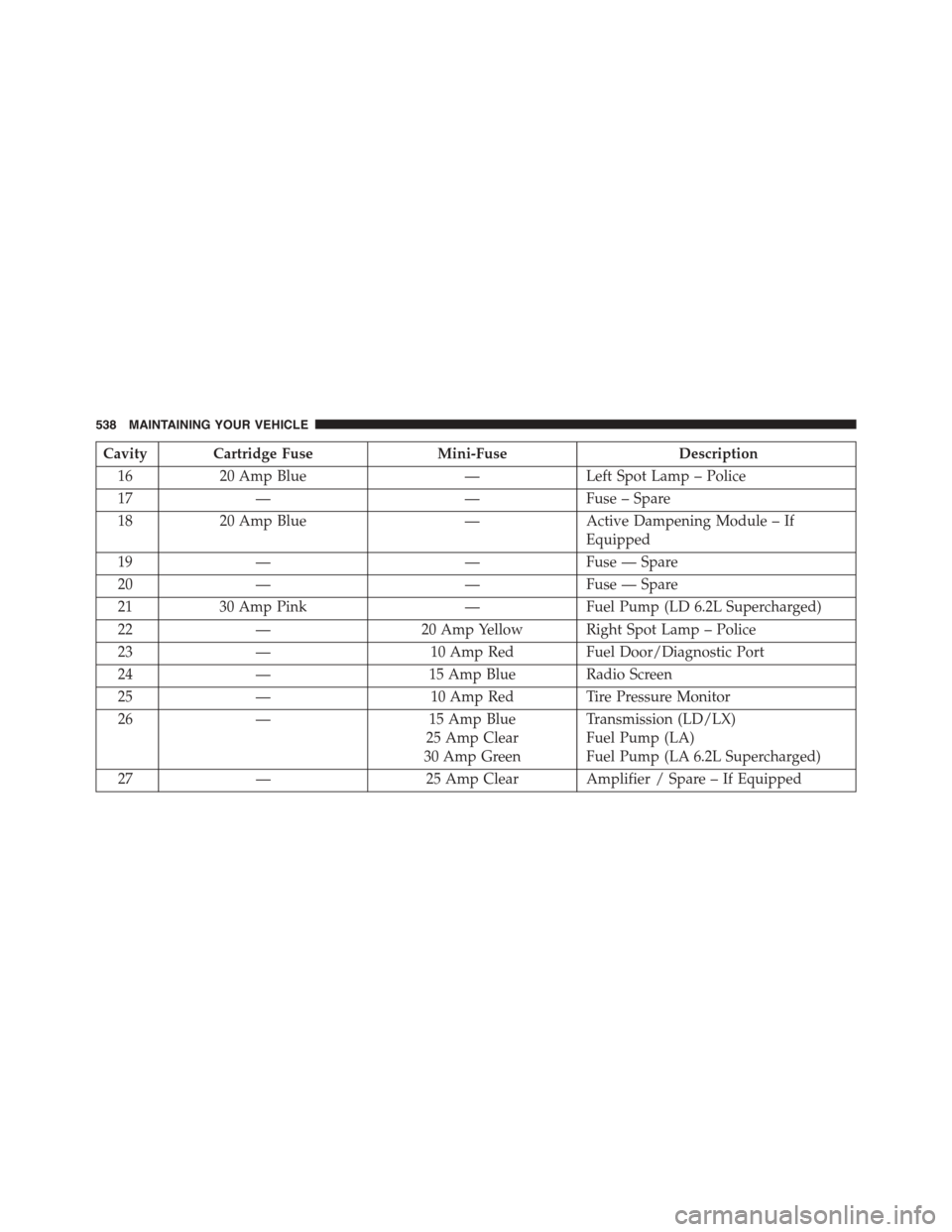

Cavity Cartridge FuseMini-FuseDescription
1620 Amp Blue—Left Spot Lamp – Police
17——Fuse – Spare
1820 Amp Blue—Active Dampening Module – If
Equipped
19——Fuse — Spare
20——Fuse — Spare
2130 Amp Pink—Fuel Pump (LD 6.2L Supercharged)
22—20 Amp Yellow Right Spot Lamp – Police
23—10 Amp Red Fuel Door/Diagnostic Port
24—15 Amp Blue Radio Screen
25—10 Amp Red Tire Pressure Monitor
26—15 Amp Blue
25 Amp Clear
30 Amp Green
Transmission (LD/LX)
Fuel Pump (LA)
Fuel Pump (LA 6.2L Supercharged)
27—25 Amp Clear Amplifier / Spare – If Equipped
538 MAINTAINING YOUR VEHICLE

Cavity Cartridge FuseMini-FuseDescription
31—25 Amp Clear Power Seats
32—15 Amp Blue HVAC Module/Cluster
33—15 Amp Blue Ignition Switch/Wireless Module
34—10 Amp Red Steering Column Module/Clock/Spare
– Police
35—5 Amp TanBattery Sensor
36—15 Amp Blue Electronic Exhaust Valve – If Equipped
37—15 Amp Blue Radio
38—20 Amp Yellow Power Outlet Inside Arm Rest
40——Fuse — Spare
41——Fuse — Spare
4230 Amp Pink—Rear Defrost
43—20 Amp Yellow Rear Heated Seats/Steering Wheel
44—10 Amp Red Park Assist/Blind Spot/Camera
45—15 Amp Blue Cluster/Rearview Mirror/Compass
7
MAINTAINING YOUR VEHICLE 539
