2015 Citroen DS3 RHD Owner's Manual

Audio and Telematics

MirrorLink TM








Optional depending on the
smartphone and operating
system.

Applications



Car mode

Audio and Telematics 7


As a safety measure and because it
requires sustained attention by the
driver, using a smartphone when
driving is prohibited.
All operations must be done with the
vehicle stationary
.

The synchronisation of a
smartphone allows applications on a
smartphone that are adapted to the
MirrorLink
TM technology to be displayed
in the vehicle's screen.
As the principles and standards are
constantly evolving, it is recommended
that you update the operating system of
your smartphone.
For the list of eligible smar tphones,
connect to the brand's internet website
in your country.
Please note:


- if your smartphone is supported, to
make it "MirrorLink
TM " compatible,
some phone manufacturers
nevertheless invite you to first
download a dedicated application.

- iPhone
®
is not supported yet; an
Apple ® application, "CarPlay ®
", is
being developed.



When connecting a smartphone to
the system, it is recommended that
Bluetooth
® be started on the smartphone


Start the application on the
smartphone (optional, depending
on the smartphone and operating
system).
Access to the different audio sources remains
accessible in the margin of the MirrorLink
TM
display, using touch buttons in the upper bar.
Access to the menus for the system is possible
at any time using the dedicated buttons

If the smartphone is locked,
communication with the system is only
by USB cable.
During the procedure, several screen
pages relating to certain functions
are displayed.
Accept to start and end the
connection.

Connect a USB cable. The
smartphone charges when
connected by a USB cable.

Press " MirrorLink

TM
" to start
the application in the system.
Once connection is established, an
" Applications
" page is displayed with the
list of applications already downloaded to
your smartphone and adapted to MirrorLink
TM
technology.
If only one application has been downloaded to
the smartphone, it starts automatically.



MirrorLink TM
smartphone
connection

Press the end of the lighting control stalk to
start voice recognition of your smartphone via
the system.
Voice recognition requires a compatible
smartphone connected to the vehicle by
Bluetooth.







Voice recognition


As a safety measure, applications
can only be viewed with the vehicle
stationary; display is interrupted once
the vehicle is moving.
From the system, press " Connected
services
" to display the primary
page.

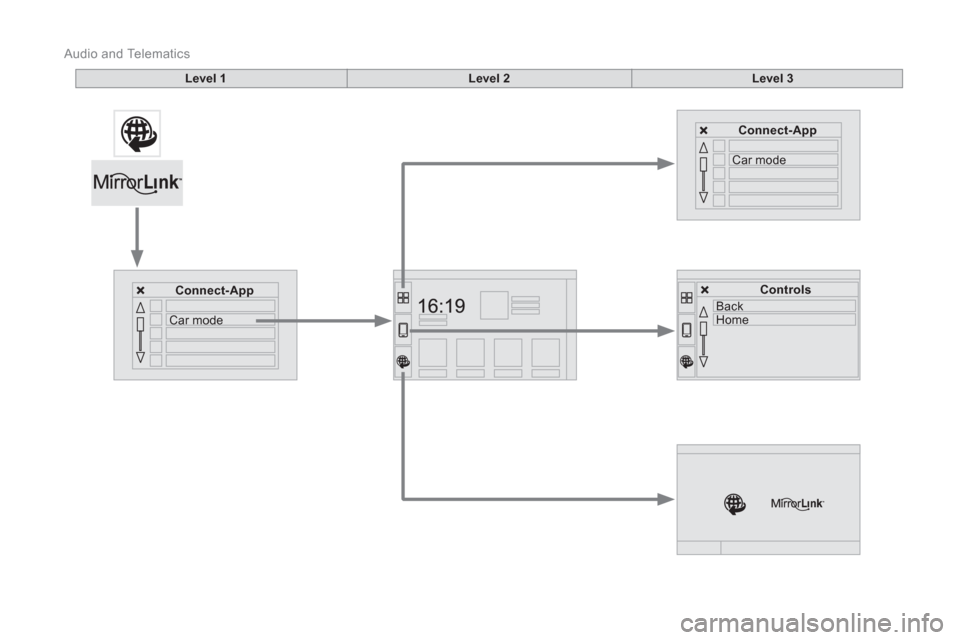

Audio and Telematics


Back

Home

Controls




Connect-App



Car mode

Connect-App



Car mode






Level 1



Level 2



Level 3

Audio and Telematics 9


Level 1

Level 2

Level 3

Comments


Connected
services



MirrorLink
TM




Connect-App
Car mode
Connect-App
Access or return to the list of applications already
downloaded to your smartphone and adapted to
MirrorLink
TM technology.

Controls
"Back": abandon the current operation, go up
one level.
"Home": access or return to the "Car mode"
page.
Access to the "Connected ser vices" primary
page.

1Driving
Six-speed automatic gearbox which offers a
choice between the comfort of fully automatic
operation or manual gear changing.
Two driving modes are available:


- automatic
operation with electronic
management of the gears by the gearbox,

- manual
operation for sequential changing
of the gears by the driver.















Automatic gearbox (EAT6)


P.
Park.


- Immobilisation of the vehicle, parking brake
on or off.

- Starting the engine.

R.
Reverse.


- Reversing manoeuvres, vehicle stationary,
engine at idle.

N.
Neutral.


- Immobilisation of the vehicle, parking brake
on.

- Starting the engine.

D.
Automatic operation.

M + / -
. Manual operation with sequential
changing of the six gears.


)
Pull backward to change up through the
gears.
or

)
Push for ward to change down through the
gears.



Gear selector positions

When you move the selector to select a
position, the corresponding indicator is
displayed in the instrument panel.

P.
Park

R.
Reverse

N.
Neutral

D.
Drive (Automatic operation)

1 2 3 4
5 6.
Gears engaged during manual
operation

-.
Invalid value during manual operation


Displays in the instrument panel


Foot on brake



)
Press the brake pedal when this
indicator lamp is displayed in the
instrument panel (e.g.: starting
the engine).

2Driving

Moving off


If position N
is selected inadvertently
while driving, allow the engine to
return to idle then select position D
to
accelerate.
If the ambient temperature is below
-23°C, the engine should be left at idle
for four minutes, to ensure the correct
operation and life of the engine and
gearbox.
When the engine is running at idle, with
the brakes released, if position R
, D
or
M
is selected, the vehicle moves even
without the accelerator being pressed.
When the engine is running, never
leave children in the vehicle without
supervision.
When carrying out maintenance with
the engine running, apply the parking
brake and select position P
.


)
Apply the parking brake.

)
Select position P
or N
.

)
Start the engine.
If these conditions are not met, there is an
audible signal, accompanied by the display of
an warning message.


)
With the engine running, press the brake
pedal.

)
Release the parking brake.

)
Select position R
, D
or M
.

)
Gradually release the brake pedal.
The vehicle moves off immediately.

3Driving

Reverse

When selecting reverse R
with the ignition on,
the rear parking sensors are activated.
For more information, refer to the "Rear parking
sensors" section.


Creep function (moving without
using the accelerator)
This function provides great flexibility in
manoeuvring the vehicle at low speed (when
parking, in traffic jams, …).
With the engine at idle, parking brake released
and position D
, M
or R
selected, the vehicle
moves
as soon as you take your foot off
the brake pedal (even without pressing the
accelerator).
For your safety, this function will be activated
only if you press the brake pedal when
changing from for ward drive to reverse.
It is deactivated on opening the driver's door.
Closing the door then pressing the brake or
accelerator pedal, reactivates the function.



Automatic operation


Never select position N
while the
vehicle is moving.
Never select positions P
or R
unless
the vehicle is completely stationary.

)
Select position D
for automatic
changing
of the six gears.
The gearbox then operates in auto-adaptive
mode, without any inter vention on the part
of the driver. It continuously selects the most
suitable gear according to the style of driving,
the profile of the road and the load in the
vehicle.
For maximum acceleration without touching
the selector, press the accelerator pedal down
fully (kick down). The gearbox changes down
automatically or maintains the gear selected
until the maximum engine speed is reached.
On braking, the gearbox changes down
automatically to provide efficient engine
braking.
If you release the accelerator sharply, the
gearbox will not change to a higher gear for
safety reasons.

4Driving

If the selector is not in position P
,
when the driver's door is opened or
approximately 45 seconds after the
ignition is switched off, a warning
message appears in the screen.


)
Return the selector to position P
;
the message disappears.
When driving on flooded roads or when
crossing a ford, proceed at walking
pace.



Manual operation



)
Select position M
for sequential
changing
of the six gears.

)
Move the selector towards the +
sign to
change up a gear.

)
Move the selector towards the -
sign to
change down a gear.
It is only possible to change from one gear to
another if the vehicle speed and engine speed
permit; other wise, the gearbox will operate
temporarily in automatic mode. This symbol is displayed if a gear
is not engaged correctly (selector
between two positions).


D
disappears and the gears
engaged appear in succession in the
instrument panel.

Stopping the vehicle

Before switching off the engine, you can
engage position P
or N
to place the gearbox in
neutral.
In both cases, apply the parking brake to
immobilise the vehicle.

Invalid value during manual
operation
If the engine speed is too low or too high, the
gear selected flashes for a few seconds, then
the actual gear engaged is displayed.
It is possible to change from position D

(automatic) to position M
(manual) at any time.
When the vehicle is stationary or moving
very slowly, the gearbox engages first gear
automatically. When the ignition is on, the lighting
of this warning lamp, accompanied

Operating fault
by an audible signal and a message in the
multifunction screen, indicates a gearbox fault.
In this case, the gearbox switches to back-up
mode and is locked in 3rd gear. You may feel
a substantial knock when changing from P

to R
and from N
to R
. This will not cause any
damage to the gearbox.
Do not exceed 60 mph (100 km/h), local speed
restrictions permitting.
Contact a CITROËN dealer or a qualified
workshop as soon as possible.

There is a risk of damage to the gearbox:


- if you press the accelerator and
brake pedals at the same time,

- if you force the movement of the
selector from the P
position to
another position when the battery is
flat.
To reduce fuel consumption when at
a prolonged standstill with the engine
running (traffic jam...), put the selector
in the N
position and apply the parking
brake.
