2015 Citroen C4 CACTUS key

42
C4-cactus_en_Chap02_ouvertures_ed02-2014
Lost keys
Go to a CITROËN dealer with the vehicle's registration document, your personal identification   documents   and   if   possible   the   key   code   label.
The
  CITROËN   dealer   will   be   able   to   look   up   the   key   code   and   the   transponder   code
r

equired   to   order   a   new   key.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket   as   there   is   a   possibility   that   it   may   unlock   the   vehicle,   without   you   being   aware   of   it.
Do
  not   repeatedly   press   the   buttons   of   your   remote   control   out   of   range   and   out   of   sight   of
y

our   vehicle.   You   run   the   risk   of   stopping   it   from   working   and   the   remote   control   would   have
t

o   be   reinitialised.
No
  remote   control   can   operate   when   the   key   is   in   the   ignition   switch,   even   when   the   ignition
i

s   switched   off,   except   for   reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency   services   more   difficult   in   an   emergency.
As
  a   safety   precaution,   never   leave   children   alone   in   the   vehicle,   except   for   a   very   short   period.
In
  all   cases,   it   is   essential   to   remove   the   key   from   the   ignition   switch   when   leaving   the   vehicle.
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause m alfunctions.
When purchasing a second-hand vehicle
Have the pairing of all of the keys in your possession checked by a CITROËN dealer, to ensure   that   only   your   keys   can   be   used   to   open   and   start   the   vehicle.Do
  not   throw   the   remote   control
b

atteries   away,   they   contain   metals
w

hich   are   harmful   to   the   environment.
Take   them   to   an   approved   collection
po

int.
Access

44
C4-cactus_en_Chap02_ouvertures_ed02-2014
doors
From outside
F After  unlocking   the   vehicle   using   the  r
emote   control   or   the   key,   pull   the   door
han

dle.
Opening
From inside
F Pull  the   interior   control   lever   of   a   front   door;  t
his   unlocks   the   vehicle   completely.
The
  interior   opening   control   on   a   rear
 d

oor   does   not   work   if   the   child   lock   is   on.
Refer
  to   the   "Child   lock"   section.When
  a   door   is   not   fully   closed:
-
e
ngine running
,   a   message   appears   in
t

he screen,
-
v
ehicle moving
,   a   message   appears   in
t

he   screen,   accompanied   by   an   audible
s

ignal.
Closing
Access

45
C4-cactus_en_Chap02_ouvertures_ed02-2014
Secondary control
Driver's door (locking/unlocking)
Insert the key in the lock to lock or unlock the door.
Procedure
  for   mechanically   locking   and
u

nlocking   the   doors   in   the   event   of   a   fault   with
t

he   central   locking   system   or   a   battery   failure.
Front and rear passenger doors
Locking
In the event of a fault with the central
locking

system,

it

is

essential

to

d

isconnect

the

battery

to

lock

the

boot

a

nd

so

ensure

complete

locking

of

t

he vehicle.
On  the   rear   doors,   check   that   the   child
l

ock   is   not   on.
F

R
emove   the   black   cap   located   on   the   edge
o

f   the   door,   using   the   key.
F

I
nsert   the   key   into   the   aperture   without
f

orcing,   then   without   turning,   move   the
l

atch sideways towards the inside of the
d o o r.
F

R
emove   the   key   and   refit   the   cap.
Unlocking
F

P
ull   the   interior   door   opening   control   lever.
2
Access

46
C4-cactus_en_Chap02_ouvertures_ed02-2014
boot
Opening
F After  unlocking   the   boot   (see   the   "Remote  c
ontrol   key"   section),   press   the   opening
c

ontrol   and   raise   the   tailgate. F
 L ower   the   tailgate   using   the   interior   grab  han
dle.
ClosingBoot release
Unlocking
F Fold  the   rear   seat   backrest   to   gain   access  t
o   the   lock   from   inside   the   boot.
F

I
nsert   a   small   screwdriver   into   hole   A of the
lock
  to   unlock   the   tailgate.
System
  for   mechanical   unlocking   of   the   boot
i

n   the   event   of   a   battery   or   central   locking
m

alfunction.
If

the

tailgate

is

not

fully

closed:
-
e
ngine running
,

a

message

appears

in
 t
he screen,
-

v

ehicle moving ,

a

message

appears

in

t

he

screen,

accompanied

by

an

audible

s

ignal.
Access

47
C4-cactus_en_Chap02_ouvertures_ed02-2014
Front electric window controls
The electric window switches
remain  operational   for   approximately
4

5 seconds   after   the   ignition   is
s

witched off or until a front door
is
  opened.   If,   during   this   period   of
4

5 seconds,   you   open   a   door   while
o

perating   a   window,   the   window   stops.
T

he window switch will then only be
operative
  after   the   ignition   is   switched
o

n   again.
1.
F

ront left electric window switch.
2.
F

ront right electric window switch.
F

P

ress

the

switch

to

open

the

window.
F

P

ull

the

switch

to

close

the

window.
The

window

stops

when

you

release

the

switch. Always
  remove   the   key   from   the   ignition
w

hen   leaving   the   vehicle,   even   for   a
s

hort   time.
In
  the   event   of   contact   during   operation
o

f   the   windows,   reverse   the   movement
o

f   the   window.   To   do   this,   press   the
c

orresponding
 s
witch.
When the driver operates the
passenger
  electric   window   switch,   they
s

hould   ensure   that   no   one   is   preventing
c

orrect   closing   of   the   window.
The driver should ensure that the
passenger
  uses   the   electric   window
c

o r r e c t l y.
be p

articularly aware of children when
operating
 t

he
 w
indows.
2
Access

72
C4-cactus_en_Chap04_amenagements_ed02-2014

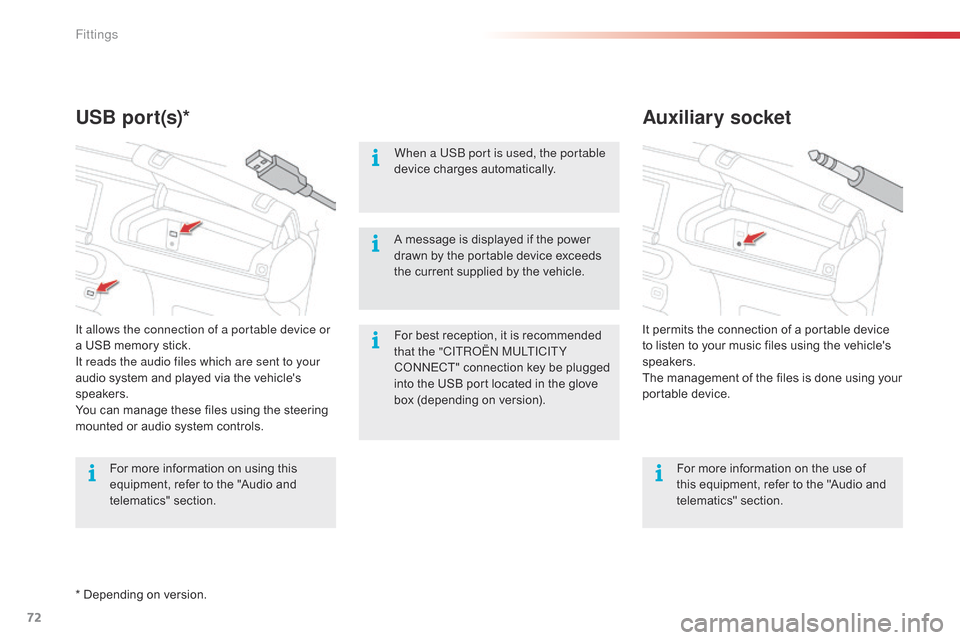

Auxiliary socket
USB por t(s)*
For best reception, it is recommended t
hat the "CITRoËn M ULTICITY
CONNECT"
  connection   key   be   plugged
i

nto   the   USB   port   located   in   the   glove
b

ox   (depending   on   version).
When a US
b

port is used, the portable
device   charges   automatically.
For   more   information   on   the   use   of
t

his   equipment,   refer   to   the   "Audio   and
t

elematics"
 se
ction.
For

more

information

on

using

this

e

quipment,

refer

to

the

"Audio

and

t

elematics"
 se

ction. It
  permits   the   connection   of   a   portable   device  t
o   listen   to   your   music   files   using   the   vehicle's
s

peakers.
The
  management   of   the   files   is   done   using   your
p

ortable
 d
evice.
It allows the connection of a portable device or
a

USB

memory

stick.
It reads the audio files which are sent to your
audio

system

and

played

via

the

vehicle's

s

peakers.
You

can

manage

these

files

using

the

steering

m

ounted

or

audio

system

controls. A
  message   is   displayed   if   the   power
d

rawn   by   the   portable   device   exceeds
t

he   current   supplied   by   the   vehicle.
*

Depending

on

version.
Fittings

79
C4-cactus_en_Chap05_conduite_ed02-2014
Starting-switching off the engine
It has 3 positions:
- position 1 (Stop):
  insert   and   removing
the
  key,
-
position 2 (Ignition on) :
  steering   column
u

nlocked,   ignition   on,   Diesel   preheating,
e

ngine
 r
unning,
-
position 3 (Starting) .
Ignition switch
Switching off the engine leads to a loss o
f   braking   assistance.
Ignition on position (2)
It allows the use of the vehicle's electric equipment   or   portable   devices   to   be   charged.
Once
  the   state   of   charge   of   the   battery   drops
t

o   the   reserve   level,   the   system   switches   to
e

nergy   economy   mode:   the   power   supply   is
c

ut   off   automatically   to   preserve   the   remaining
b

attery   charge. Avoid
  attaching   heavy   objects   to   the  k
ey,   which   would   weigh   down   on   its  b
lade   in   the   ignition   switch   and   could
c

ause   a   malfunction.
5
driving

80
C4-cactus_en_Chap05_conduite_ed02-2014
Starting
The parking brake must be applied.
F

W

ith

a   manual   gearbox,   place   the   gear
l

ever in neutral then depress the clutch
pedal
 f

ully.
F

W

ith

an   electronic   gearbox,   place   the
c

ontrol at N   then   press   the   brake   pedal
f

i r m l y.
F

I

nsert
  the   key   into   the   ignition   switch;   the
s

ystem   recognises   the   code.
In

certain   cases,   you   may   have   to   apply
m

ore   force   to   the   steering   (wheels   on
f

ull
  lock,   for   example).
F

W

ith

a   petrol   engine,   operate   the   starter
m

otor
  by   turning   the   key   to   position   3
without
  pressing   the   accelerator   pedal,
u

ntil

the   engine   starts.   Once   the   engine   is
r

unning,   release   the   key. F
 W ith   a   Diesel   engine,   turn   the   key   to
p

osition 2,
  ignition   on,   to   operate   the
eng

ine
 p
re-heating
 s
ystem.
Wait until this warning lamp goes off in the instrument   panel   then   operate   the   starter m

otor   by   turning   the   key   to   position 3
without
  pressing   the   accelerator   pedal,
 u

ntil   the   engine   starts.   Once   the   engine   is
 r

unning,   release   the   key.
In wintry conditions, the warning lamp can   stay   on   for   a   longer   period.   When
t

he   engine   is   hot,   the   warning   lamp
d

oes   not   come   on. In
  temperate   conditions,   do   not   leave
t

he   engine   at   idle   to   warm   up   but   move
o

ff   straight   away   and   drive   at   moderate
s

peed.
Never   leave   the   engine   running   in
a

n   enclosed   area   without   adequate
v

entilation:
 in
ternal
 c
ombustion
 e

ngines   emit   toxic   exhaust   gases,
s

uch   as   carbon   monoxide.   Danger   of  i
ntoxication   and   death.
In very severe wintry conditions
(temperatures
  below   -23°C),   to   ensure
t

he correct operation and durability of
the
  mechanical   components   of   your
v

ehicle,   engine   and   gearbox,   it   is
n

ecessary   to   leave   the   engine   running
f

or   4   minutes   before   moving   off.
If
  the   engine   does   not   start   straight
a

way,   switch   off   the   ignition.   Wait   a   few
m

oments   before   operating   the   starter
m

otor   again.   If   the   engine   does   not
s

tart   after   several   attempts,   do   not   keep
t

rying:   you   risk   damaging   the   starter
m

otor   or   the   engine.
Contact a CITR
oËn

dealer or a
qualified
 w

orkshop.
F

U

nlock

the

steering

column

by

simultaneously
 t

urning

the

steering

and

the

key.
Driving
