2015 Citroen C3 RHD Owner's Manual

7

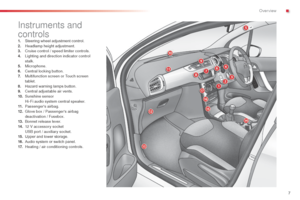

Instruments and
controls
1. Steering wheel adjustment control.
2. Headlamp height adjustment.
3.
C

ruise control / speed limiter controls.
4.
L

ighting and direction indicator control
stalk.
5.


Microphone.
6.
C

entral locking button.
7.
M

ultifunction screen or Touch screen
tablet.
8.
H

azard warning lamps button.
9.
C

entral adjustable air vents.
10.
S

unshine sensor
H

i-Fi audio system central speaker.
11.
P

assenger's airbag.
12 .
G

love box / Passenger's airbag
deactivation / Fusebox.
13.


b
o
nnet release lever.
14 .
1

2 V accessory socket
U

S
b
port / auxiliary socket.
15.
U

pper and lower storage.
16.
A

udio system or switch panel.
17.
H

eating / air conditioning controls.
.
over view

8
Eco-drivingEco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up without waiting. during acceleration change up early.
With an automatic or electronic gearbox, give preference to automatic
mode and avoid pressing the accelerator pedal heavily or suddenly.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. These
practices contribute towards a reduction in fuel consumption and CO
2
emissions and also helps reduce the background traffic noise.
If your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffic is flowing well. The gear efficiency indicator invites you engage the most suitable gear:
as soon as the indication is displayed in the instrument panel, follow it
straight away.
For vehicles fitted with an electronic or automatic gearbox, this
indicator appears only in manual mode.
Control the use of your electrical
equipment
Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the temperature
in the passenger compartment down (sunroof and window blinds...).
Switch off the air conditioning, unless it has automatic regulation, as soon
as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the level of light
does not require their use.
Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.
as a p

assenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
dis

connect your portable devices before leaving the vehicle.
Eco-driving

9
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
-
b
efore a long journey,
-

a
t each change of season,
-

a
fter a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the manufacturer's service schedule.
With a
b
l
ueH
di
d
i
esel engine, if the SCR system is faulty your vehicle
becomes polluting; go to a CITROËN dealer or a qualified workshop
without delay to have the emissions of nitrous oxides brought back to
the legal level.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any over flow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3
000 kilometres) that you will see the fuel consumption settle down to
a consistent average.
Eco-driving
.

10
Panel grouping together the vehicle operation indication dials and warning lamps.
Instrument panels - manual gearbox
5. Display management button. S
ervicing information.


a
d
just the time and choose units.
R

eset the service indicator.

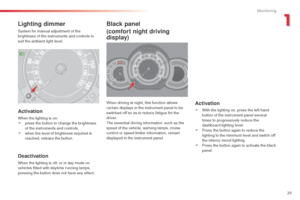

6.
I

nstrument panel lighting button.


a
d
justs the brightness of the lighting of the
instruments and controls.
1. R
ev counter.
I
ndicates the speed of rotation of the
engine (x 1 000 rpm).
2.
S

peedometer .
I

ndicates the current speed of the moving
vehicle (mph or km/h).
3.
F

uel gauge.
I

ndicates the quantity of fuel remaining in
the tank.
4.
S

creen. A. A
mbient temperature.
(

°Celsius or °Fahrenheit)
B.
G

ear efficiency indicator.
C.
Ti

me.
D.
E

ngine oil level indicator.
A

ppears a few seconds after switching on
the ignition, then disappears.
E.
T

rip computer.
F.
S

ervice indicator or Range related
to the AdBlue additive and the SCR
system (miles or km), then,
t

otal mileage.
T

hese functions are displayed successively
when switching on the ignition.
Screen
For more information, refer to the
section on the button or function and its
associated display.
Dials
Monitoring

11
Instrument panels - electronic or automatic gearboxes
Panel grouping together the vehicle operation indication dials and warning lamps. Depending on the version, the instrument panel may have permanent
back-lighting.
1.
R
ev counter.
I

ndicates the speed of rotation of the
engine (x 1 000 rpm).
2.
S

peedometer .
I

ndicates the current speed of the moving
vehicle (mph or km/h).
3.
F

uel gauge.
I

ndicates the quantity of fuel remaining in
the tank.
4.
S

creen. 5.
D

isplay management button.
A

lternates display between range and trip
mileage recorder.
S

ervicing information.
R

esets the selected function to zero (trip
distance recorder or service indicator).
6.
I

nstrument panel lighting button.


a
d
justs the brightness of the lighting of the
instruments and controls.
ScreenDials
For more information, refer to the
section on the button or function and its
associated display. A.
S

peed limiter

(
mph or km/h) or

C
ruise control.
B.
G
ear
efficiency indicator.
C.
E
lectronic
or automatic gearbox
information.
D.
R
ange

(
miles or km) or
T

rip mileage recorder.
E.
S
ervice indicator

(
miles or km), then
tot

al mileage recorder.
T hese two functions are displayed
successively when switching on the ignition.
F.
E

ngine oil level indicator.
A

ppears a few seconds after switching on
the ignition, then disappears.
1
Monitoring

12
Visual indicators informing the driver that a system is in operation (operation or deactivation indicator lamps) or of the occurrence of a fault
(warning lamp).
When the ignition is switched on
Certain warning lamps come on for a few
seconds when the vehicle's ignition is
switched
on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.
Operation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has
come into operation.
Associated warnings
The illumination of certain warning lamps may
be accompanied by an audible signal and a
message in the multifunction screen.
The warning lamps may come on continuously
(fixed) or flash.
Warning/indicator lamp is onCause Action / Observations
Left-hand direction
indicatorflashing with buzzer. The lighting stalk is pushed down.
Right-hand
direction indicatorflashing with buzzer.The lighting stalk is pushed up.
Sidelamps fixed. The lighting stalk is in the
"Sidelamps" position.
Hazard warning
lamps
flashing with audible
signal. The hazard warning lamps switch,
located on the dashboard, has been
operated. The left-hand and right-hand direction indicators and
their associated indicator lamps flash simultaneously.Certain warning lamps may come on
in one of two different modes. Only by
relating the type of illumination to the
operating status of the vehicle can it
be ascertained whether the situation is
normal or whether a fault has occurred.
Indicator and warning lamps
Monitoring

13
Front foglampsfixed. The front foglamps are switched on
using the ring on the lighting control
stalk. Turn the ring on the lighting control stalk rear ward
twice to switch off the front foglamps.
Rear foglamps fixed. The rear foglamps are on. Turn the ring on the stalk rear ward to switch off the
rear foglamps.
Diesel engine
pre-heating fixed.
The key is at position 2 (ignition on) in
the ignition switch. Wait until the warning lamp goes off before starting.
The period of illumination of the warning lamp is
determined by the ambient conditions (up to about
thirty seconds in very low temperatures).
If the engine does not start, switch the ignition off and
then on, wait until the warning lamp goes off again,
then start the engine.
Parking brake fixed. The parking brake is applied or not
properly released. Release the parking brake to switch off the warning
lamp, keeping your foot on the brake pedal.
ob

serve the safety recommendations.
For more information on the parking brake, refer to the
corresponding section.
Dipped beam
headlamps
fixed.
The lighting stalk is in the "
di
pped
beam headlamps" position.
Main beam
headlamps fixed.
The lighting stalk is pulled towards
you. Pull the stalk to return to dipped beam headlamps.
Warning/indicator lamp
is onCause Action / Observations
1
Monitoring

14

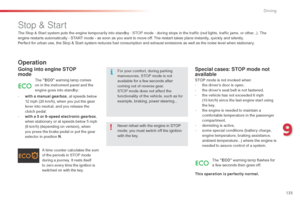

Stop & Star tfixed. When the vehicle stops (red lights,
traffic jams,
...) the Stop & Start system
has put the engine into ST
oP m

ode.The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.
flashes for a few
seconds, then
goes off. ST
oP m

ode is temporarily
unavailable.
or
ST
aR

T mode is invoked
automatically. For more information on special cases with STOP
mode and ST
aR

T mode, refer to the "Stop & Start"
section.
Engine coolant
temperature
fixed blue.
on s
tarting the engine, it indicates
that the engine is cold. After a few minutes driving, it swiches off to indicate
that the engine temperature is normal.
In order to protect your engine, avoid driving too hard
until the warning lamp has switched off.
Warning/indicator lamp
is onCause Action / Observations
Monitoring
