2015 Citroen C ZERO RHD ESP

85
91
64
97
4

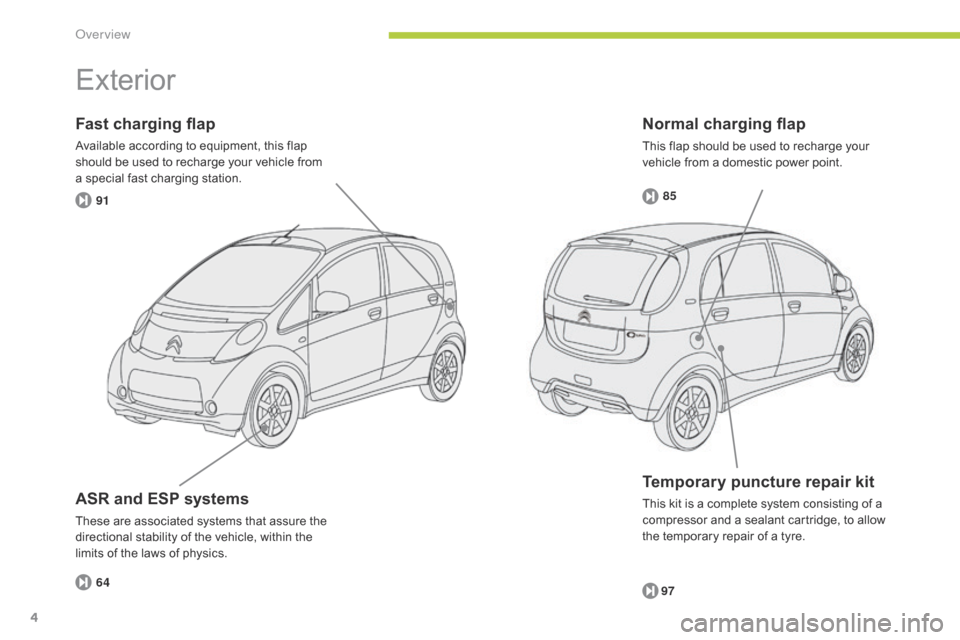

Normal charging flap
This flap should be used to recharge your
vehicle from a domestic power point.
Fast charging flap
Available according to equipment, this flap
should be used to recharge your vehicle from
a
special fast charging station.
Temporary puncture repair kit
This kit is a complete system consisting of a
compressor and a sealant cartridge, to allow
the temporary repair of a tyre.
Exterior
ASR and ESP systems
These are associated systems that assure the
directional stability of the vehicle, within the
limits of the laws of physics.
Over view

6
Instruments and controls
1. Driver's airbag. Horn.
2.
I

nstrument panel.
3.
W

iper stalk.
4.
S

ide vents.
5.
W

indow demisting vent.
6.
E

lectric window switches and switch
for deactivating the the front and rear
passenger electric window controls.
7.
O

pening control for the fast charging flap
(vehicle left hand side).
8.
B

onnet release lever.
9.
O

pening control for the normal charging
flap (vehicle right hand side).
10.
F

usebox.
11.
D

oor mirror controls.
12 .
H

eadlamp height adjustment.
A

SR /ESP deactivation switch.
13.
S

teering lock and ignition switch.
Over view

9
Instrument panelPanel bringing together the various gauges and indicators for the operation of the vehicle.
1.
S
tate of charge indicator for the main
battery.
D

rive selector position indicator.
2.
E

nergy consumption / generation
indicator.
3.
S

peedometer
4.
S

creen. A.
T

otal distance recorder.
B.
T

rip distance recorder (Trip A or B).
C.
I

nstrument panel lighting dimmer.
D.
D

istance remaining to the next ser vice.
E.
T

ime remaining to the next ser vice.
F.
U

nder-inflation detection.
G.
R

emaining range.
5.
S

creen control button.
D

isplay the various functions in turn.
R

eset the function selected (trip recorder
or service indicator).
A

djust the level of instrument lighting.
For more information, refer to the
corresponding section.
Gauges and indicatorsScreen
1
Monitoring

11
Warning / indicator lampSt ateCause Action / Observations
Left-hand
direction
indicato r Flashing with audible
signal.
The lighting stalk is pushed down.
Right-hand
direction
indicator Flashing with audible
signal.
The lighting stalk is pushed up.
Hazard warning
lamps Flashing with audible
signal. The hazard warning lamps switch,
located on the dashboard, has been
operated. The left-hand and right-hand direction indicators and
their associated indicator lamps flash simultaneously.
Sidelamps and/
or dipped beam
headlamps On fixed.
The sidelamps and/or dipped beam
headlamps are on.
Front foglamps On fixed. The front foglamps are switched on. Turn the ring on the stalk rear wards twice to switch off
the front foglamps.
Rear foglamp On fixed. The rear foglamp is switched on. Turn the ring on the stalk rear wards to switch off the
rear foglamp.
Main beam
headlamps
On fixed.
The lighting stalk is pulled towards
you. Pull the stalk to return to dipped beam headlamps.
Operation indicator lamps
If one of the following indicator lamps comes on in the instrument panel, this confirms that the corresponding system has come into operation.
1
Monitoring

12
Warning / indicator lampSt ateCause Action / Observations
Ready
(ready to move
off) On fixed,
accompanied by an
audible signal when it
comes on. The vehicle is ready to move off and
you can press the accelerator.
The illumination period corresponds to the powering-up
of the vehicle.
Parking brake On fixed. The parking brake is applied or not
properly released. Release the parking brake to switch off the warning
lamp, keeping your foot on the brake pedal.
Observe the safety recommendations.
For further information on the parking brake, refer to
the "Driving" section.
Main batter y
charge (normal
or fast) On fixed.
The main battery is on charge. On completion of the charge, the lamp goes off.
Flashing. The charging cable is connected to
the vehicle but the main battery is not
yet charging. Check the connection of the charging cable.
Monitoring

13
Deactivation indicator lamps
Warning / indicator lampSt ateCause Action / Observations
Passenger's
airbag system On fixed, on the
centre console. The control switch, located on
the centre console, is set to the
OFF
p

osition.
The passenger's front airbag is
deactivated. Set the control switch to the ON
position to activate
the passenger's front airbag. In this case, do not fit a
child seat in the rear ward facing position.
Remember to check the position of the control switch
before starting your vehicle.
ESP/ASR On fixed. The ESP/ASR off switch, located
in the dashboard (driver's side) is
activated.
The ESP/ASR is deactivated.
ESP: electronic stability programme
ASR: anti-slip regulation. Press the button to activate the ESP/ASR.
The ESP/ASR system is automatically activated on
starting the vehicle.
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal.
1
Monitoring

15
Electronic
stability
programme
and anti-slip
regulation (ESP/
ASR)Flashing.
Activation of the ESP/ASR systems. The systems optimise traction and improve the
directional stability of the vehicle.
Adapt your driving and moderate your speed.
On fixed. Fault in the ESP/ASR systems. Have it checked by a CITROËN dealer or a qualified
workshop.
+
Door(s) open On fixed,
accompanied by an
audible signal. A door or the boot is still open. Close the door or boot.
Ancillaries
battery charge
On fixed.
The ancillaries battery charging
circuit has a fault (dirty or loose
terminals, slack, transformer fault, ...). The warning lamp should go off when the motor is
started.
If it does not go off, contact a CITROËN dealer or
qualified workshop.
Electric power
steering
On fixed.
The electric power steering has a
fault. Drive carefully at reduced speed.
Have it checked by a CITROËN dealer or a qualified
workshop.
Warning
/ indicator lamp
State Cause Action
/
Observations
1
Monitoring

20
Instrument panel screenWhen the ignition switch is in the "ON" position, press button A repeatedly to display the following information in turn.
Distance recorder
System for measuring the total distance
travelled by the vehicle during its life.
Press button A .
The total distance appears in the screen.Reset to zero
With the ignition on and either trip A or B
displayed, press the button for more than
2
seconds.
Trip distance recorder (Trip A or B)
Each of these trip recorders indicates the
distance travelled since the last reset.
Press button A to display the desired trip.
Changing the speedometer units
With the total distance recorder displayed,
press and hold button A for a few seconds to
change the speedometer units (mph or km/h).
The range indicator is displayed in the units
(miles or km) corresponding to those of the
speedometer (mph or km/h).
Monitoring
